MSI

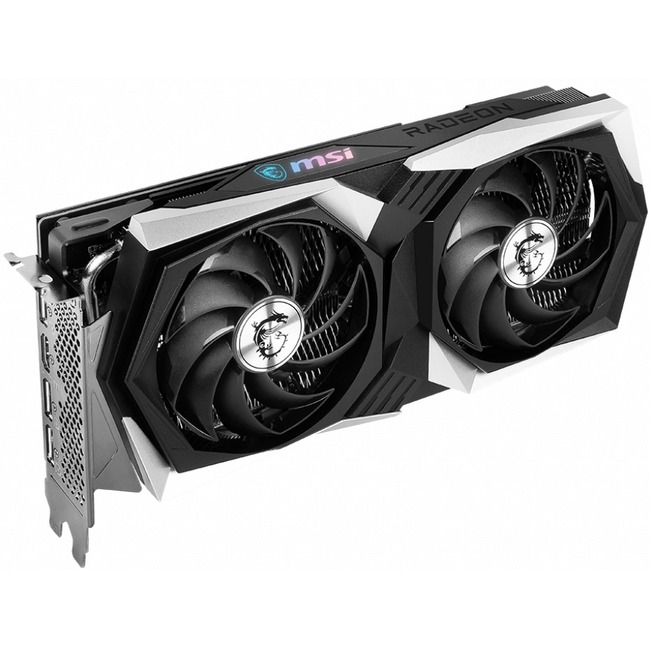

MSI R6650XTGX8 RADEON RX6650 XT GAMING X PCIE 8GB GDDR6
Mfg Part Number: R6650XTGX8 , Item #: 5150021
, PO and Wire.
THE GAMING YOU KNOW & TRUST
The latest iteration of MSI's iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT 'EM UP
It's time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
WE KEEP IT COOL AND QUIET
The TWIN FROZR 8 thermal system has been designed for efficiency. Expect a perfect balance of cool and quiet for more fun during endless gaming sessions.
TEAMWORK MAKES THE DREAM WORK

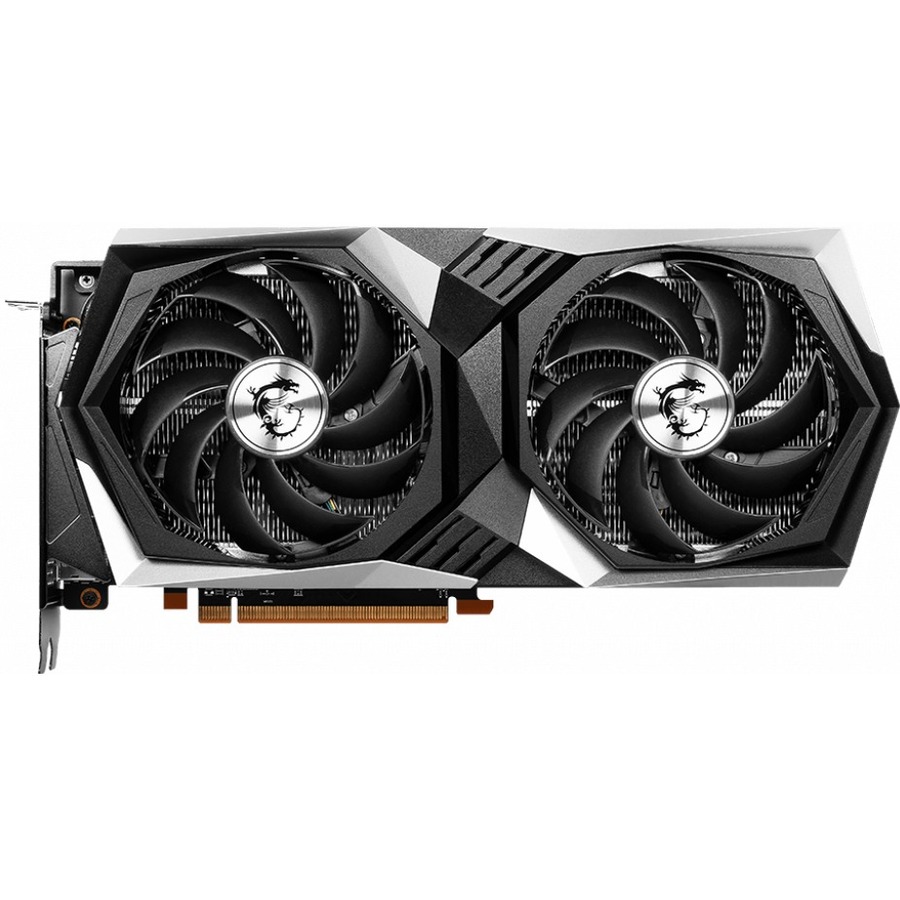

TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with an outer ring design link that focuses airflow into the updated TWIN FROZR 8 cooling system.
TOTALLY COOL CORE PIPES
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
SHHHH...SILENCING HEATSINK DESIGN
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it's needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
TOUGH ENOUGH TO BACK YOU UP!
GAMING has been crafted to serve you well during intense gameplay. This legendary item has extra power unlocked through the Custom PCB.
Better Safe Than Sorry
Additional fuses built into the custom PCB provide additional layers of protection against electrical damage.
Forged from Enhanced Materials
An enhanced PCB material design with 2oz thickened copper increases conductivity, improving heat dissipation, and high-performance reliability.
BEND THE RULES, NOT THE CARD

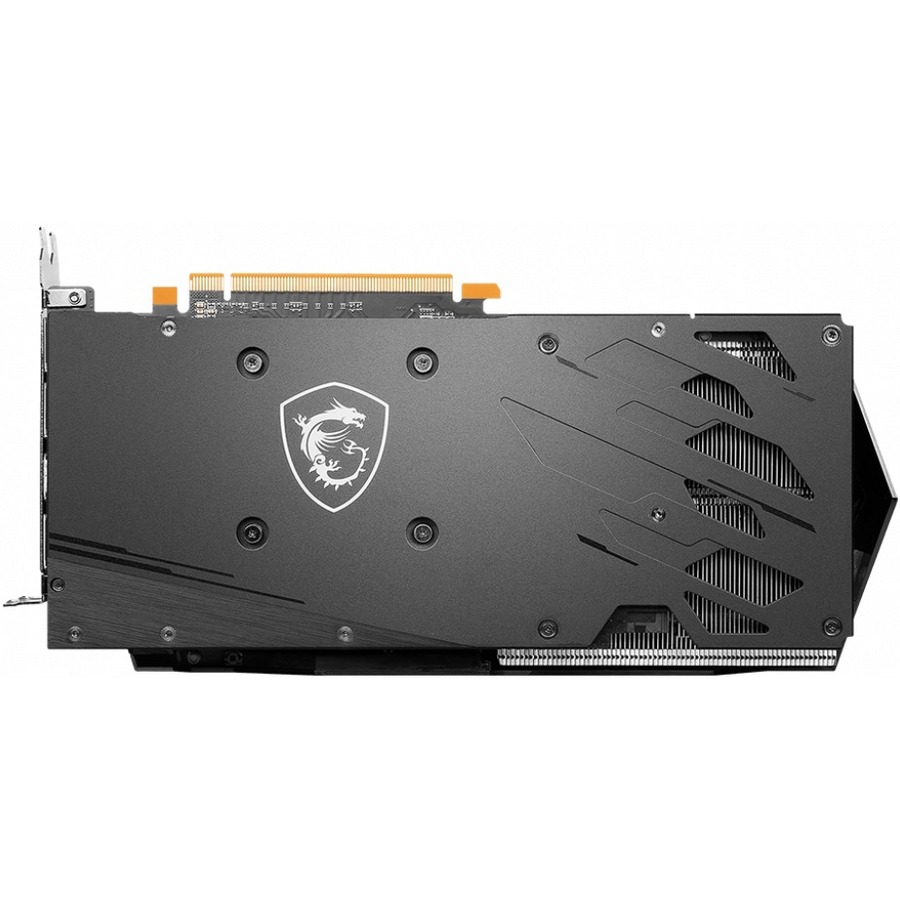

Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
Anti-bending Included
Anti-bending Force
WE MADE 10 MILLION CLICKS, YOU ONLY NEED 1 | Bringing It All Together
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | R6650XTGX8 |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Model | Radeon RX 6650 XT GAMING X 8G |
| Product Name | Radeon RX 6650 XT GAMING X 8G Graphic Card |
| Product Type | Graphic Card |
| Technical Information | |
| API Supported | DirectX 12 Ultimate |
| API Supported | OpenGL 4.6 |
| Number of Monitors Supported | 4 |
| Maximum Digital Display Resolution | 7680 x 4320 |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Line | Radeon |
| Chipset Series | RX 6000 |
| Chipset Model | RX 6650 XT |
| GPU Boost Clock | 2.69 GHz |
| Game Clock | 2.52 GHz |
| Memory | |
| Standard Memory | 8 GB |
| Memory Technology | GDDR6 |
| Bus Width | 128 bit |
| Interfaces/Ports | |
| Host Interface | PCI Express 4.0 x8 |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 3 |
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Power Description | |
| Power Supply Wattage | 500 W |
| Power Connector | 1x 8-pin |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Cooler Type | Fan Cooler |
| Height | 2" |
| Width | 5.1" |
| Length | 10.9" |
| Weight (Approximate) | 1.97 lb |
| Miscellaneous | |
| Platform Supported | PC |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 3 Year |
