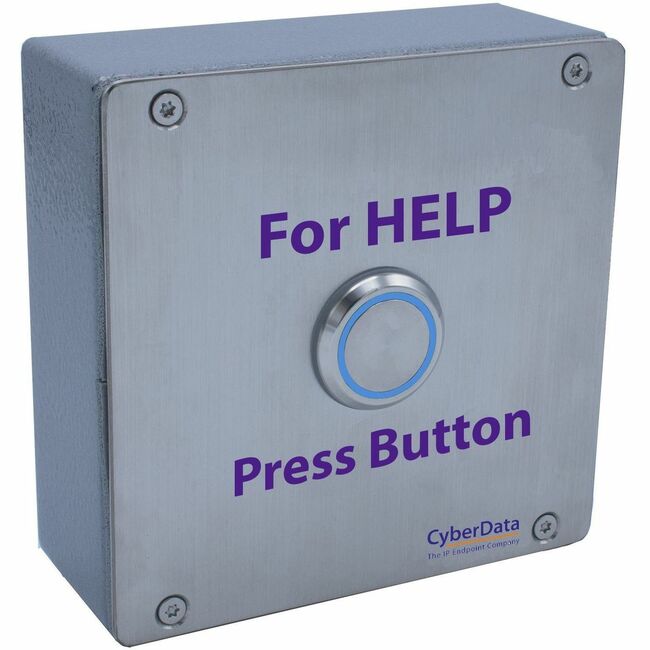

The SIP Outdoor Call Button is a reliable solution for a one-touch programmable call to an IP phone or page announcement. This IP65 rated device can be mounted on an outside wall or external door, in a parking area or harsh environment.
If an event occurs, only a simple button press is required to automatically place a call to the configured phone or extension number. When the called number answers, the Call Button plays and repeats a stored audio file. This stored audio file is uploaded by the administrator to meet the needs of the installed location.
In a Singlewire InformaCast environment, the SIP Outdoor Call Button registers to the Cisco Call Manager as a third party SIP endpoint. When the Call Button is depressed it makes a call to the Cisco Call Manager and the Singlewire InformaCast software detects that call and initiates an event.
CyberData's SIP enabled VoIP products are compatible with a vast majority of VoIP systems including SBCs, Gateways, and phone systems both on-premise and cloud-based.
| General Information | |
| Manufacturer | CyberData Corporation |
| Manufacturer Part Number | 011491 |
| Manufacturer Website Address | http://www.cyberdata.net |
| Brand Name | CyberData |
| Product Name | SIP Outdoor Call Button |
| Product Type | Push Button |
| Technical Information | |
| Pull Station Type | Single Action |
| Features | Wall Mountable |
| Features | Tamper Resistant |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source | Power Supply |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Physical Characteristics | |
| Height | 5.1" |
| Width | 2.4" |
| Depth | 5.1" |
| Weight (Approximate) | 2 lb |
| Miscellaneous | |
| Application/Usage | Area of Refuge |
| Application/Usage | Playground |
| Application/Usage | School |
| Application/Usage | Outdoor |
| Application/Usage | Parking Garage |
| Certifications & Standards |
|
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
