MATROX

MATROX NRG-5-1DBY ONE (1) NRG REDUNDANT POWER SUPPLY UNIT PRE INSTALLED ON A RACK TRAY. (TAA)

Mfg Part Number:  NRG-5-1DBY
Image may not reflect the actual item.
Price: $2,482.18
Quantity:
More to Come
Last Updated: Oct 14, 2025
No Sales Tax except these states
, PO and Wire.

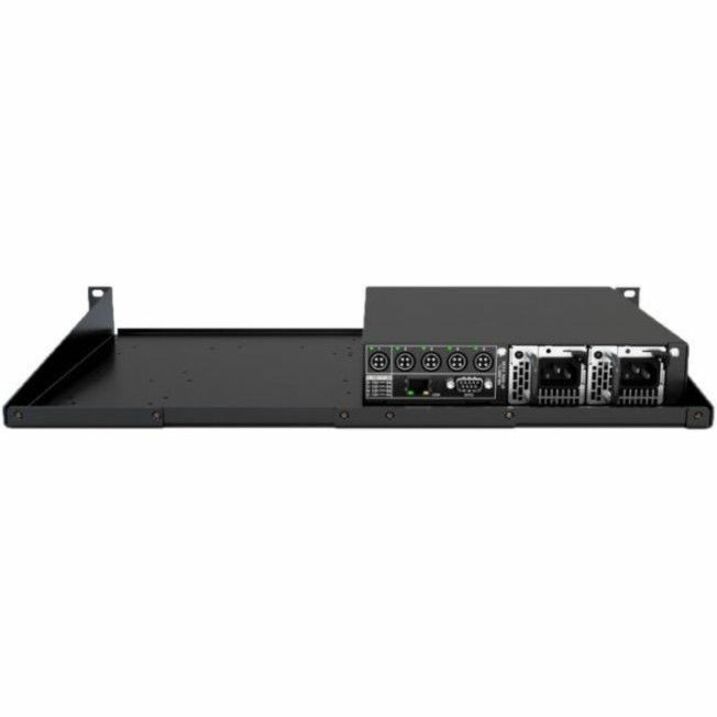

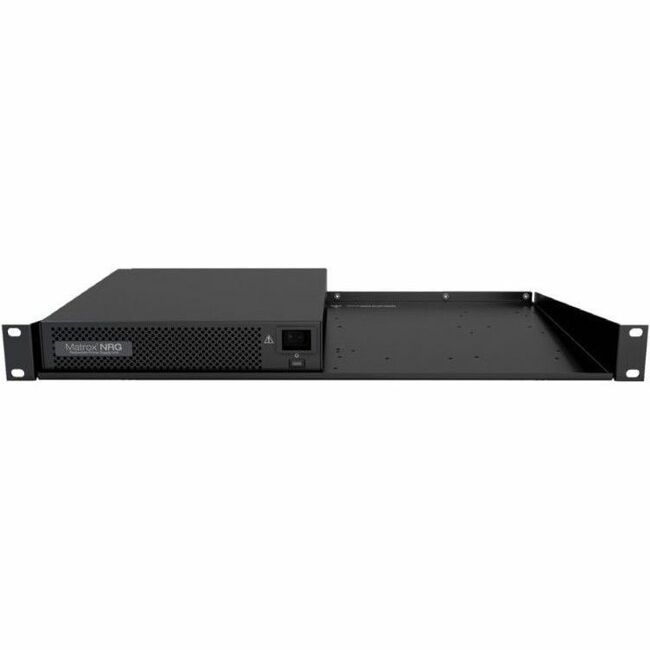

Pre-installed and rack mountable | Single density

One NRG redundant power supply unit comes pre-installed on a 1U rack shelf, which can also hold a second ½ width RU (Rack Unit) Matrox device. The shelf is designed to fit standard 19" (48.26 cm) racks.

Dual density

Two NRG redundant power supply units come pre-installed on a 1U rack shelf. The shelf is designed to fit standard 19" (48.26 cm) racks.

Full redundancy for up to 5 devices

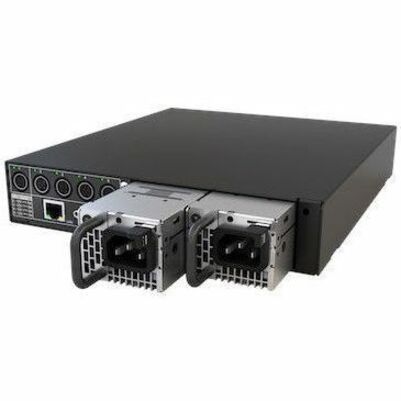

Matrox NRG includes two field-replaceable redundant power supply modules of 300W each. If one of the power supply modules fails, the output load will be completely supported by the second power module. The modules deliver hot-swap functionality, so you can replace an individual power module without interrupting the 12 volt outputs of the NRG. Automatic load balancing ensures even usage of both power supplies and extends the life of each.

Device monitoring and control

Monitor the status and control the outputs of the power supply unit remotely over IP. Through a convenient password-protected and HTTPS encrypted web interface, you can turn individual 12V outputs on and off and monitor check the status of each power supply module. An independent GPIO can also be used to monitor power module failures. The device also features LEDs that provide the status of each 12V output and AC input.

Main Specification
General Information
Manufacturer Matrox
Manufacturer Part Number NRG-5-1DBY
Manufacturer Website Address http://www.matrox.com/en/video
Brand Name Matrox
Product Name NRG Redundant Power Supply Unit
Product Type Redundant Power Supply
Technical Information
Features LED indicator
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Output Voltage 12 V DC
Output Voltage Detail 12 V DC @ 5 A
Output Voltage Detail 12 V DC @ 3 A
Output Current 3 A
Output Current 5 A
Output Power 300 W
Input Frequency 60 Hz
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 122°F (50°C)
Physical Characteristics
Form Factor Rack-mountable
Form Factor Hot-swappable
Height 1.8"
Width 11.5"
Weight (Approximate) 6.17 lb
Miscellaneous
Package Contents
  • NRG Redundant Power Supply Unit
  • Rack tray with One (1) pre-installed NRG RPSU
  • One 6 foot, Double nded DIN4 Cable
  • 4 x M3 Device Mounting Screws
  • 4 x Tray Mounting Screws
Compatibility
  • Matrox Products:
  • Extio 3 Series High Performance IP KVM Extenders
  • Maevex 6100 Series 4K Full HD Encoders & Decoders
  • Maevex 6020 Remote Recorder Appliance
  • Monarch EDGE Series EDGE Encoder & Decoder Appliances
  • Monarch HDX & LCS Encoder Appliance
  • QuadHead2Go Series Multi-Monitor Controllers
  • ConvertIP Series IP Transmitters/Receivers
Certifications & Standards
  • FCC part 15 class A
  • CISPR 32 (EN 55032) class A
  • ICES-003 class A
  • IEC/EN 61000-3-2
  • CISPR 35 (EN55035)
  • CAN/CSA C22.2 No. 62368-1-14
  • UL 62368-1 (2014)
  • IEC 62368-1 (Ed. 2.0)
TAA Compliant Yes
Warranty
Limited Warranty 2 Year

Miscellaneous Kits

Power Modules
