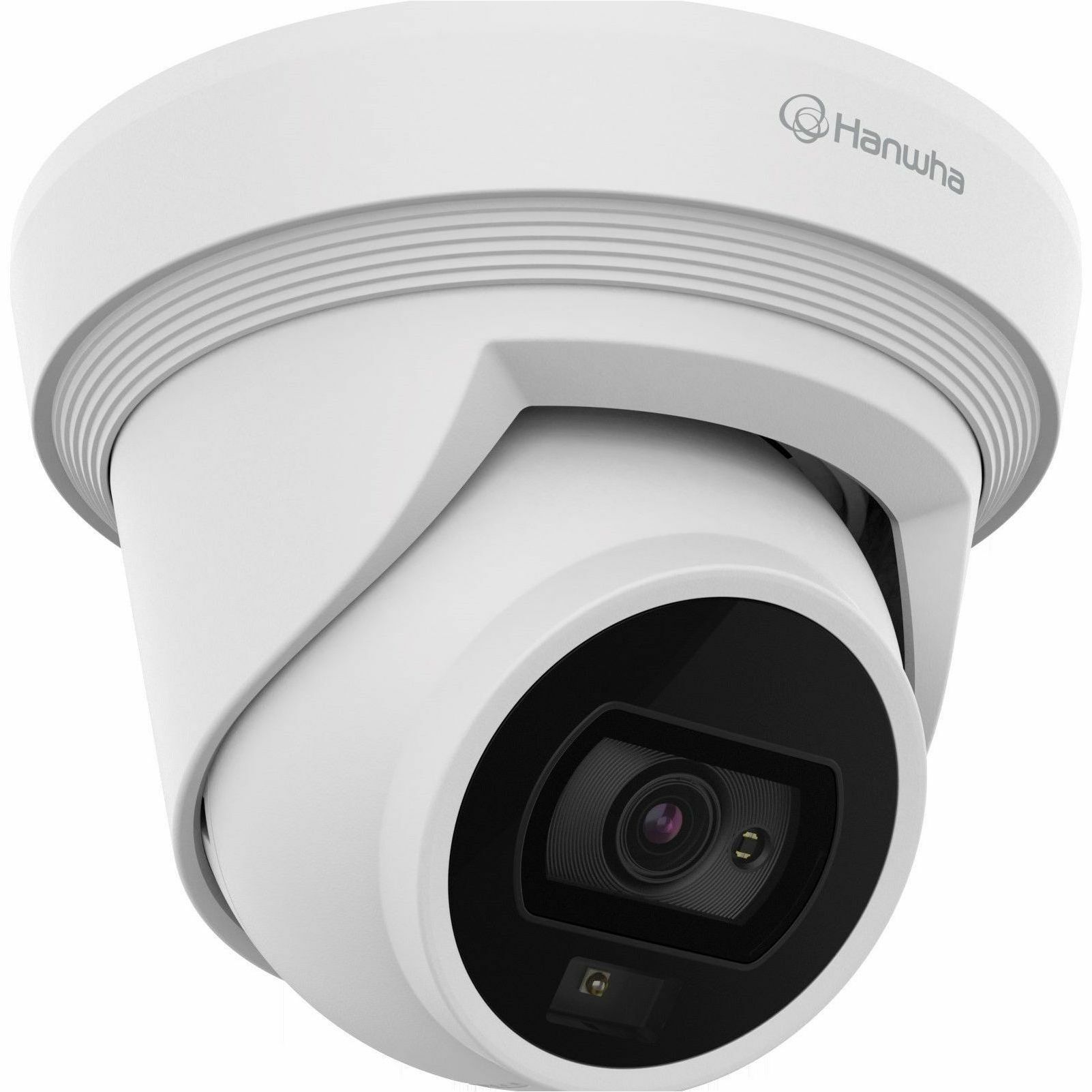

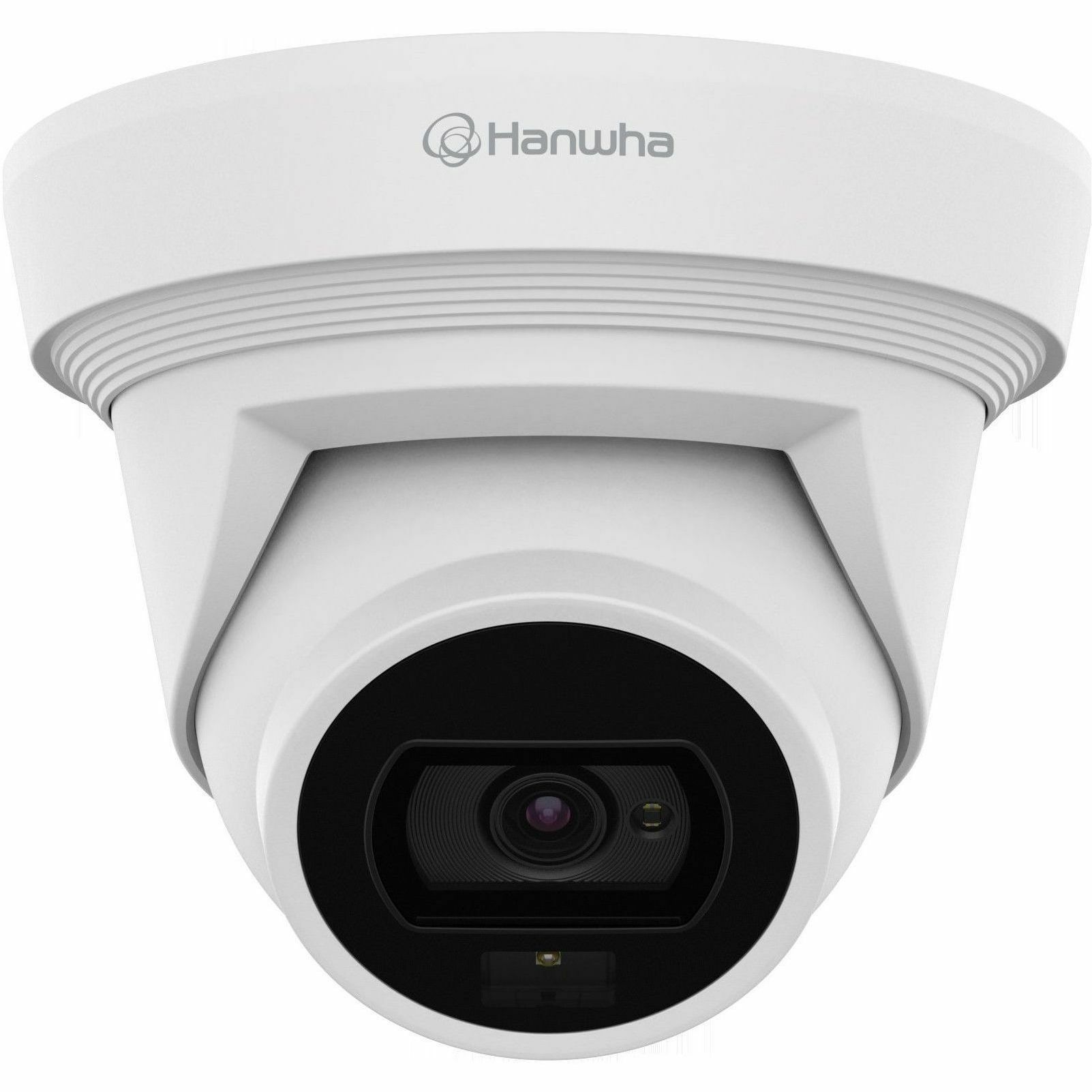

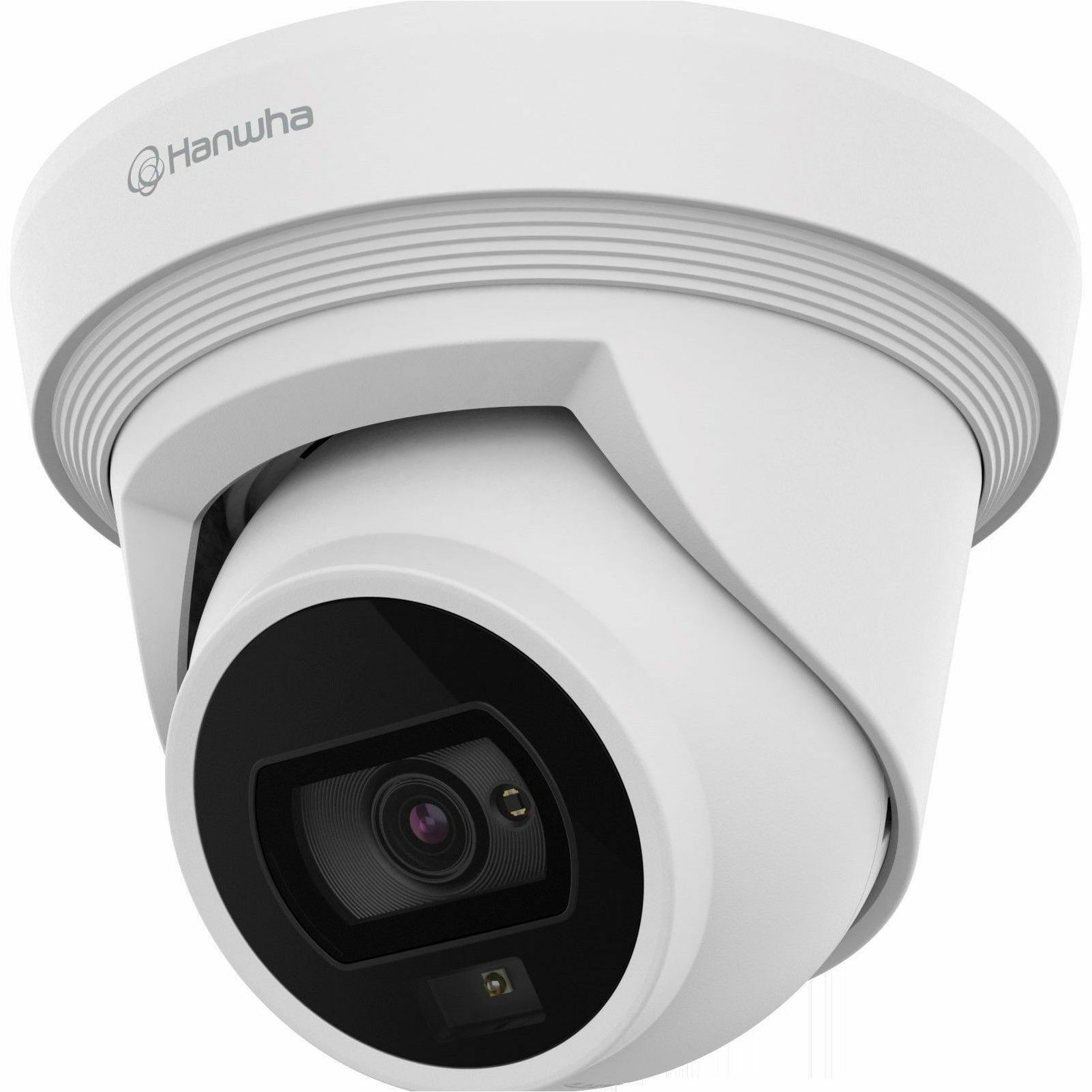

Built for enhanced low-light performance with an aperture of 1.2, the Q series AI Dual Light Camera features a warm white LED and Infrared (IR) lights with flat-eye design for easy installation.
IR illumination
Utilize the discreet IR mode to reduce light pollution and identify objects up to 30 meters away in low-light and even 0 lux environments with built-in infrared sensors.
White light illumination
Trigger the on-board warm white LED light to illuminate darkened areas for more vivid full-color images and to serve as a welcome - or an attention-grabbing deterrent.
3000K warm white light
The Q Series AI Dual Light AI Camera features a 3000K warm white LED that brightens dimly-lit spaces. Unlike IR, the warm white light allows for color identification at night and doesn't wash out reflective surfaces.
See the difference
The onboard white LED light provides detailed full color video capture in low-light scenes without the possibility of over-exposure caused by IR reflections.
Advanced AI analytics
Accurate object classification for humans and vehicles reduces the occurrence of false alarms.
When people or vehicles enter a specified area, AI technology instantly switches from discreet IR mode and triggers the warm white light. Use the built-in strobe as a deterrent, alarm or alert, or illuminate in steady mode for a warm welcome.
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | QNE-C8013RL |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | Q |
| Product Model | QNE-C8013RL |
| Product Name | 5MP AI Dual Light Flateye Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98.43 ft |
| Night Vision Type | Infrared/Color |
| Camera Iris | Fixed |
| AI-powered | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | H: 97° / V: 53° / D: 113° |
| Effective Camera Resolution | 5 Megapixel |
| Video | |
| Video Formats | H.265M |
| Video Formats | H.264H |
| Video Formats | MJPEG |
| Video Formats | H.265H |
| Video Formats | H.264M |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 3 mm |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.2 |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/5 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Protocols | CDP |
| Protocols | IPv4 |
| Protocols | RTP/TCP |
| Protocols | ARP |
| Protocols | DNS |
| Protocols | UPnP |
| Protocols | IPv6 |
| Protocols | NTP |
| Protocols | SNMPv1/v2c/v3 (MIB2) |
| Protocols | RTP/UDP |
| Protocols | DDNS |
| Protocols | LLDP |
| Protocols | TCP/IP |
| Protocols | RTCP |
| Protocols | HTTP |
| Protocols | FTP |
| Protocols | IGMP |
| Protocols | Bonjour |
| Protocols | QoS |
| Protocols | UDP/IP |
| Protocols | RTSP |
| Protocols | HTTPS |
| Protocols | SSL/TLS |
| Protocols | ICMP |
| Protocols | DHCP |
| Protocols | SMTP |
| Protocols | SRTP |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 10 W |
| Power Source Type | PoE |
| Physical Characteristics | |
| Mount Type | Gang Box Mount |
| Form Factor | Flateye |
| Color Family | White |
| Product Color | White |
| Diameter | 5.5" |
| Weight (Approximate) | 1.74 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Miscellaneous | |
| Features | Day/Night |
| Features | PTZ |
| Features | Wide Dynamic Range |
| Features | Automatic White Balance |
| Features | Privacy Masking |
| Features | Anti-flicker |
| Features | Digital Noise Reduction |
| Features | Intelligent Backlight Compensation (iBLC) |
| Features | Gain Control |
| Features | SD Card Local Storage |
| Features | Motion Detection |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Ingress Protection Rating | IP66 |
| Warranty | |
| Limited Warranty | 5 Year |
