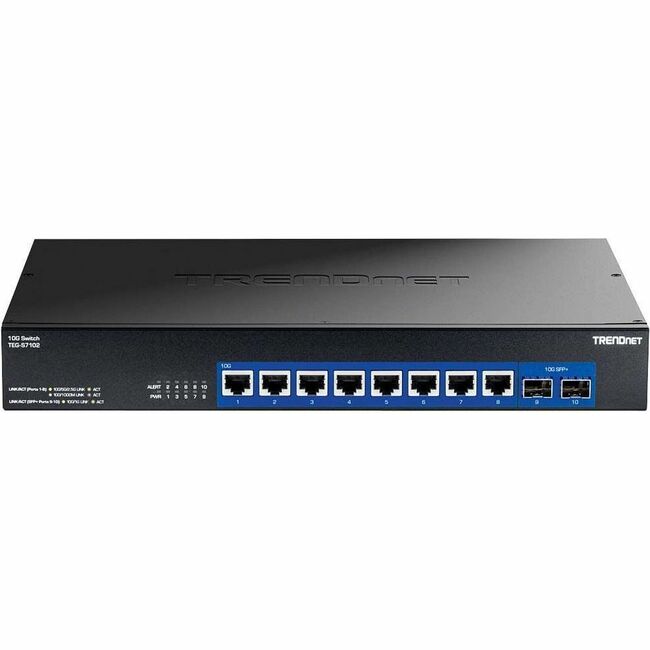

TRENDnet TEG-S7102 10-PORT 10G UNMANAGED SWITCH

Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's Unmanaged 10G Switches. This 10G switchcomes equipped with eight 10GBASE-T RJ-45 ports that provide speeds capable of up to 10Gbps over your existing Cat6A or bettercabling. The 10G switch also offers two dedicated 10G SFP+ slots for high-speed network connections, providing a cost-effectivesolution in adding 10G link capability to an SMB network. The smart fan design lowers energy consumption and eliminatesdistracting operating noise. TRENDnet's reliable 10G switches are cost-effective solutions to increase your network's throughput

DEVICE INTERFACE: 8 x 10G Ports (1Gbps/2.5Gbps/10Gbps), 2 x 10G SFP+ slots (1Gbps/10Gbps); LED Indicators

LIFETIME PROTECTION -We stand by the quality of our products. The TEG-S7102 10-Port 10G Unmanaged Switch is secured with Lifetime Manufacturer Protection from TRENDnet. (U.S. and Canada Only)

NDAA + TAA COMPLIANT: With our NDAA and TAA compliant network switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

10G PORTS: This Multi-Gig Ethernet switch offers eight 10GBASE-T RJ-45 Ethernet ports that provide higher gigabit speeds capable of up to 10Gbps over existing Cat6A or better cabling

10G SFP+ PORTS: The 10-port multi-gig switch features two 10G SFP+ ports for high-speed network uplinks or downlink NAS/ access server connections for a cost-effective solution to add 10G link capability

SMART FAN DESIGN: The smart fan design of the 10G network switch lowers energy consumption costs and eliminates distracting operating noise

EASY INSTALLATION: No configuration needed, simply connect network devices to the 10G Ethernet switch

SWITCHING CAPACITY: 200Gbps switching capacity

COMPLIANCE: IEEE 802.3ae (SFP+) and IEEE 802.3an (RJ-45) compliant

COMPATABILITY: Backwards compatible with 100/1000BASE-T devices; RACKMOUNT DESIGN: The network switch is equipped with 1U 19" rack mountable metal housing

More from the Manufacturer

General Information
Manufacturer	TRENDnet
Manufacturer Part Number	TEG-S7102
Manufacturer Website Address	http://www.trendnet.com
Brand Name	TRENDnet
Product Model	TEG-S7102
Product Name	10-Port 10G Unmanaged Switch
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	8
Modular	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x 10 Gigabit Ethernet Network
Port/Expansion Slot Details	2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Ethernet Technology	10 Gigabit Ethernet
Network Technology	10GBase-T
Network Technology	10GBase-X
Maximum Data Transfer Rate	2.50 GB/s
I/O Expansions
Total Number of Expansion Slots	2
Expansion Slot Type	SFP+
Number of SFP+ Slots	2
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.1x
Networking Standards	IEEE 802.3az
Networking Standards	IEEE 802.3bz
Networking Standards	IEEE 802.3an
Networking Standards	IEEE 802.3ae
Networking Standards	IEEE 802.3ab
Management & Protocols
Manageable	No
Reliability
MTBF	151765 Hour
Power Description
Input Voltage	230 V AC
Input Voltage	120 V AC
Frequency	60 Hz
Frequency	50 Hz
Power Source	AC
Power Consumption	40 W
Physical Characteristics
Product Material	Metal
Form Factor	Rack-mountable
Height	1.7"
Width	13"
Depth	9.1"
Weight (Approximate)	5.60 lb
Miscellaneous
Package Contents	10-Port 10G Unmanaged Switch  Quick Installation Guide Power Cord (1.5m / 4.9ft.)  Rackmount Kit
Application/Usage	Network
Certifications & Standards	CE FCC LVD ETL
Country of Origin	Taiwan
Warranty
Limited Warranty	Lifetime
