Image may not reflect the actual item.
Price: $171.32
Quantity:
In Stock: 1
Last Updated: Nov 11, 2025
No Sales Tax except these states
, PO and Wire.

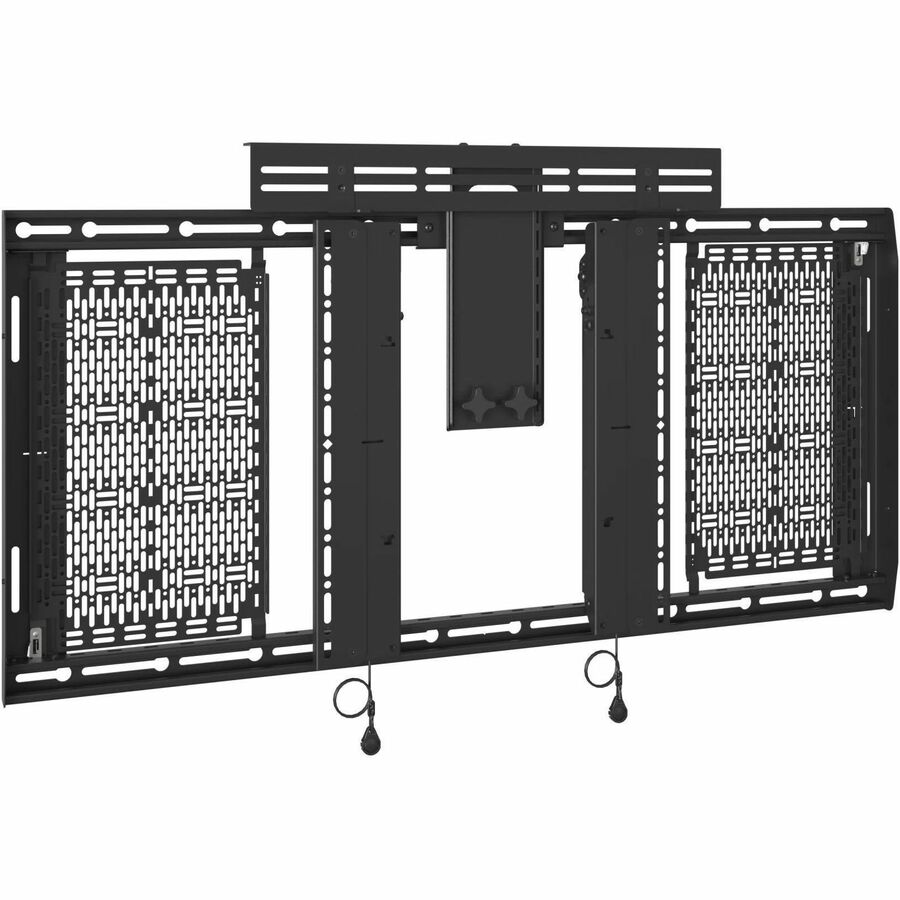

Complete your AV system installations with this Installer Inspired video-sound bar mount for use withTempo™ Flat Panel Wall Mount System.
Key Features:

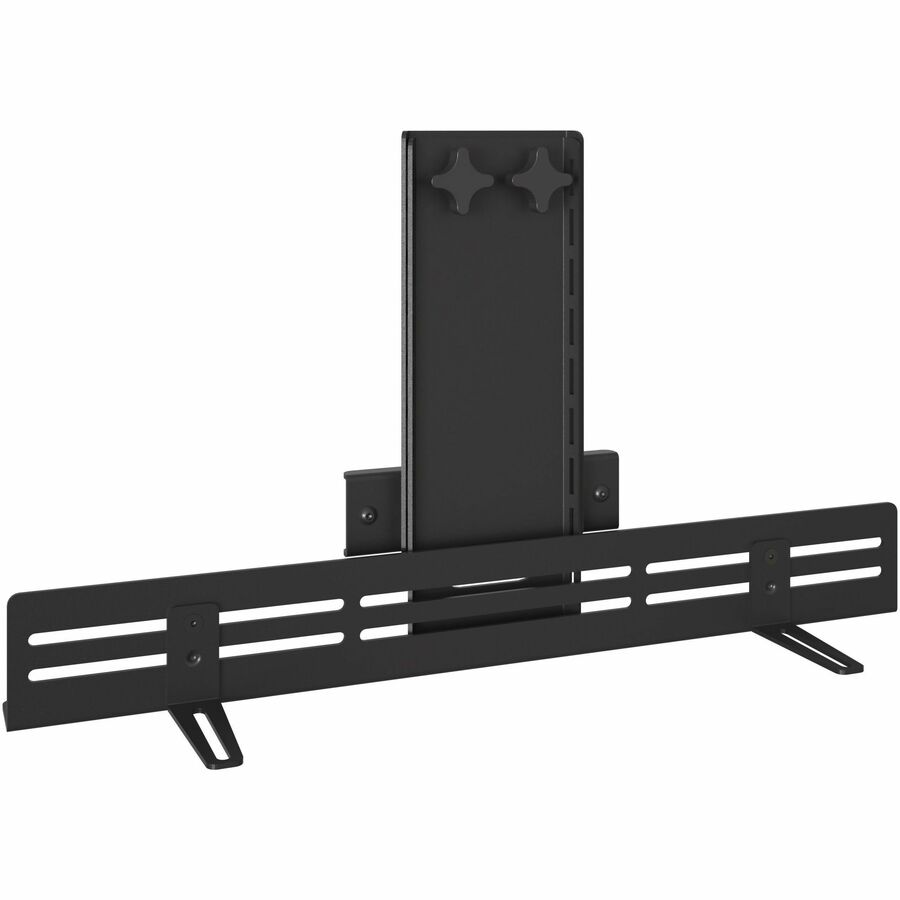

- Video-sound bar interface bracket is 22.25" (565 mm) wide by 2.88" (73 mm) tall to avoid peek-a-boo with most video-sound bars. The ample 21.41" (544 mm) wide slot allows you to secure most video-sound bars having rear mounting holes.
- Quick and easy installation. The video-sound bar mount glides and locks into place on the top or bottom rail of the Tempo FP Wall Mount System using strut channel nuts with captive screws.
- Lateral shift allows you to position the video-sound bar mount wherever you need it along the wall plate mounting rail.
- Toolless height-adjust knobs allow 6.27" (159 mm) of travel to easily position the camera shelf at the right height above or below the display.
- Video-sound bar mount can be installed between 9.75" (248 mm) to 28.15" (715 mm) of Tempo FP Wall Mount System center line.
- Window opening and slots along both sides of the vertical bracket facilitate cable management.
- Weight capacity of 20 lbs (9 kg) with video-sound bars mounted to interface bracket. When using "L" brackets to mount a video-sound bar the weight capacity is 15 lbs (6.8 kg).
- Fits most video-sound bars having mounting holes in the back or bottom.
Main Specification
| General Information | |
| Manufacturer | Legrand Group |
| Manufacturer Part Number | AS3A101 |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Chief |
| Product Line | Tempo |
| Product Name | Video-Sound Bar Mount for Tempo Flat Panel Wall Mount System |
| Product Type | Mounting Bar |
| Product Information | |
| Device Supported | Flat Panel Display |
| Device Supported | Wall Mounting System |
| Device Supported | Soundbar |
| Minimum Load Capacity | 15 lb |
| Maximum Load Capacity | 20 lb |
| Features | Lateral Adjustment |
| Features | Lockable |
| Features | Easy to Install |
| Height Adjustment Type | Manual |
| Height Adjustable | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Wall Mountable |
| Height | 22.90" |
| Warranty | |
| Limited Warranty | 10 Year |
