TRIPP LITE

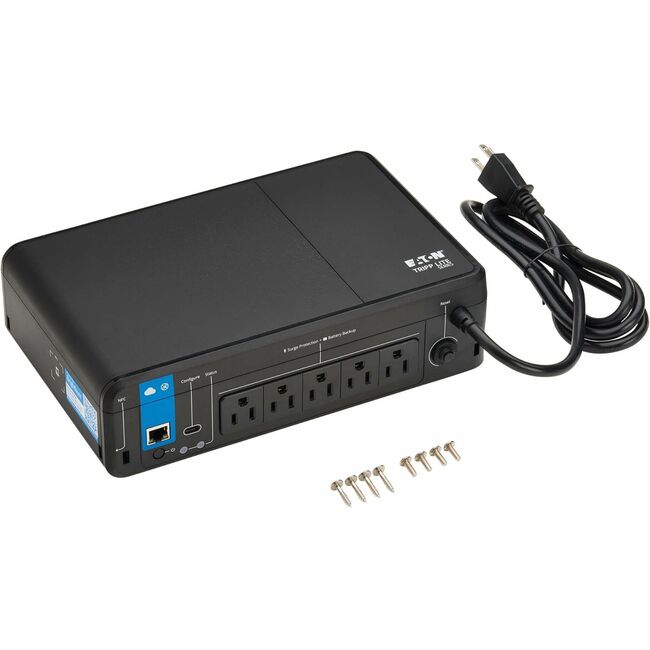

TRIPP LITE BC850RNC CLOUD UPS 850VA 450W 120V REMOTE MONITORING BATTERY BACKUP
Mfg Part Number: BC850RNC , Item #: 5138290
, PO and Wire.
The BC850RNC standby cloud-connected UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for home/office computing, networking and point-of-sale equipment in retail, kiosks, food service and light industrial environments. For easy access, the input power cable, Ethernet port, AC outlets, power button and status LEDs are all on the same side.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer
Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control outlet banks using a mobile app or web browser. Being able to monitor and access an army of UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (Near-Field Communication) area lets you configure network settings instantly from your mobile device.
Allows Time to Back Up Critical Files During a Blackout
The BC850RNC restarts automatically once power is restored, regardless of battery charge level, saving you a costly site visit. During short blackouts and brownouts, the BC850RNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage.
Premium Protection from Surges and Line Noise Helps Your Equipment Perform Better
Rated for 190 joules of surge suppression, the BC850RNC and its five NEMA 5-15R outlets protect connected devices from the harmful effects of power surges. The BC850RNC also filters out disruptive electromagnetic interference (EMI) and radio frequency interference (RFI) that can destroy data and contribute to lengthy downtime.
Easy Preventative Maintenance and Initial Troubleshooting
The BC850RNC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.
Audible Alarm and Diagnostic LEDs Keep You Informed 24/7
An audible alarm and a red LED indicate a low battery or fault condition. A green LED indicates power and line/battery mode status. The audible alarm can be disabled via the remote monitoring app, which will still respond to silenced alarms.
Hardened Housing Compatible with Versatile Deployment Options
The flatpack housing allows use in locations with higher ambient temperatures (operating temperature range: 32° to 122°F / 0° to 50°C). The BC850RNC's small size is suitable for desktop or floor placement. Secure mounting points on the bottom enable horizontal or vertical mounting and are spaced in a 100 x 100 mm VESA pattern for mounting to the back of a monitor with the included hardware. Attachment points allow installation on a shelf or beam with user-supplied cable ties. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | BC850RNC |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Model | BC850RNC |
| Product Name | BC850RNC 850VA Desktop/Surface/Wall Mountable UPS |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 5 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 5 |
| Overload Protection | Yes |
| Cord Length | 5 ft |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 97% (AC Mode) |
| Application/Usage | Computer |
| Application/Usage | Office |
| Application/Usage | Computer Peripheral |
| Application/Usage | Kiosk |
| Application/Usage | Light Industrial Application |
| Application/Usage | POS |
| Application/Usage | Home |
| Application/Usage | Food Service |
| Application/Usage | Retail |
| Surge Suppression | Yes |
| Features | Green Energy Saving |
| Features | Cold Start Function |
| Features | Audible Alarm |
| Power Description | |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 120 V AC |
| Input Current | 7.10 A |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Input Frequency | 50 Hz |
| Output Frequency | 60 Hz |
| Output Frequency | 50 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 190 J |
| Circuit Breaker | Yes |
| Output Power Factor | 0.53 |
| Management | |
| Network Management | Network Card |
| Alarm | Low Battery |
| Alarm | Fault |
| Alarm | Battery Mode |
| Controls/Indicators | |
| Status Indicators | LEDs Indicators:
|
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Battery Information | |
| DC System Voltage | 12 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 1.70 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Storage Temperature | 23°F (-5°C) - 122°F (50°C) |
| Maximum Operating Elevation | 6562 ft |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Physical Characteristics | |
| Height | 3.2" |
| Width | 11" |
| Depth | 7.1" |
| Form Factor | Desktop/Surface/Wall Mountable |
| Weight (Approximate) | 7.05 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
