COOLER MASTER

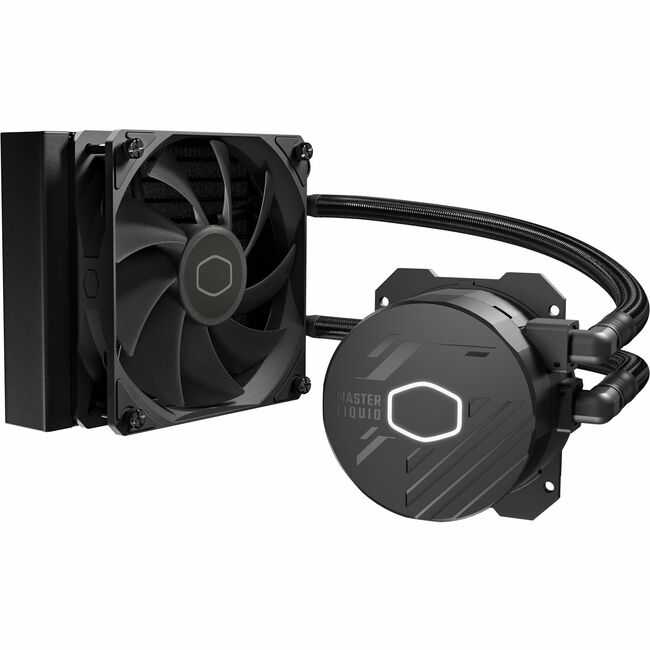

MLW-D12M-A17PK-R1 Cooler Master ML120L Core
Mfg Part Number: MLW-D12M-A17PK-R1 , Item #: 5135616
, PO and Wire.
Cooler Master is building upon the success of the MasterLiquid Lite Series with a redesigned and improved release of the MasterLiquid 120L Core. Featuring the new dual chamber Gen S, water flow and pressure have been enhanced in combination with the new customized copper base to precisely target heat spots. The radiator surface area is larger than before for improved cooling performance. The 120L Core comes with newly designed 120mm fans tuned to dissipate heat even more efficiently. The included thermal paste has been upgraded to our premium CryoFuze thermal paste for even better heat conductivity. The new MasterLiquid L Core is the representation of Cooler Master's continuous improvement and innovation.

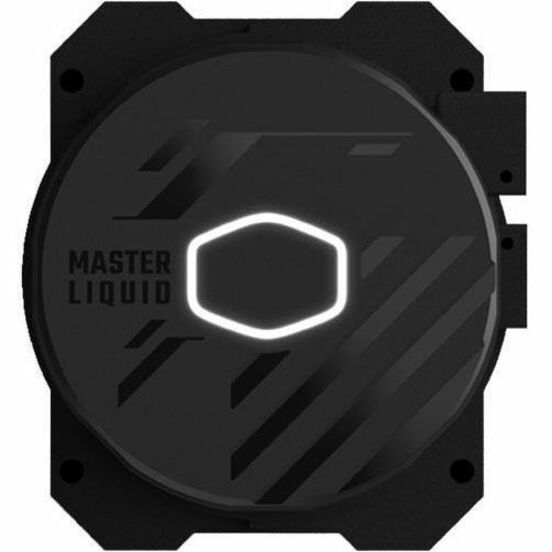

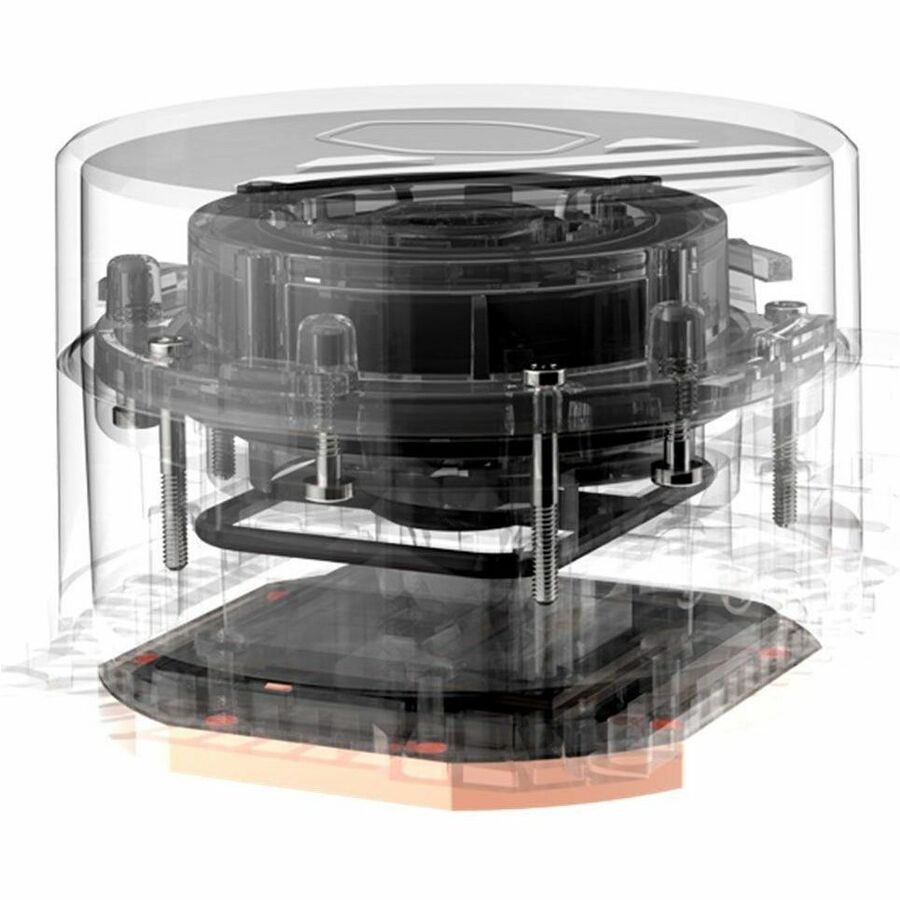

New Dual Chamber Gen S
Water flow and pressure have been enhanced in combination with the new customized copper base to precisely target heat spots.
Larger Surface Area
Increased surface area of the radiator fins improve heat dissipation.
Classic Design Tone
New design elements refresh the aesthetics for a classic minimalist look.
CryoFuze Thermal Paste
Included premium CryoFuze thermal paste for even better heat conductivity.

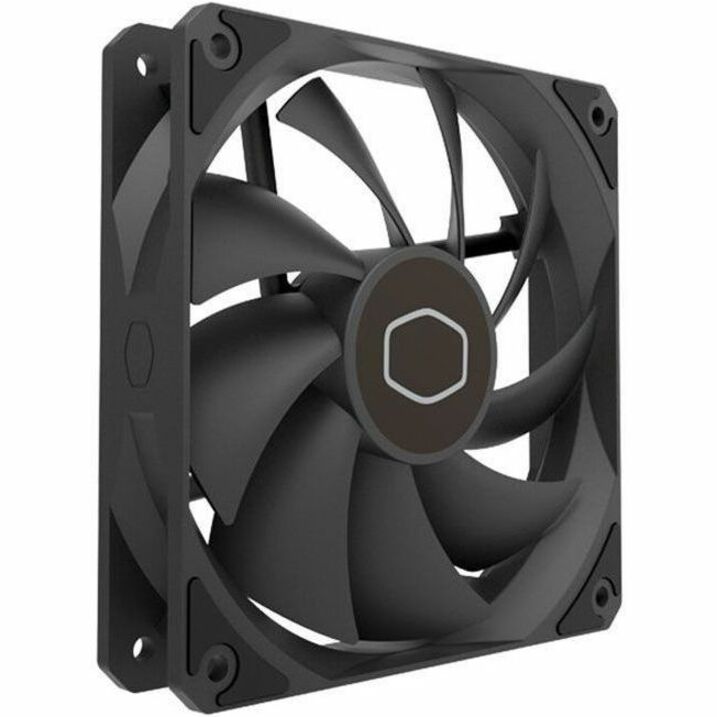

New 120 Fan
Newly designed fans for optimal radiator performance.
| General Information | |
| Manufacturer | Cooler Master Co., Ltd |
| Manufacturer Part Number | MLWD12MA17PKR1 |
| Manufacturer Website Address | http://www.coolermaster-usa.com |
| Brand Name | Cooler Master |
| Product Line | MasterLiquid 120L Core |
| Product Name | MasterLiquid 120L Core |
| Product Type | Cooling Fan/Radiator/Pump |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Rifle Bearing |
| Fan Speed (Min) | 650 rpm |
| Fan Speed (Max) | 1750 rpm |
| Maximum Airflow | 71.93 CFM |
| Noise Levels (A-Weighted) | 27.2 dB(A) |
| Fan Life | 18.3 Year |
| Maximum Air Pressure | 1.86mmH2O |
| Heatsink Information | |
| Compatible Intel Socket | H2 LGA-1155 |
| Compatible Intel Socket | H4 LGA-1151 |
| Compatible Intel Socket | LGA-1200 |
| Compatible Intel Socket | H LGA-1156 |
| Compatible Intel Socket | H3 LGA-1150 |
| Compatible Intel Socket | LGA-1700 |
| Compatible AMD Socket | FM2+ |
| Compatible AMD Socket | AM5 |
| Compatible AMD Socket | FM1 |
| Compatible AMD Socket | AM3 PGA-941 |
| Compatible AMD Socket | AM4 |
| Compatible AMD Socket | AM2+ PGA-940 |
| Compatible AMD Socket | FM2 |
| Compatible AMD Socket | AM2 PGA-940 |
| Compatible AMD Socket | AM3+ |
| Interfaces/Ports | |
| Connectors | 4-Pin PWM |
| Connectors | 3-Pin |
| Power Description | |
| Maximum Power Consumption | 3.96 W |
| Rated Current | 260 mA |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Radiator Material | Aluminum |
| Maximum Fan Diameter | 4.72" |
| Radiator Height | 1.07" |
| Radiator Width | 4.71" |
| Fan Height | 0.98" |
| Fan Width | 4.72" |
| Weight (Approximate) | 2.07 lb |
| Miscellaneous | |
| Package Contents |
|
| Features | Dissipates the Heat |
| Application/Usage | CPU |
| Application/Usage | Processor |
| Warranty | |
| Limited Warranty | 3 Year |
