GIGABYTE

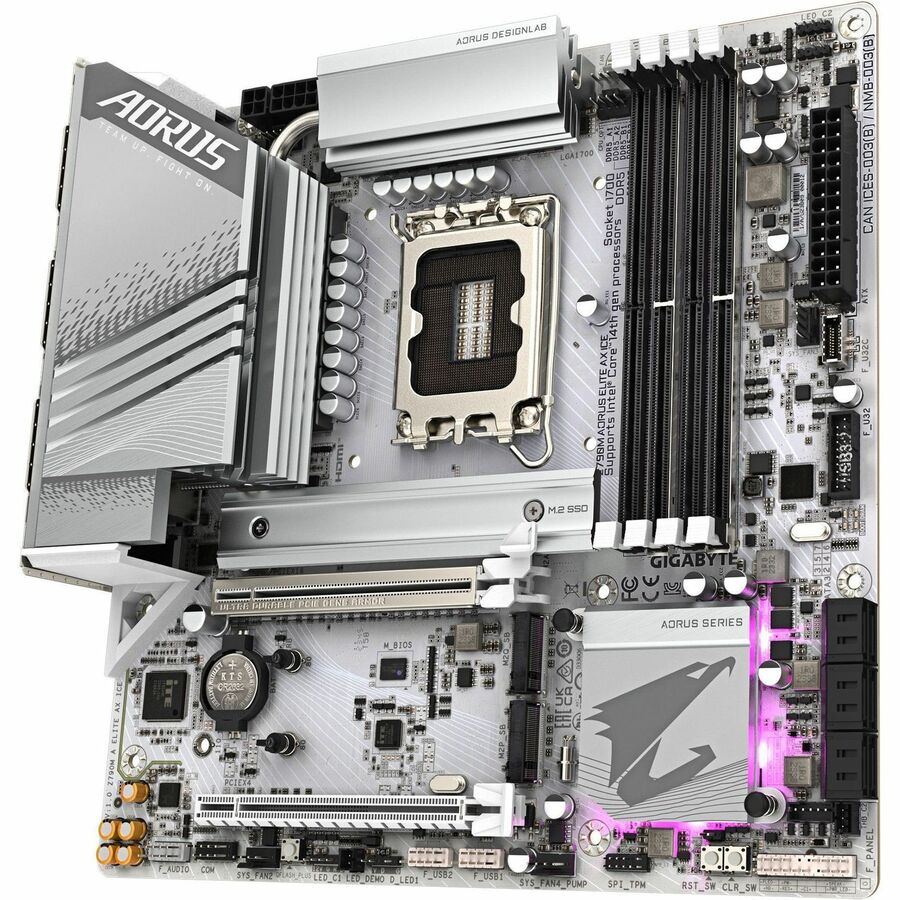

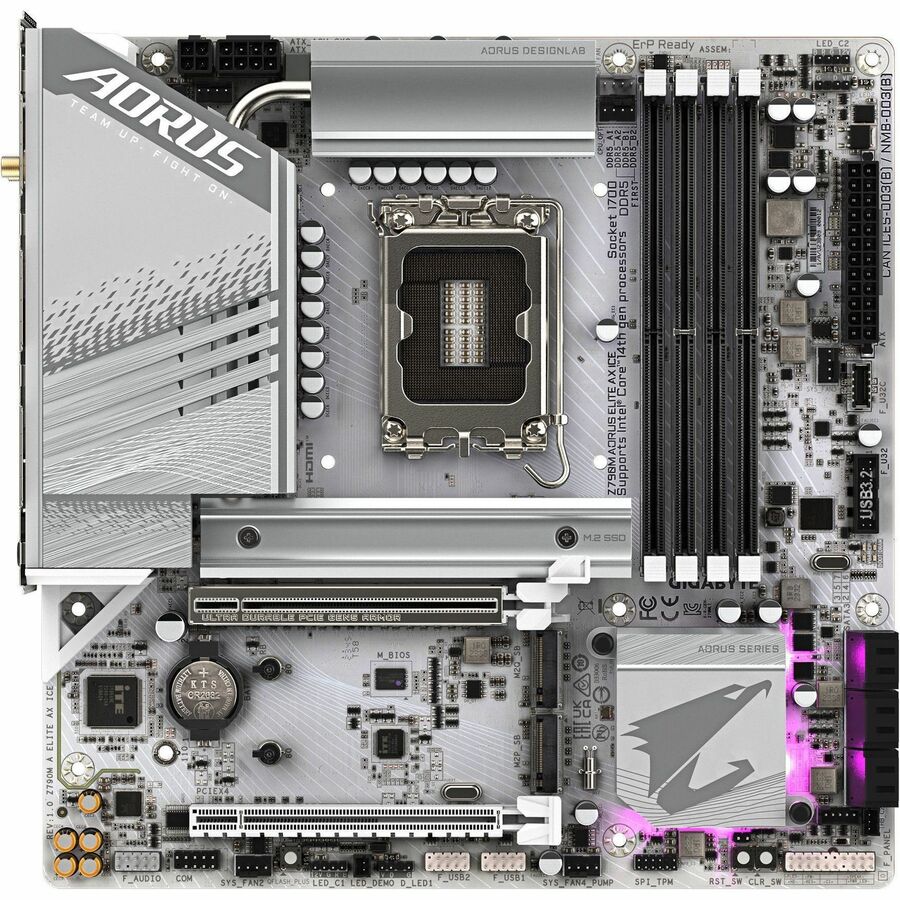

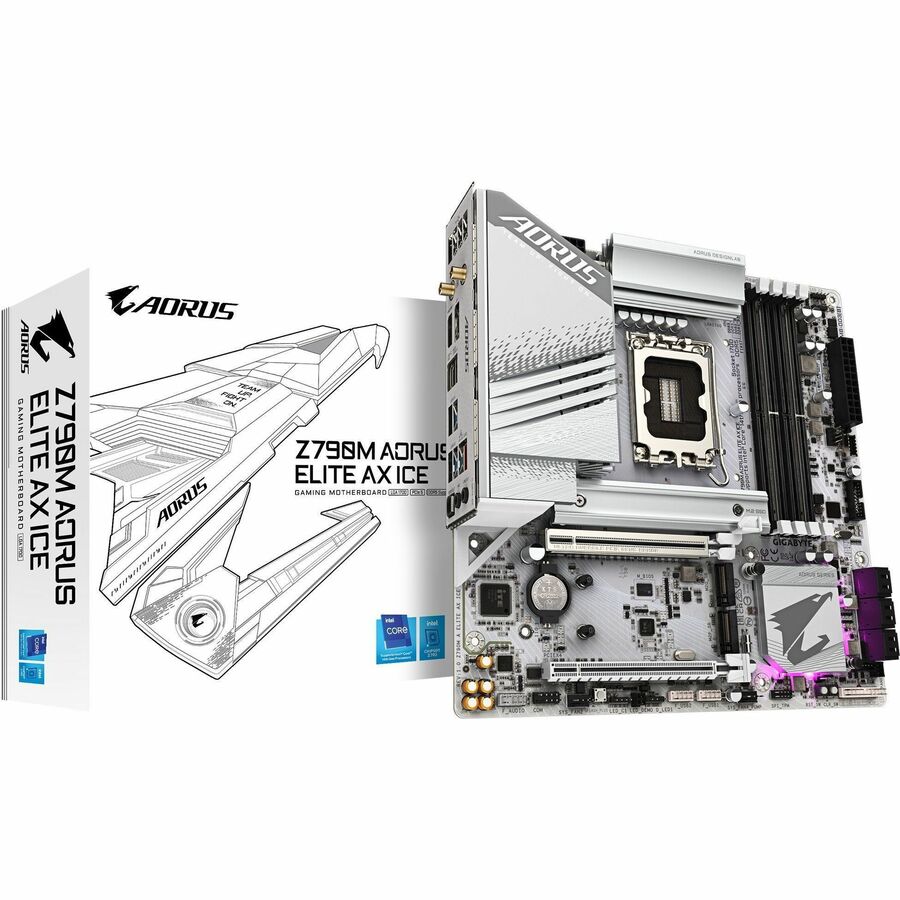

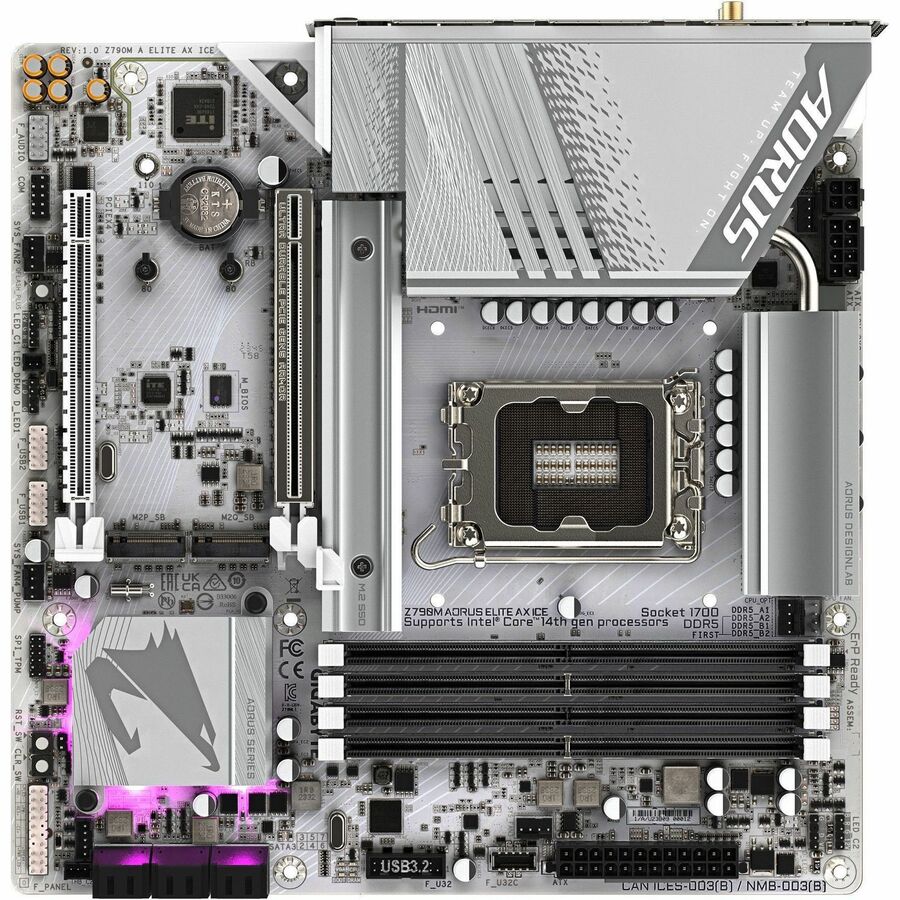

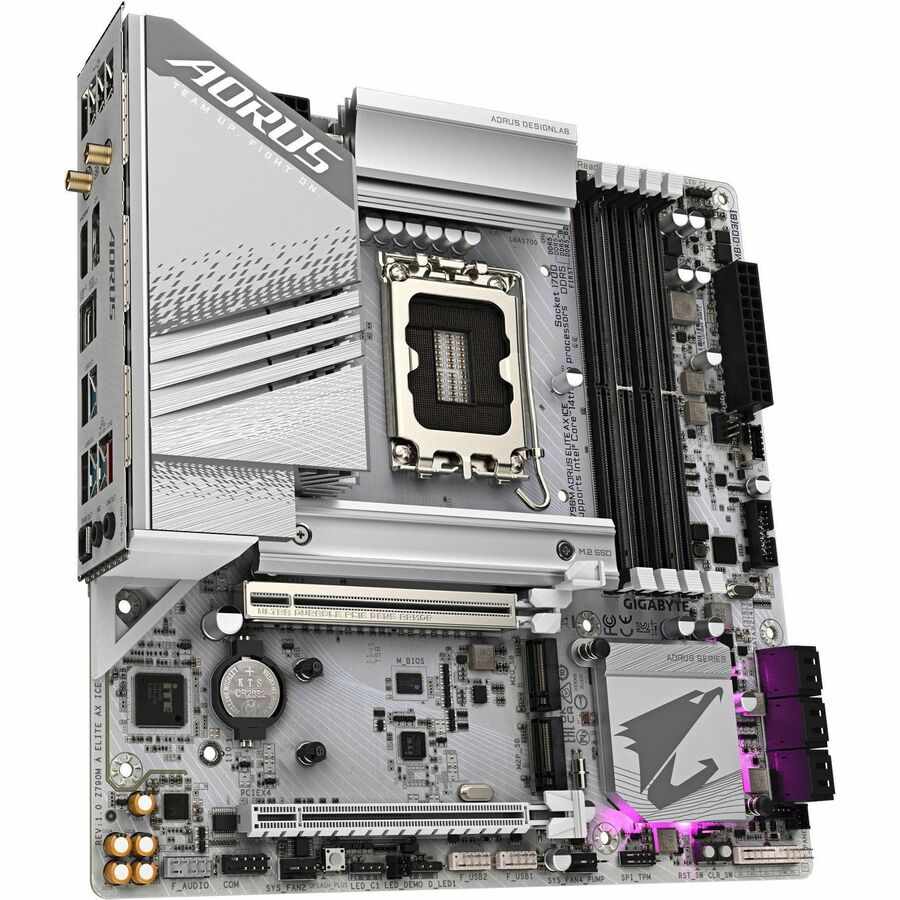

Gigabyte MB Z790M AORUS ELITE AX ICE Z790 LGA1700 Max192GB DDR5 Micro ATX RTL
Mfg Part Number: Z790M AORUS ELITE AX ICE , Item #: 5135400
, PO and Wire.
THE SINGULARITY OF POWER
AORUS Z790 series gaming motherboards fully optimize the performance within the latest Intel® 14th generation processors with our most capable digital power design ever. Before you would notice, the heat generated from the beastly power consumption is already dealt with by the full metal thermal solution. Not to mention the lightning-fast track to the next-gen PCIe 5.0 and the top-tier compatibility of DDR5 memory. Be crowned the king of gaming.
Robust VRM Design Power in number
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.
Digital Twin VRM Design
Ensures stable high-power delivery for advanced overclocking.
12 VCORE Phases 60A Dr.MOS
to unleash the full potential of multi-core CPU performance.
1 VCCGT Phase 60A Dr.MOS
for CPU integrated GPU performance.
1 VCCAUX Phase
provide stable power for CPU integrated PCIe & Memory controller.
Memory, to the future
All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.
Best-in-class Compatibility
DDR5 Overclocking Up to
7600 MT/s
BIOS Engineering
Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance.
DDR5 XMP Booster
one click to auto boost your DDR5 module by the highest profile
DDR5 Auto Booster
one click to boost native DDR5-5600 to 6000
High Bandwidth
one click to increase DDR5 bandwidth
Low Latency
one click to shorten DDR5 latency
XMP 3.0 User Profile
optimizes memory settings and achieve the best performance for the system
Hardware Craftsmanship
Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience.
- Shielded Memory Routing
- Impedance Optimized Topology
- Daisy-Chained Routing
- Low Signal Loss PCB
Heatsink Overall Thermal
Every AORUS motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast.
VRM Thermal Armor Advanced
These solid heatsinks are forged to keep your system cool.
Real One-piece Build
Multi-Cut Design
4X
Large Surface
M.2 Thermal Guard
prevents throttling and bottlenecks from high speed M.2 SSD
Smart Fan 6
Cool. Quiet. Customized.
DIY-friendly Build effortless
Building your own PC is meant to be joyful and effortless. AORUS motherboards are designed to be the most DIY-friendly option available.
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | Z790M AORUS ELITE AX ICE |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Aorus |
| Product Line | Ultra Durable |
| Product Model | Z790M AORUS ELITE AX ICE |
| Product Name | Ultra Durable Z790M AORUS ELITE AX ICE Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen |
| Processor Generation Supported | 14th Gen |
| Processor Generation Supported | 13th Gen |
| Processor Supported | Pentium Gold |
| Processor Supported | Core |
| Processor Supported | Celeron |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 7200 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 5400 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 5800 MHz |
| Memory Speed Supported | 7600 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 7400 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 6200 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | HD Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x16 Slots | 2 |

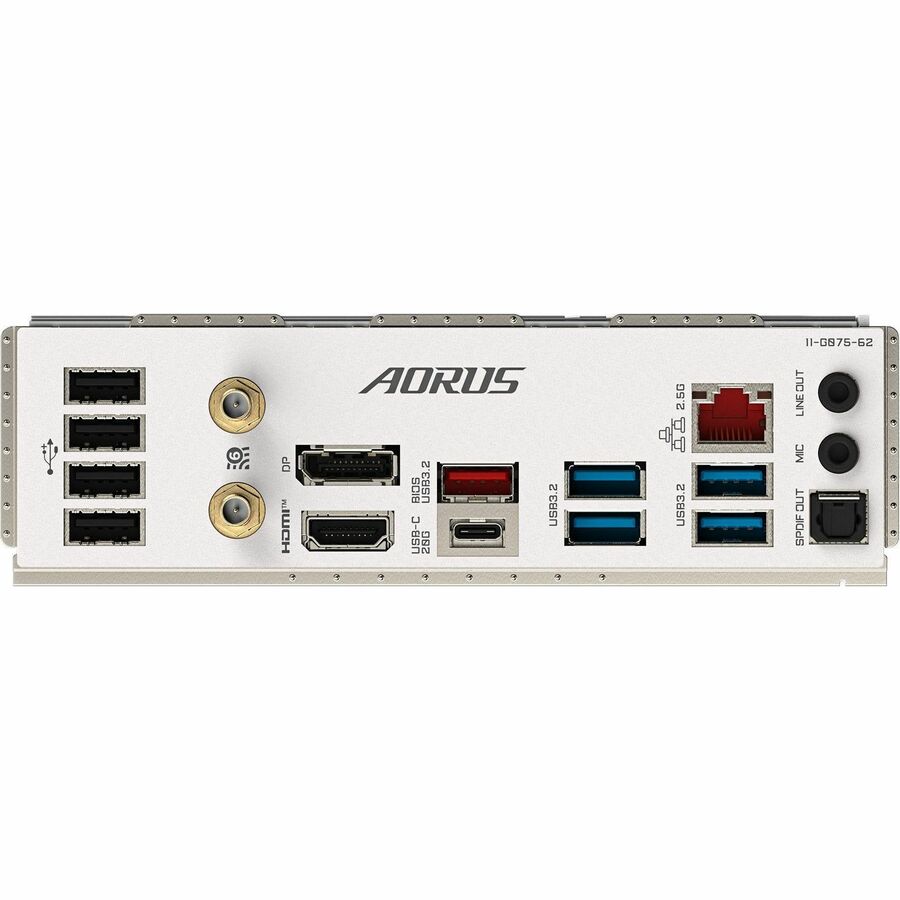

| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
