Apevia TFX-PFC500W TFX 500W Fixed Cables, Full Range Active PFC Computer Power Supply
Mfg Part Number: TFX-PFC500W , Item #: 5135225
Image may not reflect the actual item.
Price: $67.74
Quantity:
In Stock: 50
Last Updated: Dec 09, 2025
No Sales Tax except these states
, PO and Wire.

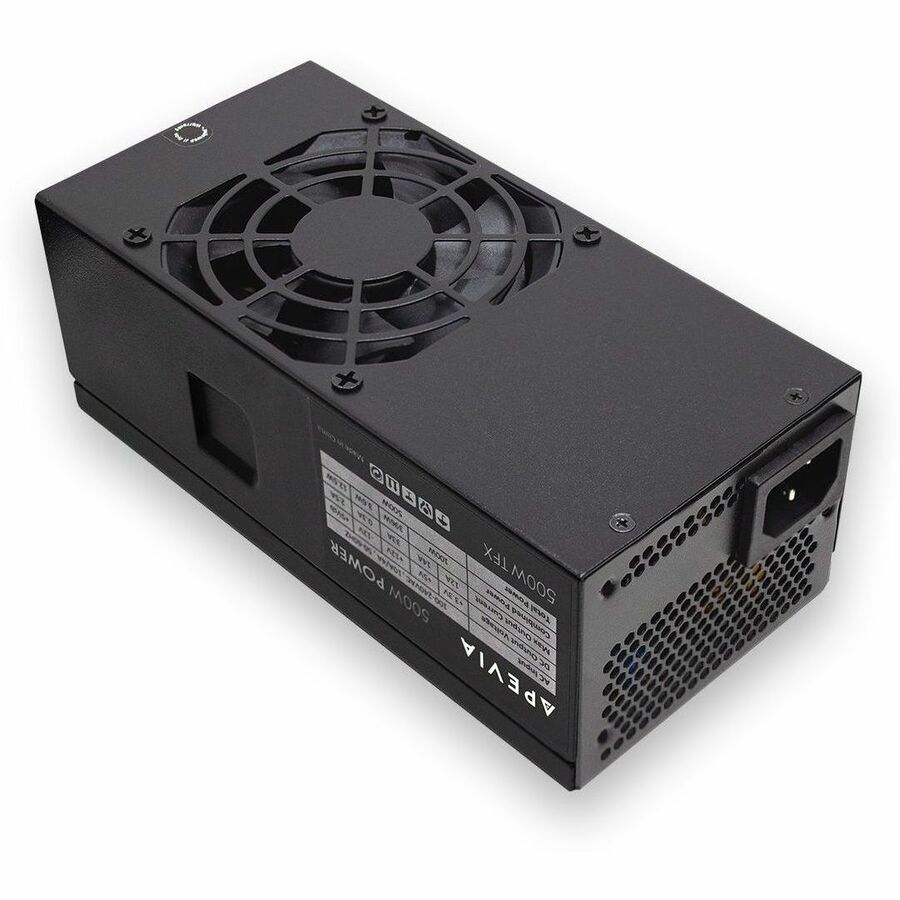

The TFX-PFC500W power supply is a full range active PFC standard Flex-ATX unit that will fit in most small TFX form-factor cases. Has enough power output and connectors to run systems up to 500 watts, being used for versatile compact computing applications.
- APEVIA TFX-PFC500W Standard 500W TFX Form Factor ATX Power Supply. Full Range Active PFC 90-264V. Maximum Power: 500W.
- Output: +3.3V@12A, +5V@12A, +12V@28A, -12V@0.3A, +5Vsb@2.5A
- High stability with 5% tolerance of 5V, 3.3V & 12V output
- High quality components and housing
- Various protections including: Overvoltage Protection (OVP), Overload Protection (OLP), Overcurrent Protection (OCP), Heating Protection (OTP), and Short Circuit Protection (SCP)

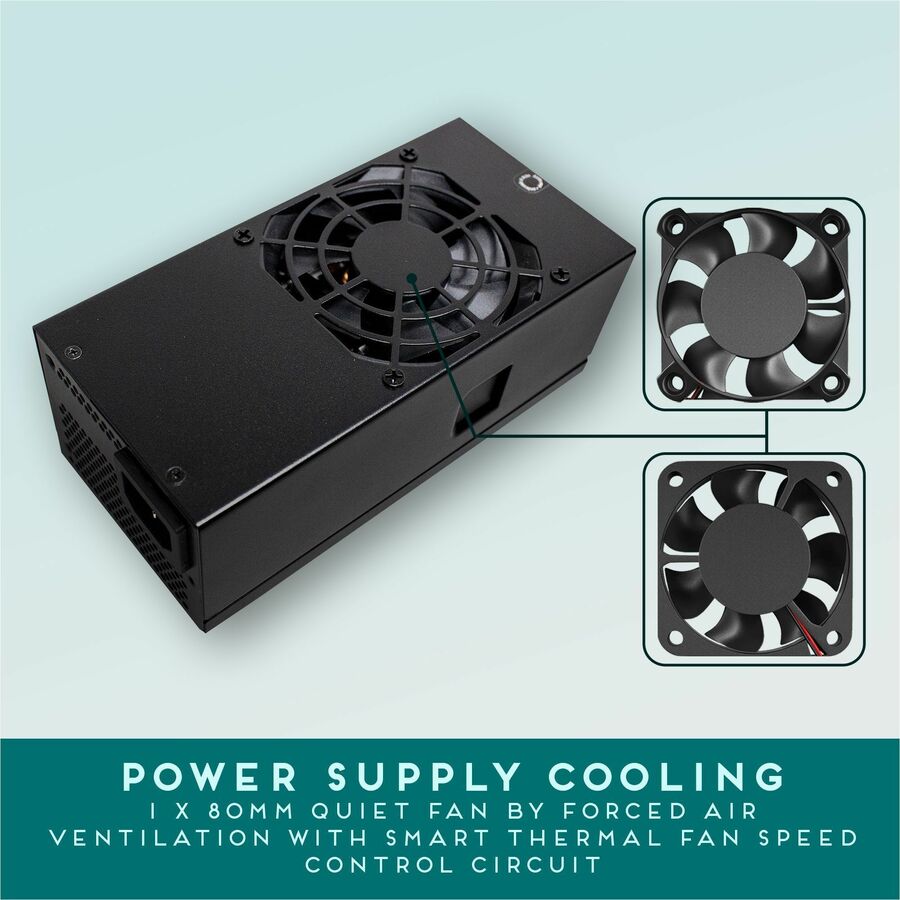

- Cooling: Forced Air Ventilation by 1 x 80mm Fan
- Power cord
- Retail box

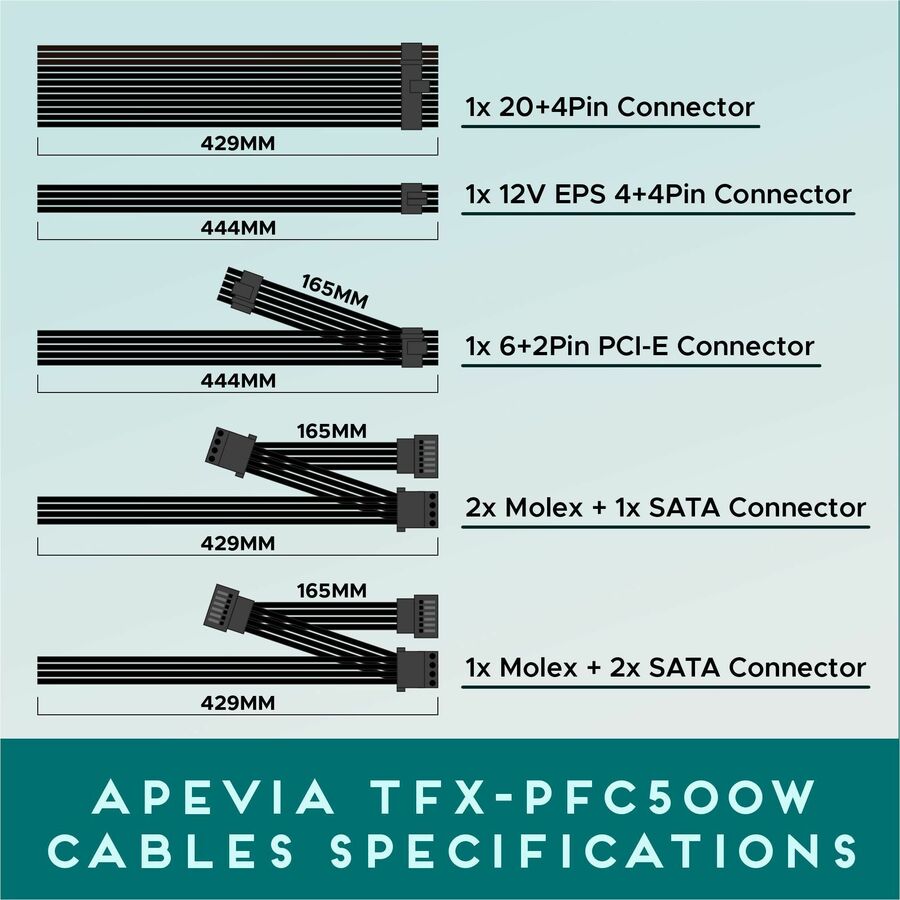

- 1 x 20 + 4 pin main connector can be used for 20 pin or 24 pin
- 1 x ATX12V P4+4pin connector can be used as 12V 8pin or 4pin (Removable by pushing out one of the 4pins)
- 2x 6+2 PCIE graphics card connector can be used as an 8pin or 6pin (Removable by pushing out the 2pin)
- 3 x SATA connector
- 3 x 4 pin peripheral connector

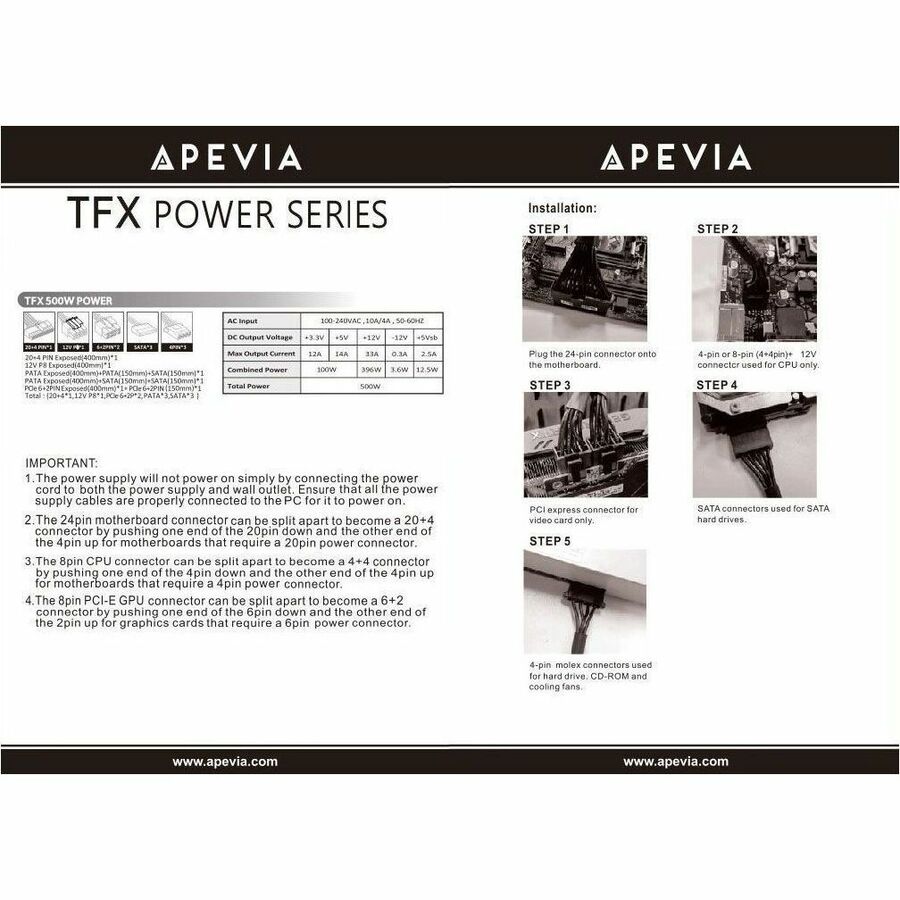

- IMPORTANT: The power supply will not power on simply by connecting the power cord to both the power supply and wall outlet. Ensure that all the power supply cables are properly connected to the PC for it to power on.
Main Specification
| General Information | |
| Manufacturer | Apevia Corporation |
| Manufacturer Part Number | TFX-PFC500W |
| Manufacturer Website Address | http://www.apevia.com |
| Brand Name | Apevia |
| Product Model | TFX-PFC500W |
| Product Name | TFX-PFC500W Power Supply |
| Package Type | Retail |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 1 |
| Fan Diameter | 80 mm |
| Protection Type | Over Loading |
| Protection Type | Over Temperature |
| Protection Type | Short Circuit |
| Protection Type | Over Voltage |
| Protection Type | Over Current |
| Features | Compact |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | 5 V SB |
| Output Voltage | 12 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage Detail | 12 V DC @ 28 A |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Voltage Detail | 5 V DC @ 12 A |
| Output Voltage Detail | 5 V SB @ 2.5 A |
| Output Voltage Detail | 3.3 V DC @ 12 A |
| Output Power | 500 W |
| Interfaces/Ports | |
| Number of SATA Power Connectors | 3 |
| PCI Express Connector | Yes |
| Number of (6+2 pin) PCI Express Power Connectors | 2 |
| Number of (4+4 pin) CPU Power Connectors | 1 |
| Number of 4-pin Molex Power Connectors | 3 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | TFX |
| Form Factor | Internal |

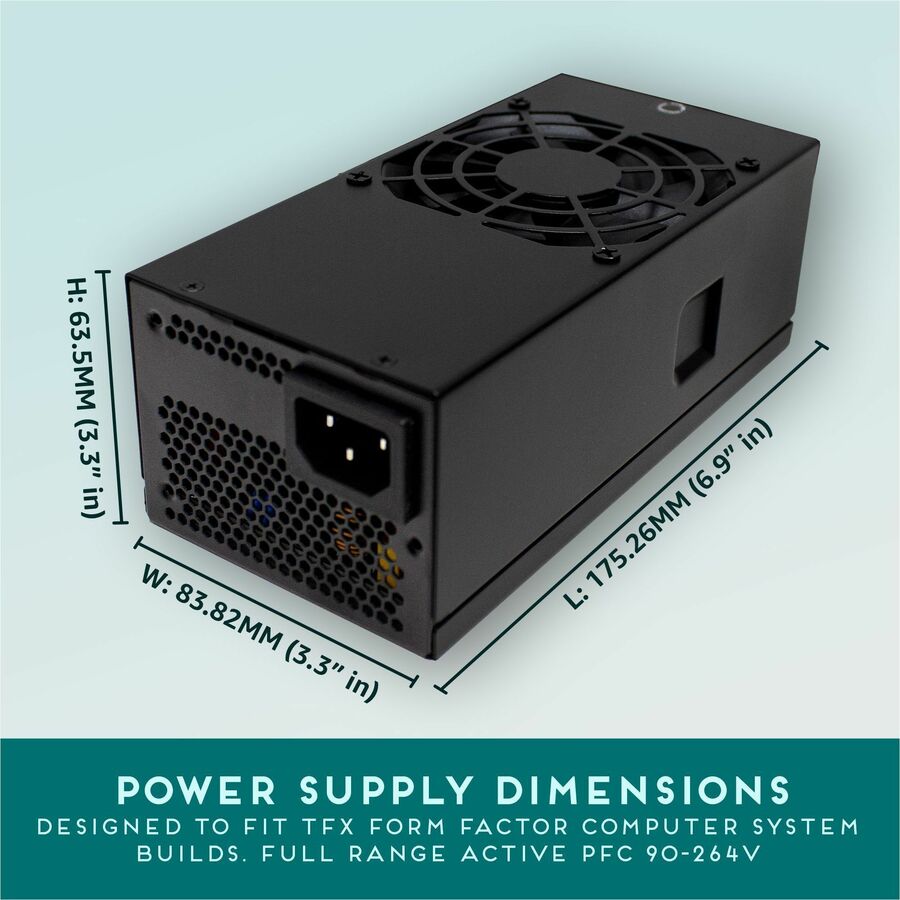

| Height | 2.5" |
| Width | 3.3" |
| Weight (Approximate) | 2.10 lb |
