APC

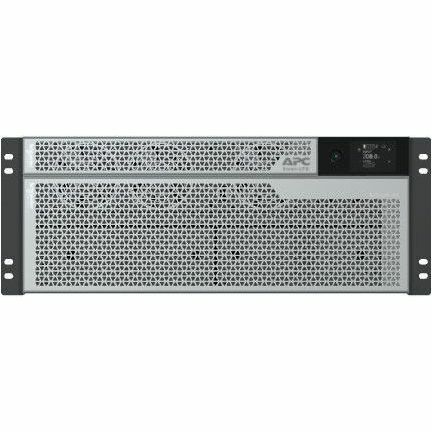

SRTL10KRM4UT APC SMART-UPS ULTRA ON-LINE LITHIUM ION, 10KVA/10KW, 4U RACK/TOWER, 208/240V
Mfg Part Number: SRTL10KRM4UT , Item #: 5130036
Special Note: Nov 03, 2025
NCNR; If you do not have loading facility, please contact our CST for special handling service.
Image may not reflect the actual item.
Price: $18,863.98
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jan 22, 2026
No Sales Tax except these states
, PO and Wire.
With Smart-UPS™ Ultra you can put up to 10000W of power protection in places never before possible. Make installation effortless with a 10kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime. Standard warranty, 5 years repair or replace.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL10KRM4UT |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra On-Line 10000VA Rack/tower UPS |
| Packaged Quantity | 1 / Pack |
| Product Type | Double Conversion Online UPS |
| Technical Information | |

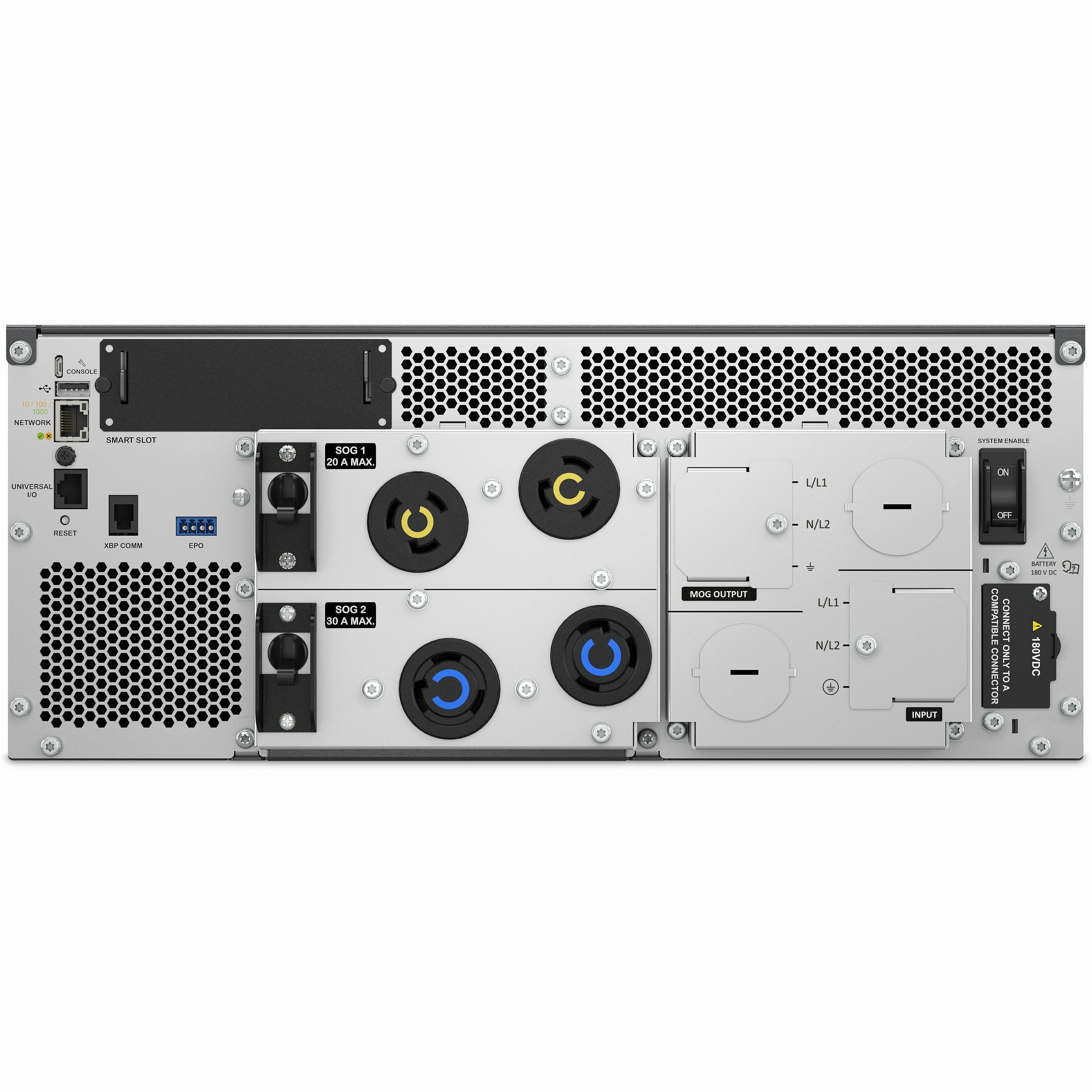

| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | NEMA L6-20R |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | Hard Wire 3-wire (2PH + G) |
| Receptacle Detail | 2 x NEMA L6-20R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G) |
| Receptacle Detail | 2 x NEMA L6-30R |
| Phase | Single Phase |
| Efficiency | 96.4% |
| Power Description | |
| Load Capacity (VA) | 10000 VA |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 208 V AC |
| Input Voltage | 240 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 240 V AC |
| Input Frequency | 60 Hz |
| Input Frequency | 50 Hz |
| Output Frequency | 50 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1410 J |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Network Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 180 V DC |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 1.50 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission | 55 dB |
| Physical Characteristics | |
| Color Family | Silver |
| Product Color | Silver Gray |
| Form Factor | Rack/Tower |
| Rack Height | 4U |
| Mounting Location | Vertical |
| Mounting Preference | Lower |
| Height | 6.9" |
| Width | 17" |
| Depth | 32.8" |
| Weight (Approximate) | 121.25 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRTL10KRM4UT_ROHS_DECLARATION&p_FileName=SRTL10KRM4UTKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=567066256&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=567066256&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311012EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2504005EN |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
