BRAINBOXES

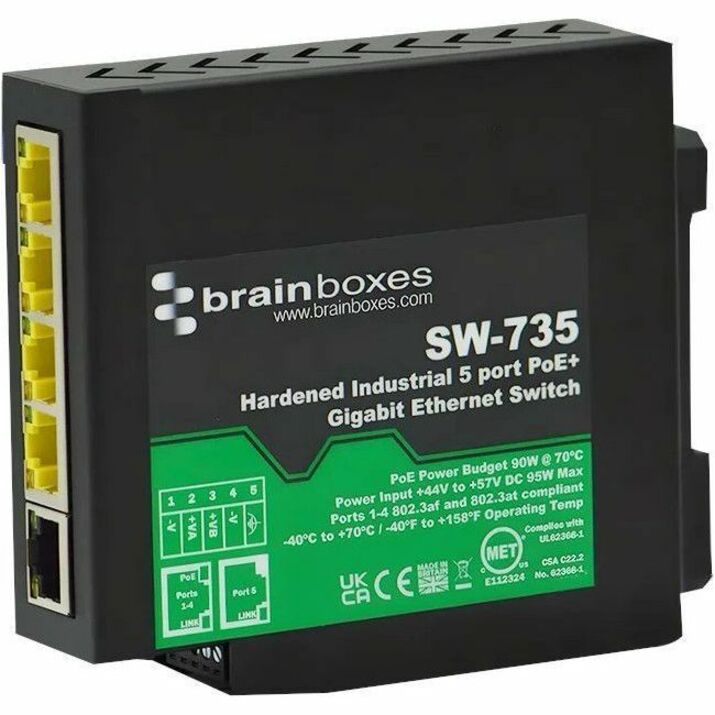

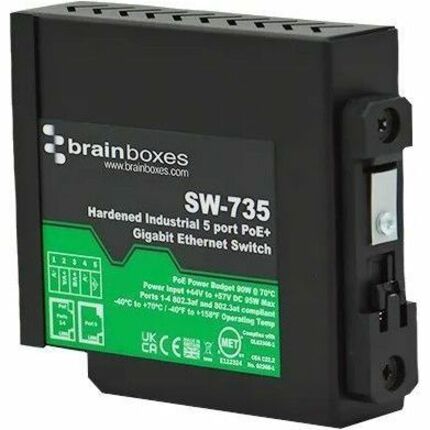

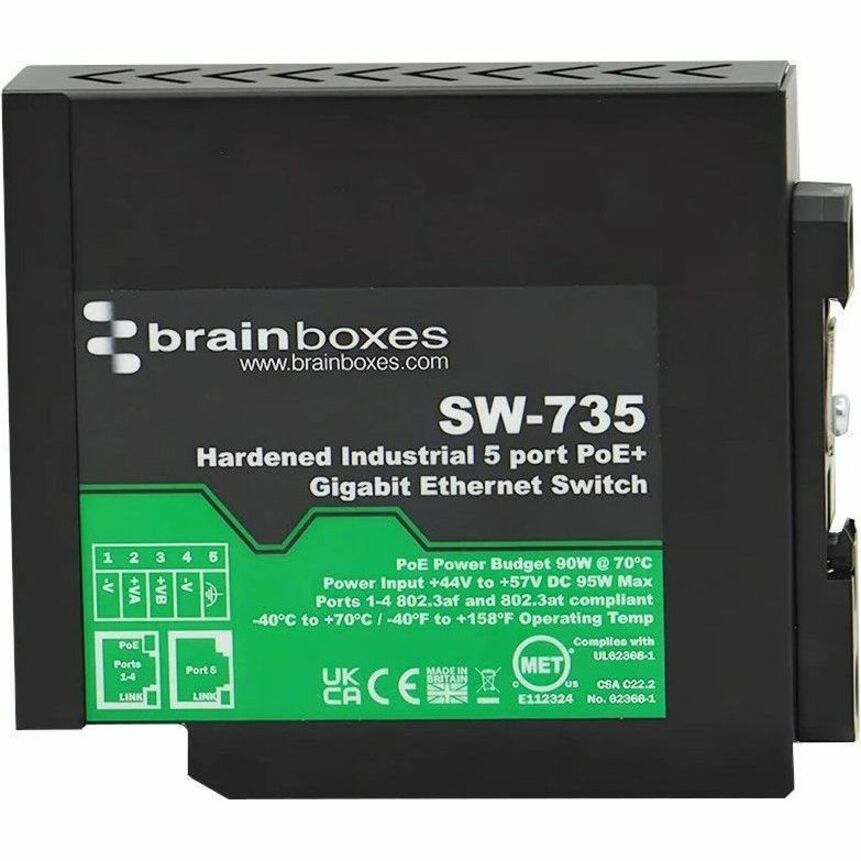

BRAINBOXES SW-735 HARDENED INDUSTRIAL 5 PORT POE+ GIGABIT ETHERNET SWITCH
Mfg Part Number: SW-735 , Item #: 5129982
Image may not reflect the actual item.
Price: $195.01
Quantity:
In Stock: 28
Last Updated: May 02, 2026
No Sales Tax except these states
, PO and Wire.
Hardened Industrial 5 Port PoE+ Fast Ethernet device.
Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.
Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.
Main Specification
| General Information | |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-735 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Brand Name | Brainboxes |
| Product Series | SW |
| Product Model | SW-735 |
| Product Name | Hardened Industrial 5 Port PoE+ Gigabit Ethernet Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | IP20 |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Network (RJ-45) | Yes |

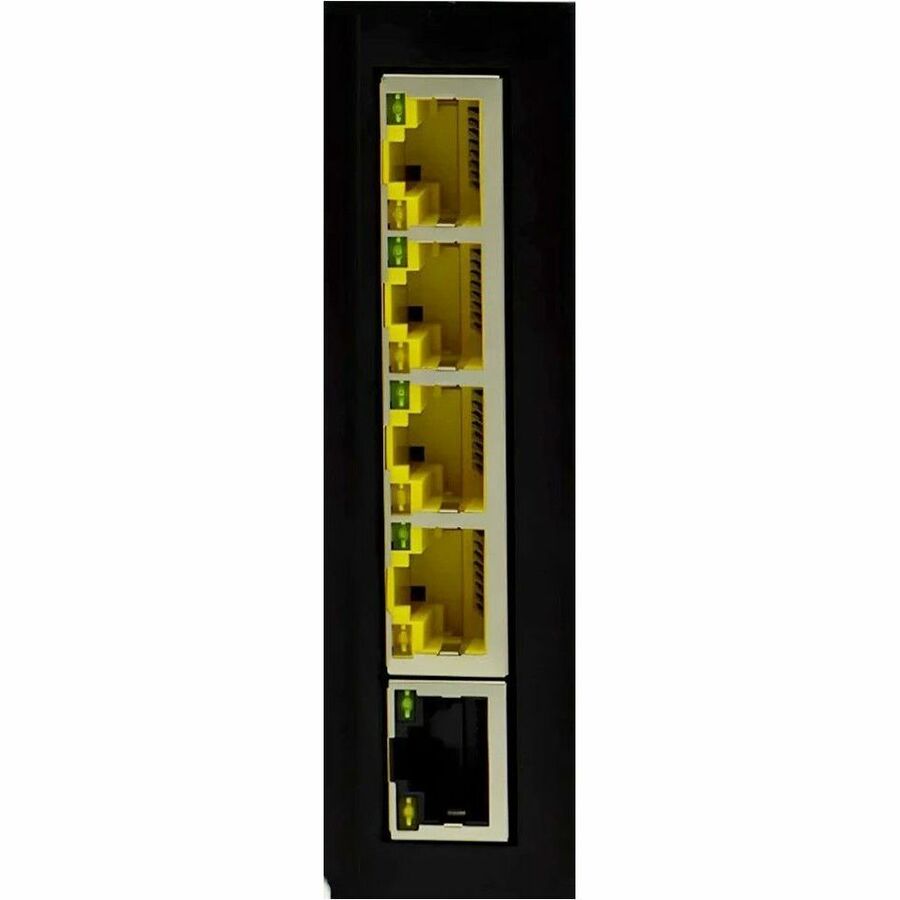

| Port/Expansion Slot Details | 4 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port |
| Port/Expansion Slot Details | 1 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 128 MB/s |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3at |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 90 W |
| Input Voltage | 57 V DC |
| Input Voltage | 44 V DC |
| Power Source | DC |
| Power Consumption | 5.50 W |
| Physical Characteristics | |
| Product Material | Metal |

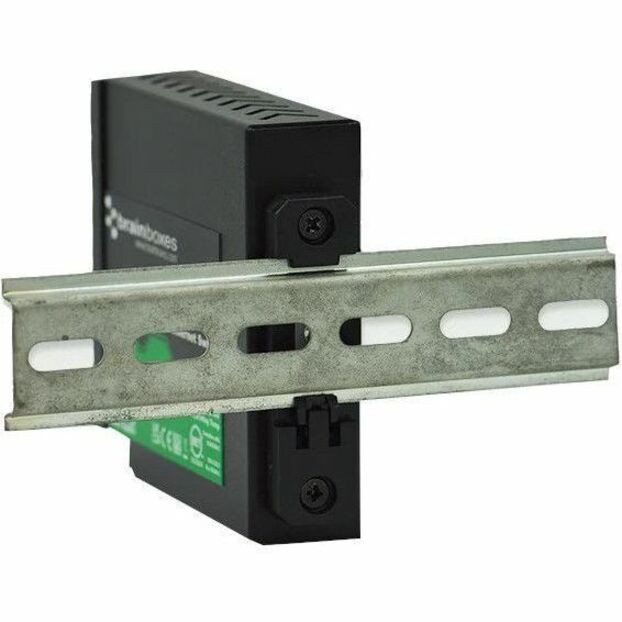

| Form Factor | DIN Rail Mountable |
| Form Factor | Compact |
| Height | 3.9" |
| Width | 1.1" |
| Depth | 4.5" |
| Weight (Approximate) | 11.53 oz |
| Miscellaneous | |
| Application/Usage | Industrial |
| Application/Usage | Wireless Access Point |
| Application/Usage | CCTV System |
| Certifications & Standards |
UL
HTS
ECCN
General
CAGE
NCAGE
GSA Contract Number
|
| Country of Origin | Great Britain |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
