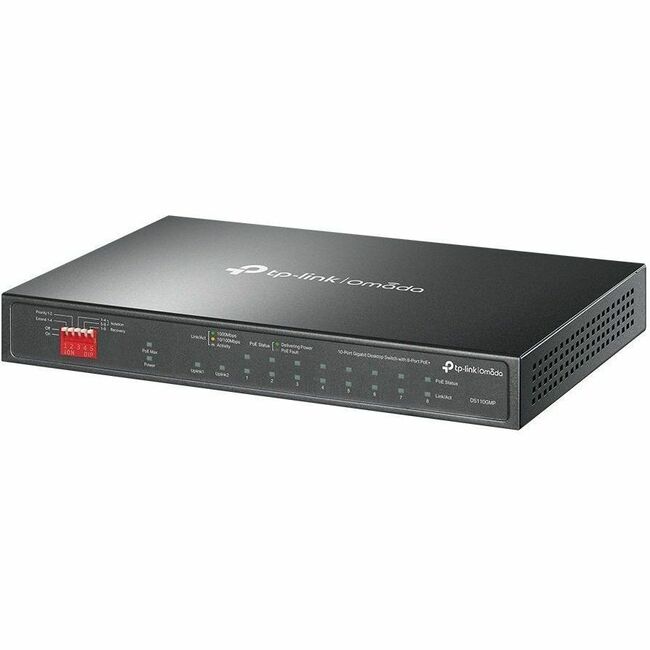

TP LINK TP-Link Switch DS110GMP Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+
Mfg Part Number: DS110GMP , Item #: 5122455
Image may not reflect the actual item.
Price: $158.29
Quantity:
In Stock: 103
Last Updated: Aug 18, 2025
No Sales Tax except these states
, PO and Wire.
- 9× Gigabit RJ45 ports, and 1× Gigabit combo SFP/RJ45 Port
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m (820ft) data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1-2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and Play. No configuration or central management required.
- Fanless design reduces power consumption and works silently in its location
Main Specification
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | DS110GMP |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Name | Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+ |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Total Number of Network Ports | 9 |
| Uplink Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 1 × 1000 Mbps SFP Expansion Port |
| Port/Expansion Slot Details | 9 × 10/100/1000BASE-T RJ45 Network Ports |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 1000Base-X |
| Maximum Data Transfer Rate | 128 MB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.3i |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.3z |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 123 W |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Power Source | Power Adapter |
| Power Source | DC |
| Power Consumption | 141.40 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1" |
| Width | 8.2" |
| Depth | 4.9" |
