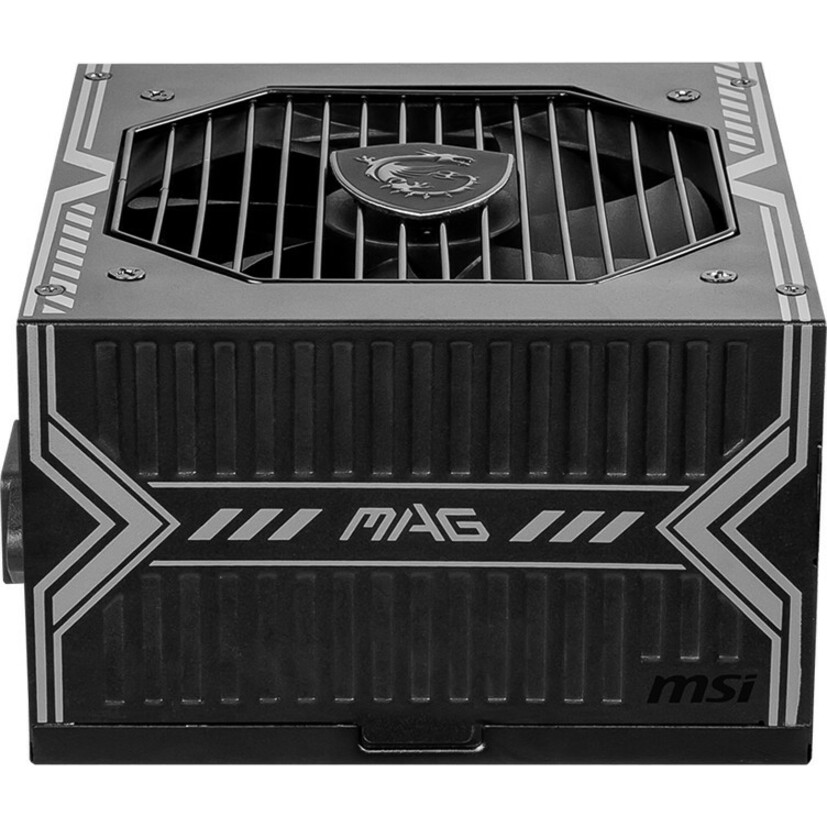

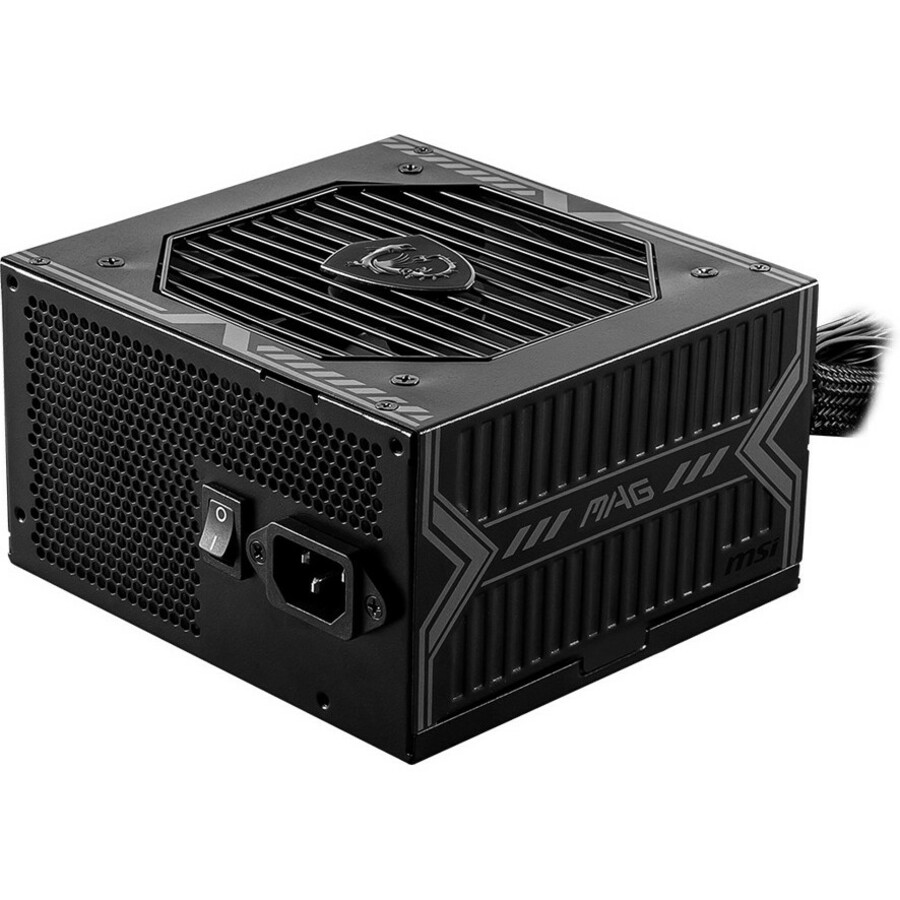

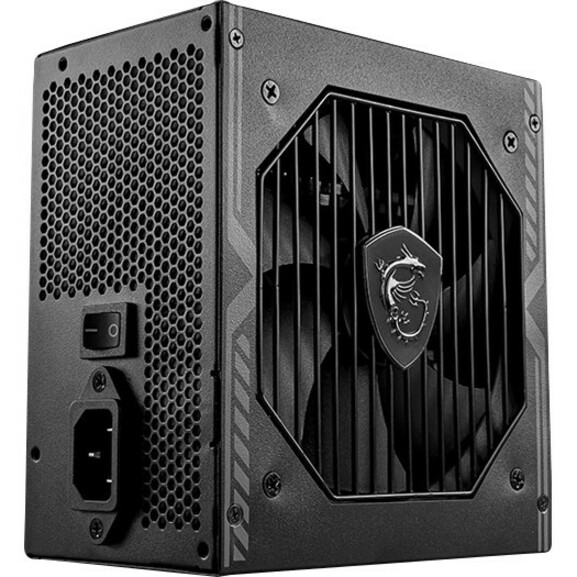

MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
120MM LOW NOISE FAN
The fan's sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection mechanisms and provides comprehensive protection.
5-YEAR LIMITED WARRANTY
The MAG A650BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | MAGA650BN |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Name | 650W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 85% |
| Number of Fans | 1 |
| Modular | No |
| Power Description | |
| Number of +12V Rails | 1 |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage | 5 V DC |
| Output Voltage Detail | 5 V DC @ 2.5 A |
| Output Voltage Detail | -12 V DC @ 0.3 A |
| Output Voltage Detail | 12 V DC @ 54 A |
| Output Voltage Detail | 3.3 V DC @ 20 A |
| Output Voltage Detail | 5 V DC @ 20 A |
| Output Current | 300 mA |
| Output Current | 54 A |
| Output Current | 20 A |
| Output Current | 2.50 A |
| Physical Characteristics | |
| Form Factor | ATX |
| Height | 3.4" |
| Width | 5.9" |
| Depth | 5.5" |
