IN WIN
IN WIN In-Win CS Z589.CQ450TB3 Mini Tower Micro-ATX IP-S450CQ2-0 H Retail
Mfg Part Number: Z589.CQ450TB3 , Item #: 5096343
Image may not reflect the actual item.
Price: $143.07
Quantity:
In Stock: 431
Last Updated: Sep 23, 2025
No Sales Tax except these states
, PO and Wire.
Tool-Free Installation and Easy Maintenance
Tool-free front panel, drive bays and I/O slots.
Configured 6 Drive Bays
5.25" x 2, 3.5" x 3 and 2.5" x 1 drive bays for expandability of future upgrade.
Side Panel Clips
The patented tool free installation side panel clips.
Folded Edge
No sharp edges or debris for safe installation
Stamped Motherboard Support
Easy MB installation. No MB standoff required.
Tool-Free
- Screwless Front Panel
- Screwless Side Panels
- Screwless 5.25" Drive Bays
- Screwless 3.5" Drive Bays

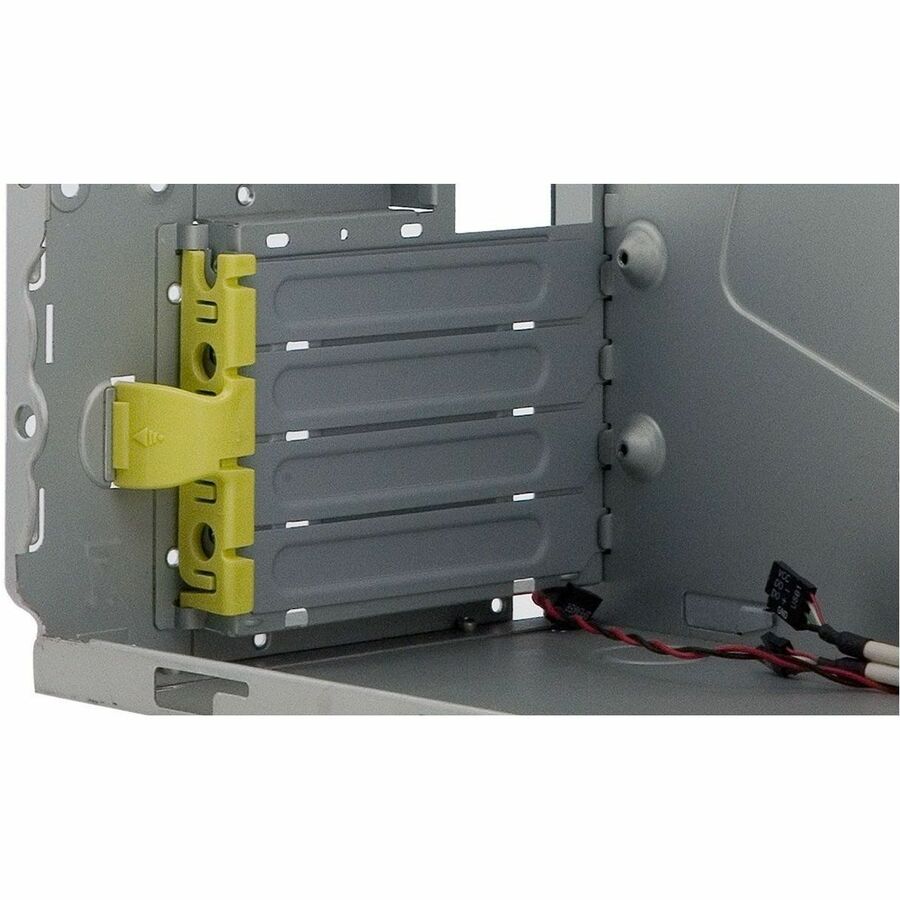

- Screwless PCI-E Expansion Slots
3.5"/2.5" Drive Bays
- 3.5" Drive Bays x 3
- Internal 2.5" x 1
Excellent Thermal Solution
- ?Intel Certified TAC 2.0
- Qualified for TAC 2.0,a mass ventilation hole side panel
- design that strengthens thermal efficiency and cools down the entire system.
- ?80mm or 90mm Rear Fan (Optional)
Front Ports
- ?USB 2.0 x 2
- ?HD Audio
- ?Optional USB 3.0 x 2
Optional
- eSATA
- Chassis Intrusion Switch
- 3.5" to 2.5" HDD / SSD Bracket Supports 2.5"x 2
- Optional 60 mm Fan x 1 (60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)
Main Specification
| General Information | |
| Manufacturer | In Win Development, Inc |
| Manufacturer Part Number | Z589.CQ450TB3 |
| Manufacturer Website Address | http://www.in-win.com.tw |
| Brand Name | In Win |
| Product Series | Z |
| Product Model | Z589 |
| Product Name | Z Series Micro-ATX Mini Tower Chassis |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | Micro ATX |
| Motherboard Supported | Mini ITX |
| Bays | |
| Number of Internal 5.25" Bays | 2 |
| Number of Internal 3.5" Bays | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| USB Port Details | 2 x USB 3.0 |
| USB Port Details | 2 x USB 2.0 |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Power Description | |
| Power Supply Installed | Yes |
| Power Supply Wattage | 450 W |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Black |
| Product Color | Silver |
| Product Material | Metal |
| Product Material | SECC |
| Product Material | Steel |
| Form Factor | Mini-tower |
| Maximum CPU Cooler Height | 5.87" |
| Maximum GPU Length | 13.23" |
| Height | 14.3" |
| Width | 7.1" |
| Depth | 14.6" |
| Weight (Approximate) | 25 lb |
| Warranty | |
| Limited Warranty | 2 Year |
