MSI
MSI SV S1205-01 939-S321-02S 1U12 Xeon Dual Socket 32xDDR5 DIMMs 12x2.5NVMe
Mfg Part Number: S1205-01 , Item #: 5093371

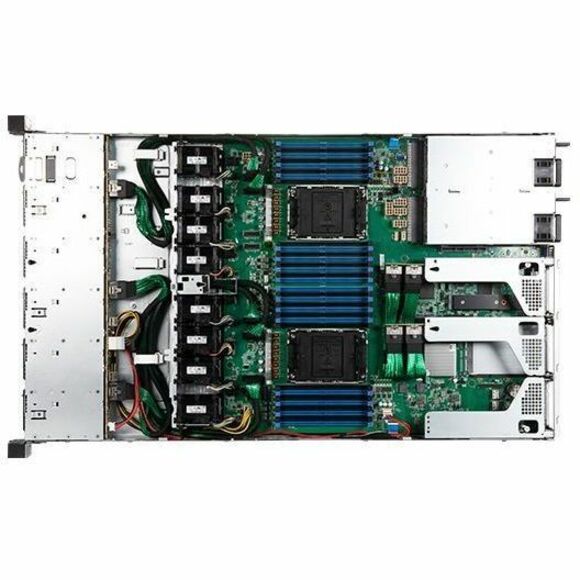

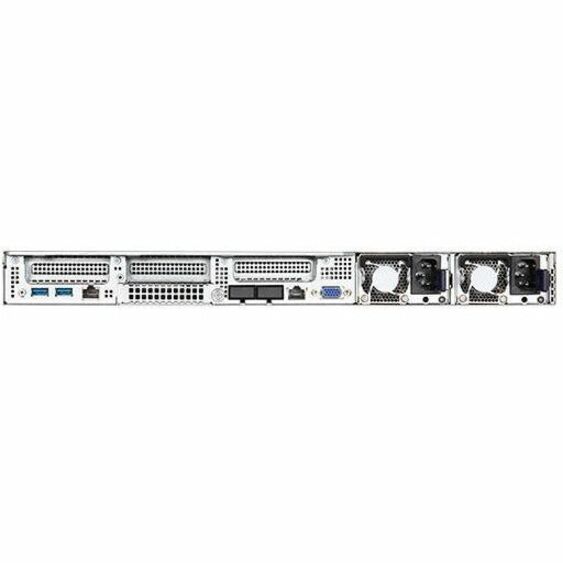

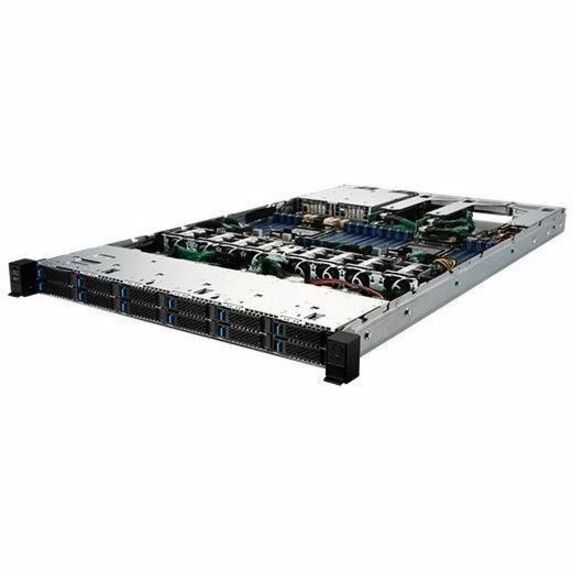

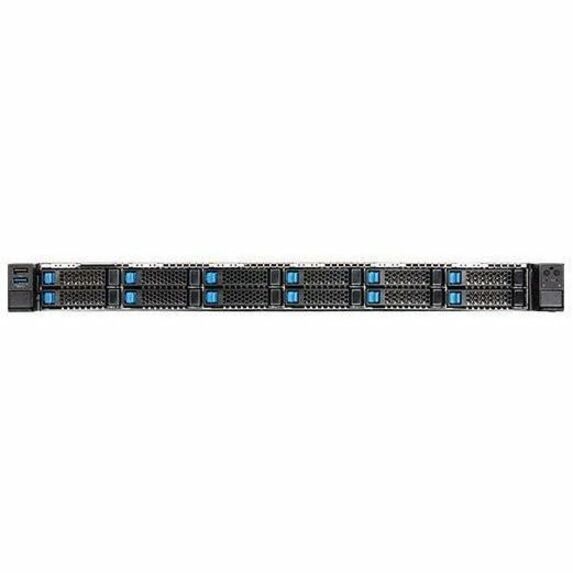

Image may not reflect the actual item.
Price: $3,040.86
Quantity:
More to Come
Last Updated: Aug 20, 2025
No Sales Tax except these states
, PO and Wire.
With 25 years of experience in server motherboard design, MSI is now expanding into off-the-shelf barebone servers. This transition allows MSI to offer customizable solutions built on their deep expertise in motherboard technology and cooling. MSI's barebone servers provide reliable, scalable, and efficient options for modern IT needs, reflecting their commitment to meeting the changing demands of businesses while maintaining high-quality standards.
Main Specification
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | S120501 |
| Manufacturer Website Address | http://www.msi.com |
| Brand Name | MSI |
| Product Model | S1205-01 |
| Product Name | S1205-01 Server Barebone System |
| Packaged Quantity | 1 |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Silver |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 32 |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express NVMe 3.0 |
| Supported Storage Drive Interfaces | PCI Express NVMe 4.0 |
| Supported Storage Drive Interfaces | Serial ATA |
| Supported Storage Drive Interfaces | U.2 |
| Supported Storage Drive Interfaces | Serial ATA II |
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Types | SSD |
| Controllers | |
| Controller Type | NVMe |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 12 |
| Number of 2.5" Bays | 12 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x16 Slots | 4 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of Serial Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of VGA Ports | 1 |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Plug/Connector Type | C13 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1300 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 30.3" |
| Miscellaneous | |
| Package Contents |
|
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
