MARSHALL ELECTRONICS

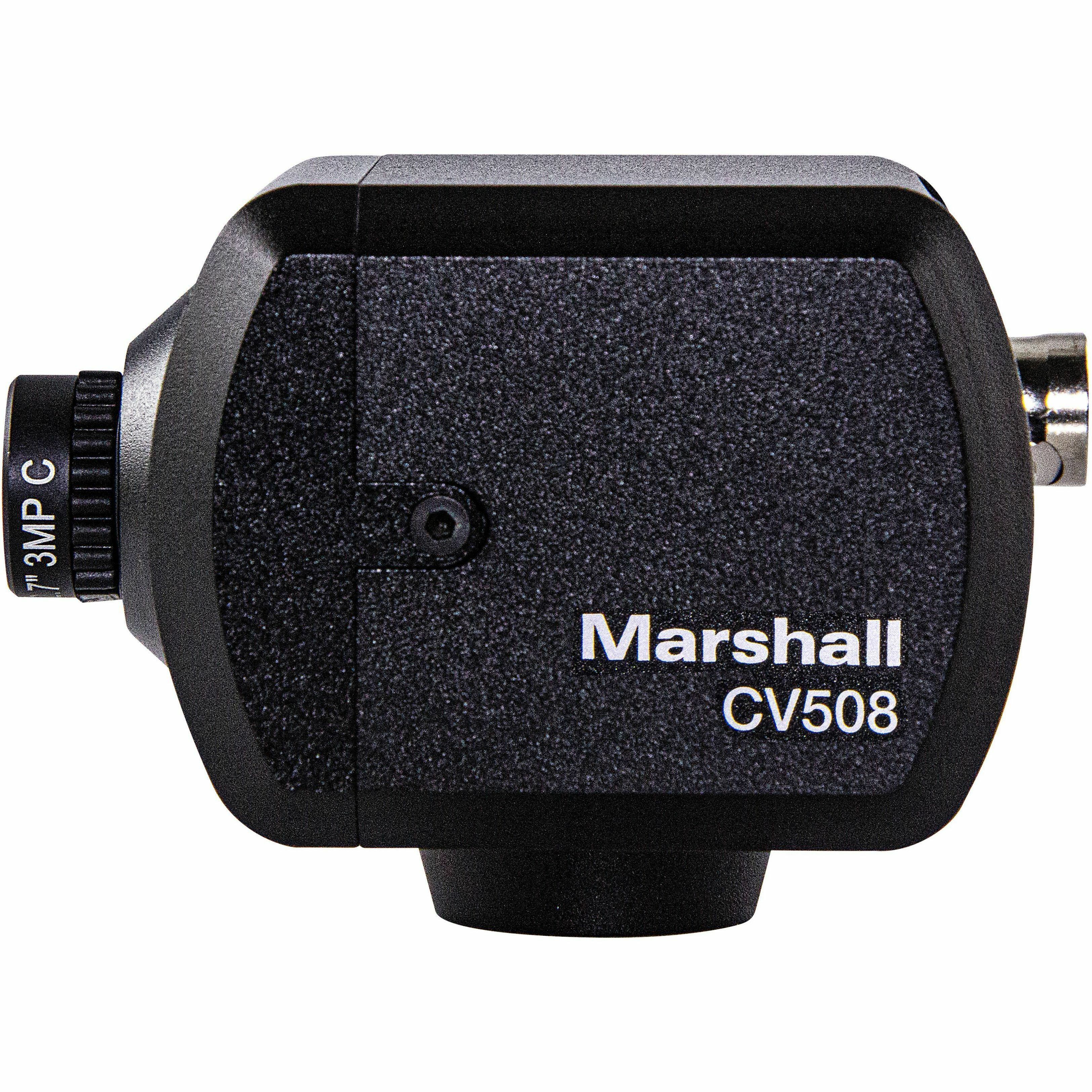

MARSHALL ELECTRONICS CV508 MICRO HDMI/3GSDI CAMERA

Mfg Part Number:  CV508
Image may not reflect the actual item.
Price: $498.99
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 06, 2025
No Sales Tax except these states
, PO and Wire.

New Sony 1/2.8" (6.46mm) Solid-State Image Sensors

The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.

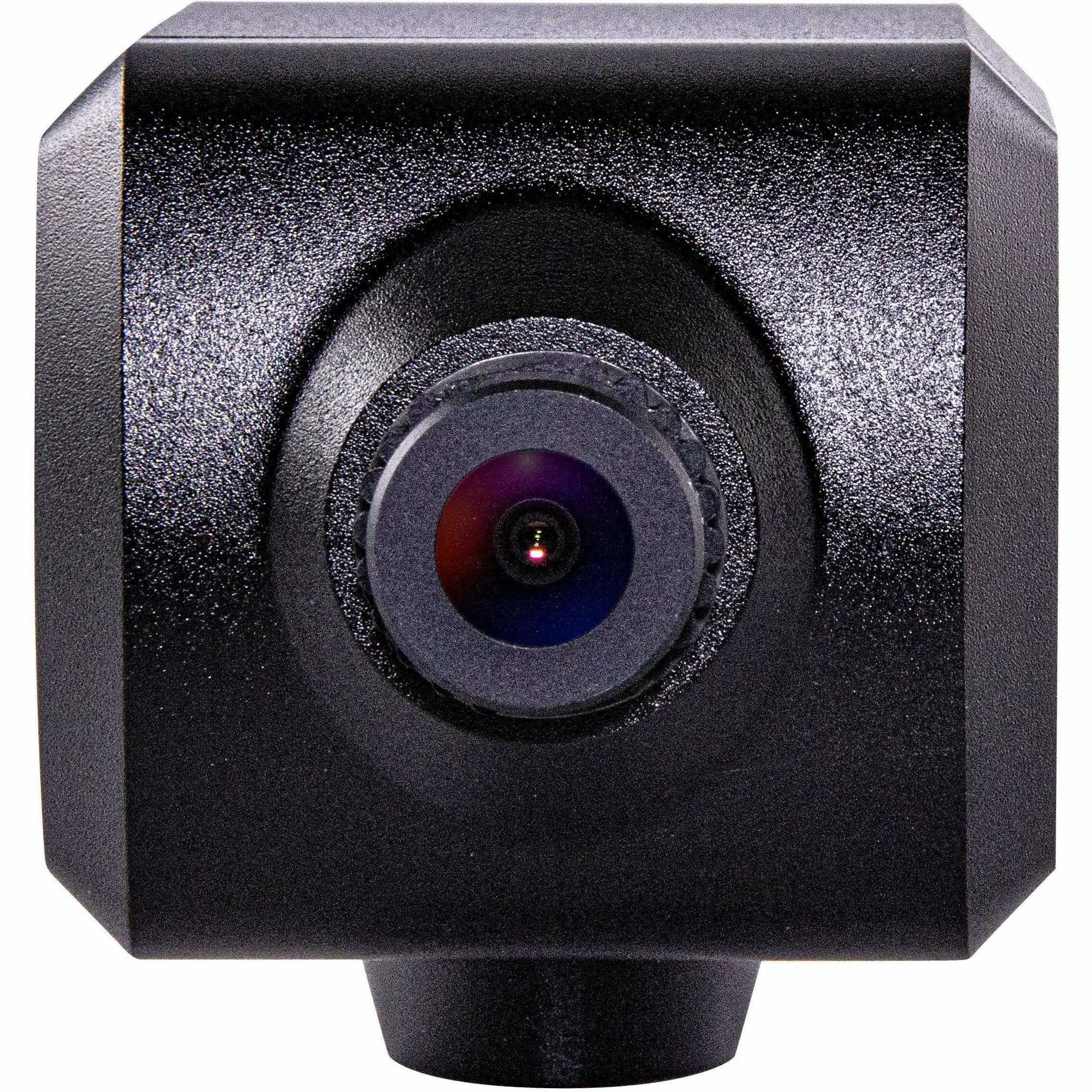

Interchangeable M12 Lenses

Marshall CV508 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application..

Durable, Flexible, Powerful

The durable CV508 body is chiseled from a block of aluminum alloy with rear panel connector protection. CV508 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.

Broadcast Performance

Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.

The

Main Specification
General Information
Manufacturer Marshall Electronics, Inc
Manufacturer Part Number CV508
Manufacturer Website Address http://www.mars-cam.com
Brand Name Marshall
Product Series CV500
Product Model CV508
Product Name Micro POV Camera HDMI + 3GSDI
Product Type Surveillance Camera
Technical Information
Recording Formats Full HD
HD Recording Yes
Night Vision Yes
Night Vision Type Infrared
Display & Graphics
Image Sensor Type Sony IMX CMOS
Image Sensor Size 1/2.8"
Color Supported Color
Field of View 85° H.AOV
Effective Camera Resolution 2.2 Megapixel
Video
Maximum Video Resolution 1920 x 1080
Maximum Frame Rate 60 fps
Analog Video Signal Format 3G-SDI
Audio
Audio Support Yes
Lens
Lens Type Fixed
Maximum Focal Length 4 mm
Lens Included Yes
Lens Mount Type M12-mount
Exposure
Shortest Shutter Speed 1/10000 Second
Longest Shutter Speed 1/30 Second
Network & Communication
Connectivity Technology Wired

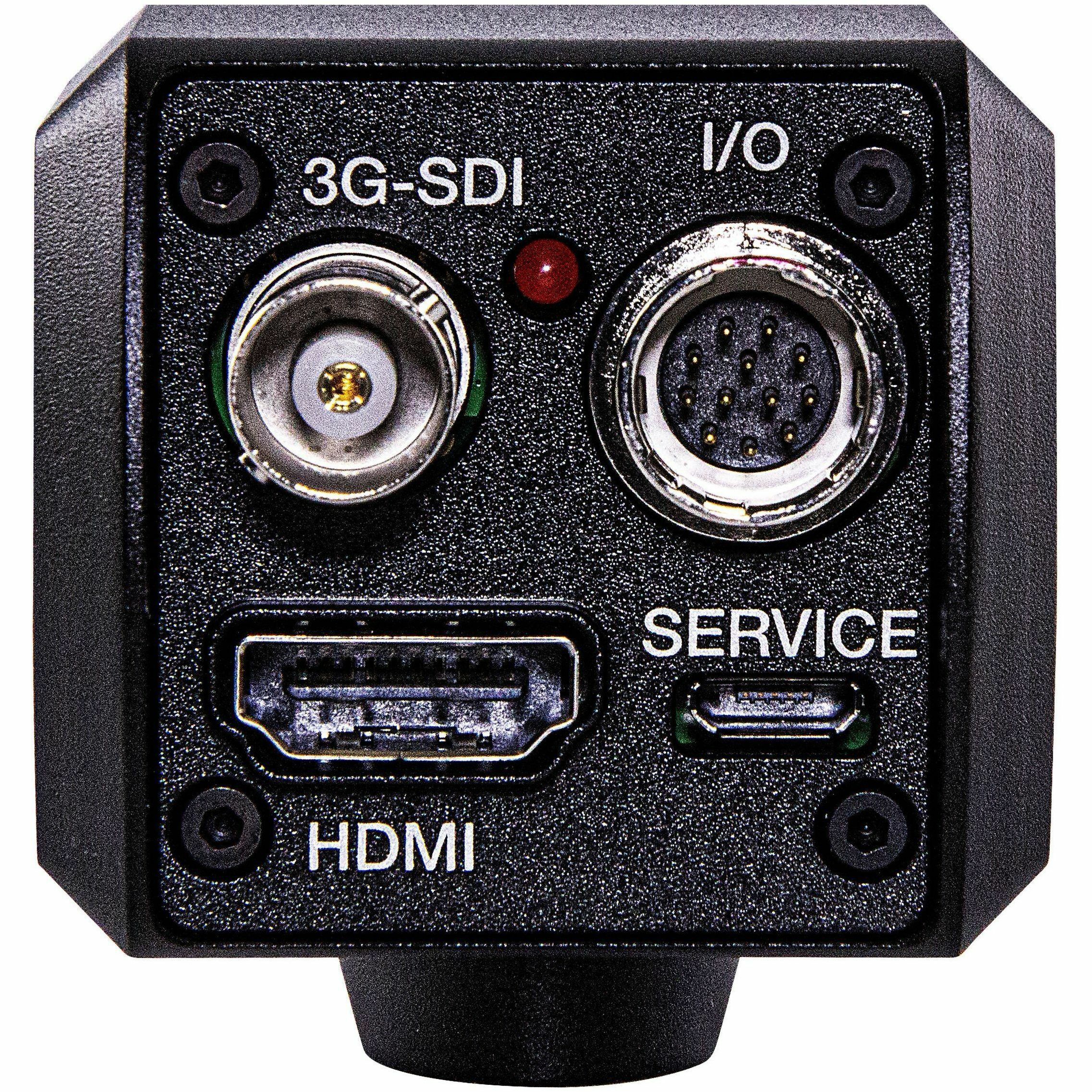

Interfaces/Ports
USB Yes
HDMI Yes
Power Description
Maximum Power Consumption 2.76 W
Input Voltage 12 V DC
Input Voltage 7 V DC
Input Voltage 15 V DC
Power Source Type DC
Physical Characteristics
Color Family Black
Product Color Black
Product Material Aluminum Alloy
Weight (Approximate) 4.80 oz
Environmental Conditions
Minimum Operating Temperature 14°F (-10°C)
Maximum Operating Temperature 122°F (50°C)
Miscellaneous
Features Auto Gain Control
Features Back Light Compensation (BLC)
Features Built-in OSD Function
Features Defog
Features Day/Night
Features Wide Dynamic Range
Features Privacy Masking
Features Automatic White Balance
Features 3D Noise Reduction
Features Mirror
Package Contents
  • Micro POV Camera HDMI + 3GSDI
  • Locking Hirose Cable
Warranty
Limited Warranty 2 Year
