TRANSCEND

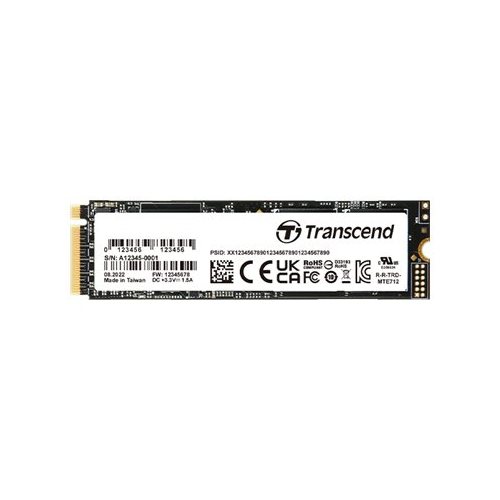

TRANSCEND TS512GMTE712A M.2 2280 PCIE GEN4X4 SSD
Mfg Part Number: TS512GMTE712A , Item #: 5076240
, PO and Wire.
Transcend's M.2 SSD MTE712A is a self-encrypting drive (SED) that complies with the TCG Opal 2.0 standards. Data is protected using the hardware-based AES 256-bit encryption and LBA (Logical Block Address)sector-specific permissions.
The MTE712A features the 112-layer 3D NAND flash and the PCI Express (PCIe) Gen 4 x4 interface, achieving never-before-seen transfer speeds. Its built-in DRAM cache allows faster random speeds while the 30µ" gold finger PCB, Corner Bond technology, and anti-sulfur resistor guarantee its reliability in harsh conditions. The MTE712A is fully tested in-house, operating stably in an extended operating temperature ranging from -20?~75?.
Transcend also offers the MTE712A-I with wide temperature (-40?~ 85?) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
| General Information | |
| Manufacturer | Transcend Information, Inc |
| Manufacturer Part Number | TS512GMTE712A |
| Manufacturer Website Address | http://www.transcend-info.com |
| Brand Name | Transcend |
| Product Name | Solid State Drive |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 512 GB |
| Encryption Standard | 256-bit AES |
| Drive Performance | |
| Random 4KB Read | 350000IOPS |
| Random 4KB Write | 330000IOPS |
| Endurance (DWPD) | 1.84 |
| Endurance (TBW) | 4000 TB |
| Maximum Sequential Read | 3.71 GB/s |
| Maximum Sequential Write | 3.13 GB/s |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Power Description | |
| Standby Power Consumption | 5.60 W |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | M.2 2280 |
| Height | 0.1" |
| Width | 0.9" |
| Depth | 3.1" |
| Weight (Approximate) | 0.35 oz |
