ASROCK

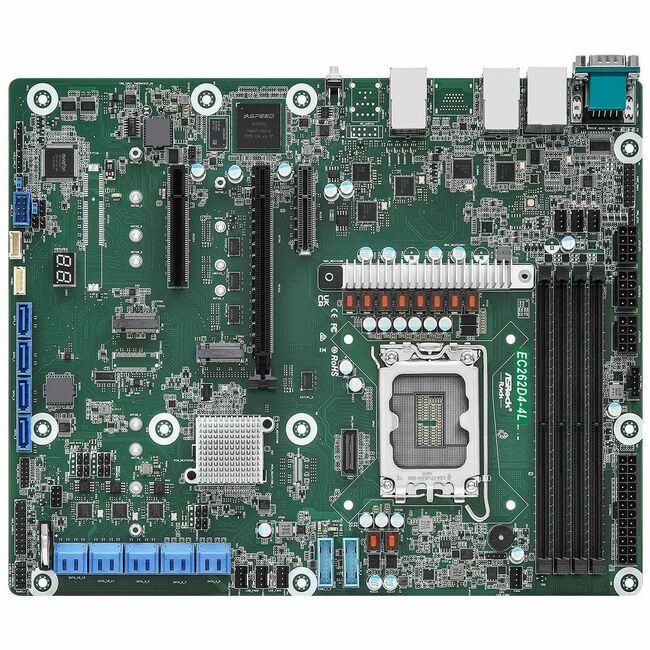

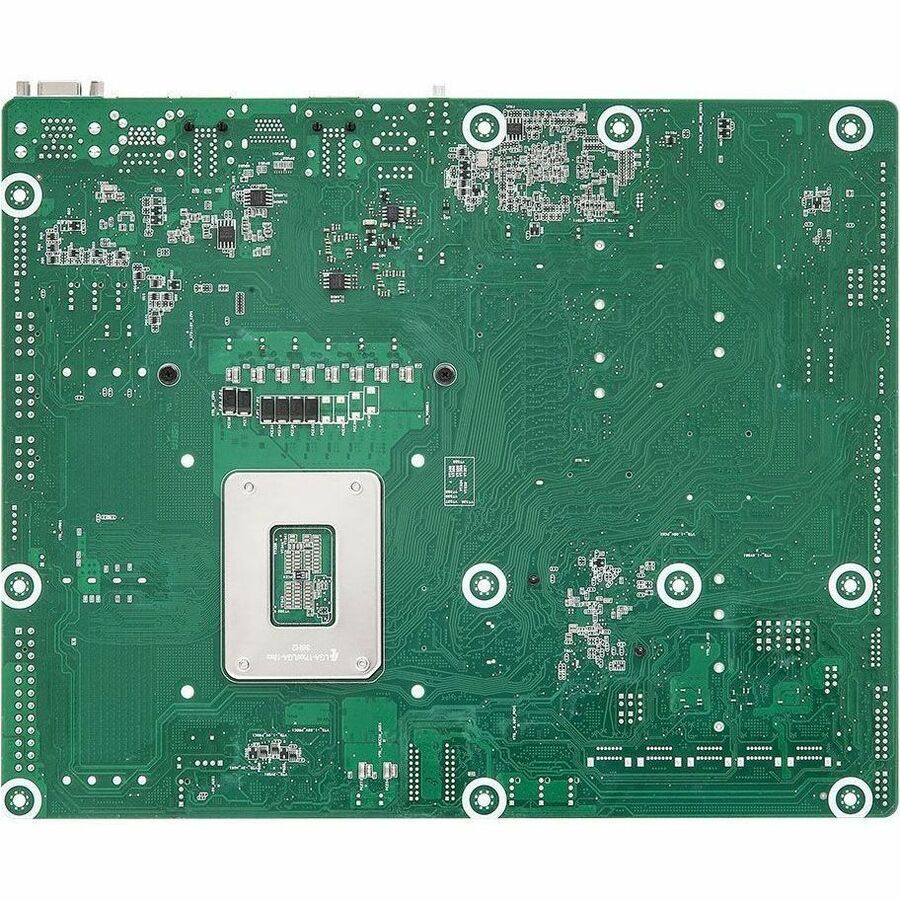

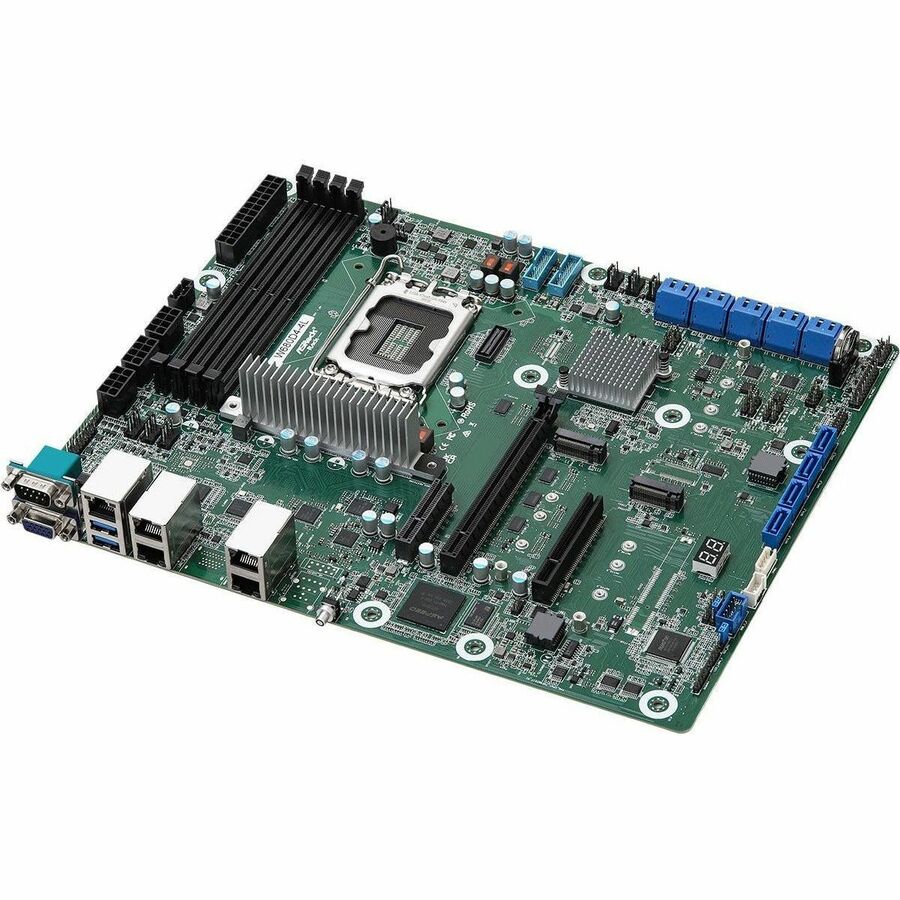

ASRock SV MB EC262D4-4L C262 Single Socket V1 S1700 128GB ATX Retail
Mfg Part Number: EC262D4-4L , Item #: 5075875
Image may not reflect the actual item.
Price: $538.18
Quantity:
More to Come
Last Updated: May 05, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | EC262D4-4L |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | EC262D4-4L |
| Product Name | EC262D4-4L Server Motherboard |
| Package Type | Retail |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C262 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Xeon E |
| Processor Supported | Pentium Gold |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 4000 MHz |
| Memory Speed Supported | 3600 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 5.0 |
| PCI Express Standard | PCI Express 4.0 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x4 Slots | 2 |
| Number of PCI Express x8 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 5 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 14 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
