AGNEOVO
AGneovo MN SX-15G 15 XGA 1024x768 300nits 5ms Retail
Mfg Part Number: SX-15G , Item #: 5075789
, PO and Wire.
Ideal for legacy and modern surveillance applications, the SX-Series is equipped with analogue and digital connectivity as well as Composite output for video looping. Built to last and perform in 24/7 operations, it features AG Neovo's Anti-Burn-in™ technology, preventing image ghosting and ensuring professionals view the present, not the past. Coupled with NeoV™ Optical Glass and metal casing, the display is shielded from incidental damage and impact to withstand the most demanding environments. Highly versatile and compatible, the SX-Series is the optimal display solution for seamless video surveillance transition.
Industry-leading Reliability
The SX-Series is specially designed to transcend the challenge of enduring 24/7 operations. AG Neovo's Anti-Burn-in™ technology also prevents image ghosting while performing nonstop mission-critical operations. Its metal casing and NeoV™ Optical Glass not only protect the SX-Series from damage but also keep maintenance easy.
Optimised for Surveillance and Security
Built with cutting-edge super-resolution technology, the SX-Series can upscale images at a higher and more detailed resolution for better clearness. Besides, geared specifically for a surveillance control room, a user-friendly CCTV mode is pre-configured to maximise image clarity in the scenario of low light surveillance footage at night.
Highly Versatile and Compatible

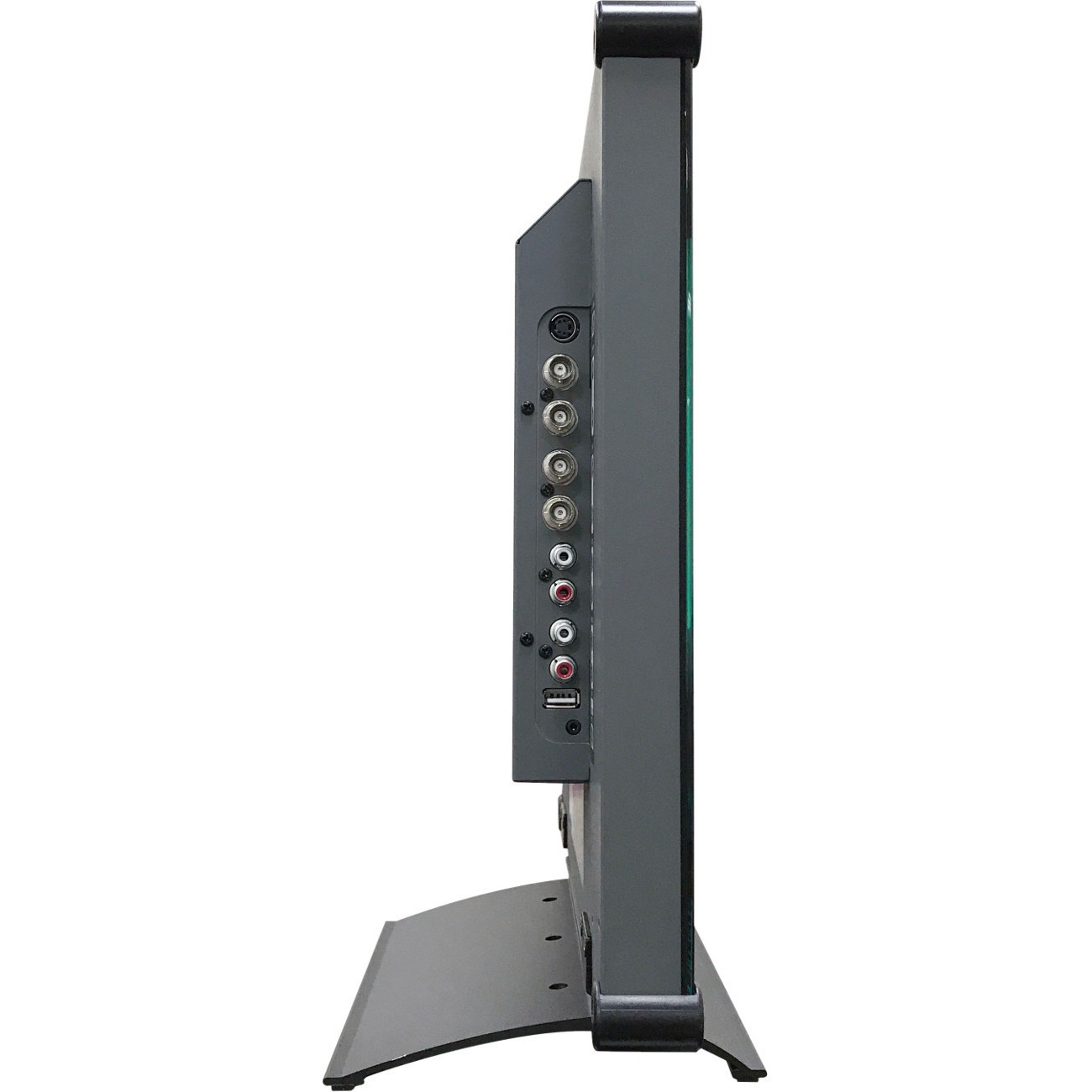

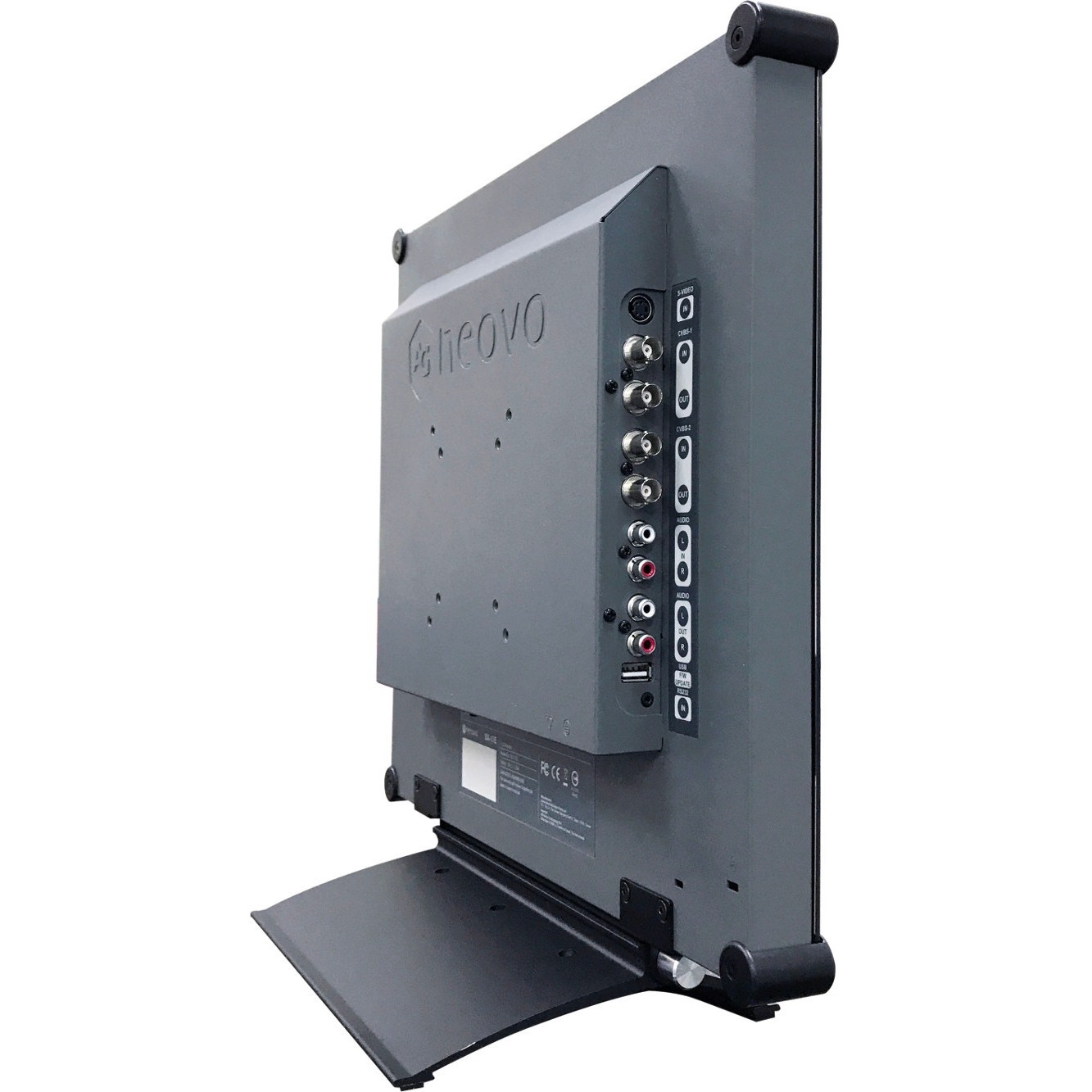

The SX-Series supports multiple video input sources, from legacy video cameras to the latest HDMI and DisplayPort equipment. Its lockable Composite input and loop through Composite output make it easy to connect to other gear without the need for a splitter.
| General Information | |
| Manufacturer | AG Neovo Technology Corporation |
| Manufacturer Part Number | SX-15G |
| Manufacturer Website Address | http://www.agneovo.com |
| Brand Name | AG Neovo |
| Product Series | SX |
| Product Model | SX-15G |
| Product Name | SX-15G LCD Monitor |
| Product Type | LCD Monitor |
| Technical Information | |
| Number of Screens | 1 |
| Screen Size Class | 15" |
| Viewable Screen Size | 15" |
| Screen Mode | XGA |
| Panel Technology | Vertical Alignment (VA) |
| Response Time | 5 ms |
| Pixel Pitch | 11.7 mil |
| Horizontal Viewing Angle | 176° |
| Vertical Viewing Angle | 176° |
| Backlight Technology | LED |
| Mount Type | Ceiling Mountable |
| Mount Type | Desk Mountable |
| Mount Type | Wall Mountable |
| Features | Security Lock |
| Features | Anti-Burn-in Technology |
| Horizontal Frequency | 24 kHz to 83 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Stand Adjustments | Tilt |
| Video | |
| Maximum Resolution | 1024 x 768 |
| Color Supported | 16.2 Million Colors |
| Dynamic Contrast Ratio | 20,000,000:1 |
| Brightness | 300 Nit |
| Audio | |
| Number of Speakers | 2 |
| Speakers | Yes |
| Interfaces/Ports | |
| DVI | Yes |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Number of HDMI Inputs | 1 |
| Number of DisplayPorts | 1 |
| Number of USB Ports | 1 |
| Number of USB 2.0 Ports | 1 |
| Power Description | |
| Operating Power Consumption | 15 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Height | 12.4" |
| Width | 15" |
| Depth | 2.1" |
| Height with Stand | 14.13" |
| Width with Stand | 14.96" |
| Depth with Stand | 6.10" |
| Weight (Approximate) | 9.70 lb |
| Weight with Stand (Approximate) | 10.58 lb |
