ARCTIC COOLING ACFRE00135A LIQUID FREEZER III 280 (BLACK)

Mfg Part Number:  ACFRE00135A
Image may not reflect the actual item.
Price: $155.26
Quantity:
In Stock: 2
Last Updated: May 02, 2025
No Sales Tax except these states
, PO and Wire.

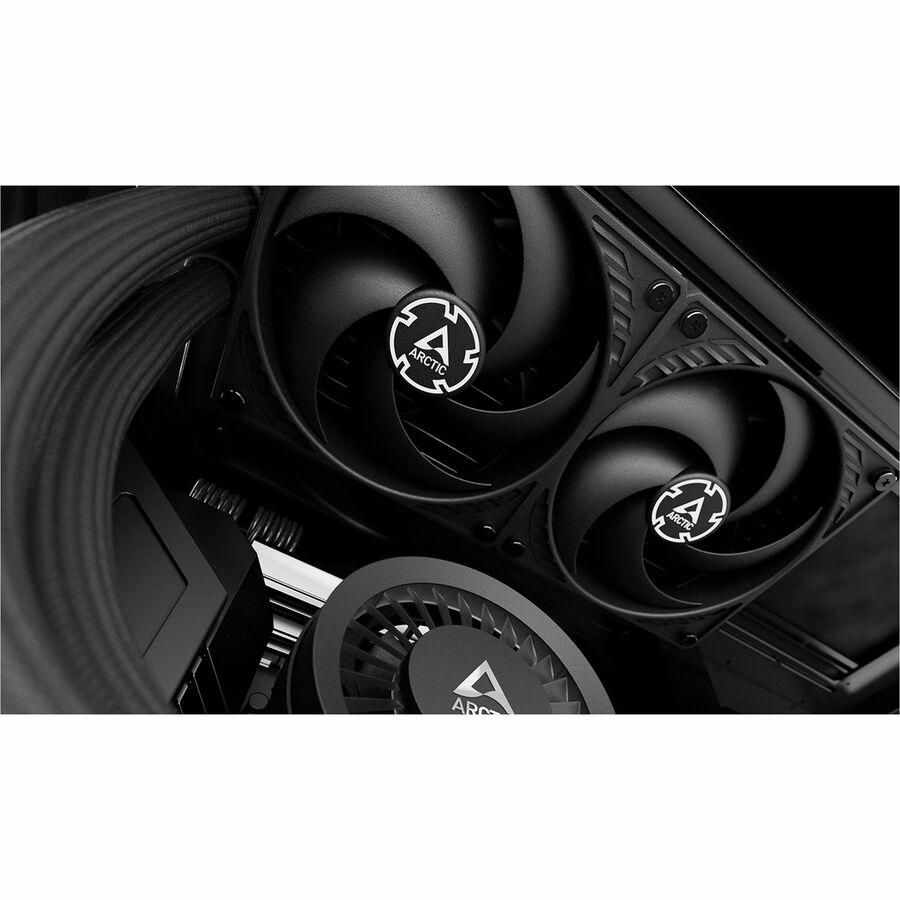

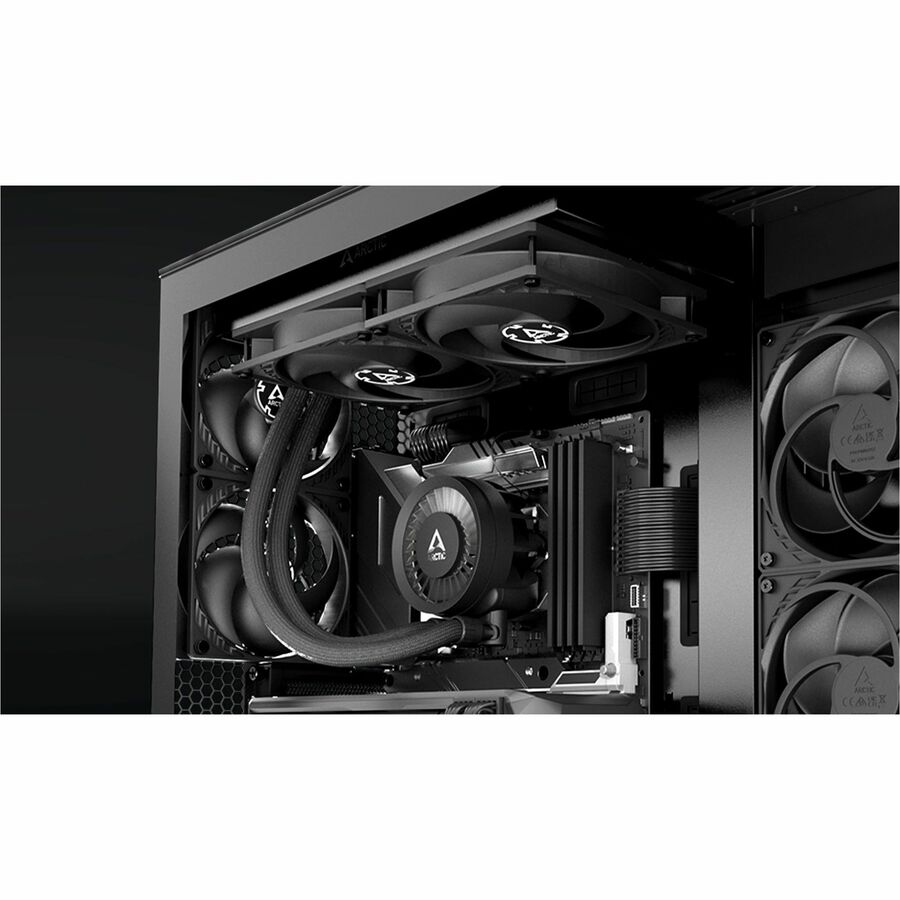

Ready Out-of-the-Box - Easy Installation
The Liquid Freezer III is ready for immediate use thanks to its pre-installed radiator fans in push configuration. The fan cables are integrated into the jacket of the hoses so that only one cable needs to be connected to the motherboard. With the MX-6 thermal compound included in delivery, you have everything you need for quick and easy installation.

Liquid Freezer III 280 - Tested and Confirmed by Intel
Intel has tested and confirmed the Liquid Freezer III on the i9-13900K/KF, i9-14900K/KF and i9-13900KS in the Enthusiast and Desktop category. In these tests, Intel considered both the mounting with contact frame and the cooler's performance.

Future-Proof Compatibility
The Liquid Freezer III is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. We guarantee full compatibility. All Liquid Freezer III can be used with the new LGA1851 socket from Intel without limitation.

Contact Frame for Intel LGA1700 and LGA1851
Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the die and the solder layer between the die and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.

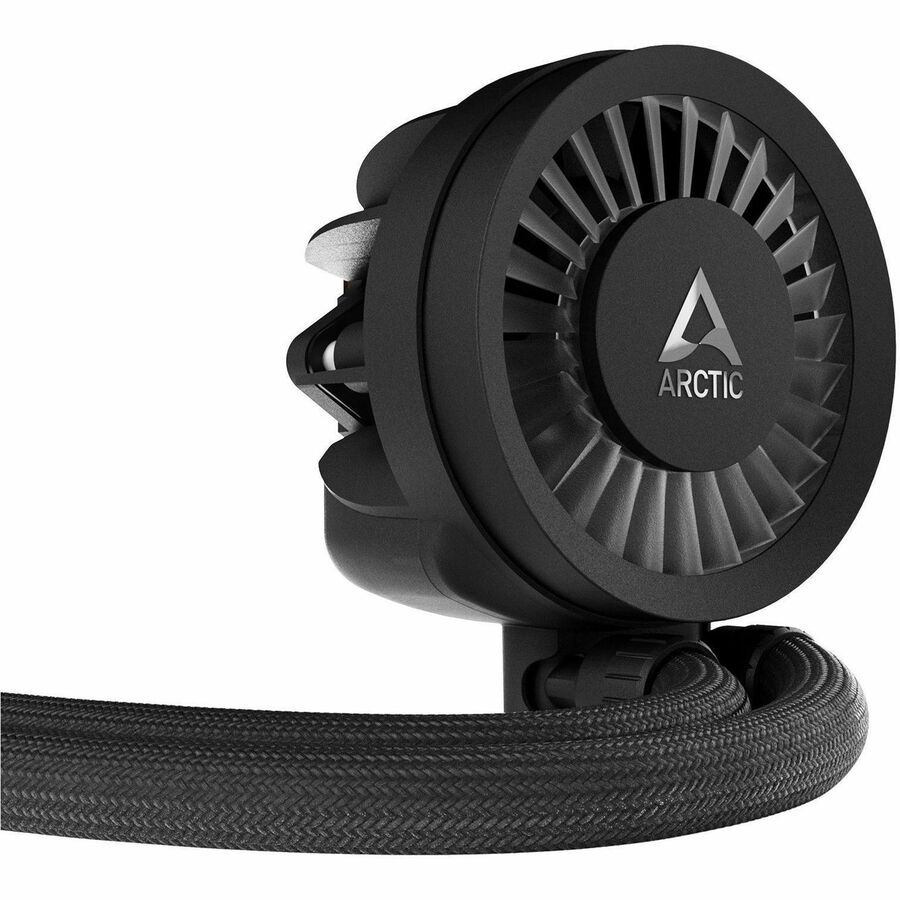

Silent and Powerful VRM Fan
The voltage converters of motherboards often work at their maximum temperature in combination with power-hungry CPUs. To compensate the lack of airflow from a tower cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm PWM-controlled fan enables almost silent cooling of the socket area when VRM cooling is insufficient, in cases with poor airflow or especially in overclocking scenarios. This enables a continuously higher load and a longer service life for the voltage converters.

Integrated Cable Management
The fan cables are hidden within the sleeving. With the Liquid Freezer III, only the connectors from the pump head need to be connected to the motherboard-no additional cable routing required. No extra splitter cables are needed, which simplifies installation and improves the overall look.

Complete Control or Simple Control
Two connection cables - two control options:
Separate regulation: By using the splitter cable with three separate connections, the pump, VRM fan and radiator fan can be controlled independently of each other. This allows, for example, the speed of the VRM fan to be controlled independently of the CPU and to be adjusted analogue to the temperature of the voltage converters via PWM.
All-in-One: Like the Liquid Freezer II, this allows the entire unit to be controlled via a single connection, whereby the speed of the radiator fans is output. The pump, VRM and radiator fans can therefore be easily controlled via a single PWM setting.

Main Specification
General Information
Manufacturer Arctic Cooling
Manufacturer Part Number ACFRE00135A
Manufacturer Website Address http://www.arctic-cooling.com
Brand Name Arctic
Product Line Liquid Freezer III 280
Product Name Liquid Freezer III 280 Cooling Fan/Radiator/Pump
Product Type Cooling Fan/Radiator/Pump
Fan Information
Number of Fans 2
Fan Bearing Type Fluid Dynamic Bearing
Fan Speed (Min) 200 rpm
Fan Speed (Max) 1700 rpm
Maximum Airflow 72.80 CFM
Maximum Air Pressure 2.4mmH2O
Heatsink Information
Cooler Type Liquid Cooler
Compatible Intel Socket LGA-1700
Compatible Intel Socket Socket LGA-1851
Compatible AMD Socket AM4
Compatible AMD Socket AM5
Interfaces/Ports
Connectors 4-Pin PWM
Power Description
Rated Current 350 mA
Physical Characteristics
Color Family Black
Product Color Black
Radiator Material Aluminum
Material Details Cold Plate: Copper, Micro Skived Fins
Radiator Height 1.50"
Radiator Width 5.43"
Weight (Approximate) 3.76 lb
Miscellaneous
Application/Usage CPU
Application/Usage Processor
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 6 Year
