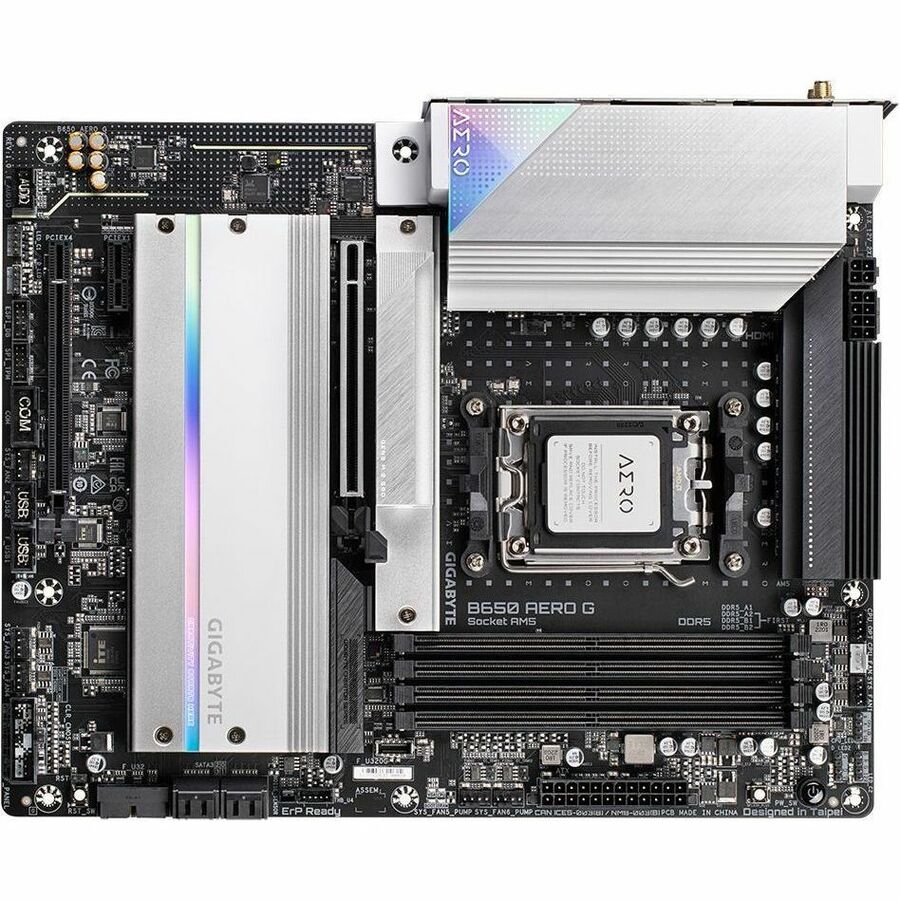

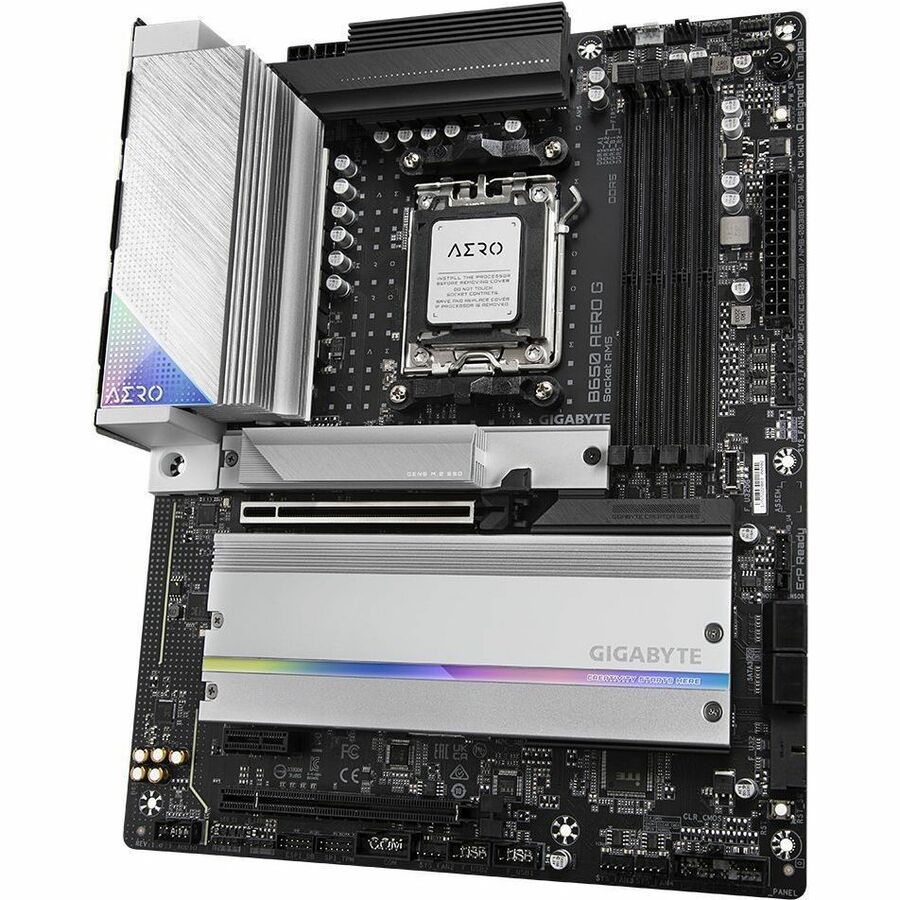

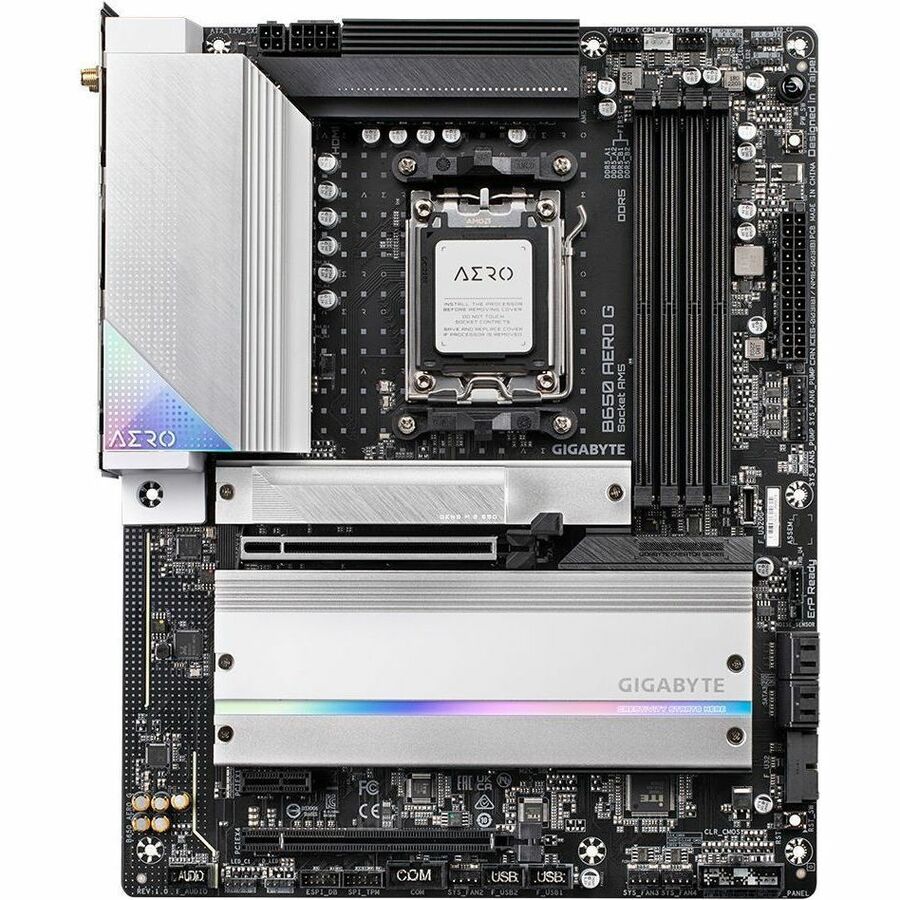

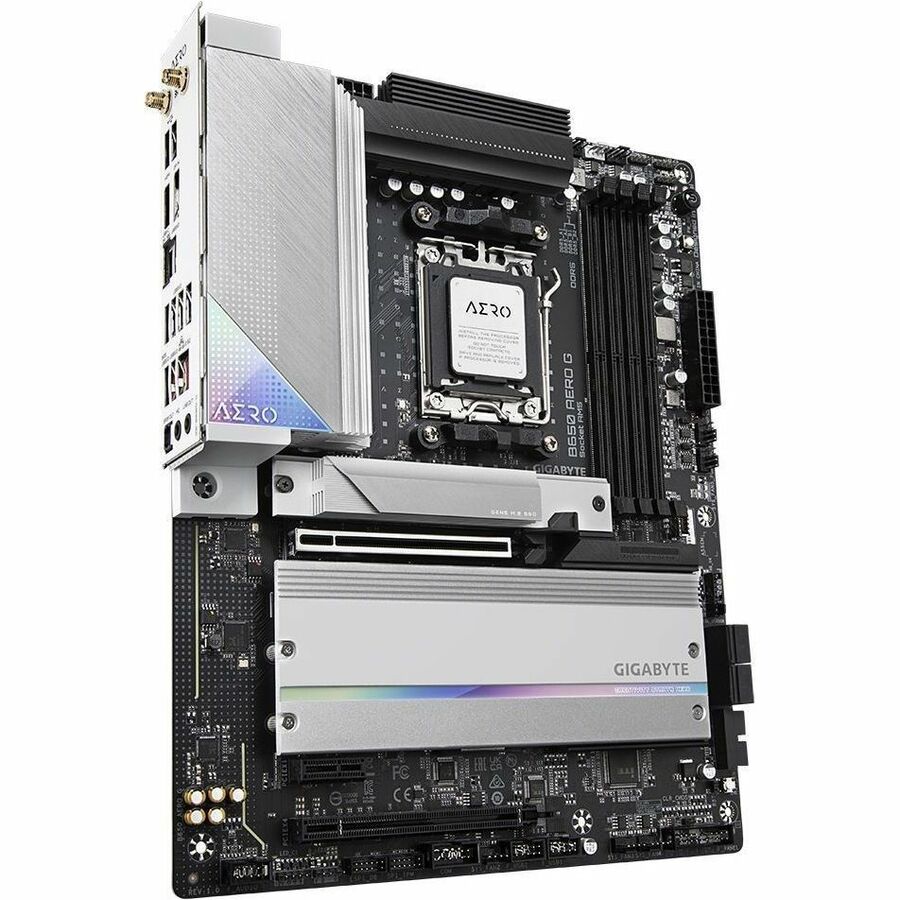

Gigabyte MB B650 AERO G B650 AMD AM5 Max192GB DDR5 PCIE ATX Retail
Mfg Part Number: B650 AERO G , Item #: 5073990
, PO and Wire.
AERO SERIES
AERO Series motherboards are a fresh approach to creators that evolve with optimized features for content creation. To deliver reliable computing performance, impressive connectivity, expandable graphics,and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production.
Simplify Your Connections.
Connected to GIGABYTE VisionLINK port, you can transfer data, video and power charging via a single USB Type-C cable.
AERO series motherboards let you experience the ultimate connectivity and easy access to all your connections.
Intel 2.5GbE LAN
Intel 2.5Gb Ethernet provides an immediate boost to overall network performance, smooth video editing and fast data transfers
Wi-Fi 6E
Wi-Fi 6E brings the ability to conduct AR/VR experiences, get creative with fewer dropped connections, and download large files at faster speeds without lag.
SuperSpeed USB 20Gbps
USB 3.2 Gen 2x2 lets you to enjoy the flexibility of connectivity, fast access and large data transfers.
DDR5
Faster Instant Reaction Speed.
Whether you're editing hundreds of audio samples, working with 4K video, or even multitasking, DDR5 will satisfy your insatiable need for speed.

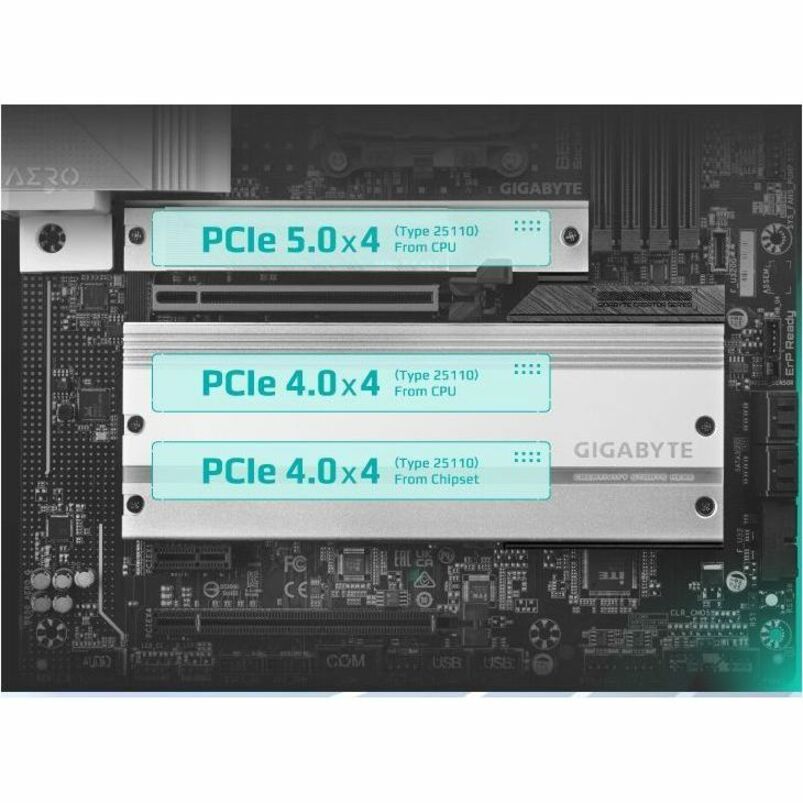

PCIe 5.0 M.2 Storage Fast Speed. More Space.
Equipped with a full-speed PCIe 5.0 M.2 slot.
A total of three onboard M.2 slots are available for data-intensive tasks and creative work without additional configuration.
PCIe x4 M.2
Creates Exclusive Storage Performance.
All PCIe x4 M.2 slots offer up to Type 25110 and NVMe SSD RAID support for optimal enhancement.

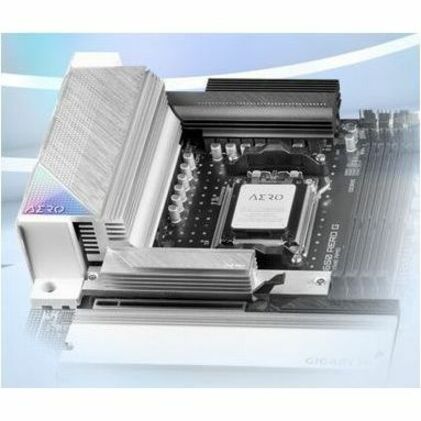

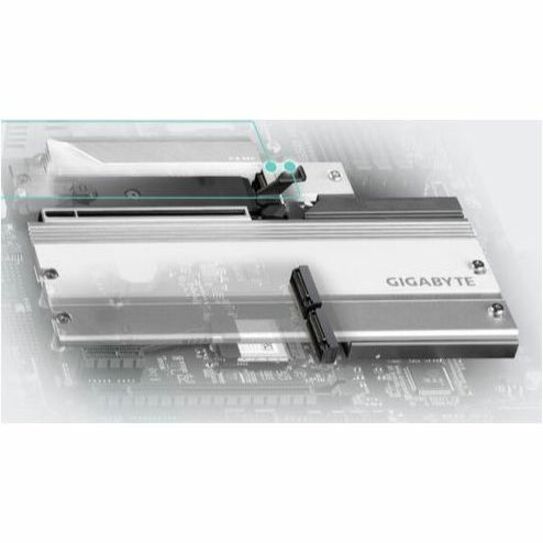

Aesthetic Cooling Design.
GIGABYTE's advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process.
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | B650AEROG |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | GIGABYTE |
| Product Model | B650 AERO G |
| Product Name | B650 AERO G (rev. 1.0) Desktop Motherboard |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7 |
| Multi GPU Supported | CrossFire |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 6666 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 8000 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 6200 MHz |
| Memory Speed Supported | 7600 MHz |
| Memory Speed Supported | 7200 MHz |
| Memory Speed Supported | 7800 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 1 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 3.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |

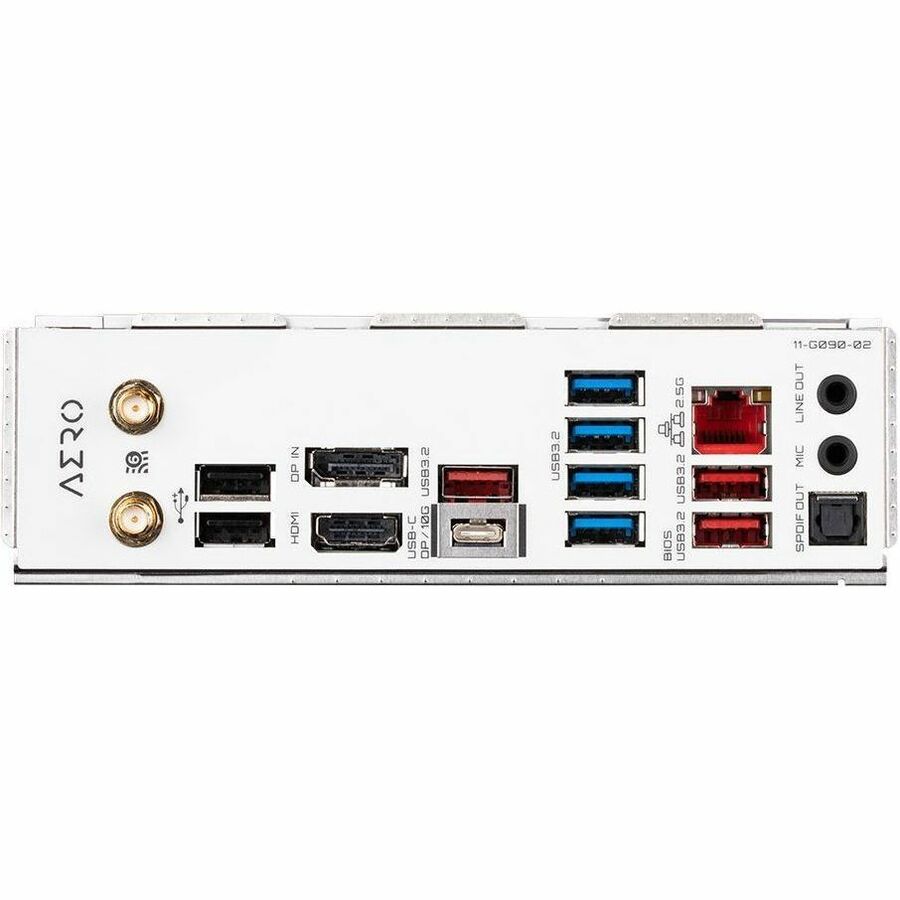

| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
