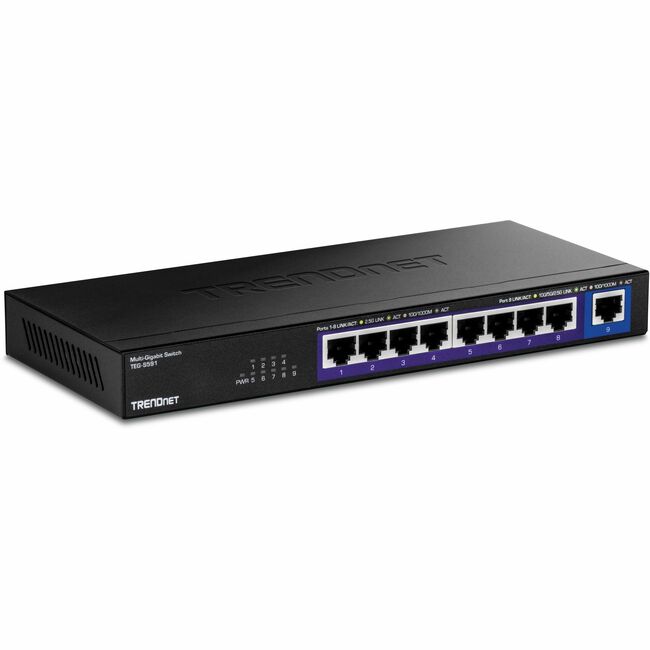

Expand your network's bandwidth and reduce traffic bottlenecks with TRENDnet's high-speed and reliable Multi-Gigabit Switch. This multi-gig 2.5G / 10G switch comes equipped with 2.5G RJ-45 ports that provide speeds capable of up to 2.5Gbps over existing Cat5e or better cabling. It also offers one dedicated 10G RJ-45 port for an ultra-fast network connection, providing a cost-effective solution in adding 10G link capability to any SMB network. The fanless design on this multi-gigabit 2.5G / 10G switch lowers energy consumption and eliminates distracting operating noise. TRENDnet's reliable multi-gigabit switches are cost-effective solutions to increase your network's throughput.
10G Port
Offers one 10G port for high-speed network connection providing a costeffective solution in adding 10G link capability
2.5G Ports
Equipped with eight 2.5G RJ-45 ports that provide multi-gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.
Fanless
General Information | |
Manufacturer | TRENDnet |
Manufacturer Part Number | TEG-S591 |
Manufacturer Website Address | http://www.trendnet.com |
Brand Name | TRENDnet |
Product Model | TEG-S591 |
Product Name | 9-Port Multi-Gig Switch |
Product Type | Ethernet Switch |
Technical Information | |
Features | Fanless |
Interfaces/Ports | |
Total Number of Network Ports | 9 |
Network (RJ-45) | Yes |
Port/Expansion Slot Details | 8 x 2.5 Gigabit Ethernet Network |
Port/Expansion Slot Details | 1 x 10 Gigabit Ethernet Network |
Media & Performance | |
Media Type Supported | Twisted Pair |
Ethernet Technology | 10 Gigabit Ethernet |
Network Technology | 10GBase-T |
Network & Communication | |
Layer Supported | 2 |
Networking Standards | IEEE 802.3x |
Networking Standards | IEEE 802.3u |
Networking Standards | IEEE 802.3bz |
Networking Standards | IEEE 802.3ab |
Networking Standards | IEEE 802.3an |
Networking Standards | IEEE 802.3ae |
Management & Protocols | |
Manageable | No |
Power Description | |
Input Voltage | 230 V AC |
Input Voltage | 120 V AC |
Power Source | Power Supply |
Power Source | AC |
Power Consumption | 11.90 W |
Physical Characteristics | |
Product Material | Metal |
Form Factor | Desktop |
Form Factor | Wall Mountable |
Height | 1.1" |
Width | 9.4" |
Depth | 4.1" |
Weight (Approximate) | 1.60 lb |
Miscellaneous | |
Package Contents |
|
Country of Origin | Taiwan |
Warranty | |
Limited Warranty | Lifetime |
