ASUS SY PN63-S1-BB7000XFD-NL Ci7-1165G7 W O RAM Storage OS Intel Iris Xe RTL
Mfg Part Number: PN63-S1-BB7000XFD-NL , Item #: 5068849
, PO and Wire.
Easy modification, maximum possibilities

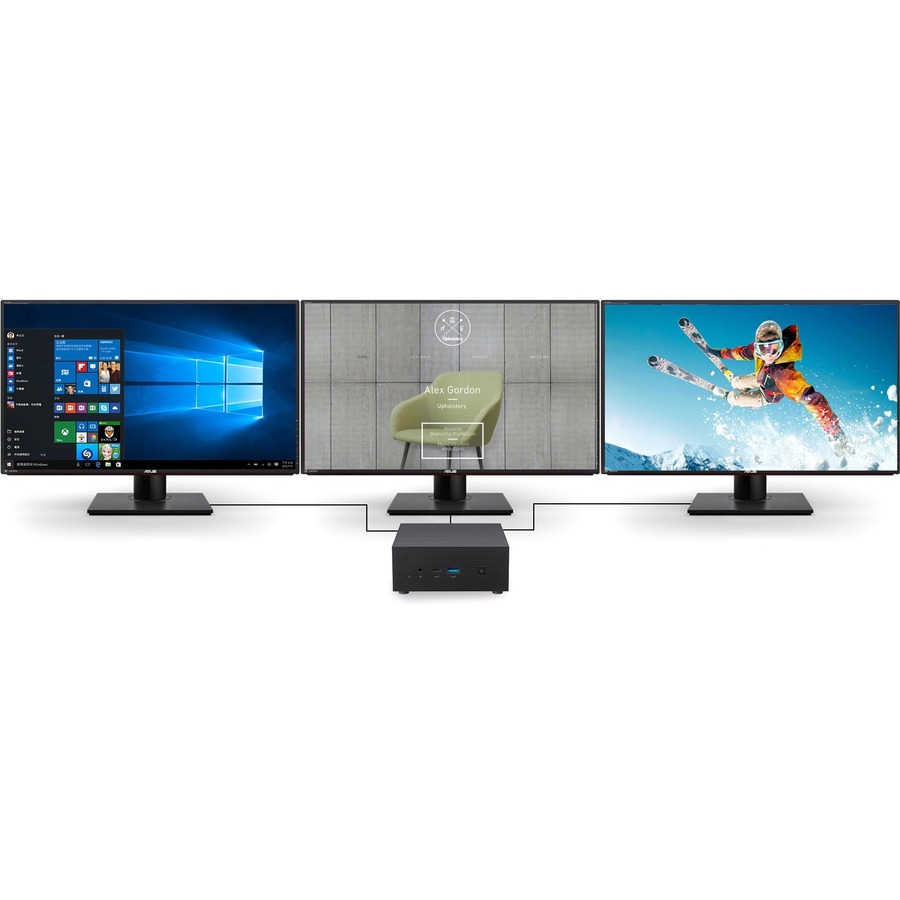

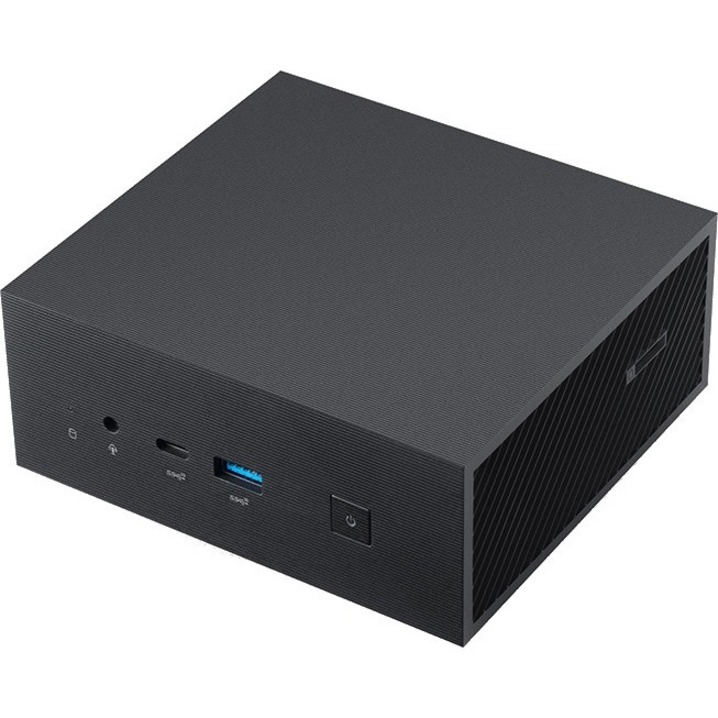

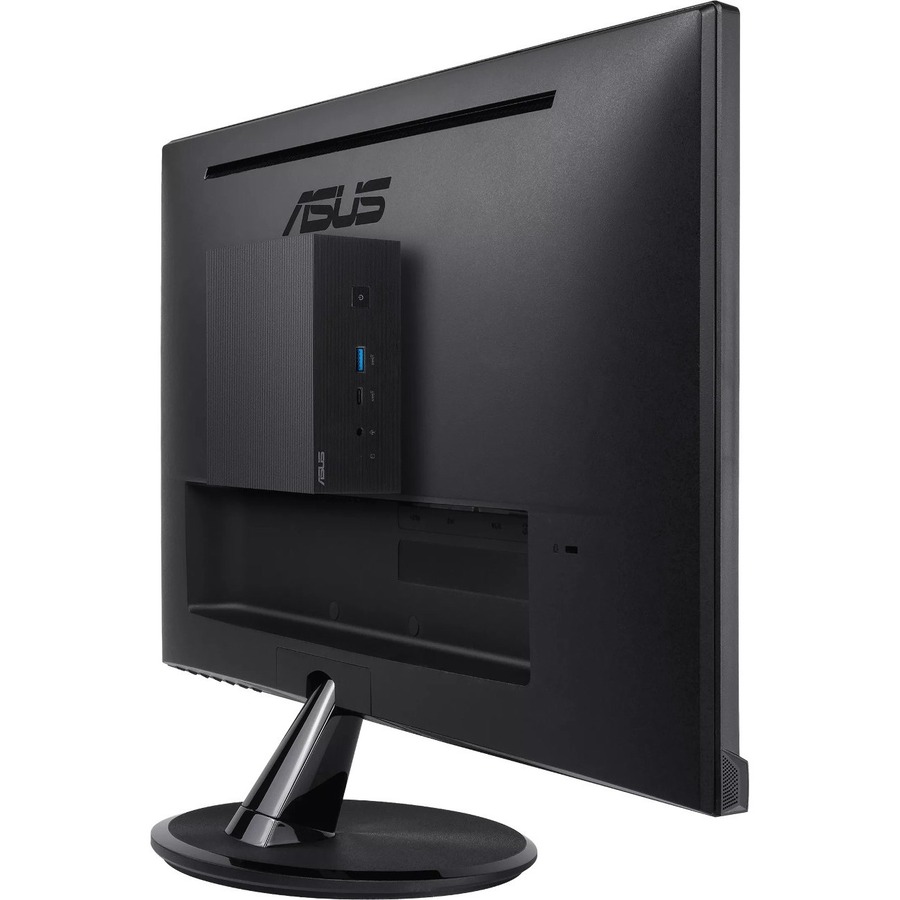

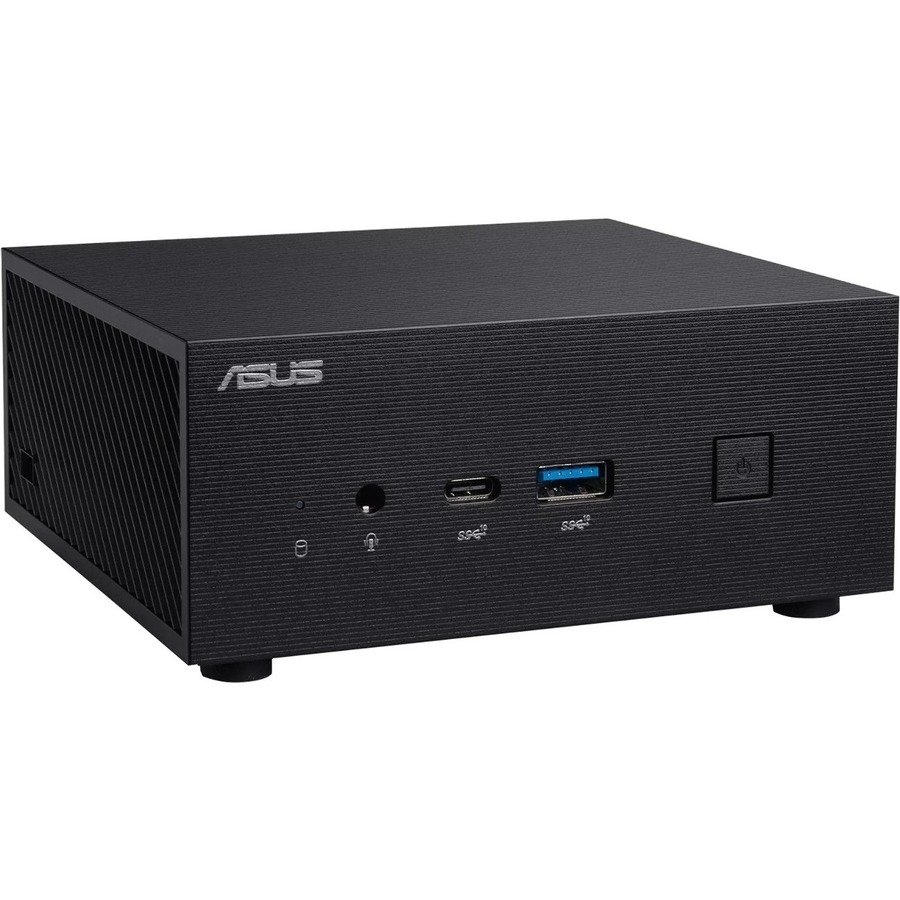

ASUS Mini PC PN63-S1 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 11th Generation Intel® Core™ processors and support for high-speed 3200MHz DDR4 memory, Mini PC PN63-S1 is ready to take on demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit, such as for digital signage or in a home theater. Wi-Fi 6E networking ensures stable, high-speed data transfers, even in crowded networking environments.
Performance
ASUS Mini PC PN63-S1 is no lightweight when it comes to performance. It harnesses the power of the latest 11th Gen Intel® Core™ processors combined with plenty of fast RAM, plus Intel® Iris® Xe and multiple storage combinations. There's also an ultrafast PCIe® SSD to ensure fast boot times and rapid app loads.
Flexibility | Upgrade-friendly
A convenient sliding chassis design lets you add or upgrade 2 x M.2 Slot & 1 x 2.5" HDD, support PCIe G4x4, PCIe G3x4, or memory in two easy steps using just a screwdriver. A bare-bones option is also available, giving you maximum flexibility to customize your system.
Performance | Small and powerful
11th Gen Intel Core processors deliver outstanding performance and smooth computing power, while integrated Intel Iris®Xe graphics* enhance fast-moving visuals to enable Mini PC PN63-S1 to tackle intensive business operation with ease.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | PN63-S1-BB7000XFD-NL |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus |
| Product Series | PN63-S1 |
| Product Model | PN63-S1-BB7000XFD-NL |
| Product Name | PN63-S1-BB7000XFD-NL Barebone System |
| Package Type | Retail |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Socket | Socket BGA-1449 |
| Processor Supported | Core i3 |
| Processor Supported | Core i5 |
| Processor Supported | Core i7 |
| Processor Type | Core i7 |
| Processor Generation | 11th Gen |
| Processor Model | i7-1165G7 |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-3200/PC4-25600 |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Interfaces | PCI Express 3.0 x4 |
| Supported Storage Drive Interfaces | PCI Express NVMe 3.0 |
| Supported Storage Drive Interfaces | PCI Express 4.0 x4 |
| Supported Storage Drive Interfaces | PCI Express NVMe 4.0 x4 |
| Supported Storage Drive Interfaces | PCI Express NVMe 4.0 |
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Types | HDD |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Type | NVMe |
| Display & Graphics | |
| Graphics Controller Model | Iris Xe Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| Number of M.2 Interfaces | 2 |

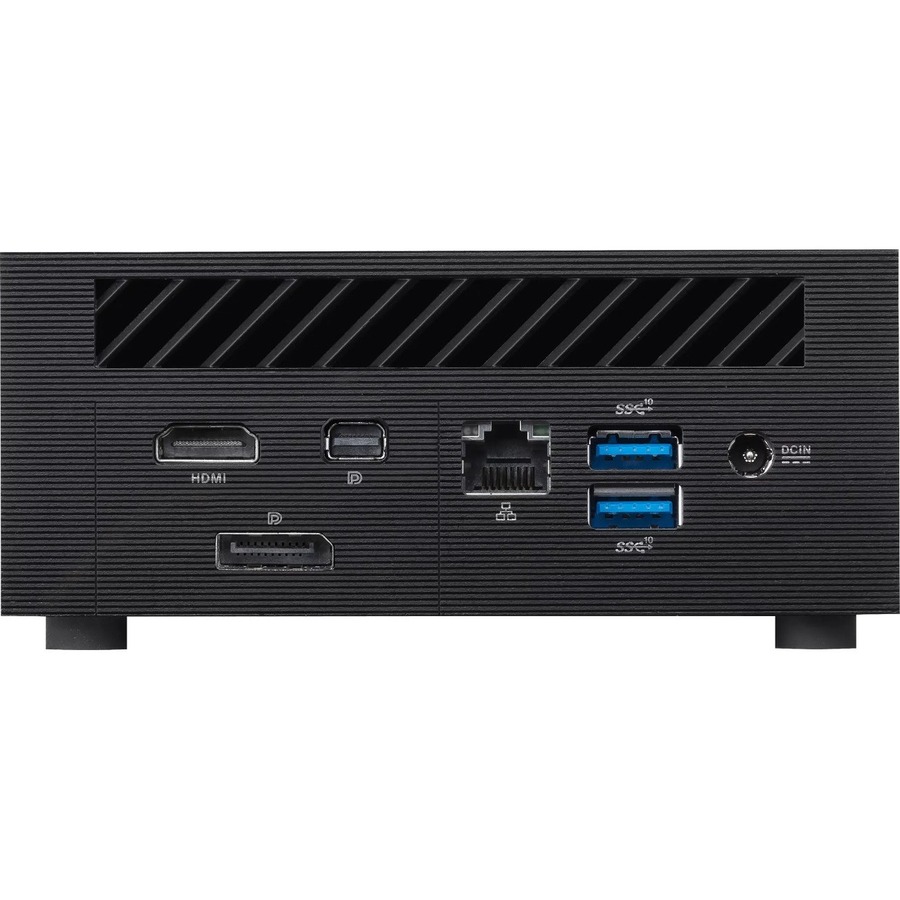

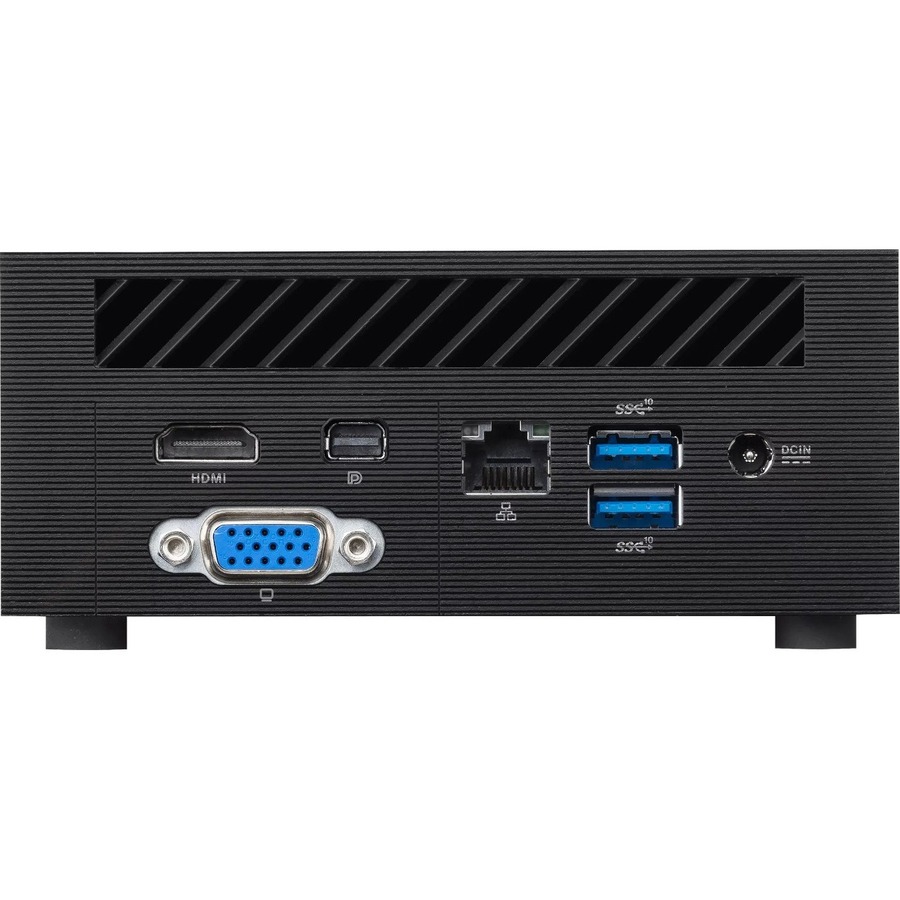

| Interfaces/Ports | |

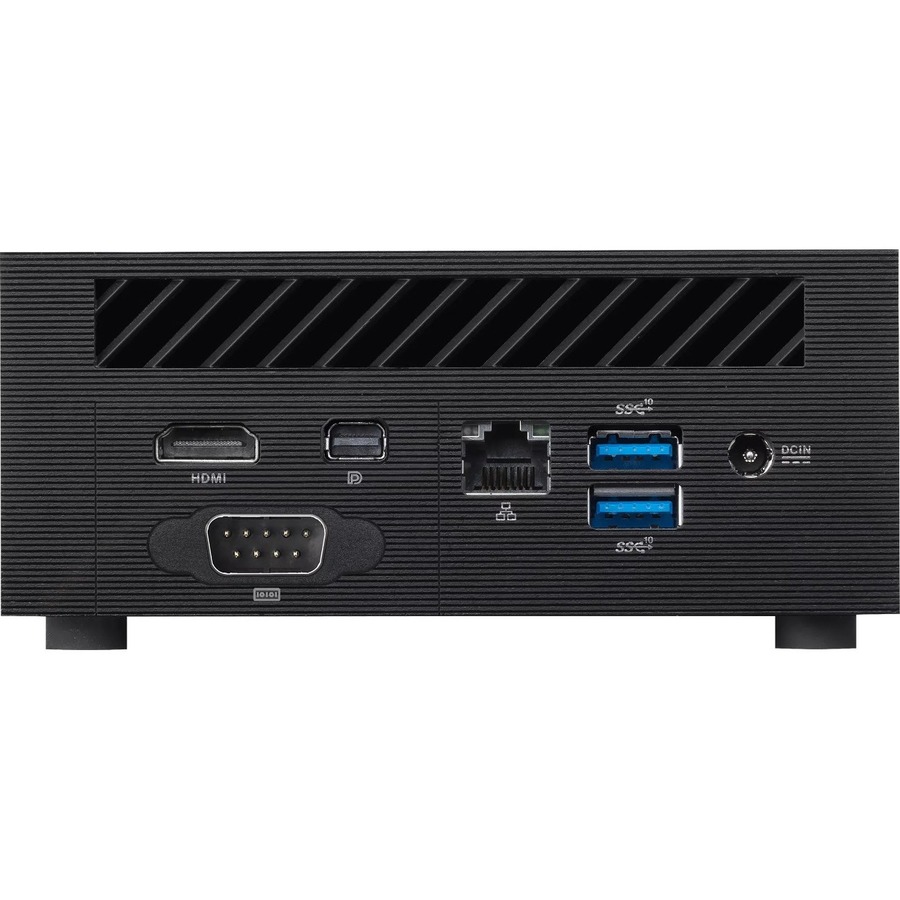

| HDMI (Rear) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 3 |

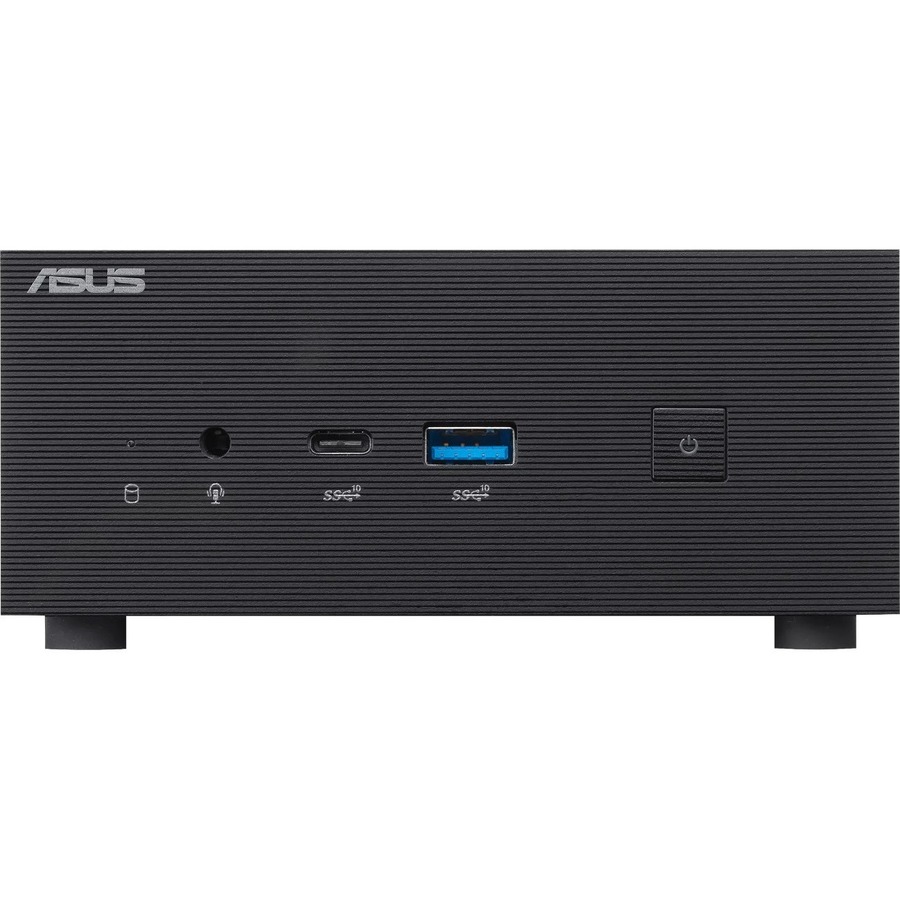

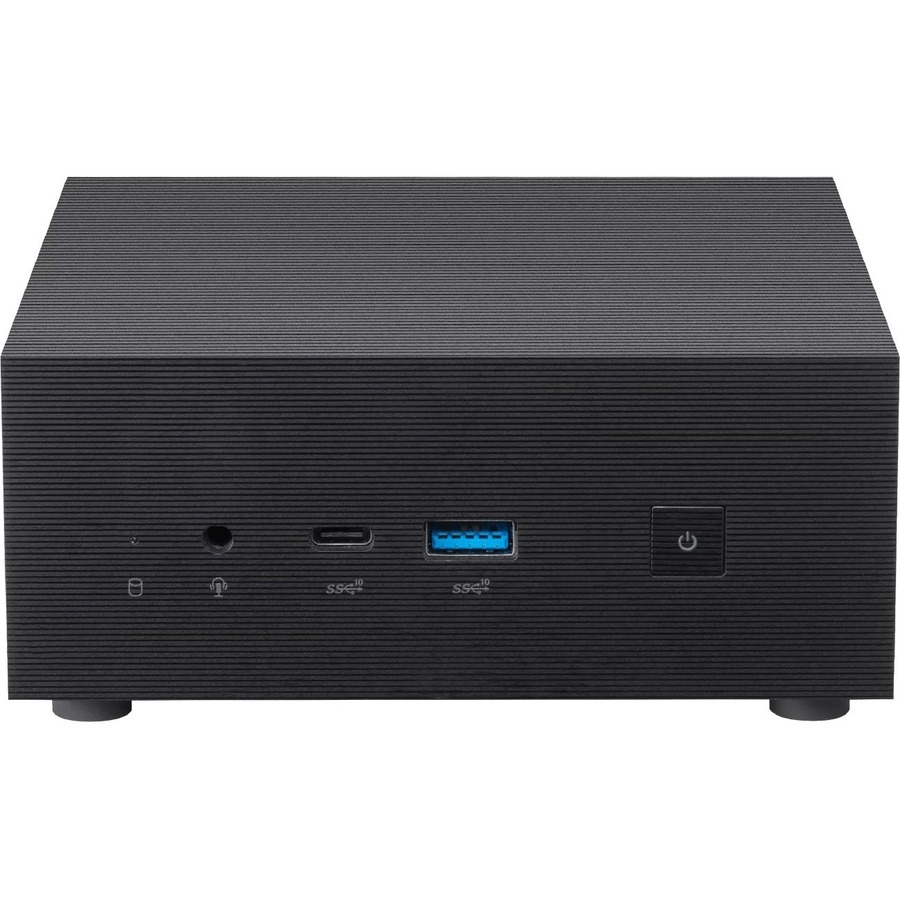

| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1 x USB 3.2 Gen2 Type-C |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SATA Interfaces | 1 |
| Mini DisplayPort | Yes |
| Operating System | |
| Operating System Supported | Windows 11 Pro |
| Operating System Supported | Windows 11 Home |
| Operating System Supported | Windows 10 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Thermal Design Power | 28 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Mini PC |
| Height | 2.3" |
| Width | 4.7" |
| Depth | 5.1" |
| Weight (Approximate) | 1.65 lb |
| Miscellaneous | |

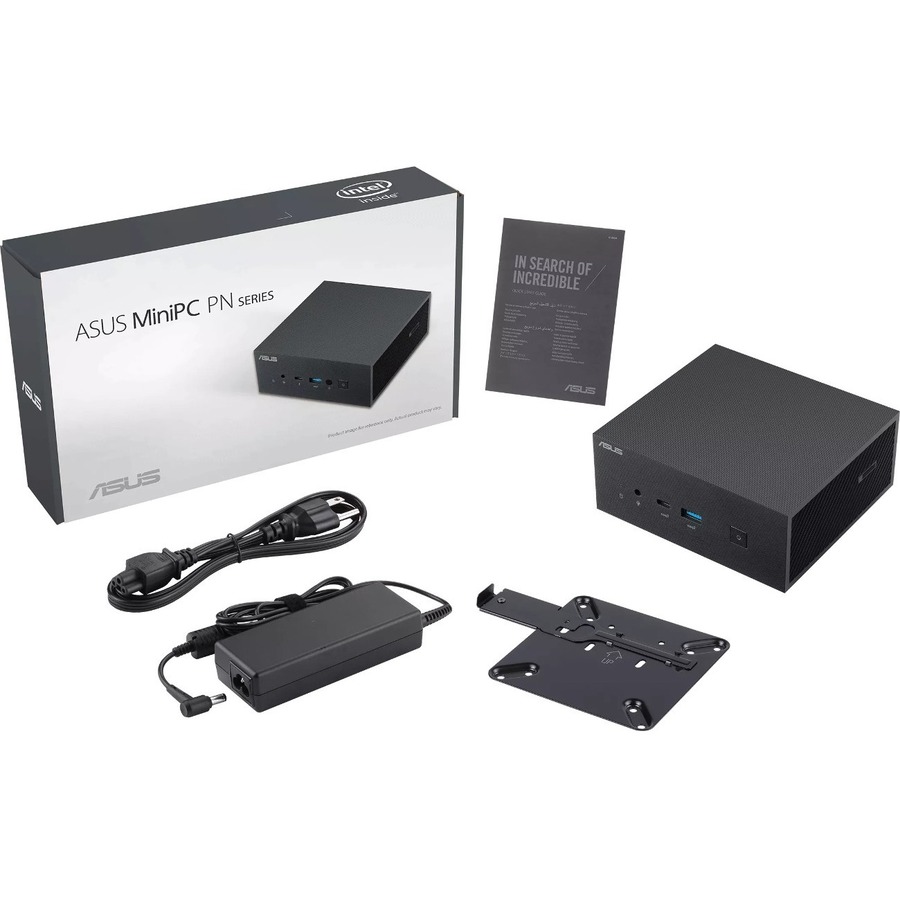

| Package Contents |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
