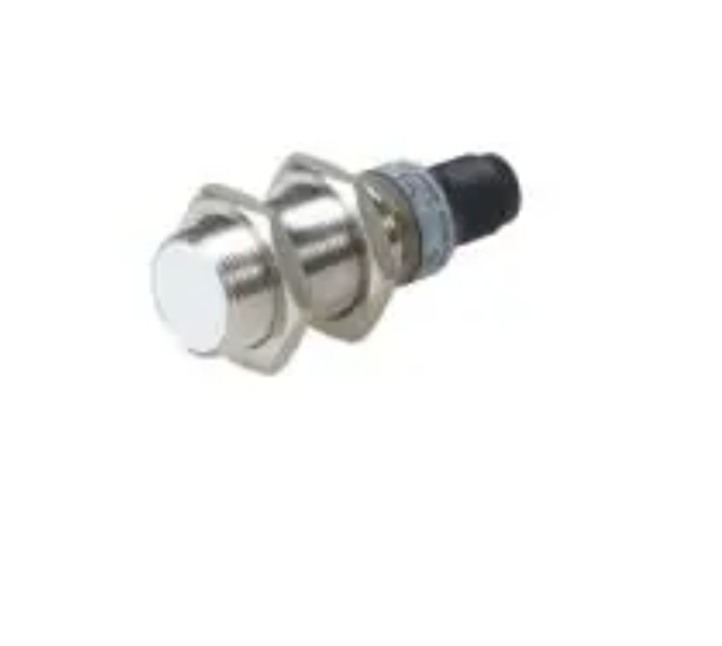

CARLO GAVAZZI EI1808NPOSS-1 Proximity Sensors Inductive proximity sensor, M18 Stainless steel, M12 plug, Sn 8mm, Non- Flush mount, Short body, NPN NO, Supply voltage 10-40Vdc, Max output current 200 mA, Max switching frequency 400Hz, Operating temperature -25C - +70C, IP67.
Mfg Part Number: EI1808NPOSS-1 , Item #: 5068456
Image may not reflect the actual item.
Price: $219.99
Quantity:
In Stock: 63
Last Updated: Jun 06, 2025
No Sales Tax except these states
, PO and Wire.
Product Type: Proximity Sensors
Rated operational volt. (Ub)
10 to 32 VDC (ripple included)
Ripple
≤ 10%
Rated operational current (le)
Continuous
≤ 200 mA
No-load supply current (lo)
Output ON: < 6.5 mA
Output OFF: < 2.7 mA
Voltage drop (Ua)
≤ 2 VDC at max. load
Protection
Reverse polarity, short-circuit, transients
Transient voltage
≤ 700 V/0.5 J
EMC
Approved according to EN 60947-5-2
