ASROCK

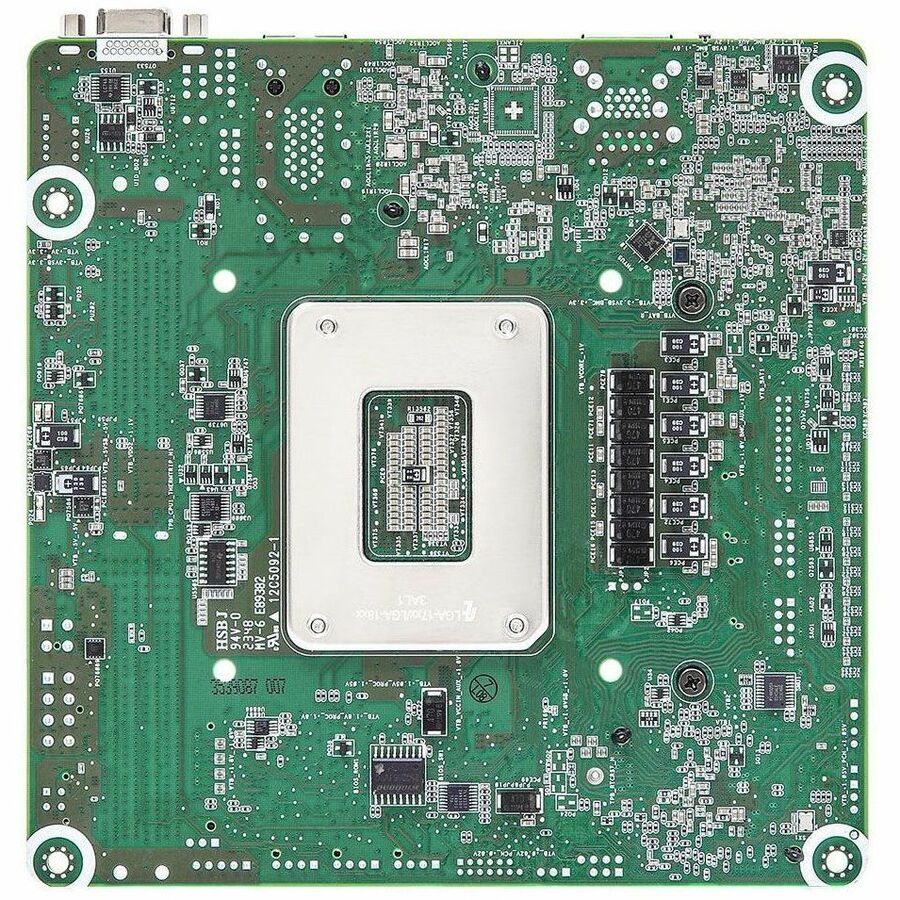

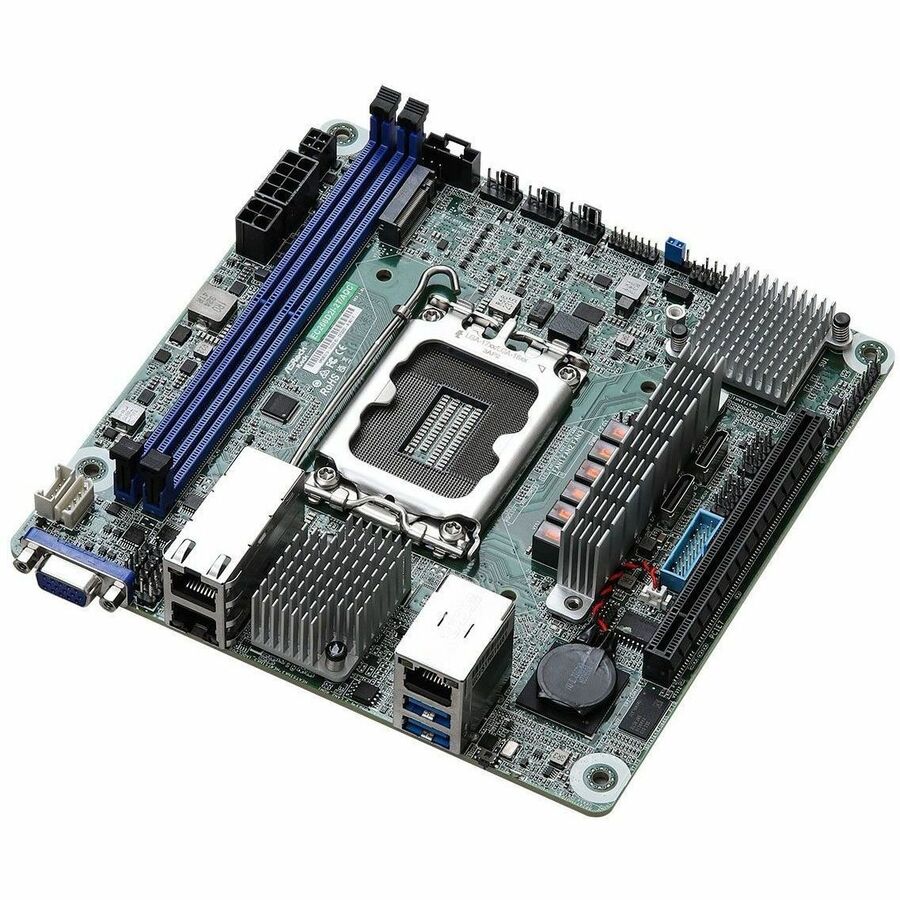

EC266D2I-2T/AQC ASRock MB EC266D2I-2T AQC C266 Socket V1 LGA1700 Max32G DDR5 miniITX Brown Box
Mfg Part Number: EC266D2I-2T/AQC , Item #: 5061463
Image may not reflect the actual item.
Price: $532.04
Quantity:
More to Come
Last Updated: Jun 20, 2025
No Sales Tax except these states
, PO and Wire.
- mini-ITX (6.7" x 6.7")
- Supports Intel Xeon E-2400 series and Intel®Pentium®Gold G7400/G7400T processors
- 2 DIMM slots (1DPC), supports DDR5 ECC UDIMM
- 1 PCIe5.0 x16
- 1 OCuLink (PCIe4.0 x4 or SATA 6Gb/s)
- 1 OCuLink (PCIe3.0 x4 or SATA 6Gb/s)
- 1 M.2 (PCIe4.0 x4)
- Up to 8 SATA 6Gb/s
- 2 RJ45 (10GbE) by Marvell AQC113
- Remote Management (IPMI)
Main Specification
| General Information | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | EC266D2I-2T/AQC |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Model | EC266D2I-2T/AQC |
| Product Name | EC266D2I-2T/AQC Server Motherboard |
| Product Type | Server Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Supported | Xeon E |
| Processor Supported | Pentium Gold |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 1 |
| RAID Levels | 5 |
| RAID Levels | 10 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | AST2600 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x16 Slots | 1 |

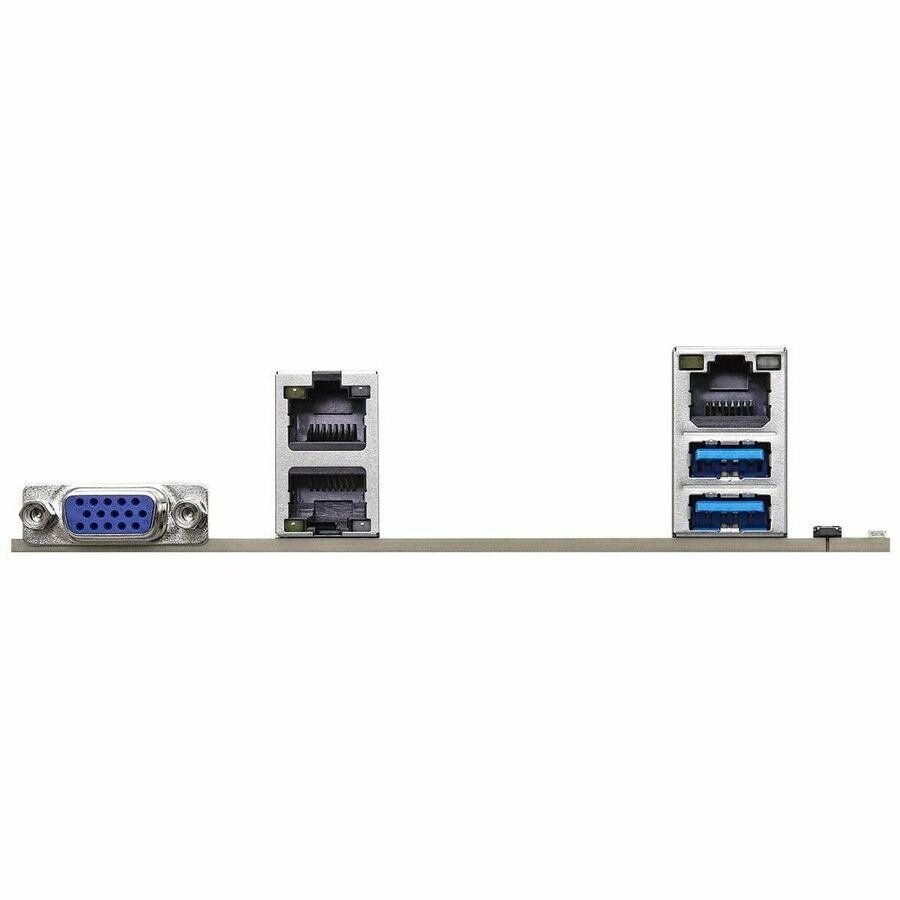

| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 8 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 2 |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| Miscellaneous | |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
