ACER

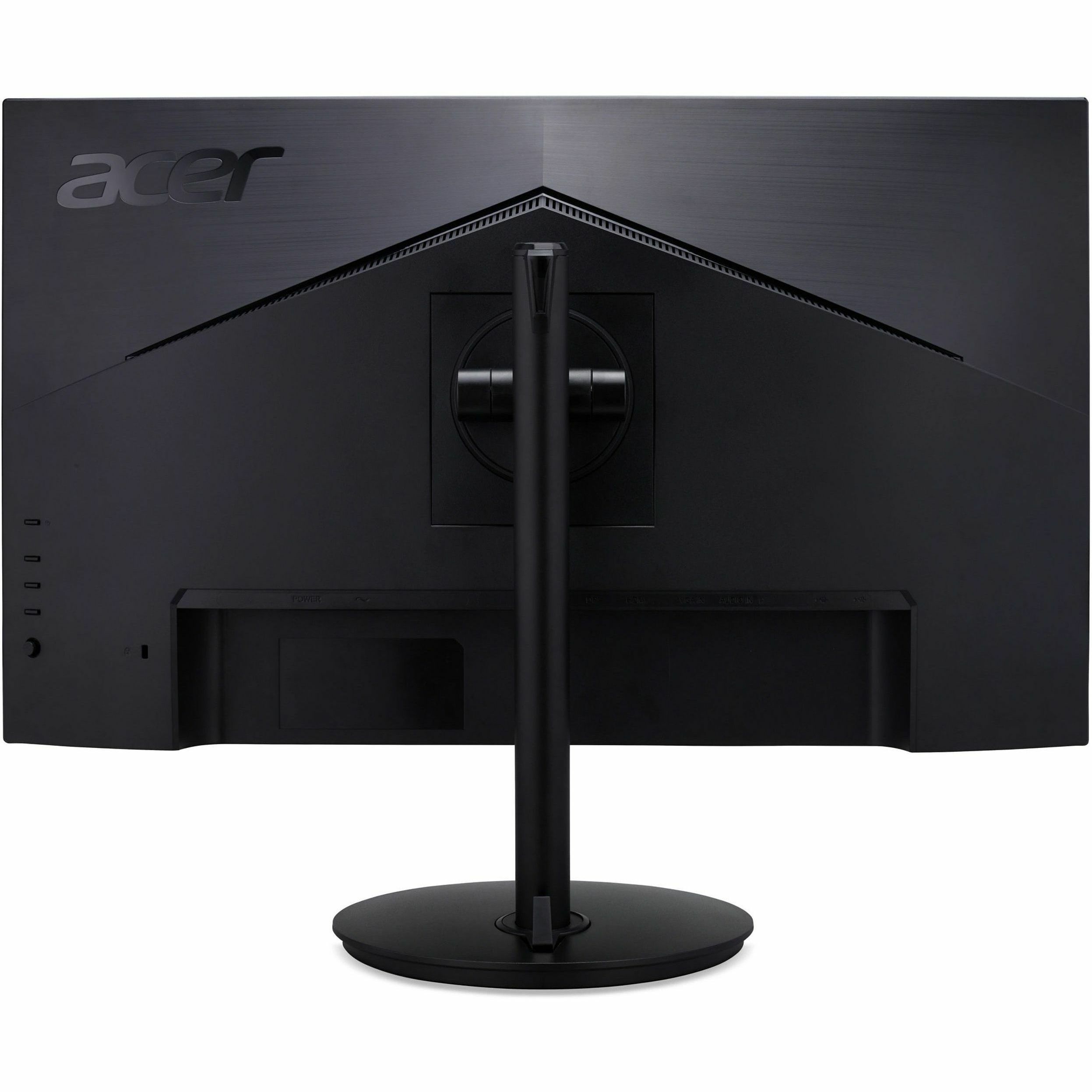

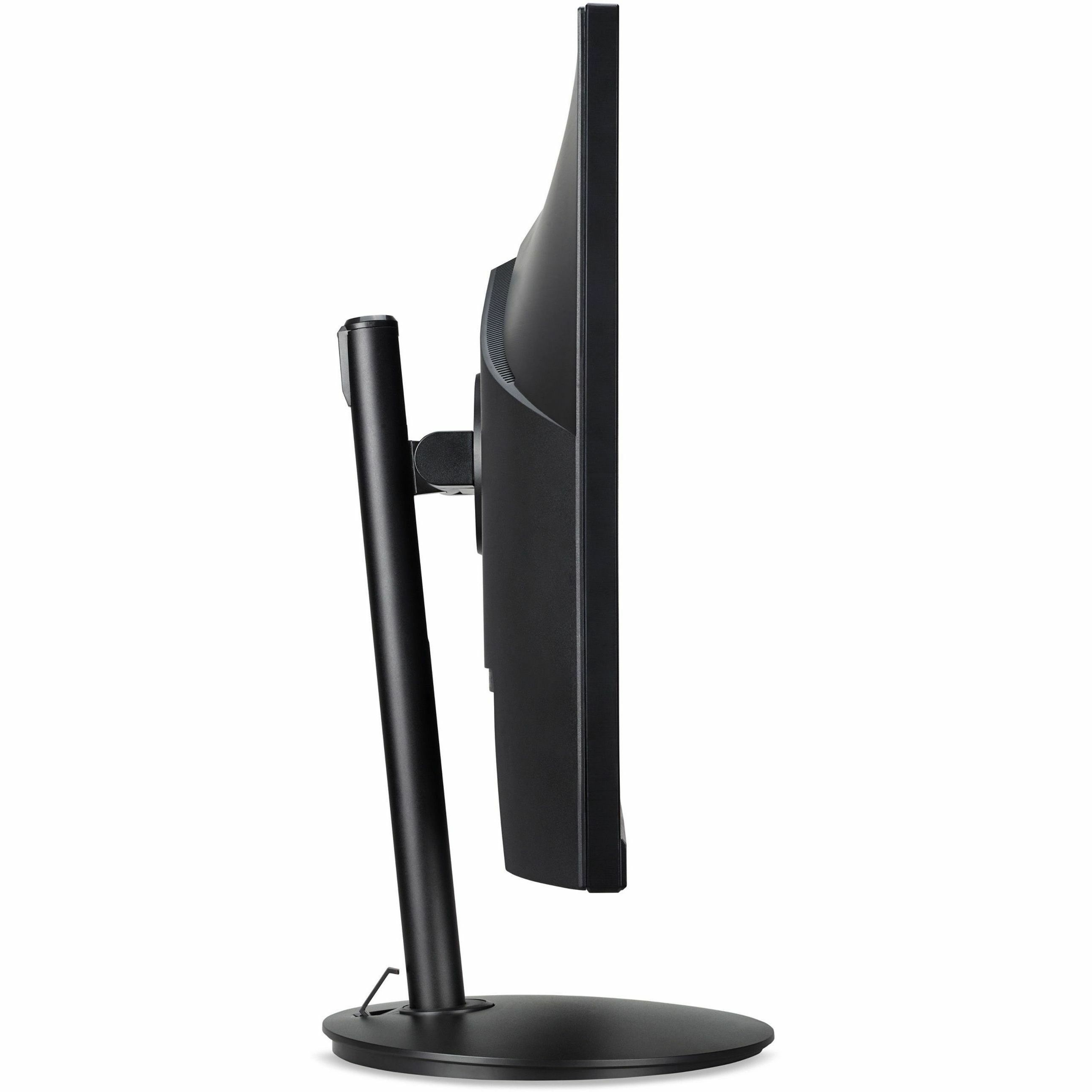

UM.QB2AA.304 ACER 23.8IN. 527X296 IPS LED DISPLAY
Mfg Part Number: UM.QB2AA.304 , Item #: 5061018
Image may not reflect the actual item.
Price: $195.05
Quantity:
In Stock: 205
Last Updated: Jul 15, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Acer, Inc |
| Manufacturer Part Number | UMQB2AA304 |
| Manufacturer Website Address | http://us.acer.com |
| Brand Name | Acer |
| Product Line | Vero |
| Product Series | CB2 |
| Product Model | CB242Y E3 |
| Product Name | Vero CB242Y E3 Widescreen LED Monitor |
| Product Type | LED Monitor |
| Technical Information | |
| Number of Screens | 1 |
| Viewable Screen Size | 23.8" |
| Active Display Area (mm) | 527x296 |
| Screen Mode | Full HD |
| Screen Surface | Anti-glare |
| Panel Technology | In-plane Switching (IPS) Technology |
| Response Time | 1 ms |
| Response Time Details | 1ms VRB |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 10.8 mil |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Adjustable Display Pivot | Yes |
| Mount Type | Wall Mountable |
| Backlight Technology | LED |
| Maximum Adjustable Height | 6.50" |
| Tilt Angle | -5° to 35° |
| Swivel Angle | -178° to 178° |
| Pivot Angle | +/-90° |
| Horizontal Frequency | 30 kHz to 85 kHz - VGA |
| Horizontal Frequency | 125 kHz - DisplayPort |
| Horizontal Frequency | 30 kHz to 125 kHz - HDMI |
| Vertical Frequency | 48 Hz to 100 Hz - DisplayPort |
| Vertical Frequency | 48 Hz to 100 Hz - HDMI |
| Vertical Frequency | 48 Hz to 75 Hz - VGA |
| Vertical Frequency | 48 Hz to 100 Hz - USB Type C |
| Stand Adjustments | Height |
| Stand Adjustments | Swivel |
| Pivot | Yes |
| Cover Glass | No |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Maximum Resolution (VGA) | 1920x1080@75Hz |
| Maximum Resolution (DisplayPort) | 1920x1080@100Hz |
| Maximum Resolution (HDMI) | 1920x1080@100Hz |
| Standard Refresh Rate | 100 Hz |
| Color Supported | 16.7 Million Colors |
| Color Depth | 6-bit+FRC |
| Native Contrast Ratio | 1,000:1 |
| Dynamic Contrast Ratio | 100,000,000:1 |
| Brightness | 250 Nit |
| Tearing Prevention Technology | FreeSync |
| Color Gamut | 99% sRGB |
| Interfaces/Ports | |
| HDMI | Yes |
| HDMI Version | 1.4 |
| VGA | Yes |
| Headphone | Yes |
| DisplayPort | Yes |
| DisplayPort Version | 1.2 |
| Total Number of HDMI Ports | 1 |
| Number of DisplayPorts | 1 |
| Number of VGA Ports | 1 |
| Audio Line In | Yes |
| Power Description | |
| Input Voltage Range | 120V to 230V |
| Operating Power Consumption (Energy Star) | 14 W |
| Standby Power Consumption (Energy Star) | 500 mW |
| Off-Mode Power Consumption (Energy Star) | 300 mW |
| Maximum Power Consumption (Energy Star) | 32 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Color Family | Black |
| Color | Black |
| Height | 12.7" |
| Width | 21.3" |
| Depth | 2.6" |
| Height with Stand | 21.02" |
| Width with Stand | 21.27" |
| Depth with Stand | 9.65" |
| Weight (Approximate) | 8.20 lb |
| Weight with Stand (Approximate) | 13.45 lb |
| Miscellaneous | |
| Package Contents | |
| Energy Star | Yes |
| Country of Origin | China |
| TCO Certified | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver) |
