TP LINK

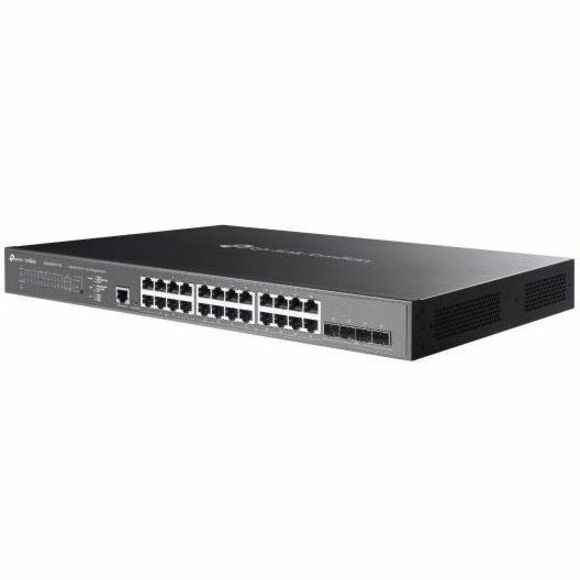

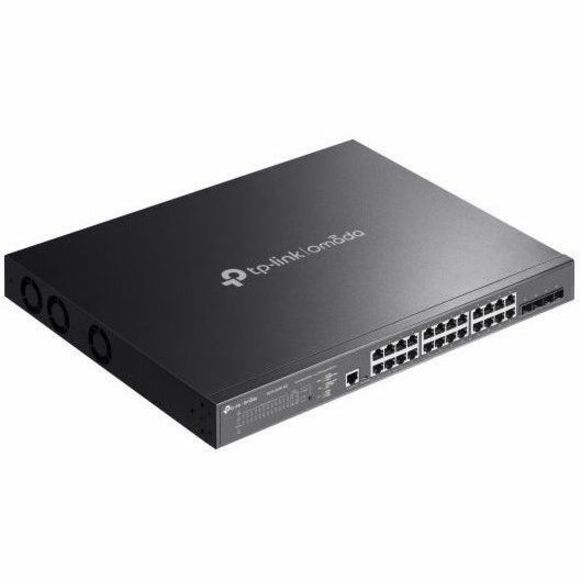

TP LINK TP-Link SWT SG3428XPP-M2 1U 24PT 2.5GBASE-T L2+Managed SWT w 4PT 10GE SFP+
Mfg Part Number: SG3428XPP-M2 , Item #: 5061014
, PO and Wire.
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SG3428XPPM2 |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | TP-Link |
| Product Line | JetStream |
| Product Model | TL-SG3428XPP-M2 |
| Product Name | Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 4 x 10Gigabit Ethernet SFP+ Expansion Slots |
| Port/Expansion Slot Details | 1 × Micro-USB Console Port |
| Port/Expansion Slot Details | 1 × RJ-45 Console Port |
| Port/Expansion Slot Details | 24 x 10/100/1000Mbps 2.5Gbps RJ-45 Network Port |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 2.5GBase-T |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Layer Supported | 2 |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.3bz |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.3ab |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.3ah |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3bt |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.3ae |
| Networking Standards | IEEE 802.3i |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 500 W |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Power Source | Power Supply |
| Power Consumption | 629.10 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 13" |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Enterprise |
| Application/Usage | Retail |
| Application/Usage | Network |
| Application/Usage | Office |
| Application/Usage | Campus |
