Edimax

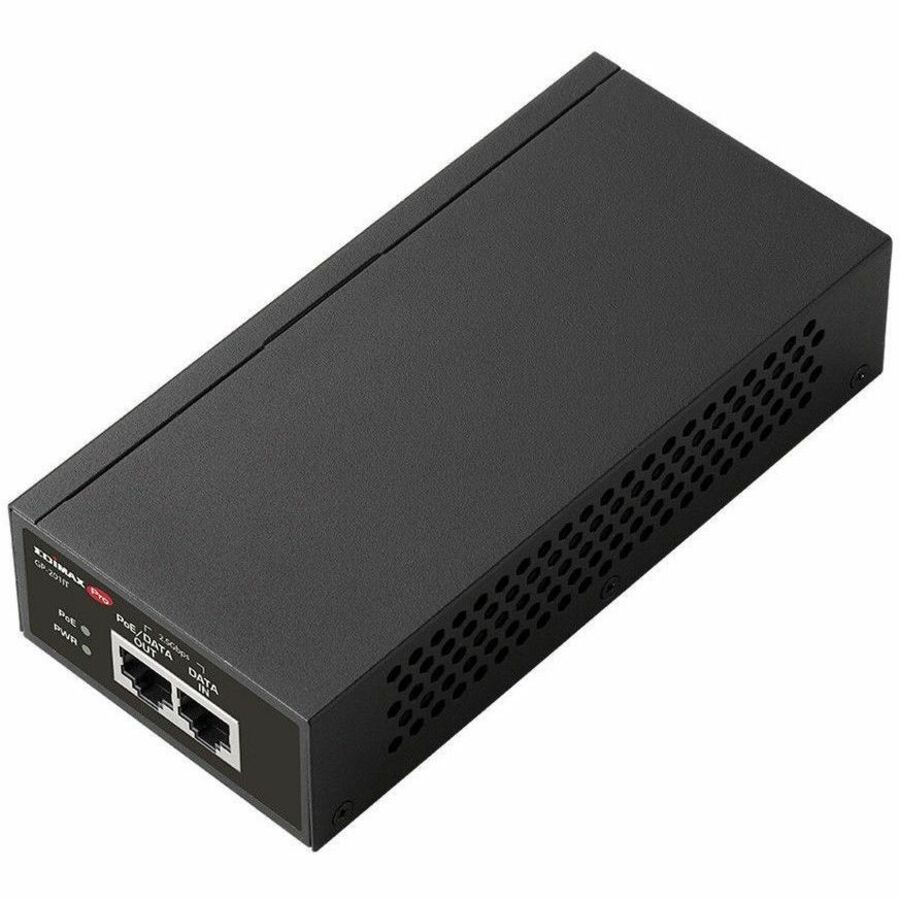

Edimax NT GP-201IT IEEE 802.3at 2.5 Gigabit 30W PoE+ Injector Retail
Mfg Part Number: GP-201IT , Item #: 5055181
, PO and Wire.
Convert Non-PoE Gigabit to PoE+
Plug-and-Play, Flexible Wall-Mount Installation
High Power PoE Port
Built-in 30W power supply, it connects directly to the outlet through the power cord. It does not require an external large power adapter, making installation easier and saving space.
2.5 Gigabit Ports Ensure Faster Connections
Both the 10/100/1000/2500 Mbps input and output port ensure faster, more reliable connections for all applications. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.
Easy Plug-and-Play
Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration is required.
Fast and Simple Installation
Flexible Mounting Options
The convenient wall-mounting design saves space for a simple installation.
Power Your PoE Devices
Complies with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) Standards and supports PoE PD (Power Device) up to 30W.
IP Surveillance
IP surveillance camera is now ubiquitous. This PoE can be supported with only one LAN cable which enables fast deployment and easy repositioning for business, office and residential environments.
Digital Signage
Digital signage can quickly transmit information in schools, hospitals, department stores, stations, airports, and subways, and the content can be updated quickly to enhance users' real-time information.
Other PoE Devices
? Other PoE-enabled devices such as POS System, Information Kiosk, RFID readers, access controls, thin clients, alarms or sensors, benefits easy and cost-saving installation even when it is away from AC outlets.
| General Information | |
| Manufacturer | Edimax Technology |
| Manufacturer Part Number | GP201IT |
| Manufacturer Website Address | http://www.edimax.com |
| Brand Name | Edimax |
| Product Model | GP-201IT |
| Product Name | IEEE 802.3at 2.5 Gigabit 30W PoE+ Injector |
| Package Type | Retail |
| Product Type | PoE+ Injector |
| Technical Information | |
| Protection Type | Over Current |
| Protection Type | Short Circuit |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Maximum Output Voltage | 53 V DC |
| Maximum Input Current | 1.50 A |
| Maximum Output Power | 33 W |
| Interfaces/Ports | |
| Input Ports | 1 x 2.5 Gigabit Ethernet |
| Output Ports | 1 x 2.5 Gigabit Ethernet |
| Physical Characteristics | |
| Mount Type | Wall-mountable/Desk-mountable |
| Height | 1.4" |
| Width | 2.9" |
| Depth | 6.1" |
| Weight (Approximate) | 1.07 lb |
