STARTECH 1P10FFCN-USB-SERIAL USB TO SERIAL DCE CABLE - USB TO NULL MODEM SERIAL ADAPTER
Mfg Part Number: 1P10FFCN-USB-SERIAL , Item #: 5052888
, PO and Wire.
Add RS-232 DCE serial communications support to a desktop or laptop computer and resolve DCE/DTE conflicts directly without the need for additional cross-wired serial cables or adapters.
Serial Port Expansion

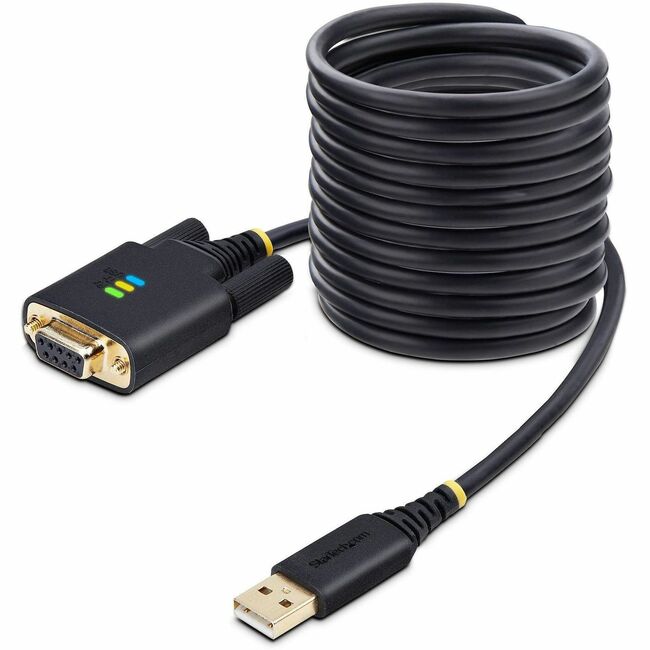

The 10ft (3m) Null Modem USB Serial Adapter adds an RS-232 serial DB/DE-9 (female) connector to a desktop or laptop via a USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.
LED Indicators
Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.
Seamless Connectivity
The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.
Built To Last
The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 1P10FFCNUSBSERIAL |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Serial/USB Data Transfer Cable |
| Packaged Quantity | 1 |
| Product Type | Data Transfer Cable |
| Technical Information | |
| Cable Type | Serial/USB |
| Cable Length | 10 ft |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x 4-pin USB 2.0 Type A - Male |
| Connector Type on Second End | DB-9 RS-232 - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 9-pin DB-9 RS-232 Serial - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Peripheral Device |
| Device Supported | Sensor |
| Device Supported | Notebook |
| Device Supported | POS Device |
| Device Supported | LED |
| Device Supported | Computer |
| Device Supported | Digital Signage |
| Device Supported | Receipt Printer |
| Device Supported | Desktop Computer |
| Device Supported | Barcode Scanner |
| Device Supported | Monitor |
| Data Transfer Rate | 480 Mbit/s |
| Features | Rugged |
| Features | ESD Protection |
| Features | EMI/RF Protection |
| Features | LED Indicator |
| Features | Molded |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Thermoplastic Elastomer (TPE) |
| Shielding Material | Copper |
| Material Details | Thermoplastic Elastomer (TPE) - Housing |
| Weight (Approximate) | 0.26 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
