HANWHA TECHWIN

HANWHA TECHWIN PNM-C16013RVQ WISENET P SERIES NETWORK VANDAL OUTDOOR

Mfg Part Number:  PNM-C16013RVQ
Image may not reflect the actual item.
Price: $1,485.67
Quantity:
In Stock: 1
Last Updated: Nov 13, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Hanwha Group
Manufacturer Part Number PNMC16013RVQ
Manufacturer Website Address http://www.hanwha.com
Brand Name Hanwha
Product Model PNM-C16013RVQ

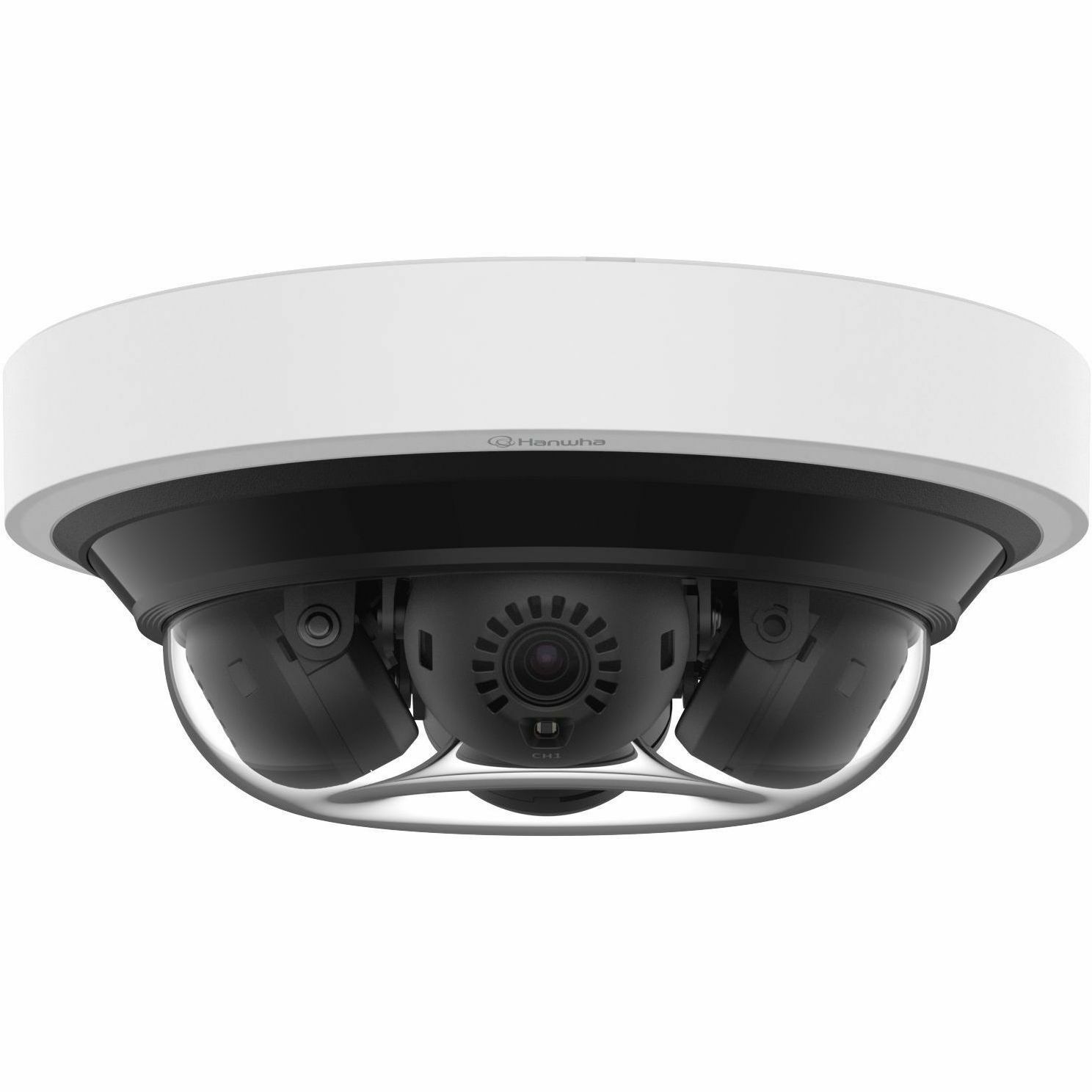

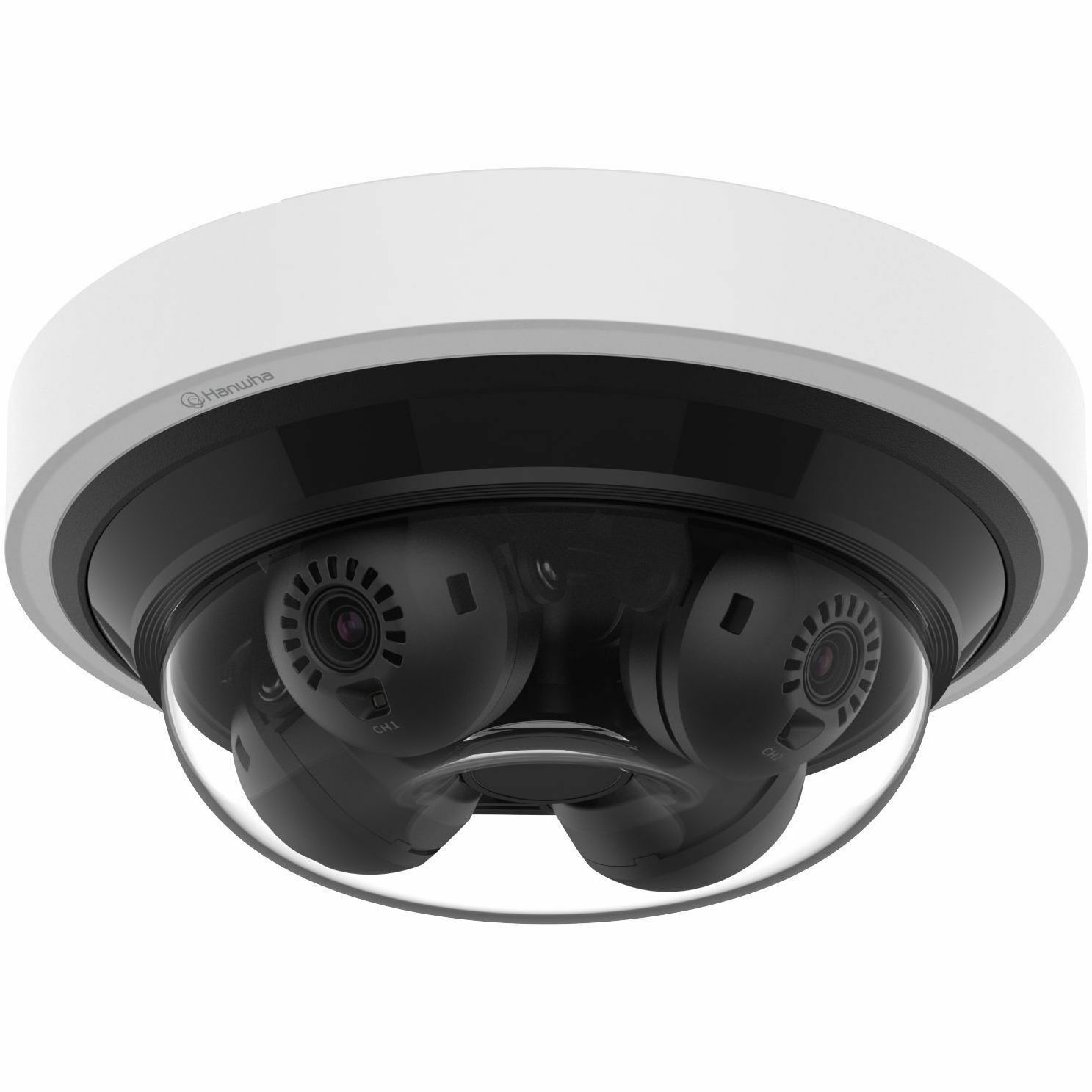

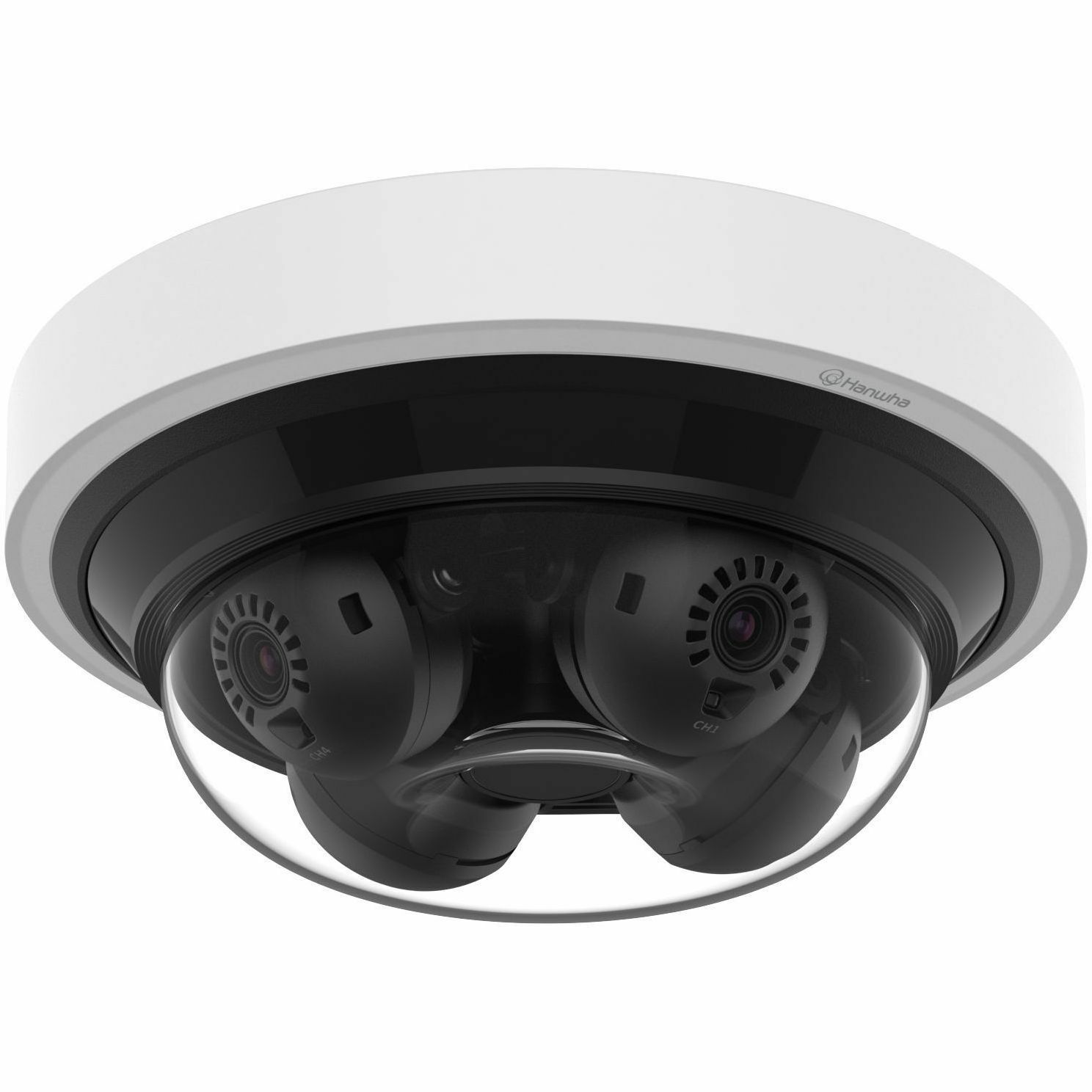

Product Name 4MPx4 AI IR Mini Multi-directional Camera
Product Type Network Camera
Technical Information
HD Recording Yes
Night Vision Yes
Night Vision Distance 65.62 ft
Night Vision Type Infrared
Camera Iris Fixed
Display & Graphics
Image Sensor Type CMOS
Image Sensor Size 1/2.8"
Color Supported Color
Field of View H: 97° / V: 54° / D: 116°
Effective Camera Resolution 4 Megapixel
Number of Sensors 4
Video
Video Formats H.265M
Video Formats H.265B
Video Formats MJPEG
Video Formats H.264H
Video Formats H.264
Video Formats H.265
Video Formats H.264M
Video Formats H.264B
Video Formats H.265H
Maximum Video Resolution 2592 x 1520
Maximum Frame Rate 15 fps
Lens
Lens Type Fixed
Maximum Focal Length 3.19 mm
Lens Included Yes
Lens Mount Type M12-mount
Maximum Aperture f/1.2
Exposure
Shortest Shutter Speed 1/12000 Second
Longest Shutter Speed 1/5 Second
Network & Communication
Connectivity Technology Wired
Ethernet Technology Gigabit Ethernet
Protocols RTSP
Protocols QoS
Protocols CDP
Protocols IPv4
Protocols RTP/TCP
Protocols ARP
Protocols DNS
Protocols UPnP
Protocols ONVIF
Protocols IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)
Protocols IPv6
Protocols NTP
Protocols SNMPv1/v2c/v3 (MIB2)
Protocols TCP
Protocols DDNS
Protocols LLDP
Protocols UDP/IP
Protocols UDP Multicast
Protocols MQTT
Protocols TCP/IP
Protocols RTCP
Protocols HTTP
Protocols FTP
Protocols IGMP
Protocols Bonjour
Protocols WebSocket
Protocols Digest Authentication
Protocols HTTPS
Protocols SSL/TLS
Protocols DHCP
Protocols SMTP
Protocols ICMP
Protocols SRTP
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
USB Yes
Network (RJ-45) Yes
Power Description
Maximum Power Consumption 23.50 W
Power Source Type PoE+
Physical Characteristics
Form Factor Dome
Color Family White
Product Color White
Diameter 7.9"
Weight (Approximate) 3.04 lb
Environmental Conditions
Minimum Operating Temperature -40°F (-40°C)
Maximum Operating Temperature 131°F (55°C)
Maximum Operating Humidity 95%
Miscellaneous
Features Day/Night
Features Ingress Protection
Features Privacy Masking
Features Built-in IR LED
Features Gain Control
Features Human Detection
Features HTTPS Encryption
Features Motion Detection
Features Vehicle Detection
Features White Balance
Impact Protection Rating IK09
Ingress Protection Rating IP66
Warranty
Limited Warranty 5 Year
