943500057 DATALOGIC ADC SKORPIO X5 HANDHELD KIT
Mfg Part Number: 943500057 , Item #: 5051271
, PO and Wire.

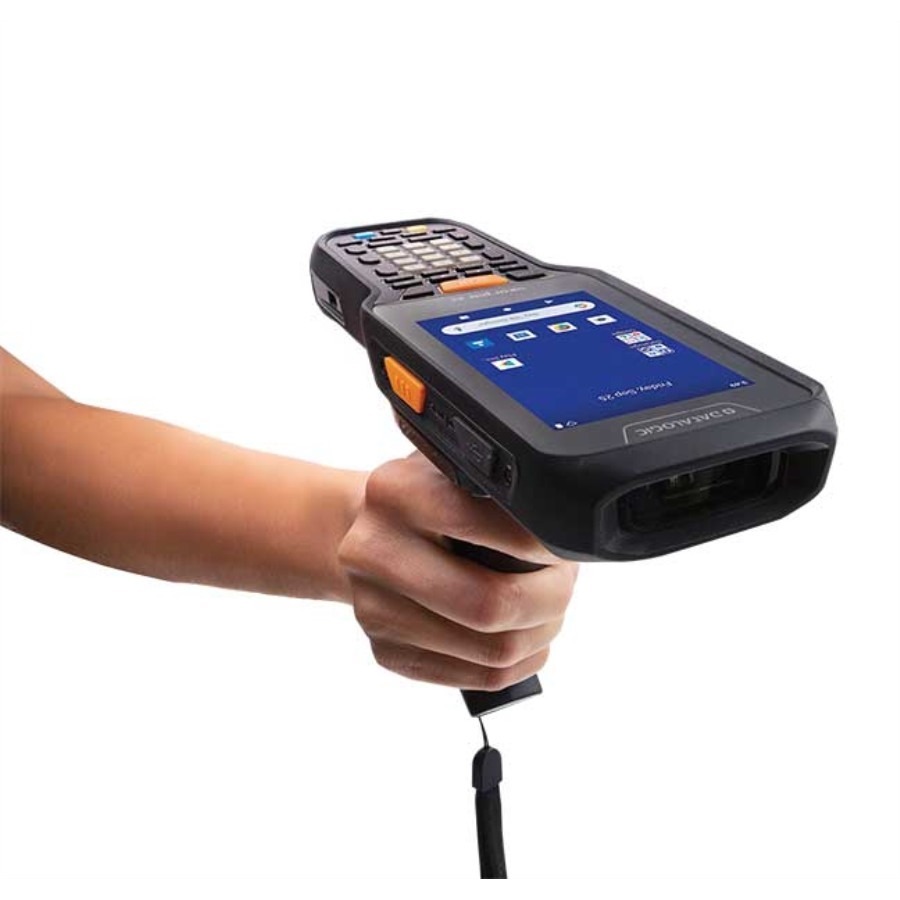

The ultimate Android™ rugged keyboard mobile computer
SKORPIO X5 IS MORE
Skorpio X5 is the best-in-class fully rugged key-based mobile computer to face the toughest enterprise challenges in Data Capture. The powerful next generation of Datalogic Skorpio family that stands out in any data collection application from distribution centers to retail stores. Lightweight, ergonomic, with plenty of diferent conigurations and diferentiating features, Skorpio X5 is the perfect business companion for professionals in the warehouse, shop loor, manufacturing loor and any logistics facility
MORE POWERFUL AND EXTREMELY RUGGED
Skorpio X5 is powered by the market leader Qualcomm Snapdragon® 660 platform clocked at 2.2 GHz for top performance in the most demanding applications. It features Google OS Android 10 with GMS and it is validated by Google as an 'Android Enterprise Recommended' (AER) rugged device. Skorpio X5 is a fully rugged PDT designed for the toughest environments, with an IP65 sealing rating and 1.8 m / 6.0 t repeated drops to concrete.
TOP READING PERFORMANCE AND SCAN ENGINE OPTIONS
Skorpio X5 features the most comprehensive scan engine choice including a totally new near-far Extra Long Range (XLR) with best in the market snappiness and reading performance even on damaged or covered barcodes.
WIRELESS CHARGING or 'CLASSIC' CONTACTS WIRED CHARGING
With Skorpio X5 you can choose between a full contactless device with state of the art 15 watt Wireless Charging or an industry standard pogo-pin connector version that also allows ethernet connectivity within the Skorpio cradle.
BEST IN CLASS VISIBILITY
Skorpio X5 feature a 4.3'' display, the largest in his category, allowing the user to run more features rich applications or have a clearer and more easily readable screen in simpler apps. The high visibility display perfectly its also in external environments
FULL SHIFT CAPACITY
Replaceable battery with Standard 3500mAh or High Capacity 6200mAh choice, hot swappable battery technology and the Datalogic smart Battery Management application, allows customers to run 24/7 operations with no interruptions in the most demanding and scanning intensive applications.
| General Information | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | 943500057 |
| Manufacturer Website Address | http://www.datalogic.com |
| Brand Name | Datalogic |
| Product Line | Skorpio |
| Product Model | X5 |
| Product Name | Skorpio X5 |
| Product Type | Handheld Terminal |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D |
| Scanning Capability | 2D |
| Image Sensor Type | Imager |
| Scanner Range | Standard Range |
| Google Mobile Services (GMS) | Yes |
| Sensor Type | Proximity |
| Sensor Type | Ambient Lighting |
| Sensor Type | Accelerometer |
| Sensor Type | Gyroscope |
| Features | Gorilla Glass 3 |
| Features | Drop Resistant |
| Features | Chemical Resistant |
| Features | Oil Resistant |
| Drop Specification | Withstands multiple drops from 1.8 m / 6.0 ft onto concrete according to IEC62-2-32 |
| Processor & Chipset | |
| Processor Type | Snapdragon |
| Processor Model | 660 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 2.20 GHz |
| Memory | |
| Standard Memory | 3 GB |
| Flash Memory | 32 GB |
| Memory Card Supported | microSDXC |
| Display & Graphics | |
| Screen Size | 4.3" |
| Screen Mode | WVGA |
| Screen Resolution | 800 x 480 |
| Display Screen Type | LCD |
| Touchscreen Information | |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Keyboard/Keypad | |
| Keyboard Type | Alphanumeric |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| Near Field Communication (NFC) | Yes |
| Interfaces/Ports | |
| USB | Yes |
| USB Type-C | Yes |
| Number of USB 3.1 Gen 1 Type-C Ports | 1 |
| Camera | |
| Rear Camera | Yes |
| Rear Camera Resolution | 13 Megapixel |
| Software | |
| Operating System | Android 10 |
| Power Description | |
| Power Source | Battery |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Included | Yes |
| Physical Characteristics | |
| Form Factor | Gun |
| Rugged | Yes |
| Height | 8.6" |
| Width | 3.1" |
| Depth | 1.2" |
| Weight (Approximate) | 1.08 lb |
| Miscellaneous | |
| Application/Usage | Logistics |
| Application/Usage | Retail |
| Application/Usage | Warehouse |
| Application/Usage | Healthcare |
| Application/Usage | Manufacturing |
| Ingress Protection (IP) Rating | IP65 |
