AXIOM

SSDMIG2042E250-AX AXIOM 250GB C5242E SERIES NVME M.2 SSD

Mfg Part Number:  SSDMIG2042E250-AX

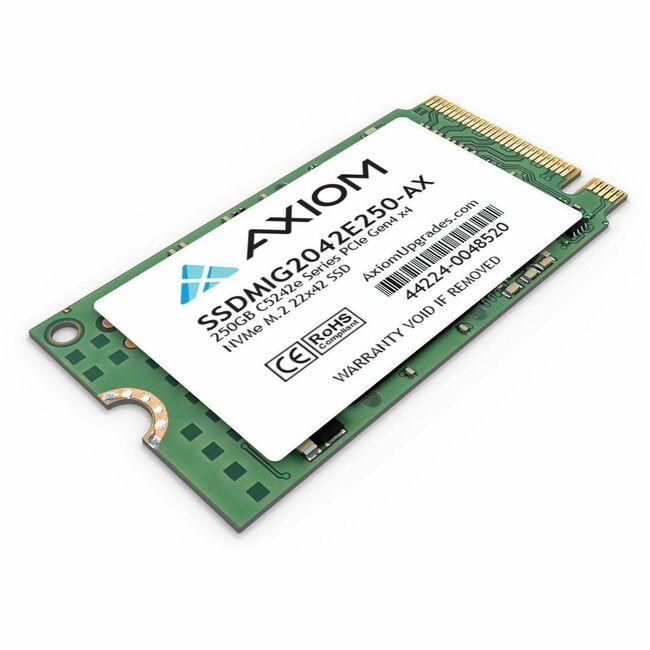

Image may not reflect the actual item.
Price: $92.86
Quantity:
In Stock: 22
Last Updated: Jul 12, 2025
No Sales Tax except these states
, PO and Wire.

The Axiom High Speed C5242e Series features the latest PCIe Gen4 x4 controller combined with and the TCG OPAL 2.0 data encryption to deliver secure data at blazing speeds of up to 5,200/4,775MB per second read/write. The PCIe Gen4 x4 SSDs is up to 40% faster in read performance than previous PCIe Gen3 SSDs. The C5242e takes your system the next level of performance computing with faster and smoother, gaming, streaming, and graphics intensive rendering. The compact 22x42mm M.2 design offers greater flexibility by not only increasing storage but also saving space. It is available in 250GB, 500GB, 1TB and 2TB capacities.

Key Features & Benefits:
  • Latest Generation 3D NAND Flash : Higher capacity, durability, and power efficiency
  • OPAL 2.0 data encryption
  • NVMe protocol 1.4 compliant
  • PCIe Gen4 x4 lane interface
  • Dynamic SLC caching accelerates burst performance
  • S.M.A.R.T. support
  • Compact 22x42mm M.2 design
  • Main Specification
    General Information
    Manufacturer Axiom Memory Solutions
    Manufacturer Part Number SSDMIG2042E250-AX
    Manufacturer Website Address http://www.axiommemory.com
    Brand Name Axiom
    Product Series C5242e
    Product Name 250GB C5242e Series PCIe Gen4 x4 NVMe M.2 22x42 SSD - 3D NAND
    Product Type Solid State Drive
    Technical Information
    Storage Capacity 250 GB
    Features 3D QLC NAND Technology
    Features SLC Cache
    Features LDPC ECC Technology
    Features Wear Leveling
    Features 256-bit AES Encryption
    Features StaticDataRefresh Technology
    Features S.M.A.R.T
    Encryption Standard 256-bit AES
    Drive Performance
    Random 4KB Read 100000IOPS
    Random 4KB Write 275000IOPS
    Endurance (DWPD) 0.446
    Endurance (TBW) 125 TB
    Maximum Sequential Read 4.57 GB/s
    Maximum Sequential Write 1.32 GB/s
    Mean Time Between Failures (MTBF) 171.1 Year
    Interfaces/Ports
    Drive Interface PCI Express NVMe
    Drive Interface Standard PCI Express NVMe 4.0 x4
    Power Description
    Standby Power Consumption 4.75 W
    Physical Characteristics
    Drive Type Internal
    Form Factor M.2 2242
    Width 0.9"
    Length 1.7"
    Weight (Approximate) 0.24 oz
    Miscellaneous
    Compatibility

    Compatible Systems

    • Dell - Precision 3260 Compact
    • Lenovo - IdeaCentre 5 14IMB05
    • Lenovo - IdeaPad 3 15IAU7
    • Lenovo - Lenovo V15 G4 ABP
    • Lenovo - ThinkBook 14 G6 ABP
    • Lenovo - ThinkBook 14 G6 IRL
    • Lenovo - ThinkBook 14 G7 IML
    • Lenovo - ThinkBook 14s Yoga G3 IRU
    • Lenovo - ThinkBook 16 G6 ABP
    • Lenovo - ThinkBook 16p G4 IRH
    • Lenovo - ThinkCentre M70s
    • Lenovo - ThinkCentre M70s Gen 4
    • Lenovo - ThinkCentre M70t Gen 3
    • Lenovo - ThinkCentre M70t Gen 4
    • Lenovo - ThinkCentre M75n
    • Lenovo - ThinkPad E14 Gen 3 (AMD)
    • Lenovo - ThinkPad E14 Gen 5 (AMD)
    • Lenovo - ThinkPad E14 Gen 5 (Intel)
    • Lenovo - ThinkPad E14 Gen 6 (Intel)
    • Lenovo - ThinkPad E16 Gen 1 (Intel)
    • Lenovo - ThinkPad L13 Yoga Gen 2 (AMD)
    • Lenovo - ThinkPad L13 Yoga Gen 2 (Intel)
    • Lenovo - ThinkPad L13 Yoga Gen 3 (AMD)
    • Lenovo - ThinkPad L13 Yoga Gen 3 (Intel)
    • Lenovo - ThinkPad L13 Yoga Gen 4 (AMD)
    • Lenovo - ThinkPad L13 Yoga Gen 4 (Intel)
    • Lenovo - ThinkPad L14 Gen 2 (AMD)
    • Lenovo - ThinkPad L14 Gen 3 (Intel)
    • Lenovo - ThinkPad L14 Gen 4 (AMD)
    • Lenovo - ThinkPad L14 Gen 4 (Intel)
    • Lenovo - ThinkPad L15 Gen 3 (AMD)
    • Lenovo - ThinkPad L15 Gen 3 (Intel)
    • Lenovo - ThinkPad L15 Gen 4 (Intel)
    • Lenovo - V Series V15 G3 ABA
    Device Supported Notebook
    Device Supported Desktop PC
    Device Supported Workstation
    TAA Compliant Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty 3 Year
