AXIOM

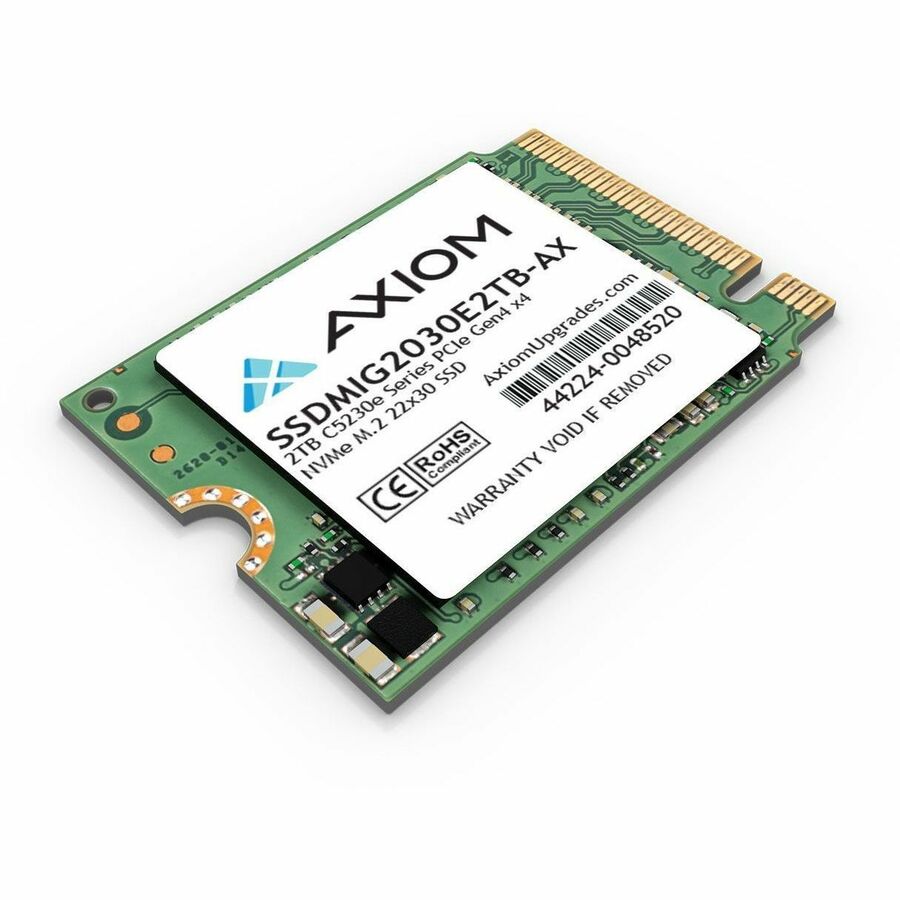

SSDMIG2030E2TB-AX AXIOM 2TB C5230E SERIES NVME M.2 SSD
Mfg Part Number: SSDMIG2030E2TB-AX , Item #: 5044764
Image may not reflect the actual item.
Price: $300.68
Quantity:
In Stock: 8
Last Updated: May 19, 2025
No Sales Tax except these states
, PO and Wire.
The Axiom High Speed C5230e Series features the latest PCIe Gen4 x4 controller combined with and the TCG OPAL 2.0 data encryption to deliver secure data at blazing speeds of up to 5,200/4,775MB per second read/write. The PCIe Gen4 x4 SSDs is up to 40% faster in read performance than previous PCIe Gen3 SSDs. The C5230e takes your system the next level of performance computing with faster and smoother, gaming, streaming, and graphics intensive rendering. The compact 22x30mm M.2 design offers greater flexibility by not only increasing storage but also saving space. It is available in 250GB, 500GB, 1TB and 2TB capacities.
Key Features & Benefits:Main Specification
| General Information | |
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | SSDMIG2030E2TBAX |
| Manufacturer Website Address | http://www.axiommemory.com |
| Brand Name | Axiom |
| Product Series | C5230e |
| Product Name | C5230e Solid State Drive |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 2 TB |
| Features | Wear Leveling |
| Features | LDPC ECC Technology |
| Features | Compact Design |
| Features | 3D QLC NAND Technology |
| Features | Garbage Collection |
| Features | SLC Cache |
| Features | StaticDataRefresh Technology |
| Features | S.M.A.R.T |
| Encryption Standard | 256-bit AES |
| Drive Performance | |
| Random 4KB Read | 370000IOPS |
| Random 4KB Write | 288000IOPS |
| Endurance (DWPD) | 0.446 |
| Endurance (TBW) | 1000 TB |
| Maximum Sequential Read | 5.08 GB/s |
| Maximum Sequential Write | 4.66 GB/s |
| Mean Time Between Failures (MTBF) | 171.1 Year |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Power Description | |
| Standby Power Consumption | 4.75 W |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | M.2 2230 |
| Width | 0.9" |
| Length | 1.2" |
| Weight (Approximate) | 0.24 oz |
| Miscellaneous | |
| Compatibility | Compatible Systems:
|
| Device Supported | Desktop PC |
| Device Supported | Notebook |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
