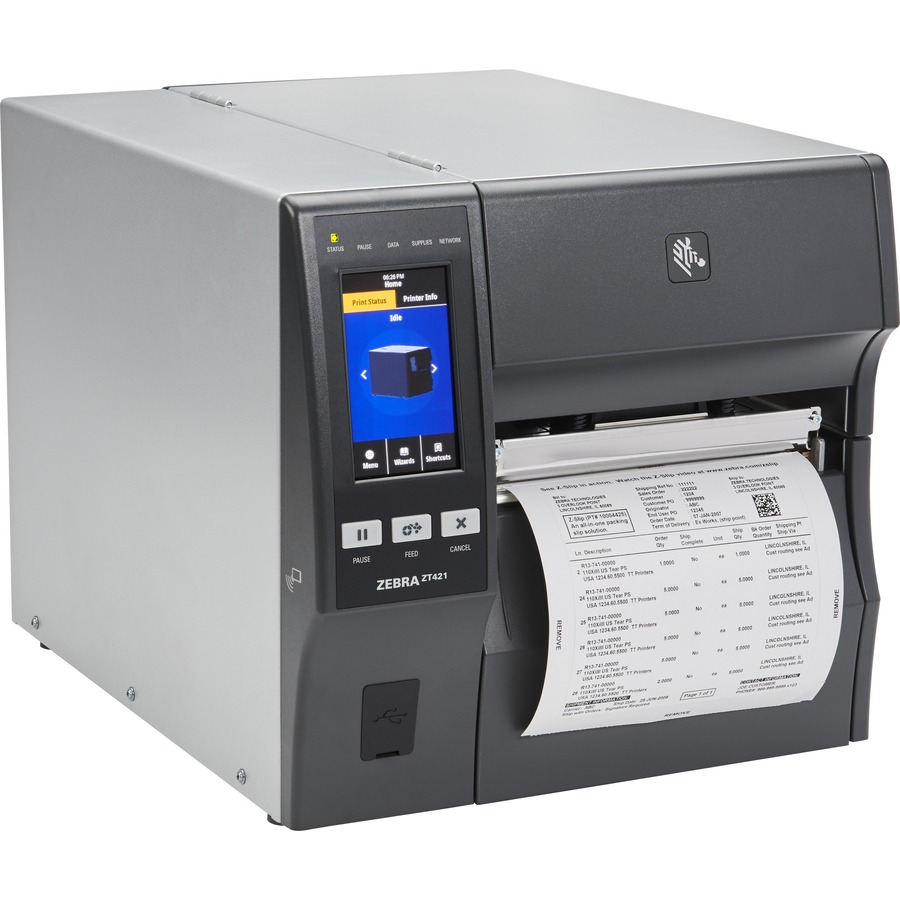

Keep your critical operations running efficiently with Zebra's durable ZT400 Series printers. The ZT400 offers advanced technology that drives versatility, ease of use and performance to a new level. Available in three print resolutions and two print widths, the ZT400 Series addresses a broad array of applications throughout manufacturing, transportation and logistics, retail and more. See printer status at a glance and manage settings quickly using the large color touch display. Field-installable connectivity, media handling and RFID options let you easily add new features as your needs evolve. And your IT department will find ZT400 printers easy to integrate and manage, thanks to Zebra's Print DNATM suite of applications, utilities and developer tools-all powered by Link-OS. The result? The ZT400 offers the versatility, reliability and performance to meet your industrial printing needs - today and tomorrow.
Versatile to meet your evolving needs | Configure your way with multiple connectivity optionsThe ZT400 comes standard with Ethernet, Serial, USB, dual USB Host and Bluetooth 4.1. Add the optional dual-band wireless card with 802.11ac Wi-Fi and Bluetooth for blazing fast and reliable wireless connections.
Built to handle a wide range of media and applicationsYou can count on the ZT400 to print a variety of different label formats on a variety of different media types.The printer is offered in both 4 in. and 6 in. models, with 203 dpi, 300 dpi and 600 dpi (600 dpi available on 4 in. ZT411 only). Add factory- or field-installable RFID technology to print and encode labels for greater tracking abilities and deeper visibility. Select Zebra's exclusive ZT411 RFID On-metal Tagging Solution, which is the only dedicated option for printing and encoding thicker RFID labels for metal containers and assets.
Dual USB Host ports for added flexibilityDual USB Host ports allow you to directly connect a wide range of USB device types. Use a memory stick to replicate firmware, files and configurations, or easily print and transfer formats. Simplify data entry by simultaneously connecting a scanner and keyboard - with two host ports, there's no need to plug and unplug peripherals.
Designed to evolve with your needsYou can customize the ZT400 with a range of media handling options that can be installed in minutes. Two open media slots accommodate additional communication options. And, the robust processing power and memory can support firmware upgrades and new Print DNA tools for years to come.
| General Information | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | ZT42163-T0E0000Z |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | ZT400 |
| Product Model | ZT421 |
| Product Name | ZT421 Direct Thermal/Thermal Transfer Printer |
| Product Type | Direct Thermal/Thermal Transfer Printer |
| Technical Information | |
| Recommended Use | Label Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 12.01 in/s |
| Maximum Print Resolution (dpi) | 300 |
| Maximum Print Length | 45" |
| Maximum Print Width | 6.60" |
| Barcode Symbology Supported | Codablock |
| Barcode Symbology Supported | EAN-128 Subset B |
| Barcode Symbology Supported | LOGMARS |
| Barcode Symbology Supported | Planet Code |
| Barcode Symbology Supported | RSS-14 |
| Barcode Symbology Supported | Code 39 |
| Barcode Symbology Supported | UCC Case Codes |
| Barcode Symbology Supported | EAN-8 |
| Barcode Symbology Supported | EAN-13 |
| Barcode Symbology Supported | Industrial 2 of 5 |
| Barcode Symbology Supported | UPC-A |
| Barcode Symbology Supported | EAN With 2 and 5 Digit Extension |
| Barcode Symbology Supported | Plessey |
| Barcode Symbology Supported | MSI |
| Barcode Symbology Supported | Code 49 |
| Barcode Symbology Supported | QR Code |
| Barcode Symbology Supported | EAN-128 Subset A |
| Barcode Symbology Supported | Micro PDF |
| Barcode Symbology Supported | Standard 2 of 5 |
| Barcode Symbology Supported | Code 11 |
| Barcode Symbology Supported | Aztec Code |
| Barcode Symbology Supported | Maxi Code |
| Barcode Symbology Supported | Interleaved 2 of 5 |
| Barcode Symbology Supported | POSTNET |
| Barcode Symbology Supported | TLC 39 |
| Barcode Symbology Supported | Data Matrix |
| Barcode Symbology Supported | Codabar |
| Barcode Symbology Supported | UPC-E |
| Barcode Symbology Supported | PDF417 |
| Barcode Symbology Supported | EAN-128 Subset C |
| Barcode Symbology Supported | ISBT-128 |
| Barcode Symbology Supported | Code 93 |
| Real Time Clock | Yes |
| Application/Usage | Healthcare |
| Application/Usage | Manufacturing |
| Application/Usage | Retail |
| Application/Usage | Transportation & Logistic |
| Application/Usage | Industrial |
| Features | Bi-color LED |
| Features | Rugged |
| Features | Tear-off |
| Mobile Device Printing | Yes |
| Connectivity Technology | Wired |
| Print Technology | Direct Thermal /Thermal Transfer |
| Memory | |
| Standard Memory | 256 MB |
| Flash Memory | 512 MB |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB Host | Yes |
| USB | Yes |
| Network & Communication | |
| Network Ready | Yes |
| Ethernet | Yes |
| Bluetooth | Yes |
| Near Field Communication (NFC) | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Screen Size | 4.3" |
| Display Screen Type | LCD |
| Media Types & Handling | |
| Media Type | Continuous Paper |
| Media Type | Die-cut Label |
| Media Type | Black Mark |
| Media Type | Label |
| Media Type | Notch |
| Media Sensor | Transmissive Media Sensor |
| Media Sensor | Reflective Media Sensor |
| Media Thickness | 9.84 mil |
| Maximum Roll Diameter | 8" |
| Maximum Label Width | 7.01" |
| Fonts & Emulation | |
| Language Emulation | ZPL II |
| Language Emulation | EZPL |
| Language Emulation | ZPL |
| Language Emulation | EPL |
| Power Description | |
| Power Source | AC Supply |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) - 104°F (40°C) |
| Operating Relative Humidity | 20% - 85% |
| Storage Temperature | -40°F (-40°C) - 140°F (60°C) |
| Storage Relative Humidity | 5% - 85% |
| Physical Characteristics | |
| Height | 12.8" |
| Width | 13.3" |
| Depth | 19.5" |
| Weight (Approximate) | 40 lb |
| Miscellaneous | |
| Power Cable Localization | UK |
| Power Cable Localization | EU |
| Platform Supported | PC |
| Energy Star | Yes |
