TOSHIBA MEMORY
TOSHIBA MEMORY KCD8XPUG3T20 CD8P - PCIE - 3DWPD - 3200GB - SIE - 2.5
Mfg Part Number: KCD8XPUG3T20 , Item #: 5039417

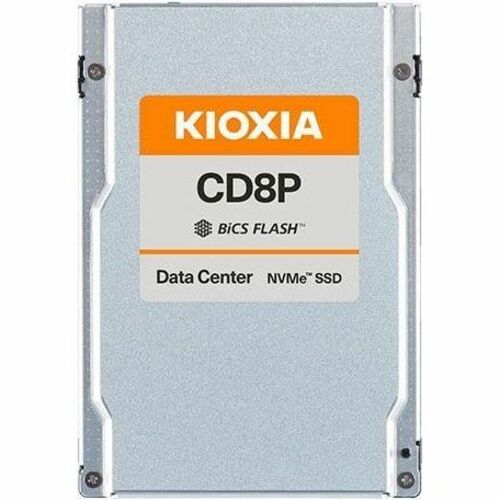

Image may not reflect the actual item.
Price: $965.91
Quantity:
More to Come
Last Updated: May 19, 2025
No Sales Tax except these states
, PO and Wire.
KIOXIA CD8-V Series is a mixed use data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe®4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH 3D TLC flash memory, the CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Key Features
- PCIe4.0, NVMe 1.4 specification compliant
- Open Compute Project Datacenter NVMe SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15mm thickness
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH 3D TLC
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Security options: SIE, SED
Main Specification
| General Information | |
| Manufacturer | Toshiba |
| Manufacturer Part Number | KCD8XPUG3T20 |
| Manufacturer Website Address | http://www.toshiba.com |
| Brand Name | KIOXIA |
| Product Series | CD8P-V |
| Product Model | KCD8XPUG3T20 |
| Product Name | Data Center NVMe™ Mixed Use SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 3.13 TB |
| Features | Power Loss Protection (PLP) |
| Features | End-to-end Data Protection |
| Features | Triple-level Cell Flash |
| Drive Performance | |
| Random 4KB Read | 1900000IOPS |
| Random 4KB Write | 400000IOPS |
| Endurance (DWPD) | 3 |
| Endurance Type | Mixed Use |
| Maximum Sequential Read | 11.72 GB/s |
| Maximum Sequential Write | 5.37 GB/s |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express 5.0 x4 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 0.6" |
| Width | 2.8" |
| Length | 4" |
| Weight (Approximate) | 4.59 oz |
| Miscellaneous | |
| Device Supported | Server |
| Device Supported | Data Center |
| Device Supported | Workstation |
| Warranty | |
| Limited Warranty | 5 Year |
