The Panduit® SmartZone™ Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Key Features and Benefits | Rack/Tower convertible
Support rack/tower installation with rotatable colorful LCD display.
Online Double Conversion with fully digital control (EMEA unit only)
Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
Wide input voltage range
(110-300Vac Online models) (75-146Vac Line Interactive models), covering more voltage range, applicable for severe situation such as large power grid fluctuation
High efficiency
Up to 96.5% for Online models and up to 98.5% for Line-interactive models, reducing the energy waste and the cost of electricity
Energy savings
High Efficiency on Smart ECO mode for Online Double Conversion models
Green design
RoHS and Reach, CE, NOM/UL/ENERGY STAR® 2.0 for North America
Output unity power factor
Means more active power for IT equipment load
Input power factor
Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
Intelligent Battery Management:
The most optimal curve with advanced algorithms prolonging the battery life
EPO function (Emergency Power Off)
Allows to quickly and easy shut down the UPS when emergency event occurs
Generator compatible
Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
Hot-Swappable battery design
Can perform the replacement of battery cartridge without powering down the UPS
Cold start function
Allows to boot up the UPS without mains input but with batteries
Intelligent fan speed regulation
Automatic adjustment of fan speed due to the ambient temperature and load percentage
Programmable outlet group with Smart Load Shedding
Loads connected to the programmable group can lose power first, saving more energy and extending the runtime for critical load. Smart Load Shed allows logical group shutdown with time or load.
Segment colorful LCD
Colorful LCD with four buttons and LED indicators, providing intuitive display
Multiple communication interface
RS232/USB/intelligent slot, realizing communication and monitoring function
Comprehensive protection function
Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage, fan fault alarm and RJ45 surge protection
Intelligent Network Management Card (included with N Models)
Provides harden security remote access via Ethernet Secure SNMPv3 protocol to monitor and manage the UPS, micro-USB for firmware upgrade and RS-485 for connecting environmental and security sensors. Built-in WiFi and Bluetooth hardware support with future optional firmware upgrade.
| General Information | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | U02N12L |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Model | U02N12L |

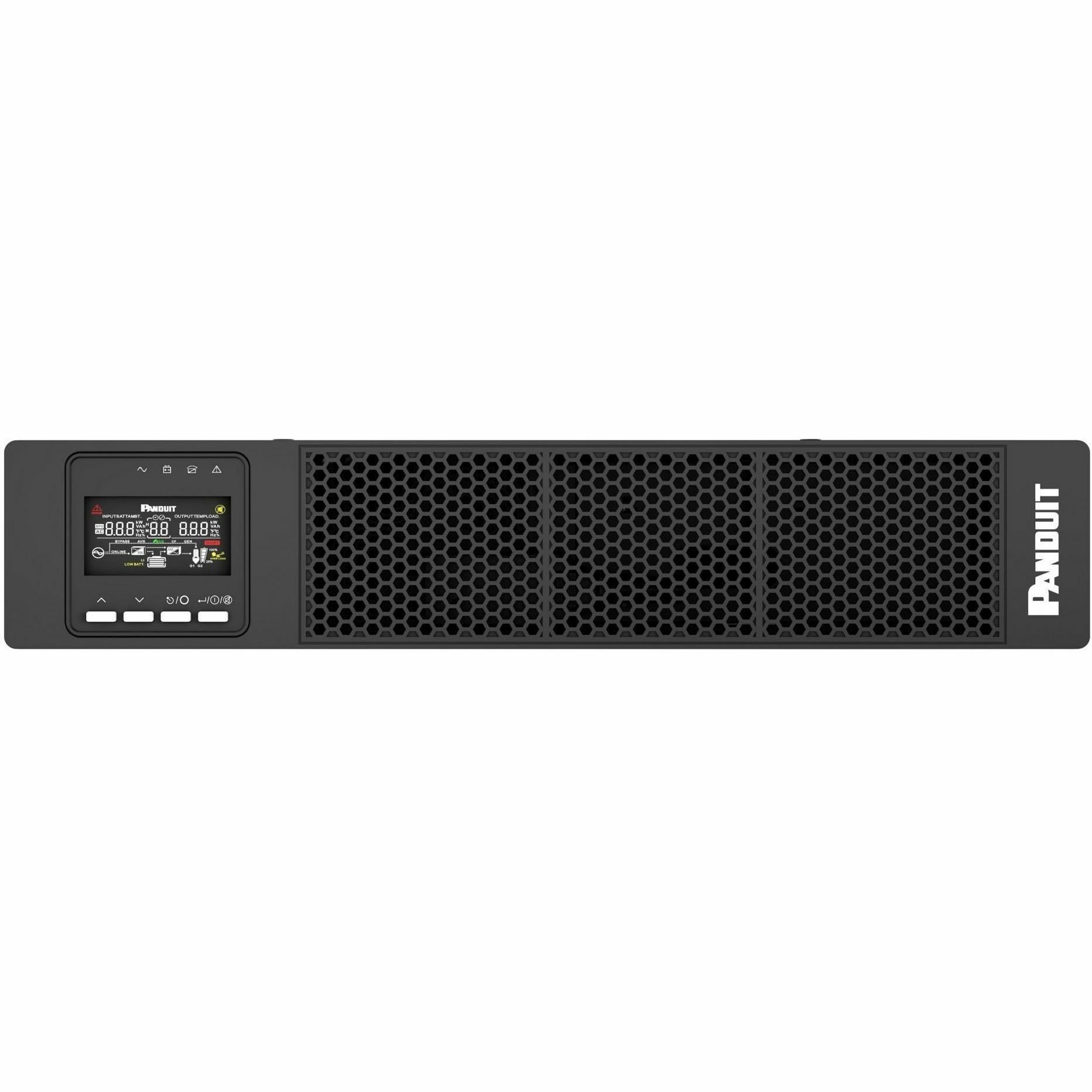

| Product Name | SmartZone U02N12L 2000VA Tower/rack convertible UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Dataline Protection | RJ-45 |
| Overload Protection | Yes |
| Cord Length | 5.91 ft |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Efficiency Detail | 92% (Online Mode) |
| Efficiency Detail | 96% (Eco Mode) |
| Application/Usage | IT Equipment |
| Application/Usage | Data Center |
| Application/Usage | Enterprise |
| Application/Usage | IT Infrastructure |
| Features | Audible Alarm |
| Features | Built-in Bypass Switch |
| Features | Cold Start Function |
| Power Description | |
| Load Capacity (VA) | 2000 VA |
| Load Capacity (Watt) | 2000 W |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Input Voltage Range | 110 V AC - 300 V AC |
| Input Voltage Range | 176 V AC - 264 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| Input Frequency | 70 Hz |
| Input Frequency | 40 Hz |
| Output Frequency | 60 Hz |
| Output Frequency | 50 Hz |
| Waveform Type | Pure Sine Wave |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMPv3 |
| Network Management | USB/RS-232/Intelligent Slot |
| Network Management | iNMC Card |
| Alarm | Over-discharge |
| Alarm | Overload |
| Alarm | Short-circuit |
| Alarm | Low Output Voltage |
| Alarm | Fan Fault |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| DC System Voltage | 76.8 V DC |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Backup/Run Time (Full Load) | 9 Minute |
| Backup/Run Time (Half Load) | 18 Minute |
| Battery Life | 10 Year |
| Typical Battery Recharge Time | 3 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Thermal Dissipation | 41.62 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 3.4" |
| Width | 17.3" |
| Depth | 19.7" |
| Rack Height | 2U |
| Form Factor | Tower/Rack Convertible |
| Weight (Approximate) | 35.49 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Software Included | SmartZone Cloud Ready |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 years (UPS & Battery) |
