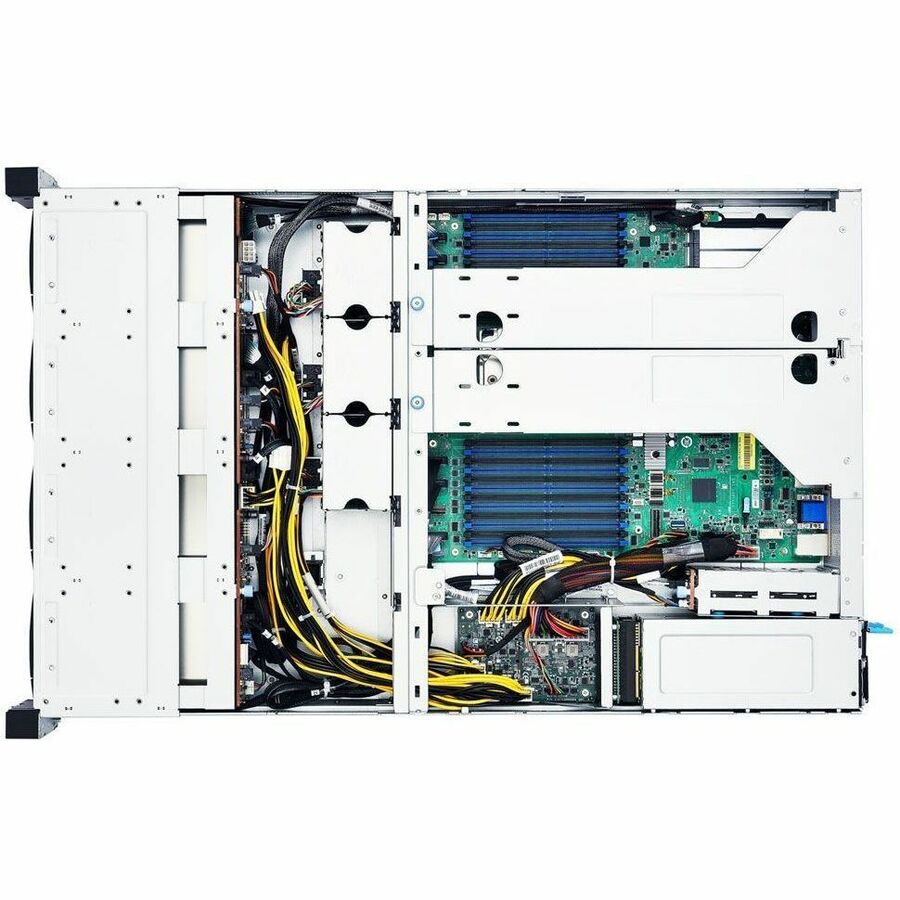

TYAN B7136T70V10E4HR 2U SERVER, INTEL XEON SP SERIES - 4TH GEN
Mfg Part Number: B7136T70V10E4HR , Item #: 5038386
Image may not reflect the actual item.
Price: $3,524.41
Quantity:
More to Come
Last Updated: Aug 13, 2026
No Sales Tax except these states
, PO and Wire.
- 2S Intel Emerald Rapids / Sapphire Rapids CPU
- 16 DIMM slots with DDR5-4800 memory support

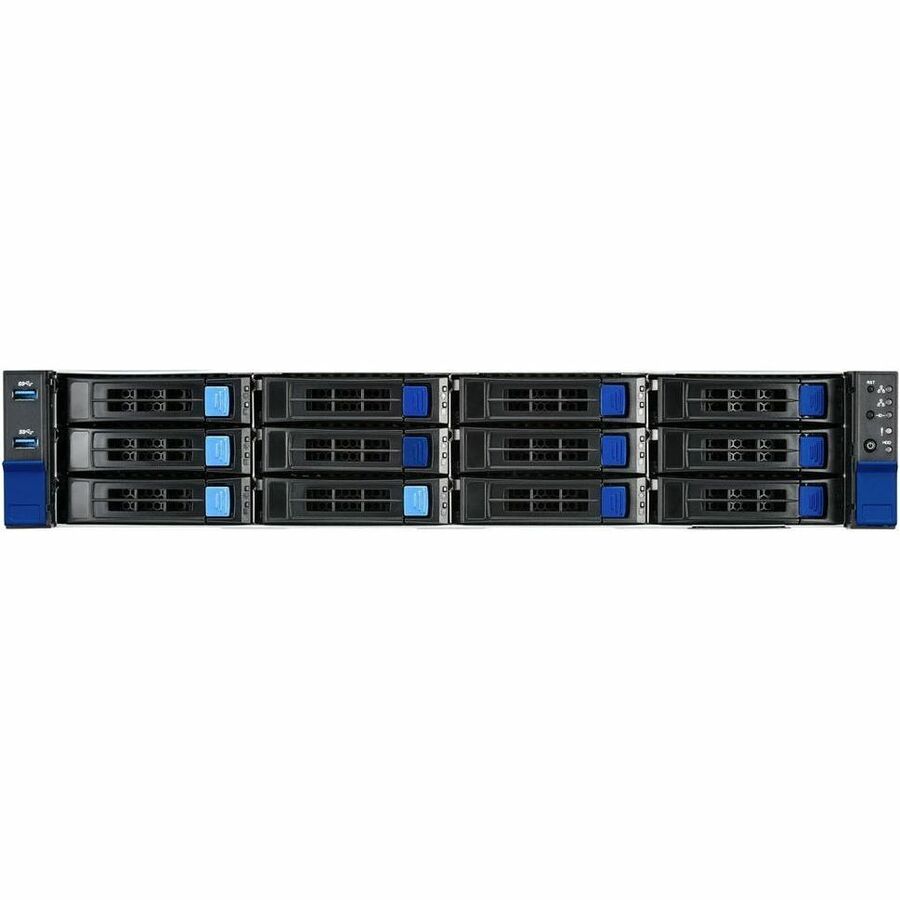

- 12 3.5" SATA with opt. 4 NVMe U.2 hot-swap, tool-less drive bays
- 2 2.5" SATA hot-swap, tool-less drive bays @ rear
- PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot
- 2 NVMe M.2 2280 slots
- 1 dedicate 1000Base-T IPMI port

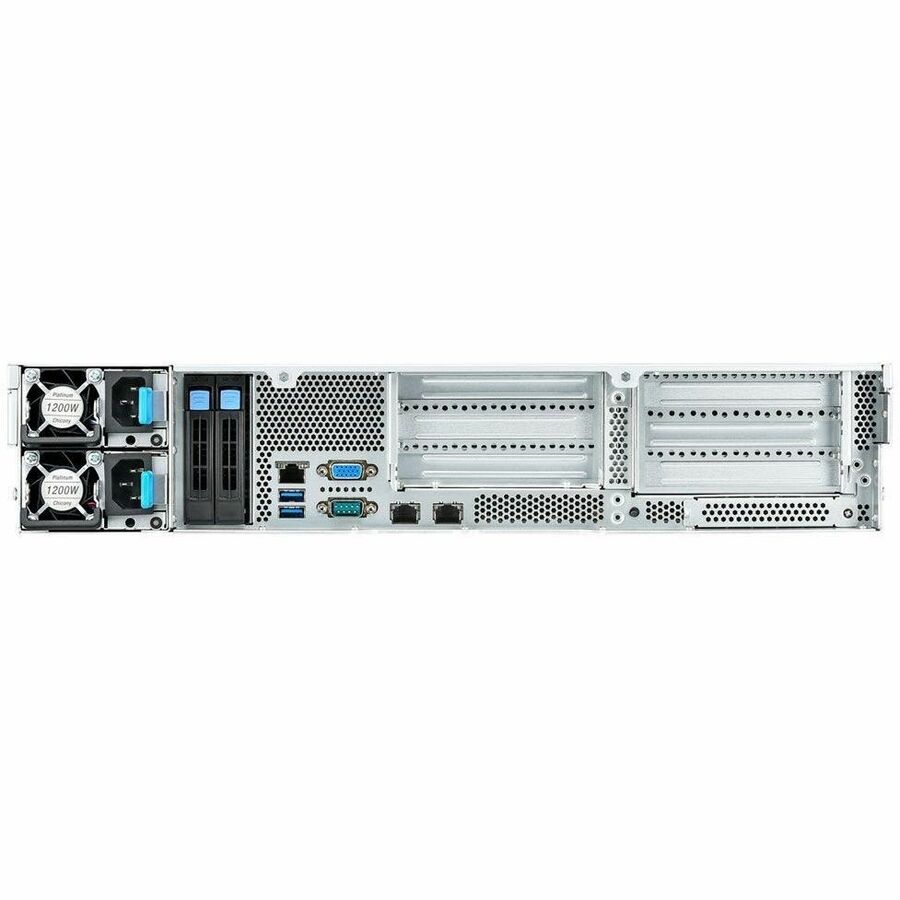

- (1+1) CRPS
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B7136T70V10E4HR |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Mitac |
| Product Line | Thunder SX |
| Product Model | TS70-B7136 |
| Product Name | Thunder SX TS70-B7136 |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Gold |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Bronze |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-4800/PC5-38400 |
| Total Number of Memory Slots | 16 |
| Storage | |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Interfaces | PCI Express |
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Types | SSD |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Type | NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 14 |
| Number of 3.5" Bays | 12 |
| Total Number of Expansion Slots | 6 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of SATA Interfaces | 14 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Ubuntu 20.04.3 LTS |
| Operating System Supported | CentOS Stream 8 |
| Operating System Supported | Windows Server 2022 |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1200 W |
| Thermal Design Power | 350 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.3" |
| Depth | 27.6" |
| Weight (Approximate) | 36.38 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 6 |
| Warranty | |
| Limited Warranty | 3 Year |
