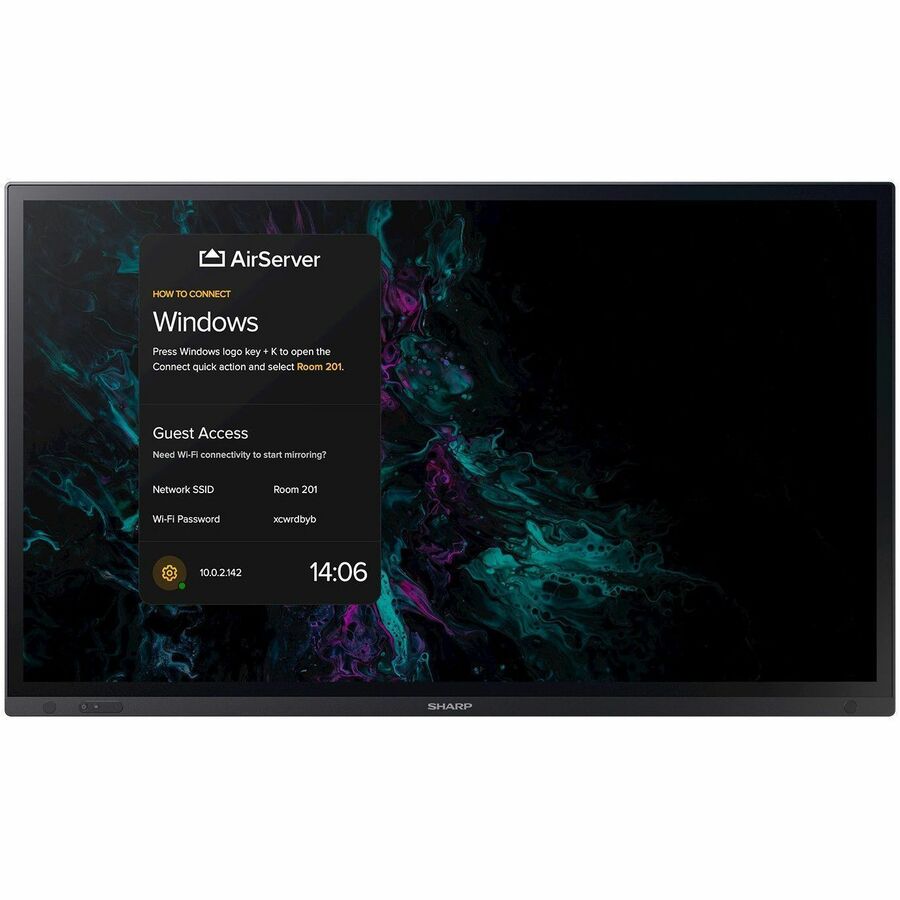

SHARP PN-LA862 86 CLASS AQUOS BOARD INTERACTIVE DISPLAY
Mfg Part Number: PN-LA862 , Item #: 5037896
Special Note: Dec 18, 2023
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.

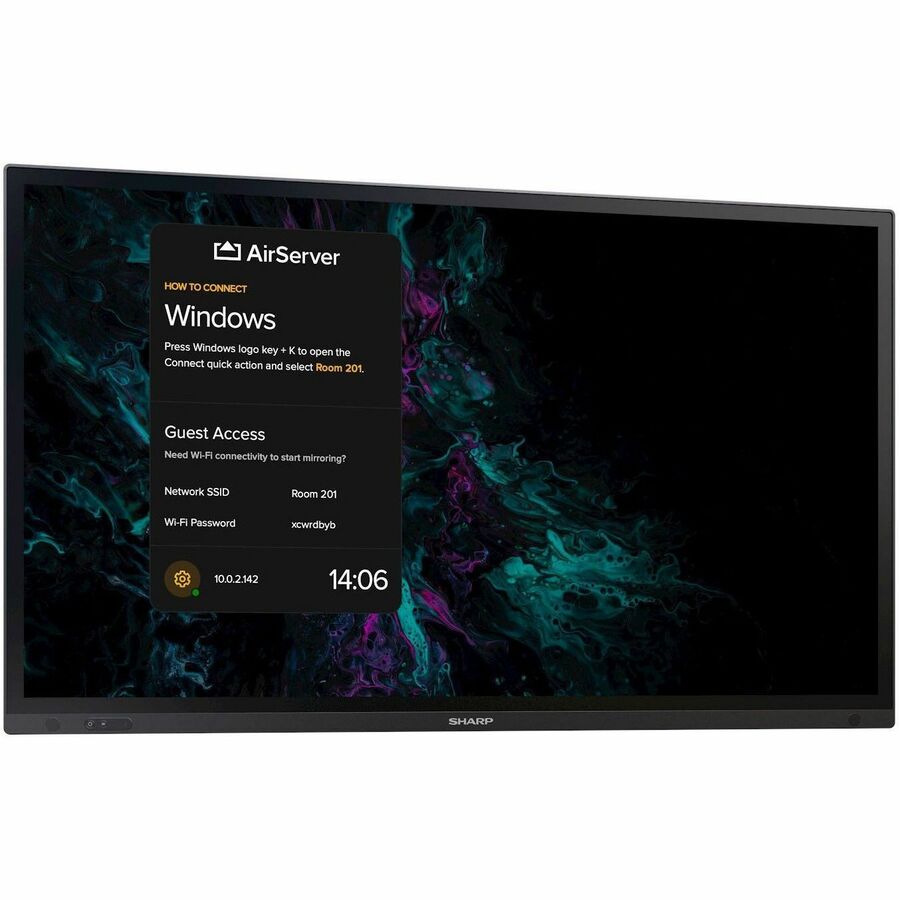

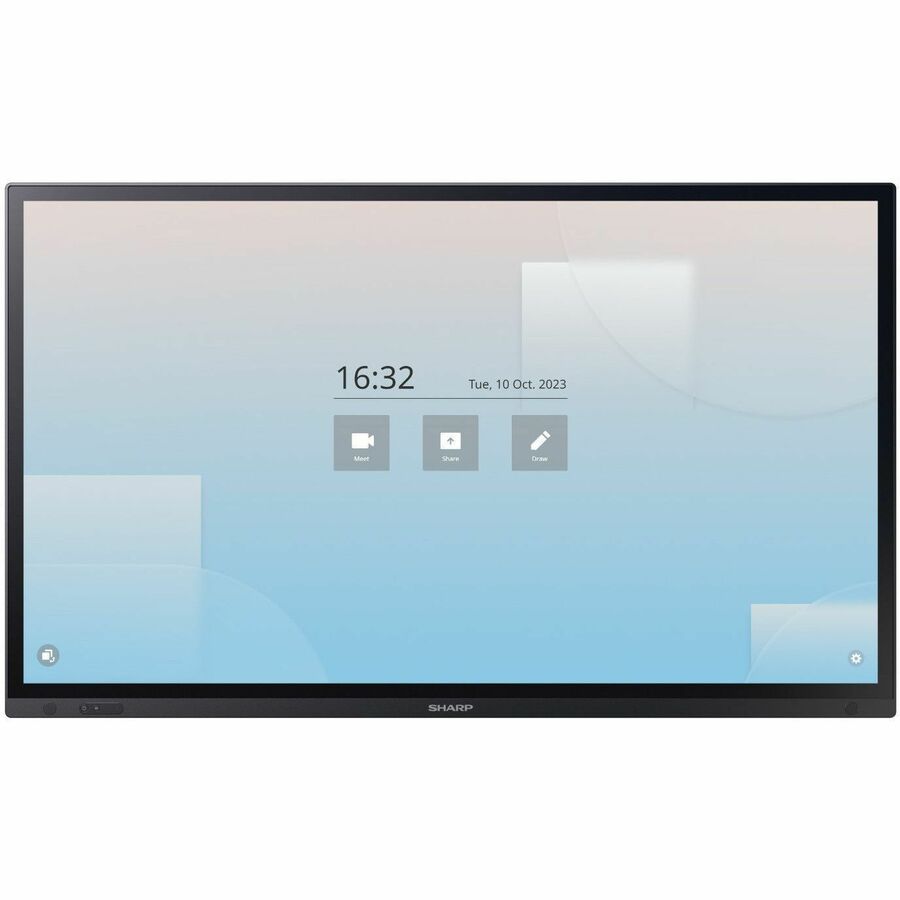

Bringing advanced professional functionality to enterprise users, the Sharp PN-LA series ensures compliance with the highest IT security standards while providing maximum flexibility. A built-in SDM expansion slot includes a pre-installed Windows® 11 Pro PC featuring an Intel™ Core i5 Tiger Lake CPU. This expands the display's customizable capabilities, enabling safe and seamless integration into corporate IT systems. Users can also benefit from pre-installed functionalities such as the Sharp Meeting Launcher for quick access to favorite apps and VC platforms, FlatFrog Board collaborative whiteboarding software and AirServer™ mirroring software for wireless screen sharing.
- 75" Class (74.5" diagonal) Screen Size
- Brilliant Ultra-HD (3,840 x 2,160) Direct Lit LCD Display

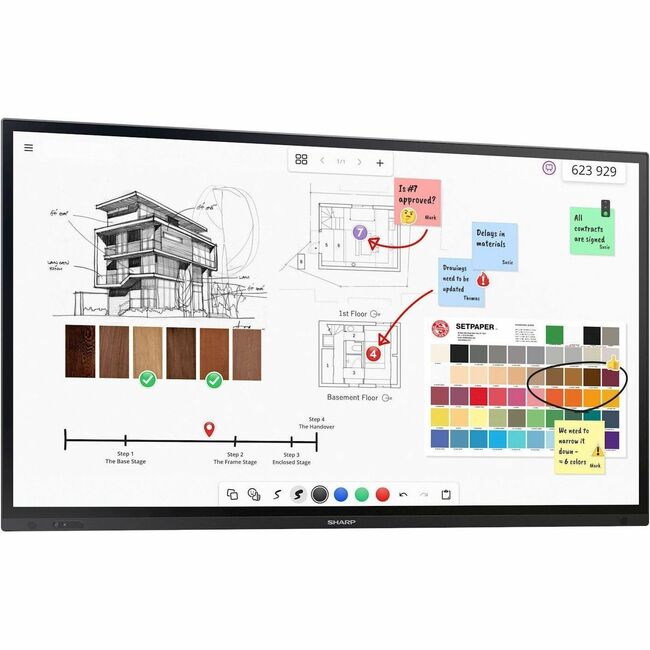

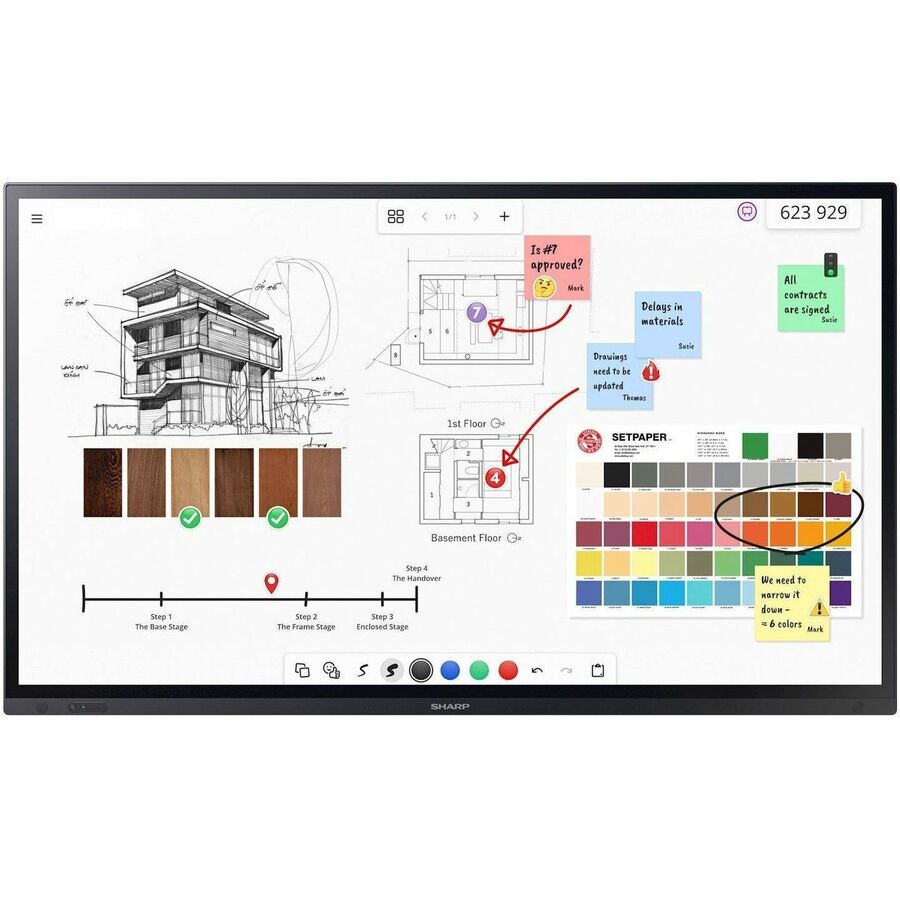

- FlatFrog Board Software for Rooms (1 year) - free download
- 20-Point InGlass™ M5 (IR) touch screen
- Pre-installed SDM Windows® 11 Pro PC with Intel™ Core i5 Tiger Lake CPU
- Optional PN-ZCMS1 AV Soundbar available
- 500 cd/m2 Brightness
- 1,200:1 Contrast Ratio
- EnergyStar 8.0 Certified
- Built-in 10W per Channel Stereo Audio System
- 5-Year Limited Warranty
| General Information | |
| Manufacturer | Sharp Electronics |
| Manufacturer Part Number | PNLA862 |
| Manufacturer Website Address | http://www.sharpusa.com |
| Brand Name | Sharp |
| Product Line | AQUOS BOARD |
| Product Model | PN-LA862 |
| Product Name | AQUOS BOARD PN-LA862 Collaboration Display |
| Product Type | Collaboration Display |
| Display & Graphics | |
| Screen Size | 86" |
| Display Screen Type | LCD |
| Display Screen Technology | TFT LCD |
| Backlight Technology | Direct LED |
| Screen Mode | 4K UHD |
| Screen Resolution | 3840 x 2160 |
| Scan Format | 2160p |
| Aspect Ratio | 16:9 |
| Response Time | 8 ms |
| Color Supported | 1.07 Billion Colors |
| Contrast Ratio | 1,200:1 |
| Display Orientation | Portrait |
| Display Orientation | Landscape |
| Brightness | 500 Nit |
| HDCP Supported | Yes |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Standard Refresh Rate | 60 Hz |
| Touchscreen Information | |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Number of Touch Points | 20 |
| Touchscreen Technology | InGlass |
| Audio | |
| Speakers | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of HDMI Inputs | 3 |
| Total Number of USB Ports | 3 |
| USB | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Software | |
| Software Included |
|
| Power Description | |
| Power Consumption | 440 W |
| Standby Power Consumption | 500 mW |
| Physical Characteristics | |

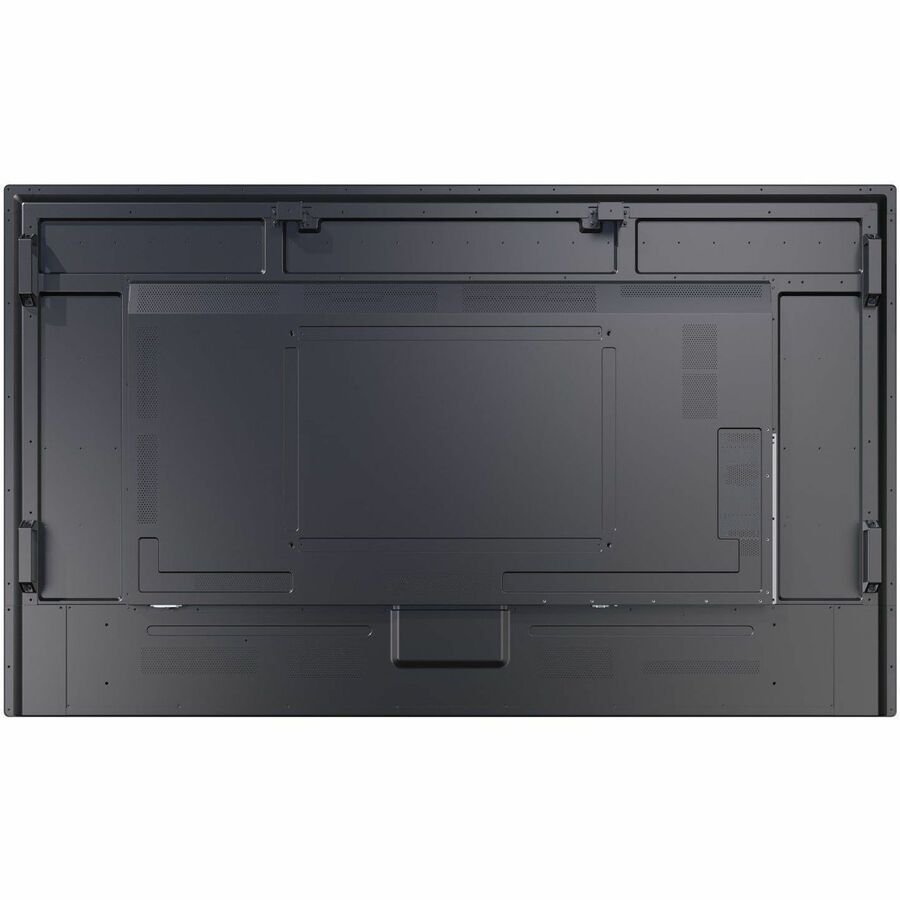

| VESA Mount Compatible | Yes |
| VESA Mount Standard | 600 x 400 |
| Weight (Approximate) | 347.67 lb |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Warranty | |
| Limited Warranty | 5 Year |
