TYAN

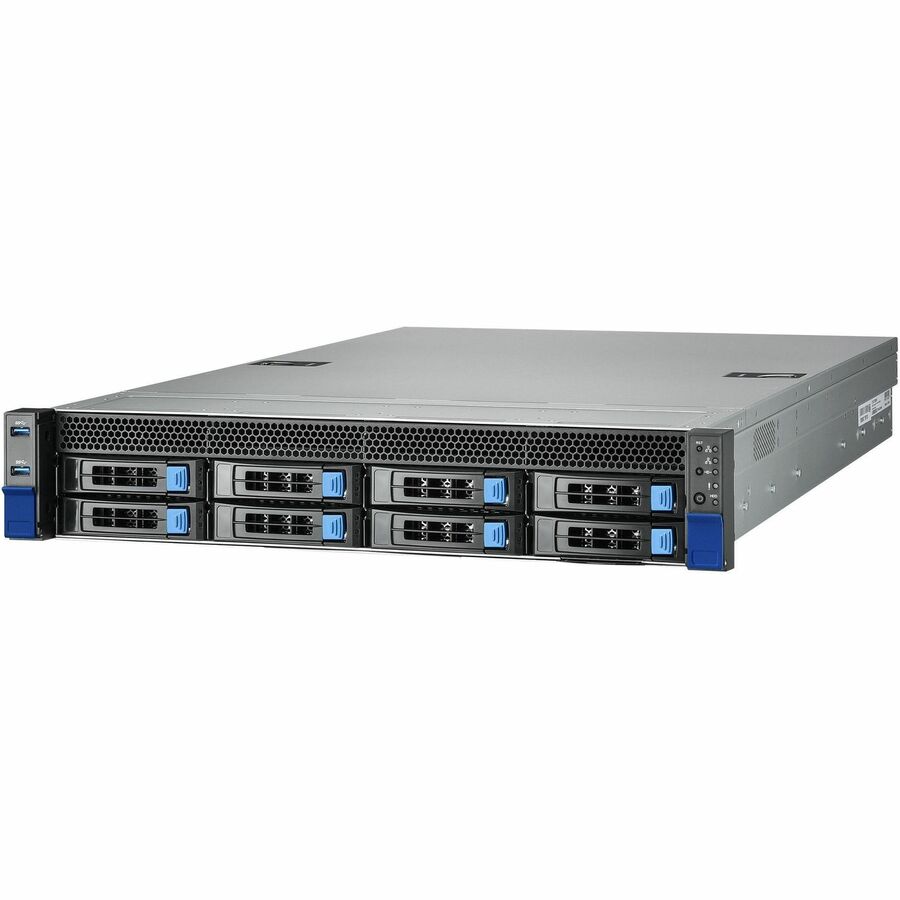

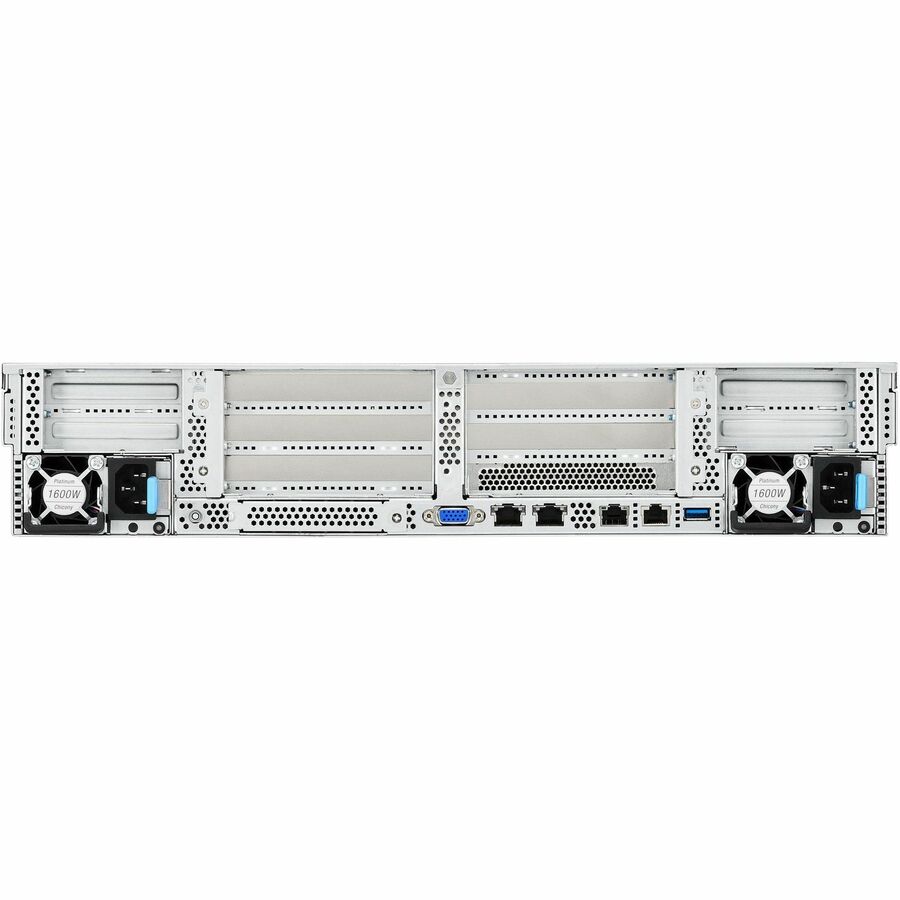

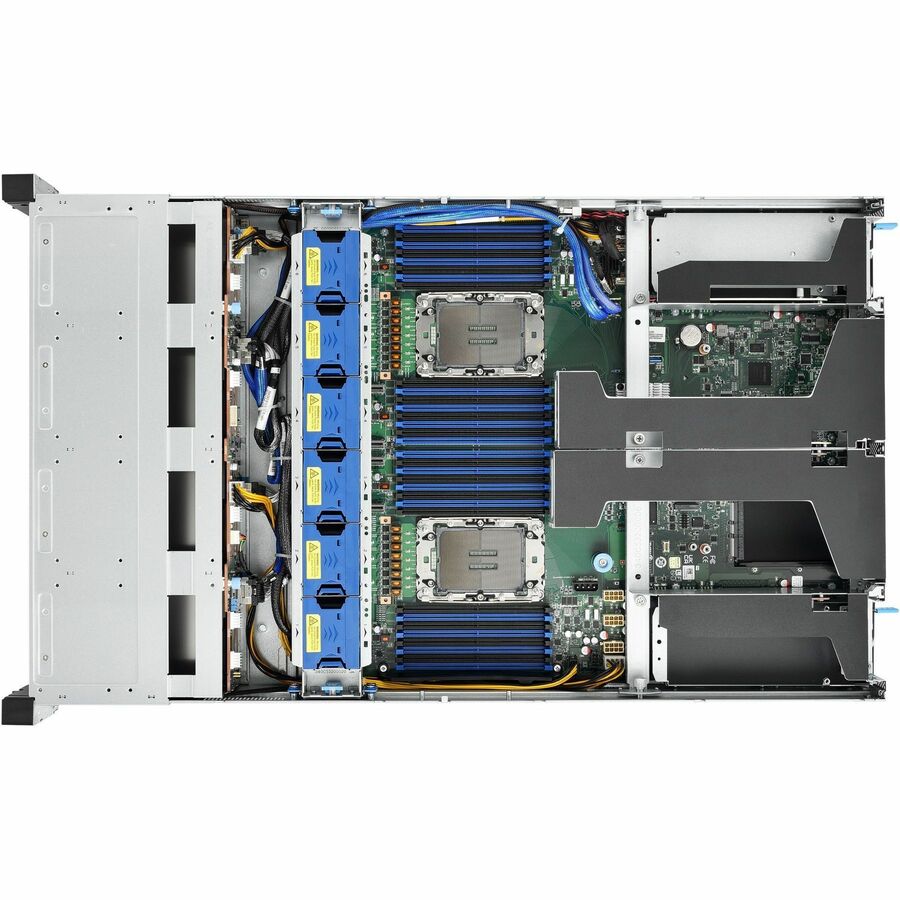

TYAN B7132T75E8HR-2T, INTEL XEON SP SERIES - 4TH GEN
Mfg Part Number: B7132T75E8HR-2T , Item #: 5037809
Image may not reflect the actual item.
Price: $4,112.11
Quantity:
More to Come
Last Updated: Aug 24, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B7132T75E8HR-2T |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Mitac |
| Product Line | Thunder HX |
| Product Model | TS75-B7132 |
| Product Name | Thunder HX TS75-B7132 Barebone System |
| Packaged Quantity | 1 |
| Product Type | Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket LGA-4677 |
| Processor Supported | Xeon Platinum |
| Processor Supported | Xeon Silver |
| Processor Supported | Xeon Bronze |
| Processor Supported | Xeon Gold |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | c741 |
| Memory | |
| Maximum Memory Supported | 4 TB |
| Memory Technology | DDR5 SDRAM |
| Memory Standard | DDR5-5600/PC5-44800 |
| Total Number of Memory Slots | 32 |
| Storage | |
| Supported Storage Drive Interfaces | SAS-3 |
| Supported Storage Drive Interfaces | PCI Express NVMe 4.0 |
| Supported Storage Drive Interfaces | Serial ATA III |
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Types | SSD |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Type | 12Gb/s SAS |
| Controller Type | NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | AST2600 |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 3.5" Bays | 8 |
| Total Number of Expansion Slots | 6 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 5 |
| Number of M.2 Interfaces | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Number of SATA Interfaces | 10 |
| Number of VGA Ports | 1 |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.5 |
| Operating System Supported | CentOS Stream 8 |
| Operating System Supported | Windows Server 2022 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 1600 W |
| Thermal Design Power | 350 W |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 17.3" |
| Depth | 29.6" |
| Weight (Approximate) | 44.75 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 6 |
| Warranty | |
| Limited Warranty | 3 Year |
