Panduit
Panduit ISFCH6X04ABL-UG CPR CBLINDCAT 6A 4-PAIR PK1000
Mfg Part Number: ISFCH6X04ABL-UG , Item #: 5036996
Image may not reflect the actual item.
Price: $3,000.14
Quantity:
More to Come
Last Updated: Sep 27, 2025
No Sales Tax except these states
, PO and Wire.

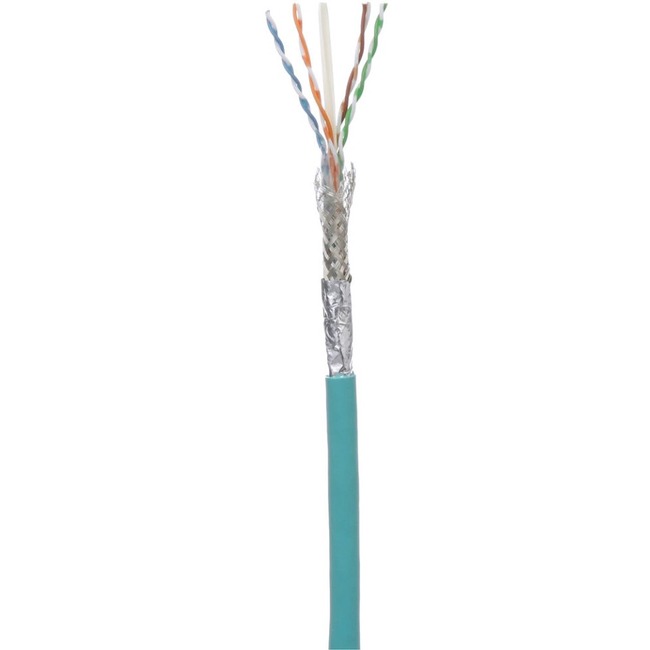

Category 6A 4-pair SF/UTP copper cable shall meet or exceed the IEC 61156-6, ANSI/TIA-568-C.2 Category 6A and ODVA Ethernet/IP standards up to 80 meters. The stranded copper conductors shall be 24/7 and 26/7 AWG with high density polyethylene (HDPE) insulation. The copper conductors shall be twisted in pairs and wrapped with a foam polypropylene tape to form a core. All pairs shall then be surrounded by an overall braided shield and metallic foil and covered with a thermoplastic elastomer (TPE) jacket. The jacket shall be oil, UV, weld splatter, and abrasion resistant for enhanced chemical resistance and mechanical performance. The jacket shall be flame retardant (CMX/CM) for Industrial Ethernet applications. This cable shall support high-flex applications and be rated for panel or on-machine applications where space is shared with 600V high voltage cables.
Main Specification
| General Information | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | ISFCH6X04ABL-UG |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | IndustrialNet |
| Product Name | ISFCH6X04ABL-UG Copper Cable, Industrial |
| Packaged Quantity | 1000 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6a |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Connector on Second End Details | Bare Wire |
| Shielding | Yes |
| Jacket Type | CM |
| Jacket Type | Riser |
| Jacket Type | CMX |
| Device Supported | Control Panel |
| Device Supported | Network Device |
| American Wire Gauge | 24/7 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Features | Chemical Resistant |
| Features | PoE+ |
| Features | Flame Retardant |
| Features | PoE |
| Features | Weld Splatter Protection |
| Features | Oil Resistant |
| Features | Sunlight Resistant |
| Features | Abrasion Resistant |
| Features | UV Resistant |
| Features | Stranded |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Copper |
| Insulation Material | High-density Polyethylene (HDPE) |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Weight (Approximate) | 40 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
