SIMPLY NUC

SIMPLY NUC 91R-4H20-001 NUC13OXI5 I5-13500H 16GB 256GB NO OS

Mfg Part Number:  91R-4H20-001
Image may not reflect the actual item.
Price: $945.17
Quantity:
More to Come
Last Updated: Jun 25, 2025
No Sales Tax except these states
, PO and Wire.

Simply NUC Business NUC - NUC13OXi5/v5 and NUC13OXKi5/v5 | Unmatched Performance for Modern Business

Onyx is the latest and greatest in ultra-small form factor compute power from Simply NUC, driving unmatched performance for modern business from the desk to the edge to the cloud and back. Powered by Intel's 13th Gen Raptor Lake 13500H processor and kept cool with Simply NUC's Dual Exhaust Cooling solution, Onyx has support for up to 64GB of DDR5-5200 memory, up to 16TB of storage, and off-the-charts benchmark results, delivering all the power, without the tower.

Onyx - Defined by You,

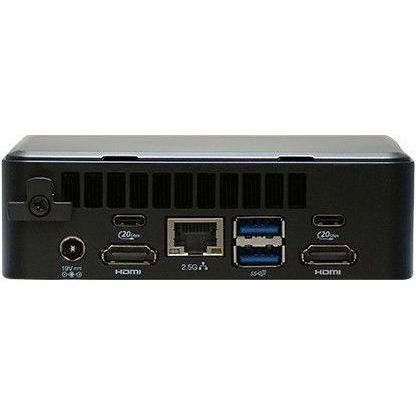

Built for You Onyx may be a Simply NUC product, but it was defined by our customers, and built to meet your needs, with key features like dual HDMI 2.1, dual USB 4.0 Type-C, and a 2.5Gb Ethernet port to name a few. The Onyx NUC gives you the ability to expand its feature set to match your specific usage needs, with a rear I/O expansion panel on the full height chassis and a replaceable lid, giving you a plethora of additional I/O options such as USB, HDMI, LAN, or serial ports. From office workstations, to on-prem heavy edge computing, to robotics and sophisticated IoT networks, Onyx i5 has the flexibility and performance options to perfectly serve your usage requirements.

Performance with Uncompromised Security and Reliability

Powered by Intel's 13th Gen Raptor Lake 13500H processor, featuring 12 cores and 16 threads, Onyx packs outsized performance into a small chassis. Raptor Lake processors feature Intel Thread Director, using machine learning to schedule tasks on the right core at the right time, preventing background tasks from slowing you down, and keeping the focus on the primary workload. Select Onyx SKUs also feature Intel vPro technology allowing for remote management of your 24x7 tested computer fleet and secure communications across networks. Upgrade to Onyx i5 today, and enjoy uncompromised and highly reliable processing power.

Main Specification
General Information
Manufacturer SimplyNUC
Manufacturer Part Number 91R-4H20-001
Manufacturer Website Address http://www.simplynuc.co.uk
Brand Name SimplyNUC
Product Line Onyx
Product Model NUC13OXKi5
Product Name Onyx NUC13OXI5 Desktop Computer
Product Type Desktop Computer
Processor
Processor Manufacturer Intel
Processor Type Core i5
Processor Generation 13th Gen
Processor Model i5-13500H
Processor Core Dodeca-core (12 Core)
Maximum Turbo Speed 4.70 GHz
Processor Threads 16
Chipset
Chipset Manufacturer Intel
Memory
Standard Memory 16 GB
Maximum Memory Supported 64 GB
Memory Technology DDR5 SDRAM
Memory Speed 5200 MHz
Storage
Drive Type SSD
Total Solid State Drive Capacity 256 GB
Solid State Drive Interface PCI Express NVMe 4.0 x4
SSD Form Factor M.2
Display & Graphics
Graphics Controller Manufacturer Intel
Graphics Controller Model Iris Xe Graphics
Graphics Memory Technology DDR5 SDRAM
Graphics Memory Accessibility Shared
Network & Communication
LAN Manufacturer Intel
LAN Model i225-V
Ethernet Technology 2.5 Gigabit Ethernet
Wireless LAN Yes
Wireless LAN Standard IEEE 802.11ax
Bluetooth Yes
Interfaces/Ports
HDMI (Rear) Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports (Front) 1
Number of USB4 Ports 2
Number of USB 3.2 Gen 2 Ports 3
Number Of Ethernet Ports 1
Power Description
Maximum Power Supply Wattage 120 W
Physical Characteristics
Form Factor Small Form Factor
Miscellaneous
Package Contents
  • Onyx NUC13OXI5 Desktop Computer
  • Power Supply
Application/Usage Business
Features Security Slot
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 1 Year
