NETGEAR

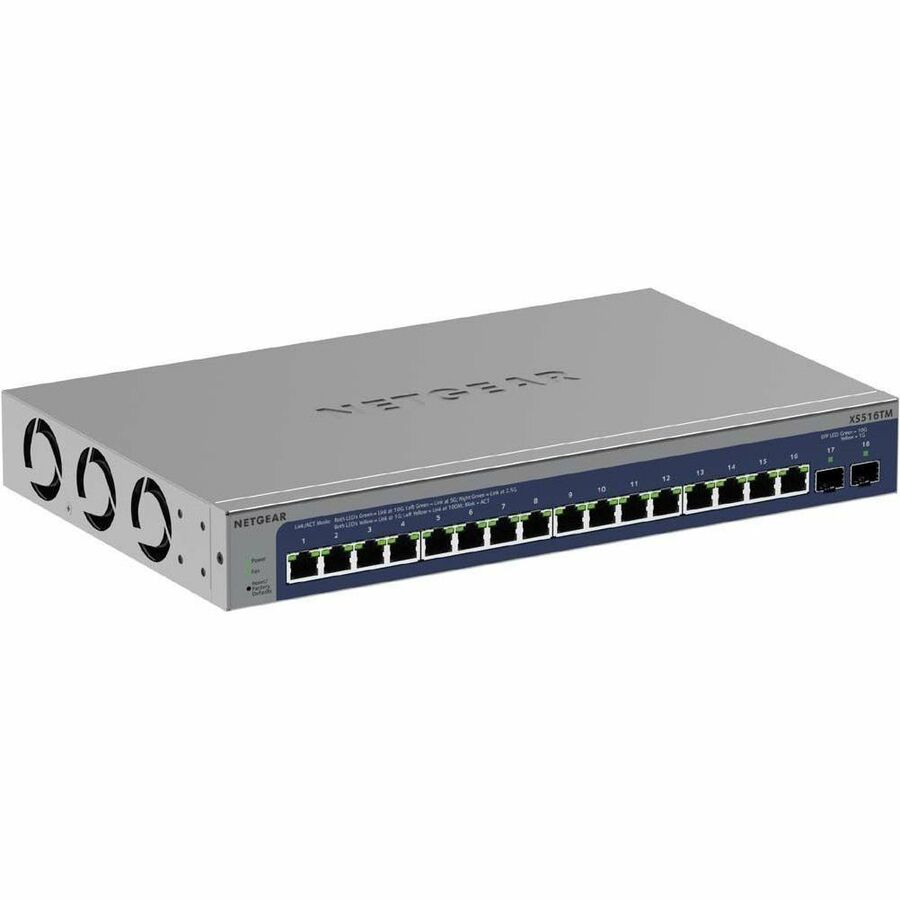

NETGEAR XS516TM-100NAS 16P 10G/MG SMART SWITCH
Mfg Part Number: XS516TM-100NAS , Item #: 5034564
, PO and Wire.
As a leading provider of network equipment, NETGEAR® Business understands the importance of providing a great choice of speed and power to support core business needs. With the growth of network speed, virtualization, and cloud-based applications like VoIP, video streaming, and IP surveillance, businesses in all sectors must keep up to ensure success. Also, the increase in speeds for access points now require faster speeds in the network.
The XS508TM and XS516TM are 10G/ Multi-Gigabit Ethernet Smart Switches with 2 10G SFP+ ports that joined the NETGEAR Total Network Solution family, adding the first fully 10G series to our Insight compatible switch line. NETGEAR Pro WiFi Access Points with power adapters are perfect for use with the XS508TM and XS516TM switches.
NETGEAR Smart Switches offer powerful L2+/Lite L3 features and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion. Furthermore, for 2.5G or 5G speeds there is no requirement to upgrade your cabling beyond Cat5E, allowing for higher speeds without additional cabling upgrade costs.
These 10G/Multi-Gigabit Ethernet Smart Switches support NETGEAR Insight Cloud management, allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud portal from any device with a web browser
| General Information | |
| Manufacturer | Netgear, Inc |
| Manufacturer Part Number | XS516TM100NAS |
| Manufacturer Website Address | http://www.netgear.com |
| Brand Name | Netgear |
| Product Line | Smart |
| Product Series | S3600 |
| Product Model | XS516TM |
| Product Name | Smart S3600 XS516TM Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Uplink Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.1x |
| Networking Standards | IEEE 802.1p |
| Management & Protocols | |
| Manageable | Yes |
| Switch Management Type | Smart Managed |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 64.80 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Form Factor | Table Top |
| Form Factor | Wall Mountable |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 13" |
| Depth | 8.1" |
| Weight (Approximate) | 5.40 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | IP Surveillance Network |
| Application/Usage | Network |
| Application/Usage | Wireless Access Point |
| Application/Usage | Indoor |
| Application/Usage | Business |
| Application/Usage | Office |
| Application/Usage | Camera |
| Warranty | |
| Limited Warranty | Lifetime |
