MAXHUB LM165A07 165 IN DISPLAY PLUS, P1.9MM; 1920X1080P
Mfg Part Number: LM165A07 , Item #: 5034396
Special Note: Dec 04, 2023
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.

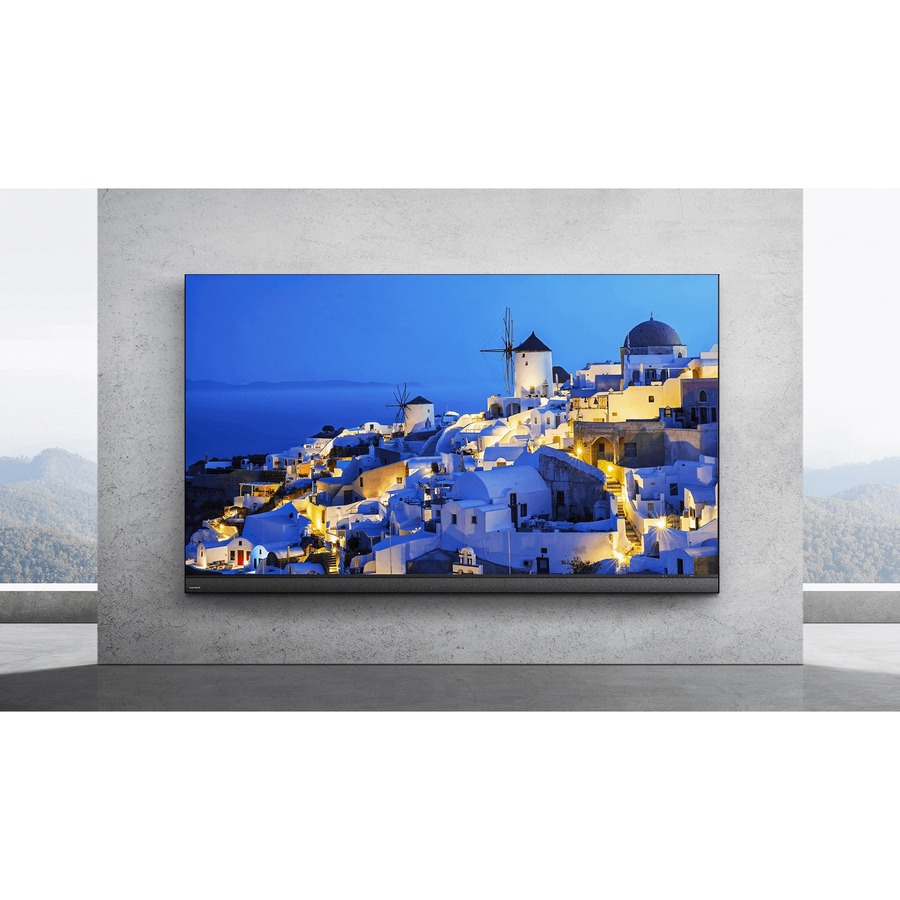

The ultimate upgrade to its predecessor, the new MAXHUB Integrated LED Wall Raptor Series is a ground-breaking achievement in collaboration. A new solution created to radically simplify control and setting features, this LED Wall will help participants and presenters alike to interact more naturally, and completely. The integrated studio-quality speaker enhances voice intelligibility, and cutting-edge operating system support improves overall performance. Discover the revolution today.
Versatile and innovative
All-in-one functionality in an ultra-lightweight ultra-thin package.
Plug-and-play installation with simple maintenance
The 3-in-1 design gives you everything you need in one package.
Control Unit: Sending Card+Android Card+Video Processor
Receiving Unit: Power Supply+Receiving Card+Hub Board
Power Unit: Power Supply+Amplifier+Relay
Super simple and streamlined technology
Enjoy the perfect presentation or communication experience with minimal setup time.
Integrated video processing
Screen-split for up to 4 windows
PIP/PBP flexible display modes
Support for 3 x HDMI 2.0 in and 1 x HDMI 2.0 out

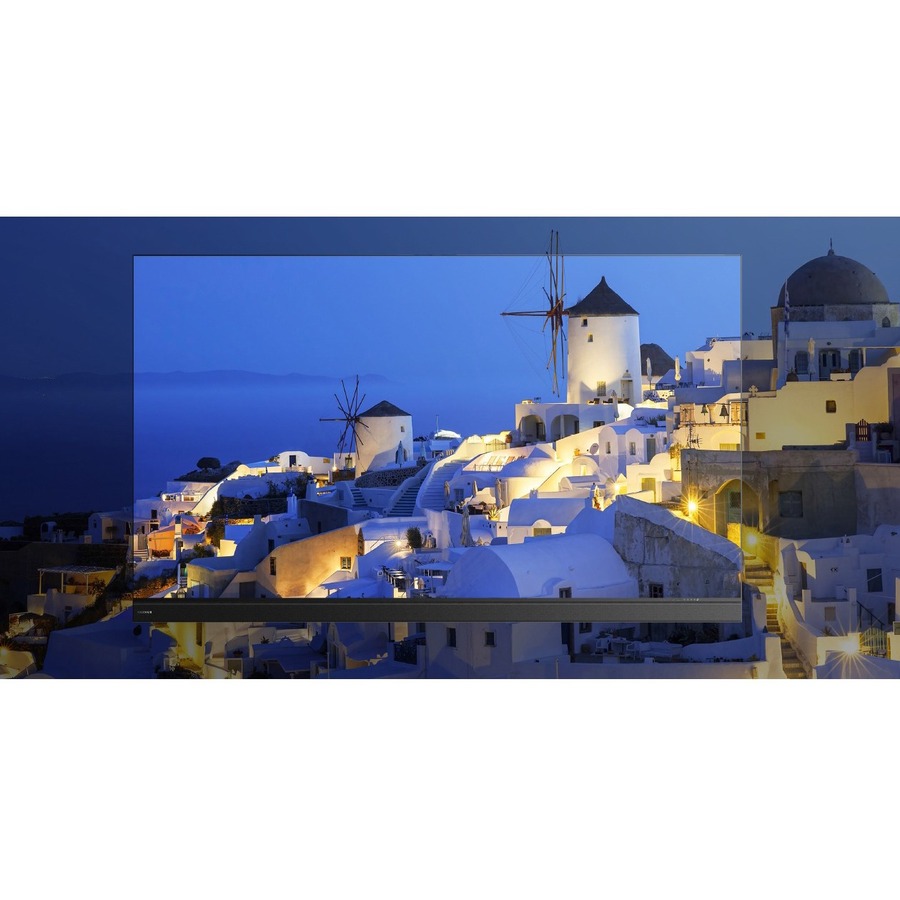

Stunning visuals to MAXimize your impact
The immersive 4K visuals, sensational color accuracy and amazing depth ensure an unforgettable impact, with class-leading brightness/contrast ratio.

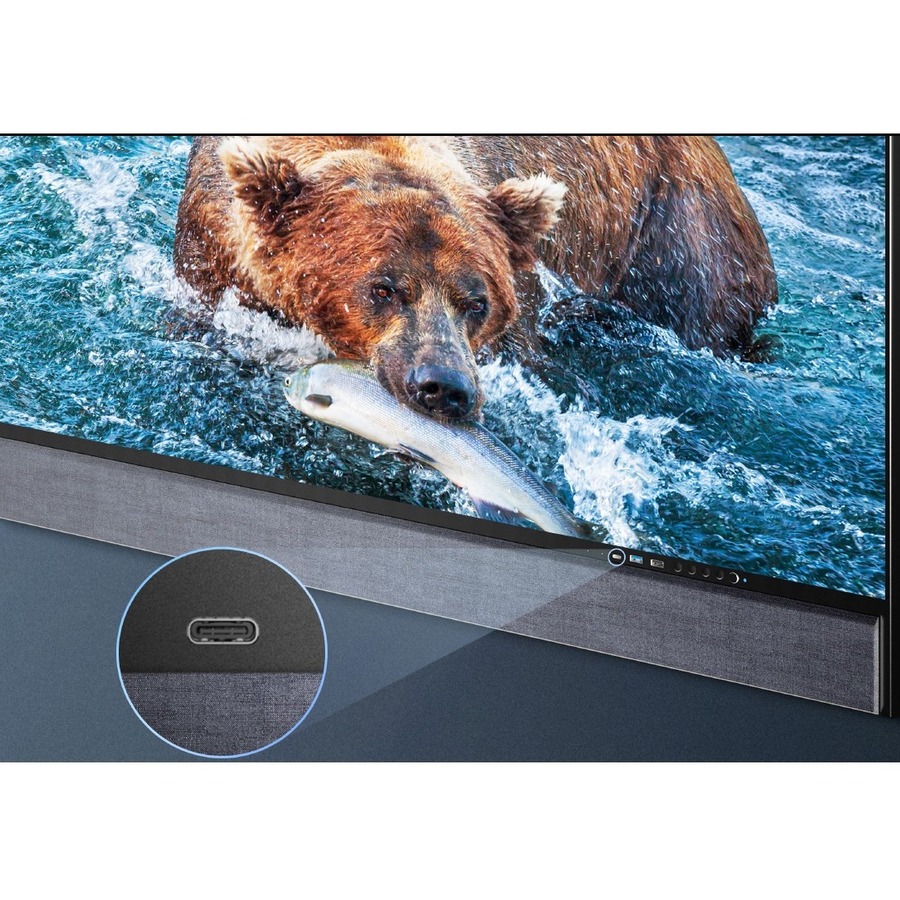

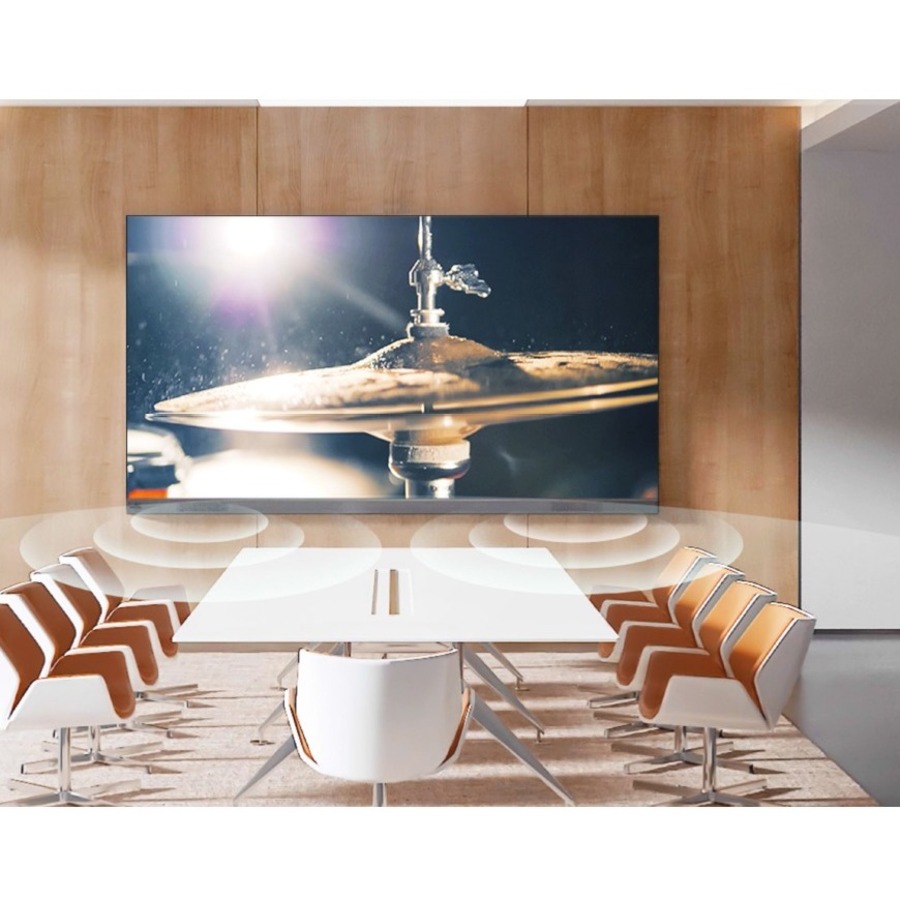

Amazing audio built-in
The MAXHUB Integrated LED Wall Raptor Series ensures exceptional audio quality with studio-grade, professionally tuned clarity every time.

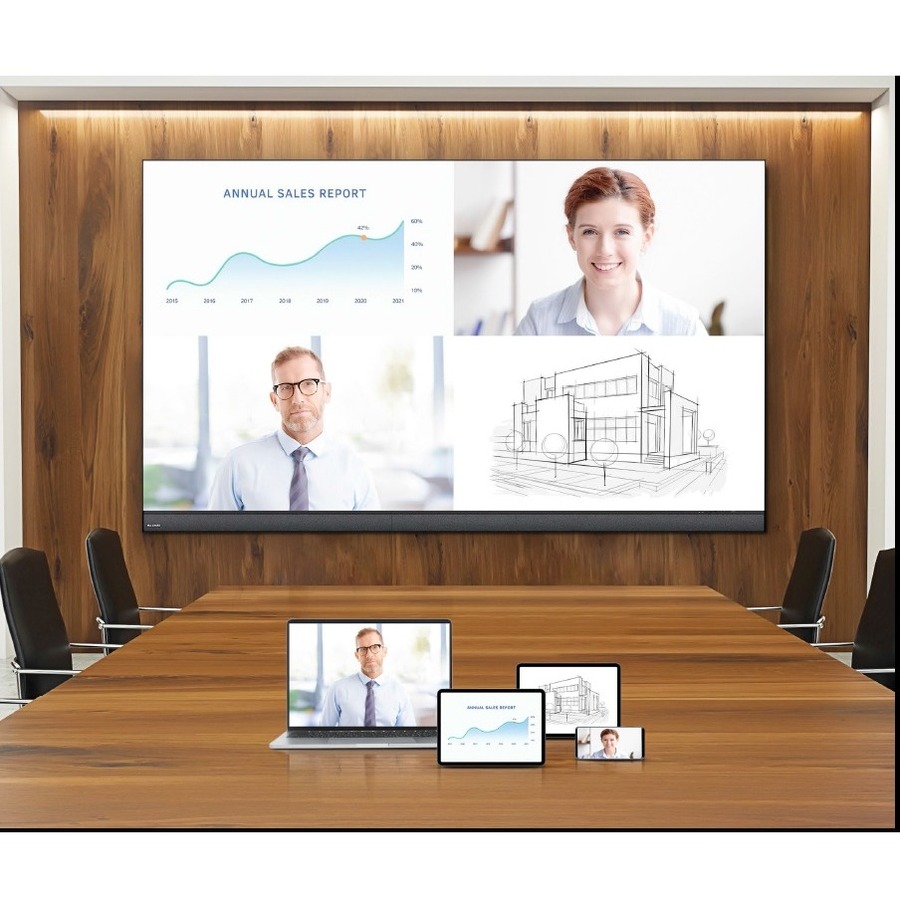

Collaborate quickly and easily
Ensure seamless connections through the most up-to-date operating systems and built-in sharing features.
Built-in Android 9.0
LAN screen-sharing for up to 4 windows
Low-latency stable mirroring support
MAXConfig software delivers exceptional control
Proprietary MAXConfig technology provides easy control and intuitive access to all interactive features through your personal device. You can even extend functionality to your third-party system.

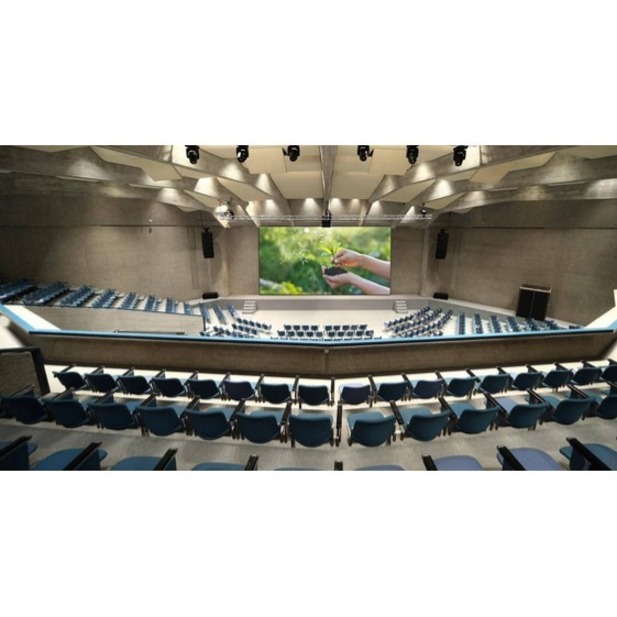

Multiple mounting indoor scenarios
- Ceiling-hanging

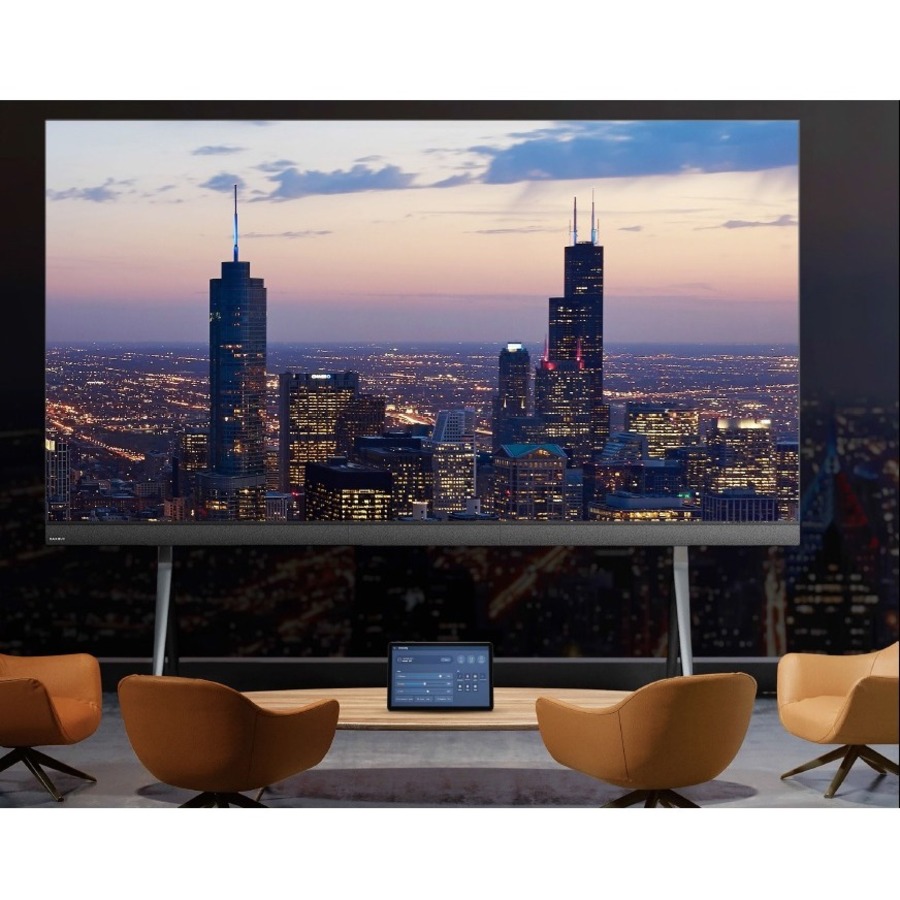

- Mobile Stand-mounting

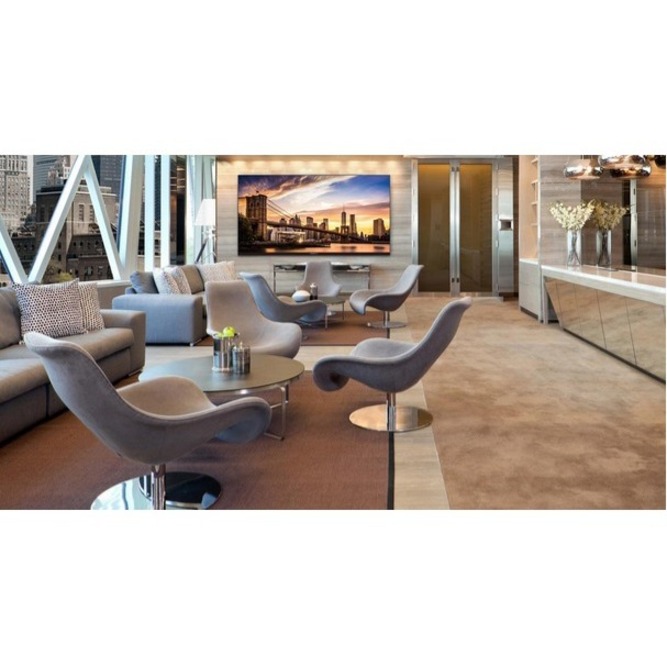

- Wall-mounting
| General Information | |
| Manufacturer | MAXHUB |
| Manufacturer Part Number | LM165A07 |
| Manufacturer Website Address | http://www.maxhub.com |
| Brand Name | MaxHub |
| Product Line | Raptor |
| Product Model | LM165A07 |
| Product Name | Raptor LM165A07 Collaboration Display |
| Product Type | Collaboration Display |
| Display & Graphics | |
| Screen Size | 165" |
| Display Screen Type | LCD |
| Backlight Technology | LED |
| Screen Mode | Full HD |
| Screen Resolution | 1920 x 1080 |
| Scan Format | 1080p |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 6,500:1 |
| Brightness | 550 Nit |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Audio | |
| Speakers | Yes |
| Number of Speakers | 2 |
| Network & Communication | |
| Ethernet | Yes |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of HDMI Inputs | 3 |
| Number of HDMI Outputs | 1 |
| Total Number of USB Ports | 2 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial | Yes |
| Software | |
| Operating System Platform | Android |
| Operating System | Android 9.0 Pie |
| Physical Characteristics | |
| Height | 85.6" |
| Width | 12.1 ft |
| Depth | 1.2" |
| Weight (Approximate) | 418.88 lb |
| Warranty | |
| Limited Warranty | 2 Year |
