ASROCK

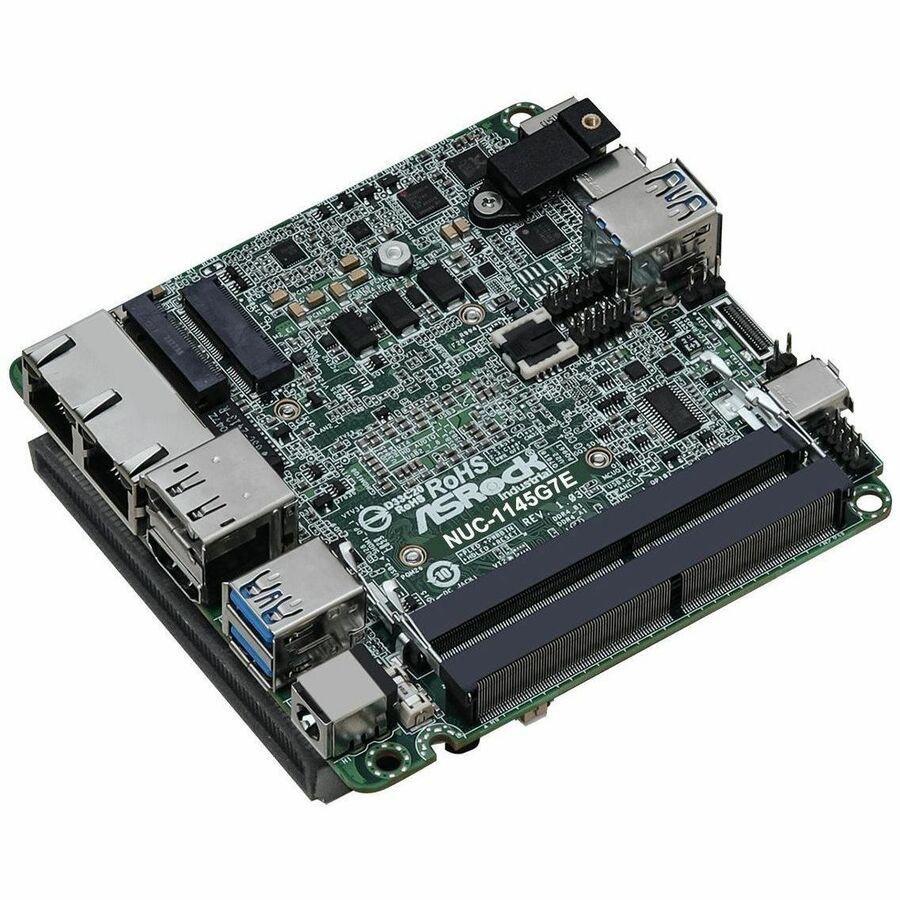

ASRock MB NUC-1145G7E MCP CI5-1145G7E Max64GB DDR4 HDMI DP NUC Brown Box
Mfg Part Number: NUC-1145G7E , Item #: 5031781
Image may not reflect the actual item.
Price: $960.06
+ Free Shipping
Quantity:
More to Come
Last Updated: May 08, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | ASRock, Inc |
| Manufacturer Part Number | NUC1145G7E |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | ASRock |
| Product Series | NUC 1100 |
| Product Model | NUC-1145G7E |
| Product Name | NUC 1100 NUC-1145G7E Industrial Motherboard |
| Product Type | Industrial Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 11th Gen |
| Processor Supported | Core i5 |
| Processor Supported | Core |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SoDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 3200 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |

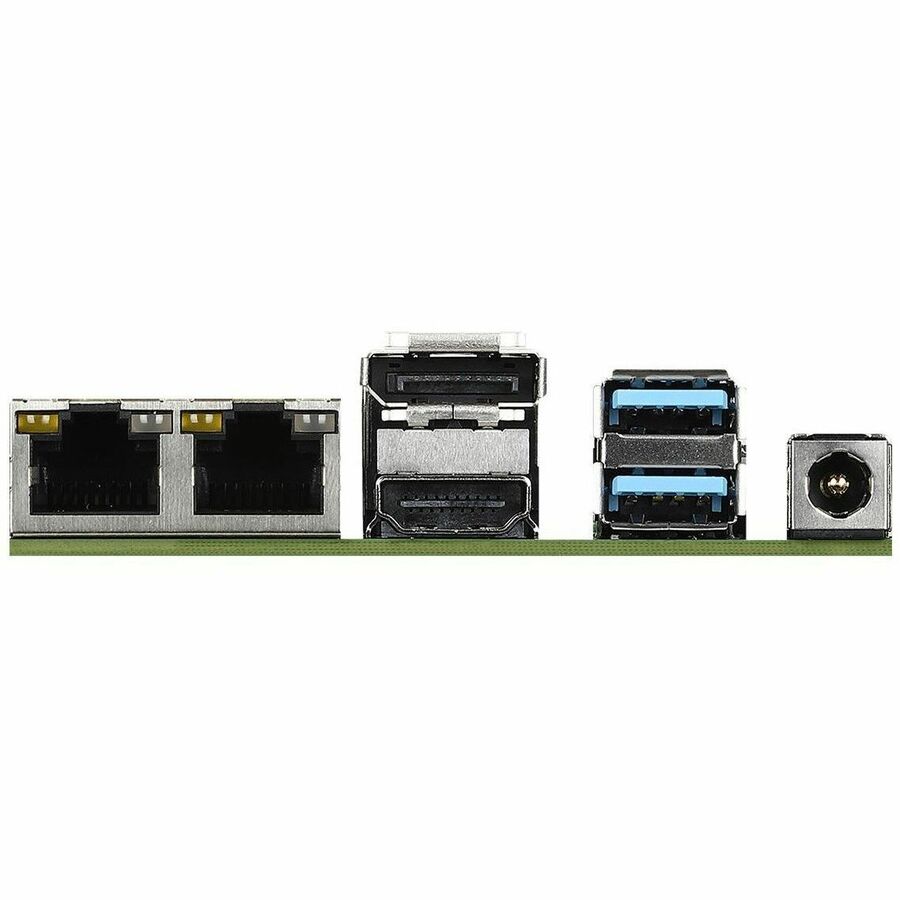

| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| HDMI | Yes |
| HDMI Version | 2.0a |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 1 |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | NUC |
| Height | 1.5" |
| Width | 4.1" |
| Depth | 4" |
| Miscellaneous | |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
