HPE

P69303-005 HPE ML110 G11 4410Y MR408I-O AMS SVR PL-78

Mfg Part Number:  P69303-005
Image may not reflect the actual item.
Price: $3,939.58 + Free Shipping
Quantity:
In Stock: 93
Last Updated: Jun 10, 2025
No Sales Tax except these states
, PO and Wire.

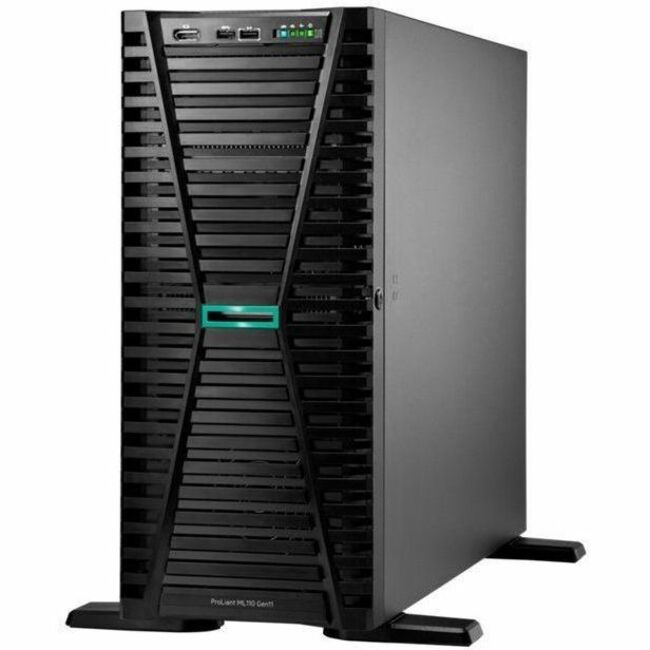

HPE ProLiant ML110 Gen11

Provide enhanced single processor and storage flexibility in a 4.5U 1P tower optimized server with optional rackable chassis, outstanding compute performance, security, reliability, and expandability at an affordable price. Fill a mid-range of workloads for small offices, remote and branch offices of large enterprises, growing SMBs and data centers with the power of 4th and 5th Gen Intel® Xeon® Scalable Processors (up to 32 cores) increased bandwidth with DDR5 and PCIe Gen5. HPE ProLiant ML110 Gen11 server is an excellent choice to accelerate your growing business.

Main Specification
General Information
Manufacturer Hewlett Packard Enterprise
Manufacturer Part Number P69303005
Manufacturer Website Address http://www.hpe.com
Brand Name HPE
Product Line ProLiant
Product Series ML110 G11
Product Name ProLiant ML110 Gen11 Server
Product Type Server
Processor
Number of Processors Supported 1
Number of Processors Installed 1
Processor Manufacturer Intel
Processor Type Xeon Silver
Processor Generation 4th Gen
Processor Model 4410Y
Processor Core Dodeca-core (12 Core)
Processor Speed 2 GHz
Cache 30 MB
Chipset
Chipset Manufacturer Intel
Chipset Model C741
Memory
Standard Memory 32 GB
Maximum Memory Supported 1 TB
Memory Technology DDR5 SDRAM
Error Checking ECC
Number of Occupied Memory Slots 1
Signal Processing Registered (Buffered)
Storage
Number of Solid State Drives 2
Total Solid State Drive Capacity 960 GB
Solid State Drive Interface Serial ATA/600
Solid State Drive Configuration 2 x 480GB
Controllers
Controller Type Serial Attached SCSI (SAS)
Controller Type Serial ATA
Controller Model MR408i-o
RAID Supported Yes
RAID Levels 0, 1, 5, 6, 10, 50, 60
I/O Expansions
Number of Total Expansion Bays 10
Number of External 5.25" Bays 1.0
Number of Internal 2.5" Bays 8
Number of Media Drive Bays 1
Number of SFF Bays 8
Hot Swappable Bays Yes
Total Number of Expansion Slots 2.0
PCI Express Details PCIe Gen5: 2 slots (x16), upgradable to 4 slots (x16); OCP3 with PCIe Gen5: 1 slot (x16)
Display & Graphics
Graphics Memory Capacity 16 MB
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports 5
Number of USB 2.0 Ports 1
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 2
VGA Yes
Number of VGA Ports 1
Remote Management Yes
Remote Management Controller HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)
DisplayPort Yes
Number of DisplayPorts 1
Operating System
Operating System Supported Ubuntu
Operating System Supported Oracle Linux
Operating System Supported Red Hat Enterprise Linux
Operating System Supported Windows Server
Operating System Supported Citrix XenServer
Operating System Supported SuSE Linux Enterprise Server
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Plug/Connector Type C13/C14
Maximum Power Supply Wattage 800 W
Redundant Power Supply Yes
Hot Swappable Power Supply Yes
Power Source Power Supply
Physical Characteristics
Form Factor Tower
Rack Height 4.5U
Height 18.2"
Width 7.7"
Depth 23.1"
Weight (Approximate) 66.80 lb
Miscellaneous
Security Features
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-3 validation (iLO 6 certification in progress)
  • Common Criteria certification (iLO 6 certification in progress)
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • Tamper-free updates -- components digitally signed and verified
  • Secure Recovery -- recover critical firmware to known good state on detection of compromised firmware
  • Ability to rollback firmware
  • Secure erase of NAND
  • TPM (Trusted Platform Module) 2.0
  • Front bezel key-lock feature -- standard, available in both Tower and Rack models
  • Padlock slot, standard
  • Kensington Lock slot, standard
Certifications & Standards
  • ACPI 6.4 Compliant
  • PCIe 5.0 Compliant
  • WOL Support
  • Microsoft® Logo certifications
  • Support for Microsoft Secure Code
  • PXE Support
  • VGA/Display Port
  • USB 3.2 Gen1 Compliant
  • USB 2.0 Compliant
  • OCP 3.0 SFF NIC Support
  • OCP 3.0 SFF Storage Support
  • Embedded TPM Support
  • Energy Star
  • SMBIOS 3.4
  • UEFI 2.7
  • UEFI Class 3 (Unified Extensible Firmware Interface Forum)
  • Redfish API
  • IPMI 2.0
  • Advanced Encryption Standard (AES)
  • Triple Data Encryption Standard (3DES)
  • SNMP v3
  • TLS 1.2
  • DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
  • DMTF Redfish support for SecureBoot Key Management
  • ACPI DSM Drive LED Management
  • Memory Page Retire Support
  • Retire old VMware Secure Boot Key
  • MCTP
  • I3C Engine
  • APML
  • Active Directory v1.0
  • ASHRAE A3/A4
Energy Star Yes
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 3 Year
Additional Warranty Information

Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
