P69302-005 HPE DL320 G11 5416S 1P 64G 8SFF AMS SVR PL-78

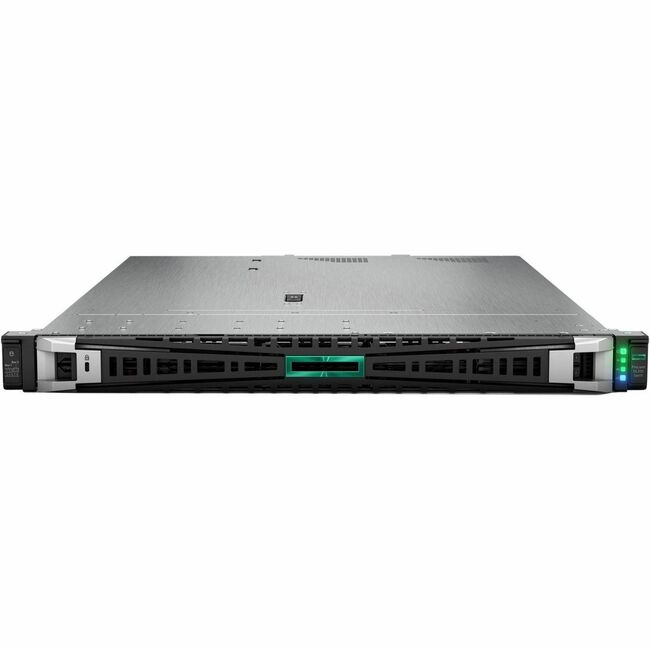

HPE ProLiant DL320 Gen11

Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads.

Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 60 cores and 270W, increased memory capability (up to 2 TB 5200 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	P69302005
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Line	ProLiant
Product Series	DL320 G11
Product Name	ProLiant DL320 G11 Server
Product Type	Server
Processor
Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	Xeon Gold
Processor Generation	4th Gen
Processor Model	5416S
Processor Core	Hexadeca-core (16 Core)
Processor Speed	2 GHz
Cache	30 MB
Chipset
Chipset Manufacturer	Intel
Chipset Model	C741
Memory
Standard Memory	64 GB
Maximum Memory Supported	2.04 TB
Memory Technology	DDR5 SDRAM
Error Checking	ECC
Total Number of Memory Slots	16
Number of Occupied Memory Slots	2
Signal Processing	Registered (Buffered)
Controllers
Controller Type	NVMe
Controller Model	NS204i-u
I/O Expansions
Number of Total Expansion Bays	9
Number of Internal 2.5" Bays	8
Number of Media Drive Bays	1
Number of SFF Bays	8
Hot Swappable Bays	Yes
Total Number of Expansion Slots	2
PCI Express Details	1 x16 FHHL PCIe Gen5; 1 OCP 3.0 Slot as default. 1 x16 FHHL PCIe Gen5 optional
Display & Graphics
Graphics Memory Capacity	16 MB
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	4
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	HPE iLO6
Operating System
Operating System Supported	Oracle Linux
Operating System Supported	SuSE Linux Enterprise Server
Operating System Supported	Red Hat Enterprise Linux
Operating System Supported	Windows Server
Operating System Supported	CentOS
Operating System Supported	Ubuntu
Operating System Supported	Citrix XenServer
Power Description
Input Voltage	230 V AC
Input Voltage	120 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Plug/Connector Type	C13/C14
Maximum Power Supply Wattage	800 W
Redundant Power Supply	Yes
Hot Swappable Power Supply	Yes
Power Source	Power Supply
Physical Characteristics
Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	17.1"
Depth	23.8"
Weight (Approximate)	36.84 lb
Miscellaneous
Package Contents	ProLiant DL320 G11 Server Rail Kit 6-foot IEC C-13/C-14 Jumper Cord
Security Features	UEFI Secure Boot and Secure Start support Tamper-free updates - components digitally signed and verified Immutable Silicon Root of Trust Ability to rollback firmware FIPS 140-2 validation Secure erase of NAND/User data Common Criteria certification Configurable for PCI DSS compliance Embedded TPM (Trusted Platform Module) 2.0. Excluded for shipments to China. Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Bezel Locking Kit option Support for Commercial National Security Algorithms (CNSA) Chassis Intrusion detection option Secure Recovery - recover critical firmware to a known good state on detection of compromised firmware
Energy Star	Yes
Environmentally Friendly	Yes
Energy Efficiency Certification	ENERGY STAR 4.0
Energy Efficiency Compliance	Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	3-year parts, 3-year labor, 3-year onsite support with next business day response.
