HPE

P69298-005 HPE DL360 GEN10+ 4310 1P 32G NC 8SFF SVR PL-78

Mfg Part Number:  P69298-005
Image may not reflect the actual item.
Price: $4,035.16 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Aug 20, 2025
No Sales Tax except these states
, PO and Wire.

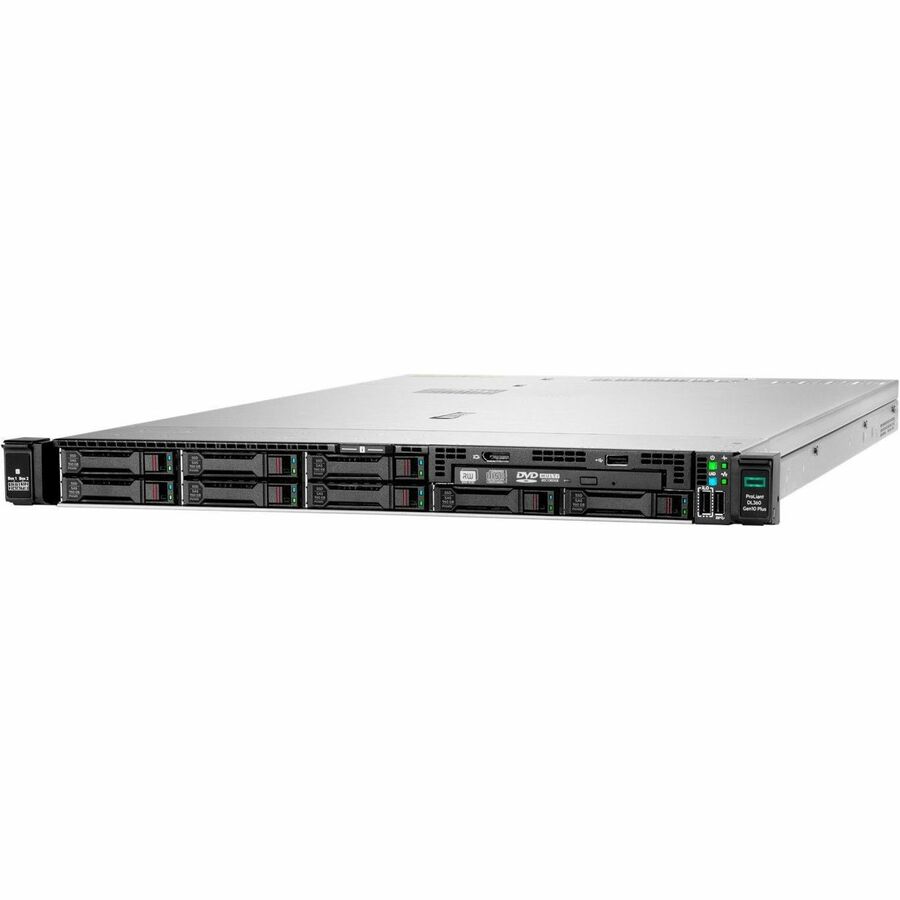

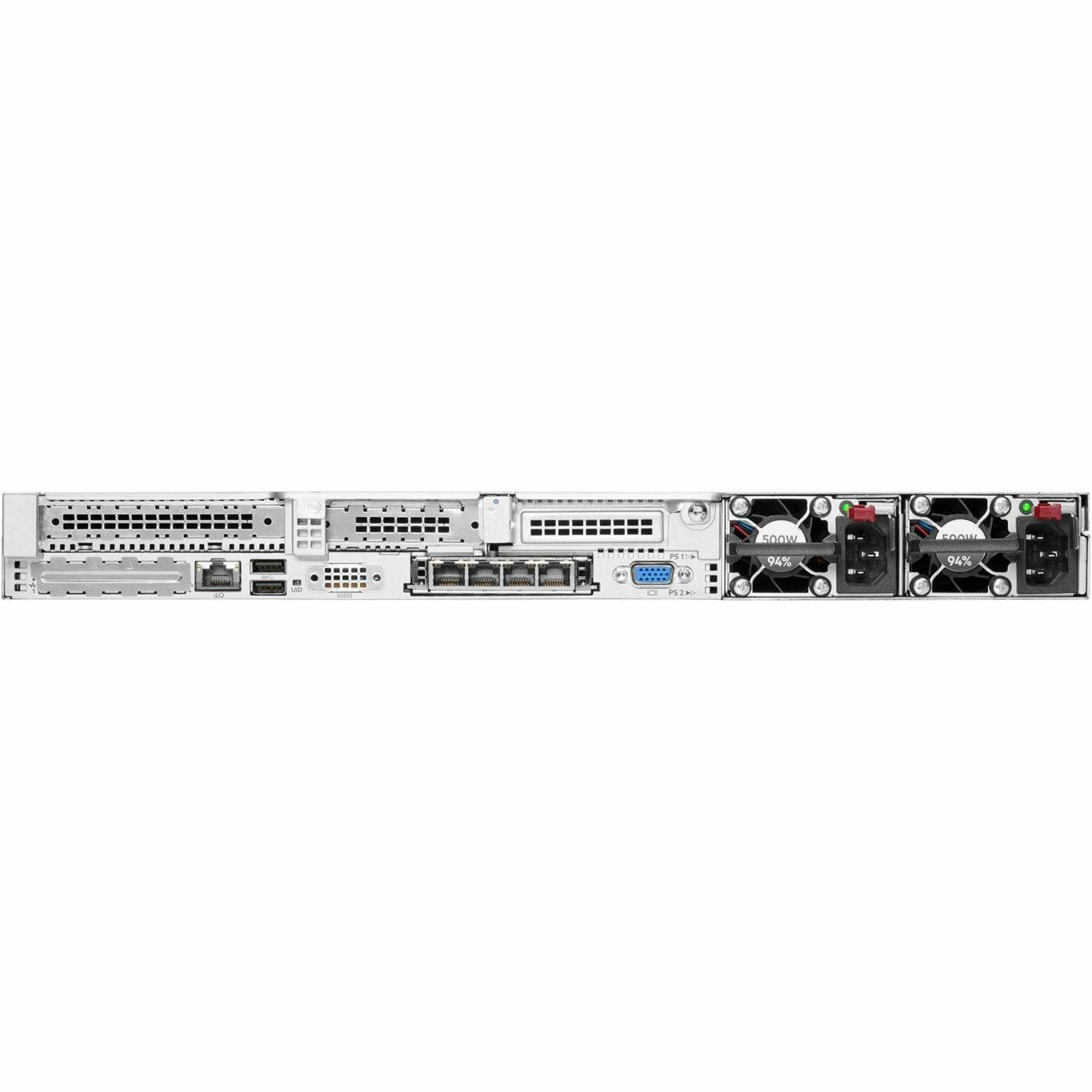

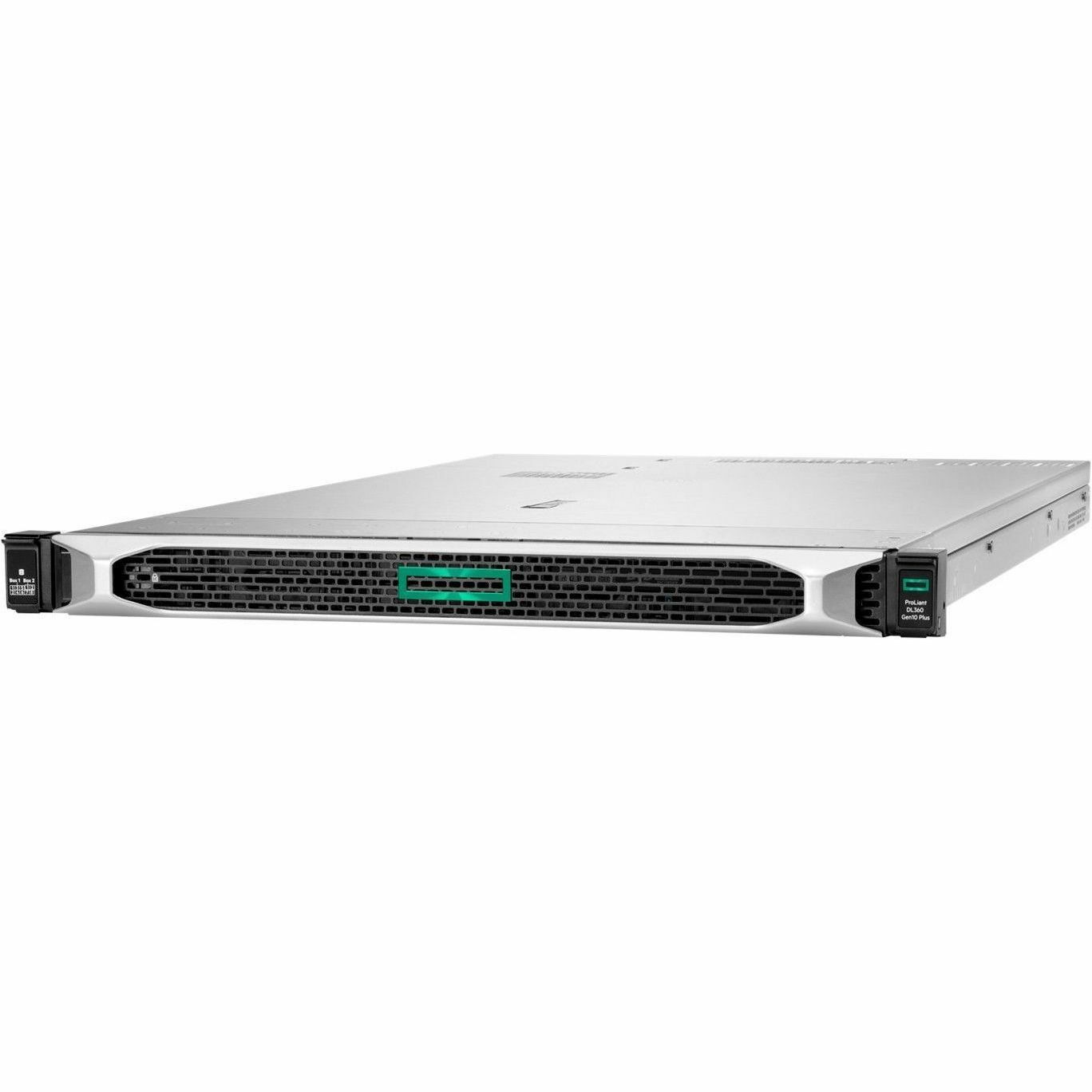

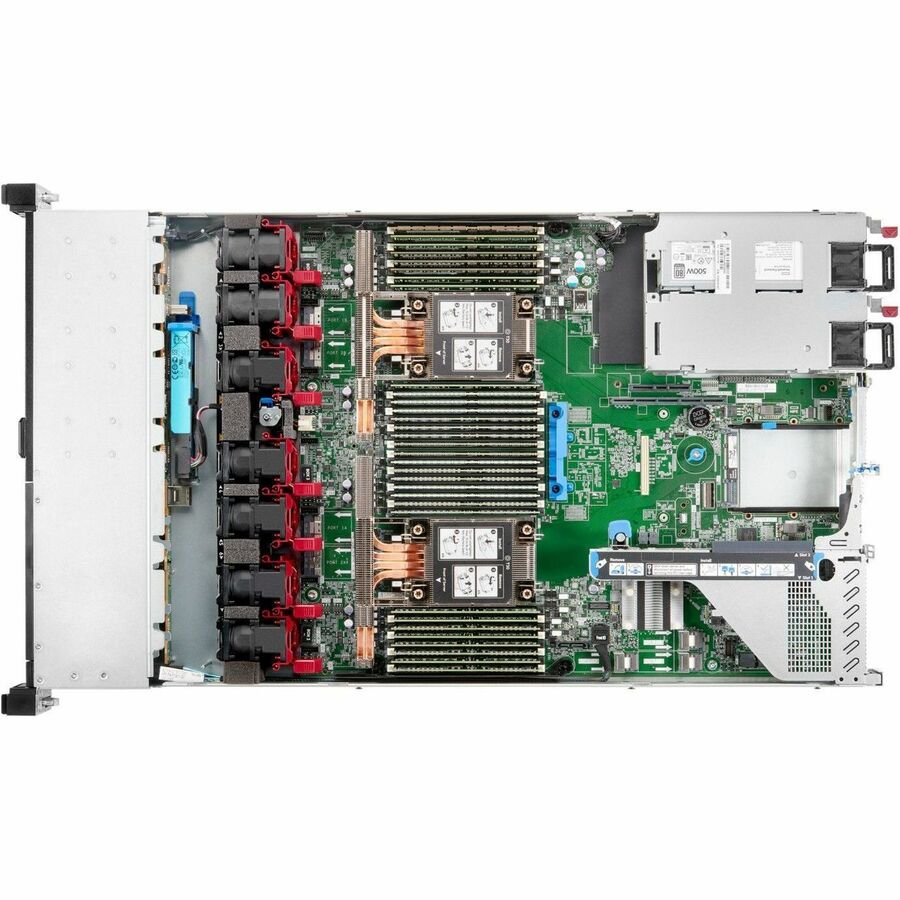

HPE ProLiant DL360 Gen10 Plus server

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized.

The HPE ProLiant DL360 Gen10 Plus server supports the 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores, plus 3200 MT/s HPE DDR4 Smart Memory up to 4.0 TB per socket. Introducing PCIe Gen4 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server complements Gen10 reach by delivering premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.

Main Specification
General Information
Manufacturer Hewlett Packard Enterprise
Manufacturer Part Number P69298005
Manufacturer Website Address http://www.hpe.com
Brand Name HPE
Product Line ProLiant
Product Series DL360 G10 Plus
Product Name ProLiant DL360 G10 Plus Server
Product Type Server
Processor
Number of Processors Supported 2
Number of Processors Installed 1
Processor Type Xeon Silver
Processor Generation 3rd Gen
Processor Model 4310
Processor Core Dodeca-core (12 Core)
Processor Speed 2.10 GHz
Cache 18 MB
Chipset
Chipset Manufacturer Intel
Chipset Model C621A
Memory
Standard Memory 32 GB
Maximum Memory Supported 2 TB
Memory Technology DDR4 SDRAM
Error Checking ECC
Number of Occupied Memory Slots 1
Intel Optane Memory Ready Yes
Signal Processing Registered (Buffered)
Controllers
Controller Type NVMe
Controller Model NS204i-p
I/O Expansions
Number of Total Expansion Bays 9
Number of Internal 2.5" Bays 8
Number of Media Drive Bays 1
Number of SFF Bays 8
Hot Swappable Bays Yes
Total Number of Expansion Slots 2
PCI Express Details 2 PCIe: 1 x16 FH, 1 x16 LP
Display & Graphics
Graphics Memory Capacity 16 MB
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports 5
Number of USB 3.0 Ports 5
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 4
VGA Yes
Number of VGA Ports 1
Remote Management Yes
Remote Management Controller HPE iLO 5
Operating System
Operating System Supported Hyper-V
Operating System Supported Windows Server 2019 Datacenter
Operating System Supported Windows Server 2019 Essentials
Operating System Supported Windows Server 2016 Datacenter
Operating System Supported Windows Server 2022 Standard
Operating System Supported Windows Server 2022 Essentials
Operating System Supported Red Hat Enterprise Linux 7.9
Operating System Supported Oracle Linux 8.2
Operating System Supported Ubuntu 20.04 LTS x64
Operating System Supported SUSE Linux Enterprise Server 12 SP5
Operating System Supported Windows Server 2022 Datacenter
Operating System Supported Windows Server 2016 Essential
Operating System Supported SUSE Linux Enterprise Server 15 SP2
Operating System Supported Oracle Linux
Operating System Supported Oracle Linux 7.9
Operating System Supported Red Hat Enterprise Linux 8.2
Operating System Supported Windows Server 2019 Standard
Operating System Supported Windows Server 2016 Standard
Power Description
Input Voltage 230 V AC
Input Voltage 120 V AC
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Plug/Connector Type C13/C14
Maximum Power Supply Wattage 800 W
Redundant Power Supply Yes
Hot Swappable Power Supply Yes
Power Source Power Supply
Physical Characteristics
Form Factor Rack
Rack Height 1U
Height 1.7"
Width 17.1"
Depth 29.2"
Weight (Approximate) 39.93 lb
Miscellaneous
Package Contents
  • ProLiant DL360 G10 Plus Server
  • Easy Install Rail Kit
  • 6-Foot IEC C-13/C-14 Jumper Cord
Security Features
  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-2 validation
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
  • Support for Commercial National Security Algorithms (CNSA)
  • iLO Security Modes
  • Granular control over iLO interfaces
  • Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
  • Tamper-free updates - components digitally signed and verified
  • Secure Recovery - recover critical firmware to known good state on detection of compromised FW
  • Ability to rollback firmware
  • Secure erase of NAND
  • TPM (Trusted Platform Module)
  • Bezel Locking Kit
Energy Star Yes
Environmentally Friendly Yes
Energy Efficiency Certification ENERGY STAR 4.0
Energy Efficiency Compliance Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 3 Year
Additional Warranty Information

3-year parts, 3-year labor, 3-year onsite support with next business day response.
