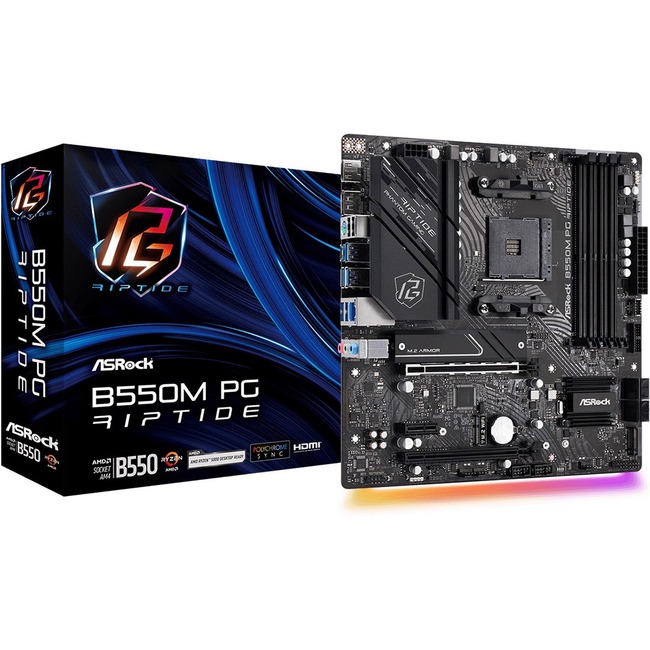

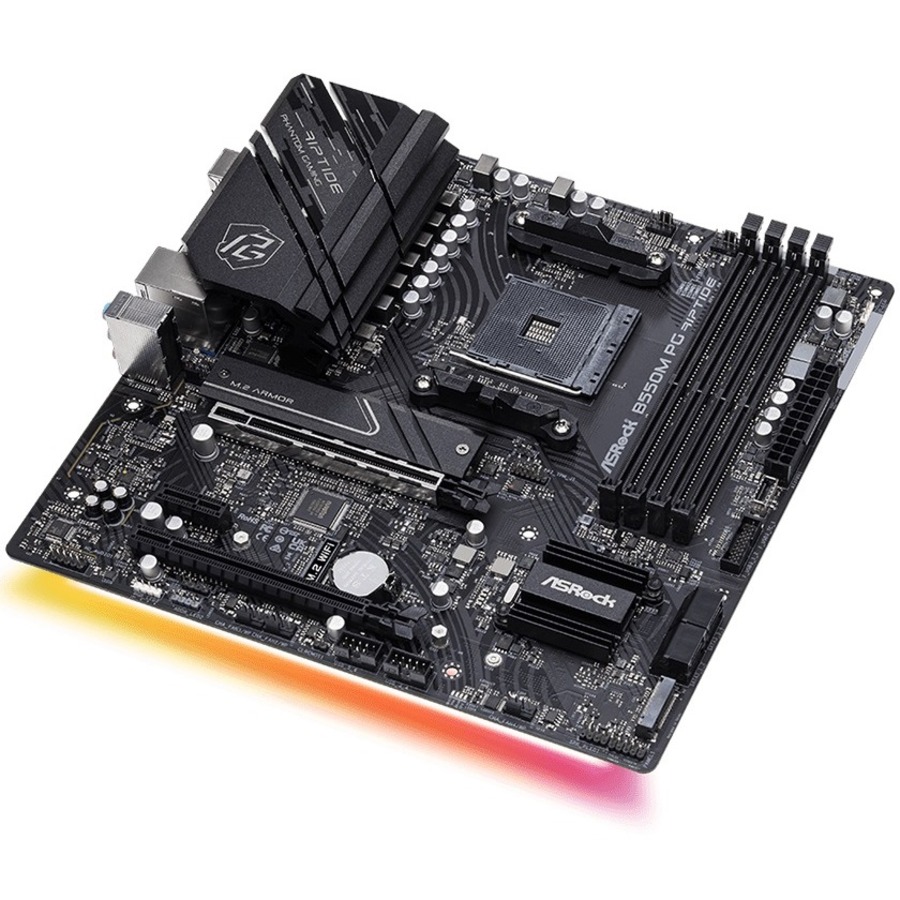

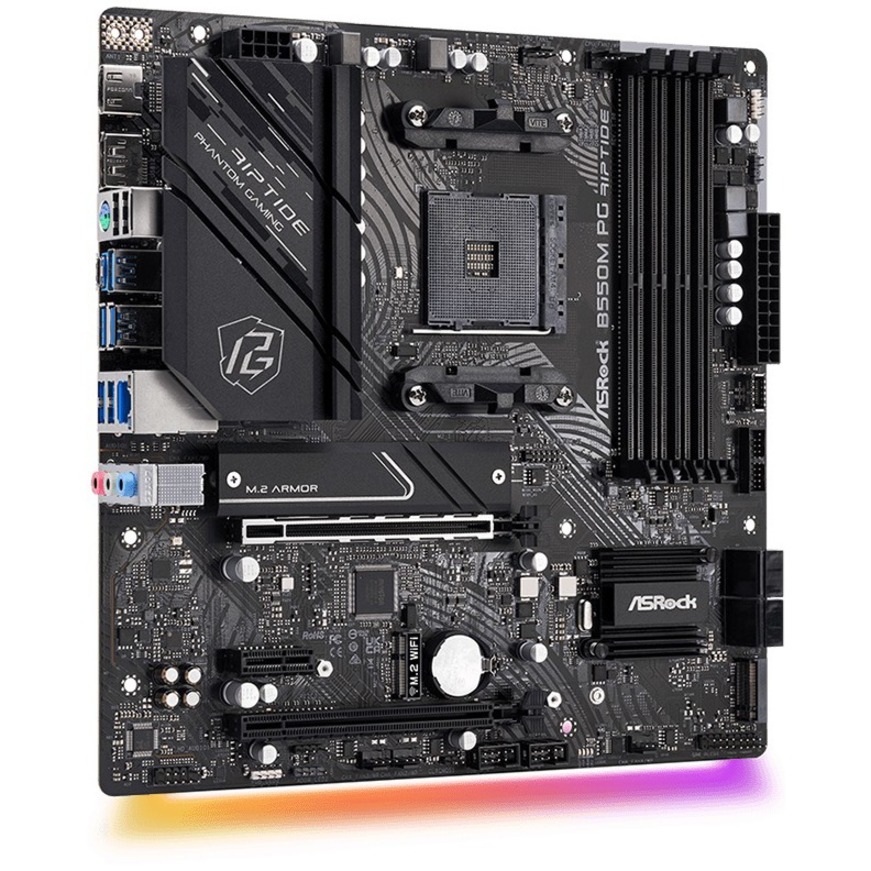

ASRock MB B550M PG RIPTIDE B550 AMD AM4 Max128GB DDR4 PCIe Micro ATX Retail

• Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors
• 8 Phase, Digi Power, Dr. MOS
• Supports DDR4 4733+ (OC)
• 1 PCIe 4.0 x16 Slot, 1 PCIe 3.0 x16 Slots,
  1 PCIe 3.0 x1 Slot, 1 M.2 Key E for Wi-Fi
• Graphics Outputs: 1 HDMI, 1 DisplayPort
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec),
  Nahimic Audio
• 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
  1 M.2 (PCIe Gen3 x2 & SATA3)
• 2 Rear USB 3.2 Gen2 (Type-A + Type-C)
  1 Front USB 3.2 Gen1 Type-C
  6 USB 3.2 Gen1 (4 Rear, 2 Front)
  6 USB 2.0 (2 Rear, 4 Front)
• Phantom Gaming 2.5G LAN

Riptide is named after a specific kind of water current with strong waves that occurs in the ocean, representing the philosophy of sea's double-side, calm and unlimited strength. Built around powerful gaming-related features, the Riptide has given a powerful smash and immersed users in the sense of stability.

Optimized VRM Design | Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Nahimic Audio | Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

POLYCHROME RGB

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Lightning Gaming Ports

Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!

Phantom Gaming 2.5 Gb/s LAN

The intelligent Phantom Gaming 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

High Speed M.2 Solution

This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

General Information
Manufacturer	ASRock, Inc
Manufacturer Part Number	B550M PG RIPTIDE
Manufacturer Website Address	http://www.asrock.com
Brand Name	ASRock
Product Model	B550M PG Riptide
Product Name	B550M PG Riptide Desktop Motherboard
Product Type	Desktop Motherboard
Processor & Chipset
Chipset Manufacturer	AMD
Chipset Model	B550
Total Processor Supported	1
Processor Socket	Socket AM4
Processor Supported	Ryzen 7
Processor Supported	Ryzen 7 PRO
Processor Supported	Ryzen 9
Processor Supported	Ryzen 5 Pro
Processor Supported	Ryzen 9 PRO
Processor Supported	Ryzen 3 PRO
Processor Supported	Ryzen 5
Processor Supported	Ryzen 3
Multi GPU Supported	CrossFireX
Memory
Number of Memory Slots	4
Memory Form Factor	DIMM
Memory Form Factor	UDIMM
Maximum Memory Supported	128 GB
Memory Technology	DDR4 SDRAM
Memory Speed Supported	4733 MHz
Memory Speed Supported	4200 MHz
Memory Speed Supported	4266 MHz
Memory Speed Supported	4666 MHz
Memory Speed Supported	3733 MHz
Memory Speed Supported	3466 MHz
Memory Speed Supported	3200 MHz
Memory Speed Supported	2933 MHz
Memory Speed Supported	4333 MHz
Memory Speed Supported	4600 MHz
Memory Speed Supported	2133 MHz
Memory Speed Supported	3800 MHz
Memory Speed Supported	4000 MHz
Memory Speed Supported	4400 MHz
Memory Speed Supported	2667 MHz
Memory Speed Supported	2400 MHz
Memory Speed Supported	3866 MHz
Memory Speed Supported	4533 MHz
Memory Speed Supported	4466 MHz
Memory Speed Supported	3600 MHz
Memory Speed Supported	4133 MHz
I/O Controller
Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	1
RAID Levels	10
RAID Levels	0
Video
Onboard Video	CPU Dependent Video
Audio
Audio Channels	7.1
Network & Communication
2.5Gigabit Ethernet	Yes
I/O Expansions
Total Number of Expansion Slots	3
Total Number of PCI Express Slots	3
Number of PCI Express x1 Slots	1
Number of PCI Express x16 Slots	2
Interfaces/Ports
Total Number of USB Ports	8
Number of USB 2.0 Ports	2
Number of USB 3.2 Ports	1
Number of USB 3.2 Gen 1 Ports	4
Number of USB 3.2 Gen 2 Type-A Ports	1
HDMI	Yes
DisplayPort	Yes
Number of Network (RJ-45) Ports	1
Onboard Interfaces
Number of SATA Interfaces	4
Number of M.2 Interfaces	3
Total Number of Onboard USB Ports	7
Number of Onboard USB 2.0 Ports	4
Number of Onboard USB 3.2 Ports	3
Physical Characteristics
Color Family	Black
Product Color	Matte Black
Form Factor	Micro ATX
Width	9.6"
Depth	9.6"
