SAMSUNG

SAMSUNG LH008IABMUS/GO IAB 146 4K THE WALL ALL-IN-ONE

Mfg Part Number:  LH008IABMUS/GO
Image may not reflect the actual item.
Price: $206,368.68 + Free Shipping
Quantity:
More to Come
Last Updated: Jun 07, 2025
No Sales Tax except these states
, PO and Wire.

Pure perfection on a deeper level | Black Seal Technology

A deep black background blankets the screen with accurate uniformity, creating a seamless canvas for purer black levels. The enhanced depth delivers unparalleled contrast and immaculate detail.

Superior color purity | Ultra Chroma Technology

Lavish, vibrant colors bring every scene to life for a superior immersive experience. Narrower wavelengths produce RGB colors two times purer and more accurate than conventional LEDs.

Installation, drastically simplified

The installation process for The Wall All-in-One is so efficient that it can be completed in as little as two hours, depending upon the size of your display. Now it's easier than ever to have your home theater up and running in no time flat.

Auto configuration setup | Built-in Control Box

The control box for The Wall All-in-One is built into the display, which enables you to have the display up and running quickly, with no concerns about the configuration process.

Critical decisions without complexity | Simple Choice

Purchase The Wall All-in-One based on two simple factors: size and resolution. With streamlined pricing, you need not even consider complex elements traditionally associated with LED Displays, such as pixel pitch or configuration.

No extra peripherals needed | All-inclusive Components

The Wall All-in-One includes everything you need to begin enjoying the viewing experience-from the control box and wall brackets to speakers and deco bezels.

Colors mapped to perfection | 20bit Processing


The Wall All-in-One offers 20bit processing to present precise color mapping with faultless accuracy. Deeper bit depth at low grayscale also delivers extraordinary contrast ratio and smooth, natural tones.


Main Specification
General Information
Manufacturer Samsung
Manufacturer Part Number LH008IABMUSGO
Manufacturer Website Address http://www.samsung.com/us
Brand Name Samsung
Product Series IA
Product Model IAB 146 4K
Product Name The Wall All-in-One 146" (4K)
Product Type Digital Signage Display
Technical Information
Video Wall Compatible Yes
Ingress Protection (IP) Rating IP20
Maximum Heat Generation 6119.3 kJ
Processor & Chipset
Processor Type Neural Quantum Processor 4K
Display & Graphics
Number of Screens 192
Screen Size 146"
Display Screen Type LCD
Display Resolution 3840 x 2160
Graphics Modes 4K UHD
High Dynamic Range (HDR) Yes
High Dynamic Range (HDR) Type HDR10+
High Dynamic Range (HDR) Type LED HDR
High Dynamic Range (HDR) Type HDR10
Pixel Pitch 33.1 mil
Backlight Technology LED
Number of Modules Per Cabinet 16x12
Maximum LED Life 17.1 Year
Video
Scan Format 2160p
Standard Refresh Rate 120 Hz
Dynamic Contrast Ratio 24,000:1
Color Depth 20-bit
Brightness 1600 Nit
Network & Communication
Ethernet Yes
Wireless LAN No
Bluetooth No

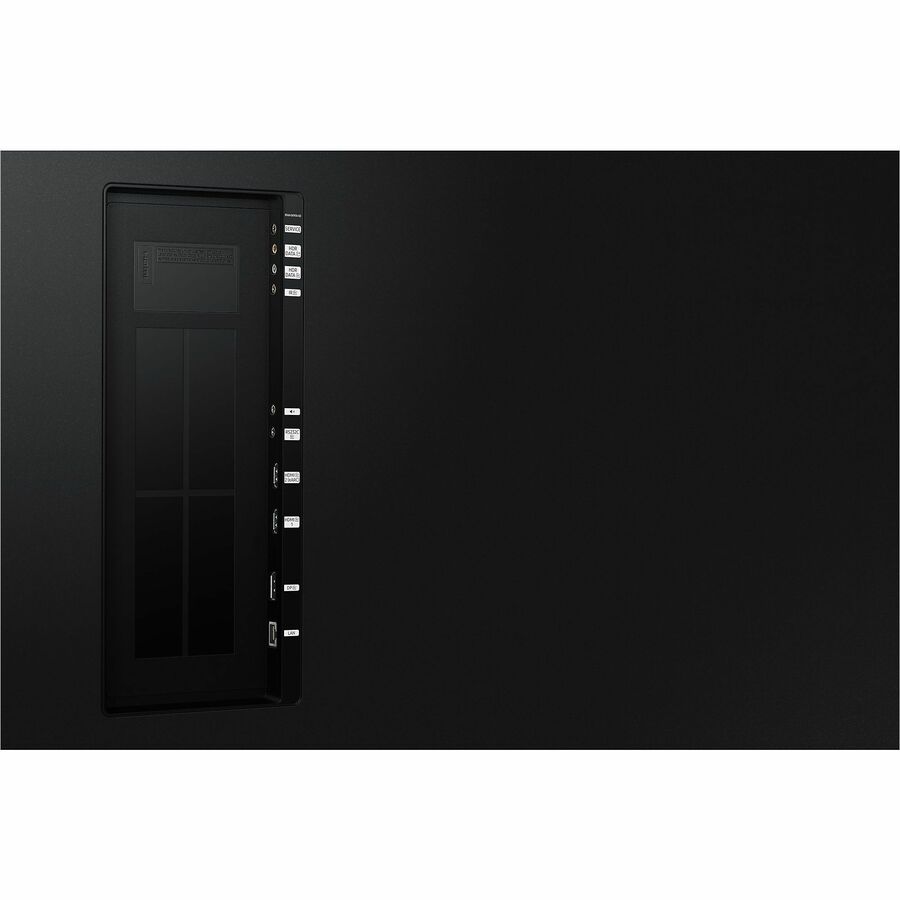

Interfaces/Ports
USB Yes
HDMI Yes
DisplayPort Yes
Serial Yes
Number of USB 2.0 Ports 2
Number of HDMI Inputs 3
Number of DisplayPorts 1
RS-232C Input Yes
Number of HDMI 2.0 Ports 3
Number of DisplayPort 1.2 Ports 1
Software
Operating System Tizen 6.5
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Minimum Storage Temperature -4°F (-20°C)
Maximum Storage Temperature 113°F (45°C)
Minimum Operating Humidity 10%
Maximum Operating Humidity 80%
Minimum Storage Humidity 5%
Maximum Storage Humidity 95%
Physical Characteristics
Mount Type Bracket Mount
Mount Type Wall Mountable
Installation Type Hanging
Height 2.8"
Width 5"
Depth 0.1"
Weight (Approximate) 370.38 lb
Miscellaneous
Package Contents
  • The Wall All-in-One 146" (4K)
  • Décor Frame
  • Frame Kit
  • Buffer parts (18 Modules, 1 T-Con, 1 SMPS)
  • IR Remote Controller
